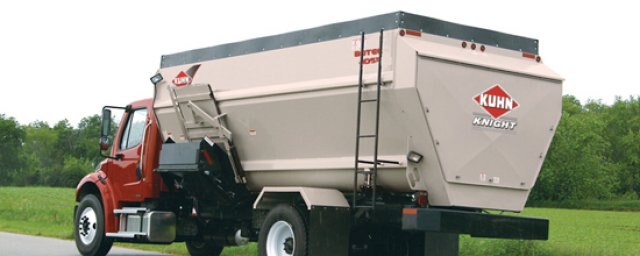

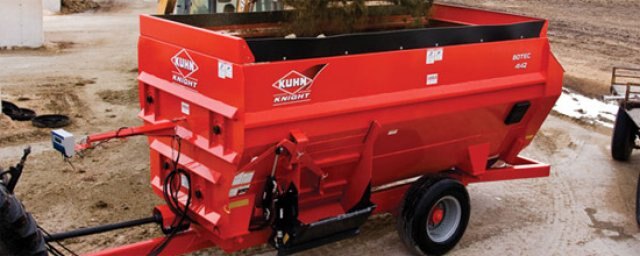

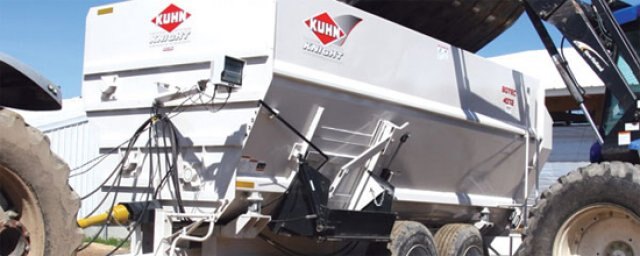

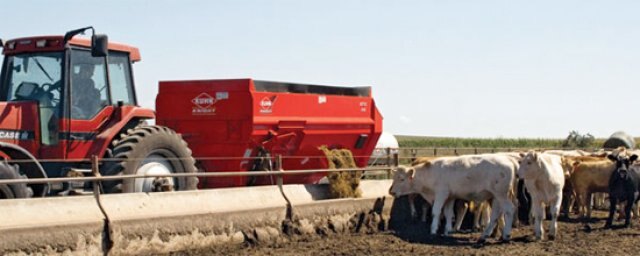

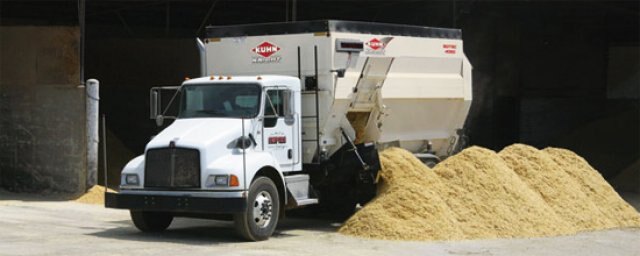

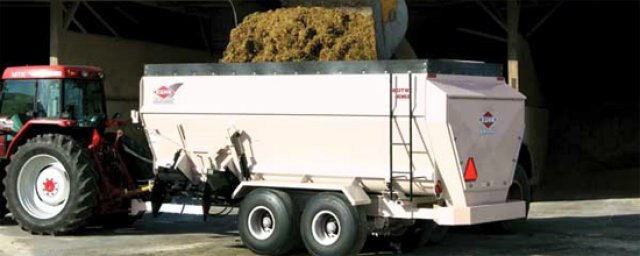

With the most complete TMR mixer line on the market today, Kuhn North America has the right mixer to meet your needs, whether you are mixing 100% hay or 100% grain or any ration in between. The Reel Auggie and Commercial Reel Mixers provide superior mix quality. Vertical Maxx Mixers mix the widest variety of feedstuffs, including round bales. The 4-Auger machines allow incorporation of up to 50% alfalfa hay and require less horsepower than other types of mixers.
|
Features |
| |
| |
Specifications |
4136 |
4142 |
4052 |
4063 |
4072 |
4090 |
| |
Capacity - no extensions (m3) |
10.2 |
11.9 |
14.9 |
17.8 |
20.4 |
25.5 |
| |
Capacity - no extensions (cu.ft) |
360 |
420 |
525 |
630 |
720 |
900 |
| |
Number of augers |
4 |
4 |
4 |
4 |
4 |
4 |
| |
Overall height - no extensions (cm) |
249 |
249 |
259 |
279 |
300 |
325 |
| |
Overall height - no extensions (in) |
98 |
98 |
102 |
110 |
118 |
128 |
| |
Overall width - without options (cm) |
229 |
229 |
244 |
244 |
244 |
259 |
| |
Overall width - without options (in) |
90 |
90 |
96 |
96 |
96 |
102 |
| |
Tread width (cm) |
221 |
221 |
234 |
234 |
234 |
234 |
| |
Tread width (in) |
87 |
87 |
92 |
92 |
92 |
92 |
| |
Weight (kg) |
4264 |
4690 |
7496 |
8618 |
8918 |
9911 |
| |
Weight (lb) |
9400 |
10340 |
16526 |
19000 |
19660 |
21850 |
| |
Drive |
Planetary |
Planetary |
Planetary |
Planetary |
Planetary |
Planetary |
| |
PTO speed (rpm) |
540 / 1000 |
540 / 1000 |
540 / 1000 |
540 / 1000 |
540 / 1000 |
540 / 1000 |
| |
Minimum power requirement for PTO (kW) |
45 |
60 |
75 |
82 |
89 |
89 |
| |
Minimum power requirement for PTO (hp) |
60 |
80 |
100 |
110 |
120 |
120 |
| |
Maximum load (kg) |
4899 |
5715 |
7144 |
8573 |
9798 |
12247 |
| |
Maximum load (lb) |
10800 |
12600 |
15750 |
18900 |
21600 |
27000 |
| |
Door opening (h x w, cm) |
80 x 82 |
80 x 82 |
80 x 91 |
80 x 91 |
80 x 91 |
96.5 x 91 |
| |
Door opening (h x w, in) |
31.5 x 32.25 |
31.5 x 32.25 |
31.5 x 36 |
31.5 x 36 |
31.5 x 36 |
38 x 36 |
| |
Auger diameter - lower (cm) |
61 |
61 |
71 |
71 |
71 |
71 |
| |
Auger diameter - lower (in) |
24 |
24 |
28 |
28 |
28 |
28 |
| |
Auger diameter - upper (cm) |
61 |
61 |
71 |
71 |
71 |
71 |
| |
Auger diameter - upper (in) |
24 |
24 |
28 |
28 |
28 |
28 | |
|
| |
|
| |
