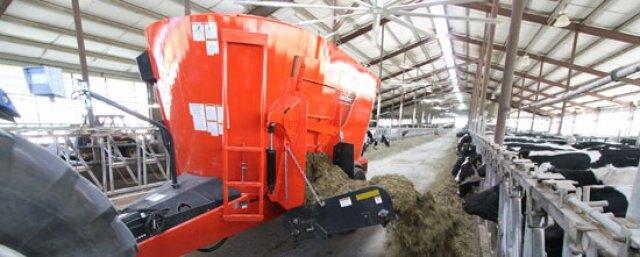

With the most complete TMR mixer line on the market today, Kuhn North America has the right mixer to meet your needs, whether you are mixing 100% hay or 100% grain or any ration in between. The Reel Auggie and Commercial Reel Mixers provide superior mix quality. Vertical Maxx Mixers mix the widest variety of feedstuffs, including round bales. The 4-Auger machines allow incorporation of up to 50% alfalfa hay and require less horsepower than other types of mixers.

Features

Specifications VT 132 VT 144 VT 156 VT 168 VT 180 VT 1100 VTC 180 VTC 1100 VTC 1120   Capacity - no extensions (m3) 9 12.5 16 19 23 28 23 28 34   Capacity - no extensions (cu.ft) 320 440 560 680 800 1000 800 1000 1200   Number of augers 2 2 2 2 2 2 2 2 2   Overall height - no extensions (cm) 229 257 259 279 279 318 279 318 358   Overall height - no extensions (in) 90 101 102 110 110 125 110 125 141   Overall width - without options (cm) - - - - 297 302 297 302 302   Overall width - without options (in) - - - - 117 119 117 119 119   Tread width (cm) 224 244 264 264 267 267 267 267 267   Tread width (in) 88 96 104 104 105 105 105 105 105   Weight (kg) 4082 4536 5897 6350 9225 10478 10070 11022 11975   Weight (lb) 9000 10000 13000 14000 21000 23100 22200 24300 26400   Drive Planetary Planetary Planetary Planetary Planetary Planetary Planetary Planetary Planetary   PTO speed (rpm) 540 540 1000 1000 1000 1000 1000 1000 1000   Minimum power requirement for PTO (kW) 56 67 82 90 104 112 104 112 127   Minimum power requirement for PTO (hp) 75 90 110 120 140 150 140 150 170   Maximum load (kg) 4899 4899 8573 10342 11975 14696 11975 14969 17962   Maximum load (lb) 10800 10800 18900 22800 26400 33000 26400 33000 39600   Door opening (h x w, cm) - - - - 122 x 102 122 x 102 122 x 102 122 x 102 122 x 102   Door opening (h x w, in) - - - - 48 x 40 48 x 40 48 x 40 48 x 40 48 x 40   Auger Diameters (cm) 175.3 175.3 218.4 218.4 264 264 264 264 264   Auger Diameters (in) 69 69 86 86 104 104 104 104 104
