Kuhn provides a wide variety of hay-gathering tools giving you the ability to put up better quality hay. Rotary rakes speed hay drying by making fluffy, light and uniform windrows that dry faster. These windrows are easier to pick up with today’s high-capacity Balers and forage harvesters. Mergers help ensure the production of high-quality hay by gentle handling, minimal leaf loss, reduced contamination and a fluffy windrow for better forage harvesting. Wheel rakes provide an economical way to quickly rake hay so you can put up hay fast.
|
Features |
| |
| |
Specifications |

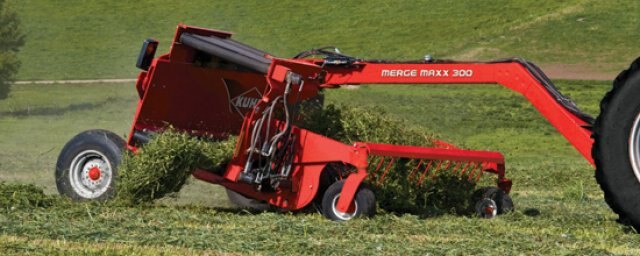

MERGE MAXX 300 |

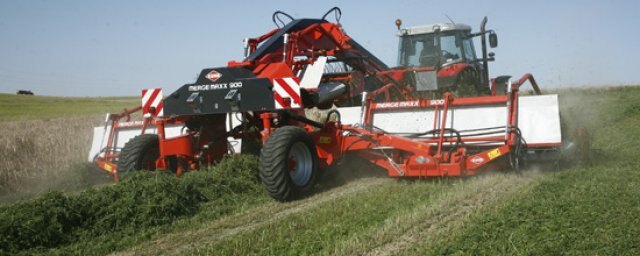

MERGE MAXX 900 |
| |
Working width (feet) |
9'6" |
- |
| |
Working width (m) |
2.85 |
- |
| |
Minimum Windrow Width (cm) |
- |
120 |
| |
Swath delivery |
- |
1 central windrow or 1 lateral windrow to the left or right or 2 windrows |
| |
Conveyor lenght - with extension conveyor (m) |
4.8 |
- |
| |
Conveyor lenght - with extension conveyor (feet) |
15'9" |
- |
| |
Conveyor shift (hydraulic or manual) (cm) |
61 |
- |
| |
Conveyor shift (hydraulic or manual) (feet) |
2' |
- |
| |
Overall length (m) |
- |
7.1 |
| |
Drive |
- |
Hydraulic |
| |
Tire type |
- |
400/55-22.5 or 500/45-22.5 |
| |
Transport Height (m) |
- |
3.9 |
| |
Transport width (feet) |
12'6" |
- |
| |
Transport lenght (m) |
4.7 |
- |
| |
Transport lenght (feet) |
15'8" |
- |
| |
Overall Field Position Width - cross conveyor shifted in (m) |
4.6 |
- |
| |
Overall Field Position Width - cross conveyor shifted in (feet) |
15'3" |
- |
| |
Overall Field Position Width - cross conveyor shifted out (m) |
5.2 |
- |
| |
Overall Field Position Width - cross conveyor shifted out (feet) |
17'2" |
- |
| |
Self Contained Hydraulic Drive |
Standard |
- |
| |
Hydraulic Tongue Swing |
Standard |
- |
| |
Variable Pickup Speed |
Standard |
- |
| |
Highway Transport Lights |
Standard |
- |
| |
Minimum power requirement for PTO (kW) |
37.5 |
103 |
| |
Minimum power requirement for PTO (hp) |
50 |
140 |
| |
PTO speed (rpm) |
540 |
1000 |
| |
Tractor hydraulic equipment |
2 DBL |
2 DA | |
|
| |
|
| |
