Kuhn provides a wide variety of hay-gathering tools giving you the ability to put up better quality hay. Rotary rakes speed hay drying by making fluffy, light and uniform windrows that dry faster. These windrows are easier to pick up with today’s high-capacity Balers and forage harvesters. Mergers help ensure the production of high-quality hay by gentle handling, minimal leaf loss, reduced contamination and a fluffy windrow for better forage harvesting. Wheel rakes provide an economical way to quickly rake hay so you can put up hay fast.
|
Features |
| |
| |
Specifications |
GA 3200 GT |

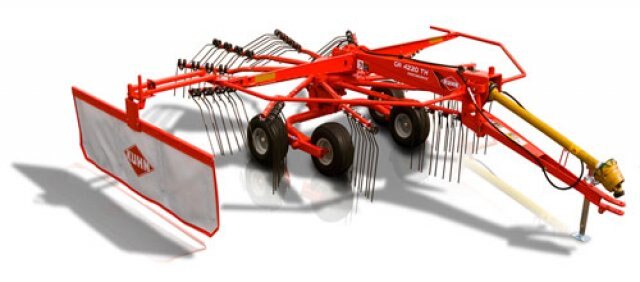

GA 4220 TH |
GA 4221 GTH |
GA 4521 GTH |
GA 6002 |
GA 6632 |
GA 7932 |
GA 9032 |
| |
Number of rotors |
1 |
1 |
1 |
1 |
2 |
2 |
2 |
2 |
| |
Working width (feet) |
10'6" |
- |
13'5" |
14'9" |
19' |
- |
- |
- |
| |
Working width (m) |
3.2 |
4.10 |
4.1 |
4.5 |
1 swath : 5.80 - 2 swaths : 5.40 |
1 swath: 3.55 to 6.45 2 swath : 6.50 |
1 swath : 4.05 to 7.45 2 swath : 7.65 |
1 swath : 4.65 to 8.60 - 2 swath : 8.80 |
| |
Swath delivery |
To the left |
To the right |
To the right |
To the right |
1 side swath or 2 separate swaths |
right |
right |
right |
| |
Number of tines per arm |
3 |
4 |
4 |
4 |
3 |
4 |
4 |
4 |
| |
Drive |
Central gearbox |
MASTERDRIVE series |
MASTERDRIVE series |
MASTERDRIVE series |
Central gearbox |
MASTERDRIVE |
MASTERDRIVE |
MASTERDRIVE |
| |
Tire type |
Hyper balloons 18 x 8.50-8 |
Hyper balloons 18 x 8.50-8 |
Hyper balloons 18 x 8.50-8 |
Hyper balloons 18 x 8.50-8 |
Hyper balloons 18 x 8.50-8 |
Hyper balloons 18x8.50 - 8 |
Hyper balloons 18x8.50 - 8 |
Hyperballoons 18x8.50 - 8 |
| |
Bogie axle |
- |
standard |
Standard |
Standard |
Option |
Option |
Standard |
Standard |
| |
Transport Height (m) |
2.06 |
- |
2.49 |
3 |
- |
- |
- |
- |
| |
Transport Height (feet) |
6'9" |
- |
8'1" |
9'11" |
- |
- |
- |
- |
| |
Transport width (m) |
2.75 |
3.35 |
1.96 |
2.2 |
2.95 |
2.07 |
2.5 |
3 |
| |
Transport width (feet) |
9' |
- |
6'5" |
7'3" |
7'5" |
- |
8'2" |
- |
| |
Transport lenght (m) |
2.89 |
- |
4.12 |
5.15 |
7.3 |
8.7 |
9.8 |
11.4 |
| |
Transport lenght (feet) |
9'6" |
- |
13'6" |
16'11" |
23'11" |
28'6" |
32'2" |
37'4" |
| |
Linkage |
Drawbar |
- |
- |
Drawbar |
Drawbar |
Drawbar with parallelogram |
Drawbar with parallelogram |
Drawbar with parallelogram |
| |
Minimum power requirement for PTO (kW) |
15 |
- |
15 |
26 |
30 |
40 |
40 |
44 |
| |
Minimum power requirement for PTO (hp) |
20 |
- |
20 |
35 |
40 |
55 |
55 |
60 |
| |
PTO speed (rpm) |
540 |
- |
540 |
540 |
540 |
540 |
540 |
540 |
| |
Tractor hydraulic equipment |
- |
1 SA |
1 SA |
1 SA |
1 SA + 1 DA |
1 SA + 1 DA |
1 SA + 1 DA |
1 SA + 1 DA |
| |
Tractor electrical equipment |
- |
- |
- |
- |
- |
1 prise 7 pôles + 1 prise 3 pôles ISO |
1 prise 7 pôles + 1 prise 3 pôles ISO |
1 prise 7 pôles + 1 prise 3 pôles ISO |
| |
Weight (kg) |
300 |
- |
625 |
925 |
1260 |
1410 |
1620 |
1850 |
| |
Weight (lb) |
661 |
- |
1377 |
2040 |
2778 |
3108 |
3571 |
4080 | |
|
| |
|
| |
