Kuhn provides a wide variety of hay-gathering tools giving you the ability to put up better quality hay. Rotary rakes speed hay drying by making fluffy, light and uniform windrows that dry faster. These windrows are easier to pick up with today’s high-capacity Balers and forage harvesters. Mergers help ensure the production of high-quality hay by gentle handling, minimal leaf loss, reduced contamination and a fluffy windrow for better forage harvesting. Wheel rakes provide an economical way to quickly rake hay so you can put up hay fast.
|
Features |
| |
| |
Specifications |
GA 6501 |
GA 7501 |
GA 8121 |
GA 8030 |
GA 8731 |
GA 9531 |

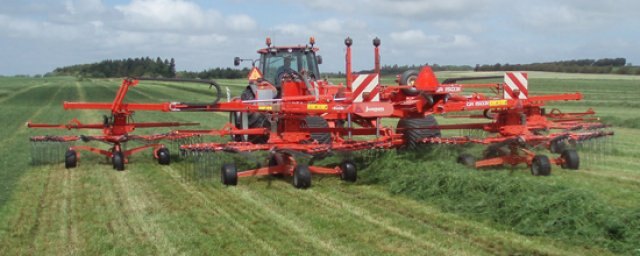

GA 15031 |
| |
Rake Type |
Center Delivery |
Center Delivery |
Center Delivery |

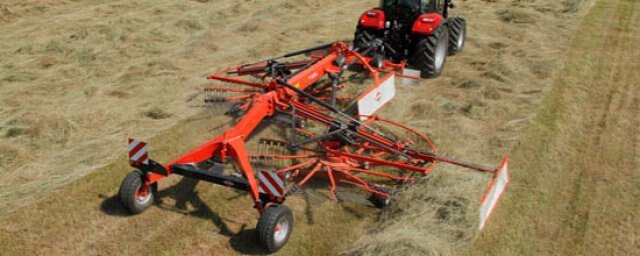

1 side windrow or 2 windrows |
Center Delivery |
Center Delivery |
Center Delivery |
| |
Number of rotors |
2 |
2 |
2 |
2 |
2 |
2 |
4 |
| |
Working width (feet) |
17'9" - 21' |
22'6" - 24'5" |
24'3" - 26'3" |

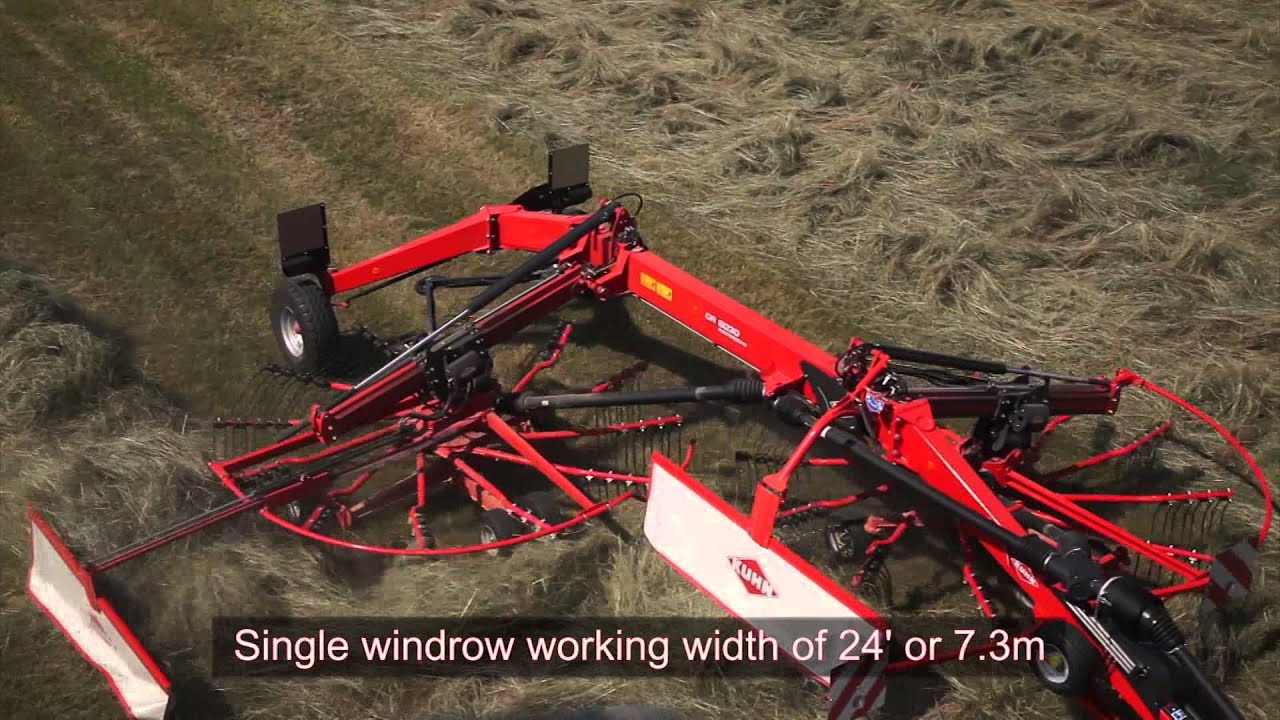

1 swath: 23'11" / 2 swaths: 27'3" |
25'3" - 28'2" |
27'7"- 30'6" |
30'10" - 48'3" |
| |
Working width (m) |
5.40 - 6.40 |
6.85 - 7.45 |
7.40 - 8.00 |
1 swath: 7.30 / 2 swaths: 8.30 |
7.70 - 8.60 |
8.4 - 9.3 |
9.40 - 14.70 |
| |
Minimum Windrow Width (feet) |
3'3" |
4'5" |
4'7" |
2' |
4'7" |
4'7" |
4'11" |
| |
Maximum Windrow Width (feet) |
6'7" |
6'5" |
6'7" |
5'7" |
7'6" |
7'6" |
8'2" |
| |
Minimum Windrow Width (cm) |
99 |
135 |
140 |
60 |
140 |
140 |
150 |
| |
Maximum Windrow Width (cm) |
201 |
198 |
201 |
170 |
230 |
230 |
249 |
| |
Swath delivery |
Central |
Central |
Central |
Right |
Central |
Central |
Central |
| |
Number of tine arms per rotor |
10 |
11 |
12 |
12 |
13 |
15 |
13 |
| |
Number of Raking Wheels |
- |
- |
- |
- |
- |
6 per rotor |
- |
| |
Number of tines per arm |
3 |
4 |
4 |
4 |
4 |
4 |
4 |
| |
Drive |
Mechanical |
Mechanical |
Mechanical |
Mechanical – free wheel integrated |
Mechanical |
Mechanical |
Hydraulic |
| |
Gearboxes |
Standard |
Standard |
MASTERDRIVE |
MASTERDRIVE GIII |
MASTERDRIVE GIII |
MASTERDRIVE GIII |
Hydraulic Masterdrive |
| |
Tire type |
195/65 R15 |
10.0x75-15.3 |
10.0x75-15.3 |
16x6.50-8 |
16x6.50-8 |
16x6.50-8 |
- |
| |
Transport Height (feet) |
- |
- |
- |
- |
- |
12'6" |
- |
| |
Transport width (m) |
2.5 |
2.55 |
2.82 |
2.99 |
2.99 |
2.99 |
3 |
| |
Transport width (feet) |
8'2" |
8'2" |
9'3" |
9'10" |
9'10" |
9'10" |
9'10" |
| |
Linkage |
2-point |
2-point |
2-point |
2-point with STABIDRIVE pivot |
2-point |
2-point |
2-point |
| |
Minimum power requirement for PTO (kW) |
37 |
30 |
44 |
50 |
51 |
56 |
90 |
| |
Minimum power requirement for PTO (hp) |
40 |
50 |
70 |
68 |
68 |
75 |
120 |
| |
PTO speed (rpm) |
540 |
540 |
540 |
540 |
540 |
540 |
1000 |
| |
Tractor hydraulic equipment |
1 DA |
1 SA |
1 SA |
1 SA + 1 DA |
1 SA + 1 DA 1 free return for control box KGA 10C |
1 SA + 1 DA 1 free return for control box KGA 10C |
1 DA + 1 SA |
| |
Weight (kg) |
1 260 |
1 550 |
1 925 |
2 499 |
2 250 |
2 400 |
7 200 |
| |
Weight (lb) |
2 778 |
3 450 |
4 255 |
5 510 |
4 960 |
5 290 |
15 873 |
| |
Rotor tire type |
16 x 6.50 - 8 |
Super balloons 16 x 6.50 - 8 |
Super balloons 16 x 6.50 - 8 |
11.5x80-15.3 |
11.5x80-15.3 |
11.5x80-15.3 |
18x8.50-8 | |
|
| |
|
| |
