Kuhn

ID # 13247371

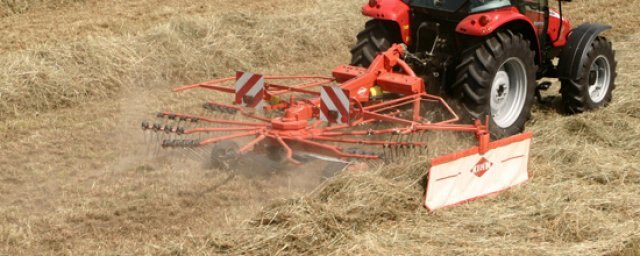

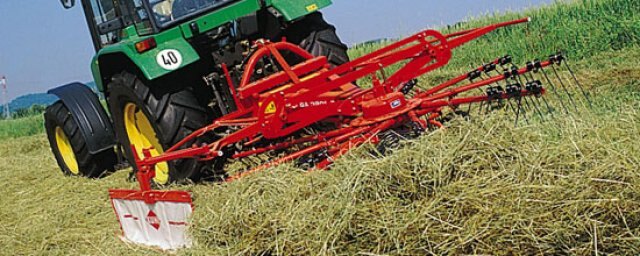

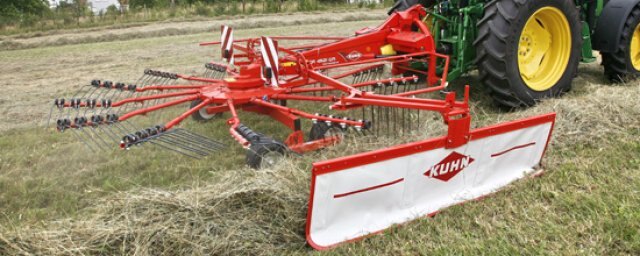

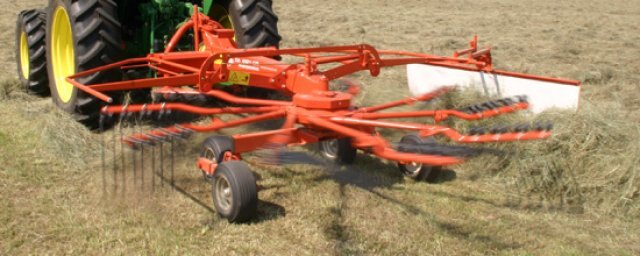

Kuhn Mounted Rotary Rakes

Videos
Call for Price
Overview
Kuhn provides a wide variety of hay-gathering tools giving you the ability to put up better quality hay. Rotary rakes speed hay drying by making fluffy, light and uniform windrows that dry faster. These windrows are easier to pick up with today’s high-capacity Balers and forage harvesters. Mergers help ensure the production of high-quality hay by gentle handling, minimal leaf loss, reduced contamination and a fluffy windrow for better forage harvesting. Wheel rakes provide an economical way to quickly rake hay so you can put up hay fast.
  Features

  Specifications GA 300 GM GA 3201 GM GA 4121 GM GA 4321 GM GA 4521 GM
  Number of rotors 1 1 1 1 1
  Working width (feet) 10'6" 10'6" 13'5" 13'9" 14'9"
  Working width (m) 3.2 3.2 4.1 4.2 4.5
  Swath delivery To the left To the left To the right To the right To the right
  Number of tines per arm 3 3 4 4 4
  Drive Central gearbox Central gearbox MASTERDRIVE series MASTERDRIVE series MASTERDRIVE series
  Tire type Balloons 15 x 6.00 - 6 Balloons 15 x 6.00 - 6 Super balloons 16 x 6.50-8 Super balloons 16 x 6.50-8 Super balloons 16 x 6.50-8
  Bogie axle Option Option Option Standard Standard
  Transport width (m) 2.75 1.75 1.75 1.95 2.2
  Transport width (feet) 9' 5'9" 5'9" 6'4" 7'2"
  Linkage 3-point - Cat. 1 + 2 3-point - Cat. 1 + 2 3-point - Cat. 1 + 2 3-point - Cat. 1 + 2 3-point - Cat. 1 + 2
  Minimum power requirement for PTO (kW) 15 15 22 19 26
  Minimum power requirement for PTO (hp) 20 20 30 25 35
  Weight (kg) 286 347 (G) - 360 (GM) 540 675 815



Specifications
Model
Mounted Rotary Rakes
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
Kuhn
