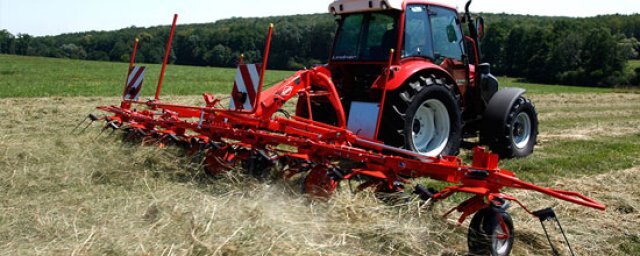

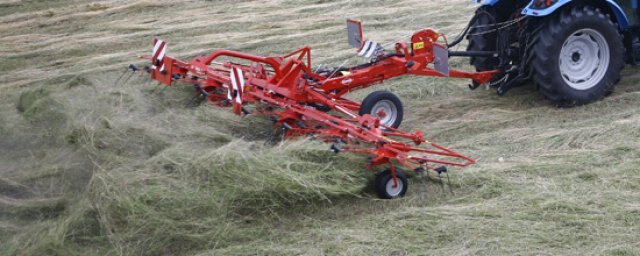

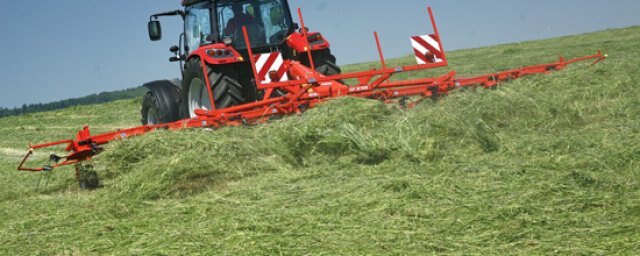

Kuhn produces innovative Rotary tedders to help speed hay harvesting. Uniformly tedded hay dries faster, preserving valuable nutrients. Kuhn tedders feature a number of innovations, including the reliable, maintenance-free Digidrive coupler, which provides unsurpassed reliability and compact transport and storage.
|
Features |
| |
Specifications |
GF 502 |
GF 6502 |
GF 7802 |
GF 7902 |
GF 8702 |
| |
Working width DIN (m) |
5 |
6.5 |
7.8 |
7.8 |
8.7 |
| |
Working width DIN (feet) |
16'5" |
21'4" |
25'7" |
25'7" |
28'6" 28'6" |
| |
Transport width (m) |
2.85 |
3 |
3 |
3 |
3 |
| |
Transport width (feet) |
9'4" |
9'10" |
9'10" |
9'10" |
9'10" |
| |
Number of rotors |
4 |
6 |
6 |
8 |
8 |
| |
Number of tine arms per rotor |
6 |
6 |
7 |
5 |
6 |
| |
Linkage |
3 point - Cat. 1 + 2 |
3-point - Cat. 2 |
3-point - Cat. 2 |
3-point - Cat. 2 with shock-absorbers |
3-point - Cat. 2 |
| |
Tire type |
Balloons 15 x 6.00-6 |
16 x 6.50 - 8 and 16 x 9.50 - 8 on the 2 central rotors |
16 x 6.50 - 8 and 16 x 9.50 - 8 on the 2 central rotors |
16 x 6.50 - 8 and 16 x 9.50 - 8on the 2 central rotors |
16 x 6.50 - 8 and 16 x 9.50 - 8 on the 2 central rotors |
| |
Drive |
DIGIDRIVE® multiple finger couplings |
Digidrive® multiple finger couplings |
Digidrive® multiple finger couplings |
Digidrive® multiple finger couplings |
Digidrive® multiple finger couplings |
| |
Weight approx. (kg) |
505 |
920 |
1085 |
1150 |
1250 |
| |
Weight (lb) |
1151 |
2028 |
2392 |
2535 |
2753 | |
