Kuhn

ID # 13247367

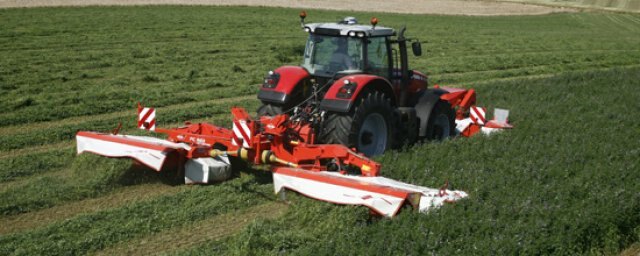

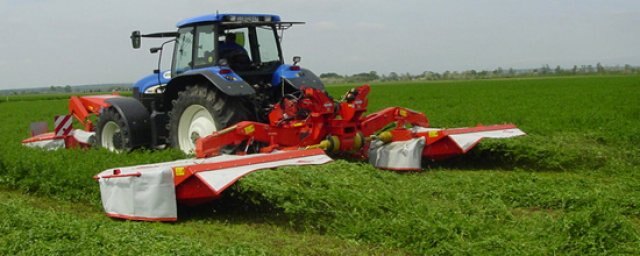

Kuhn Triple Head Disc Mower Conditioners

Videos
Call for Price
Overview
Kuhn not only invented the disc cutterbar but also pioneered the Disc Mower Conditioner. Whether you are cutting and conditioning grass or alfalfa, Kuhn offers many models to meet your cutting and conditioning needs. Since the introduction of the FingerComb conditioning system 25 years ago, Kuhn has provided farmers with crop conditioning systems that offer versatility and ease of adjustment necessary to match ever-changing field conditions. Another key feature on all of Kuhn’s FC Disc Mower Conditioners is the advanced suspension systems. With today’s increased harvesting speeds, minimum tillage techniques and field conditions, the demands on a Mower Conditioner’s suspension system can be extreme.
  Features
  Specifications FC 813 R FC 883 FF
  Working width (m) 8.1 8.8
  Working width (feet) 26'7" 28'10"
  Transport width (m) 3 3
  Transport width (feet) 9'10" 9'10"
  Number of discs with protecting skids 2 x 7 2 x 8
  PTO speed (rpm) 1000 1000
  Conditioning With V-shaped nylon fingers or pivoting steel fingers. adjustable flap and comb or rollers With V-shaped nylon fingers or pivoting steel fingers. adjustable flap and comb
  Twin swath width (feet) 4'3" to 8'2" 2'11" to 7'11"
  Twin swath width (m) between 1,3 and 2,5 between 1,8 and 2,8
  Conditioning rotor speed (rpm) 615/888 615
  Weight approx. (kg) 2835 4546
  Weight (lb) 6250 10022
  Minimum power requirement for PTO (kW) 125 170
  Minimum power requirement for PTO (hp) 170 230
  Tractor hydraulic equipment 2 DA + 1 SA 2 DA + 1 SA

Specifications
Model
Triple Head Disc Mower Conditioners
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
Kuhn
