Kuhn

ID # 13247366

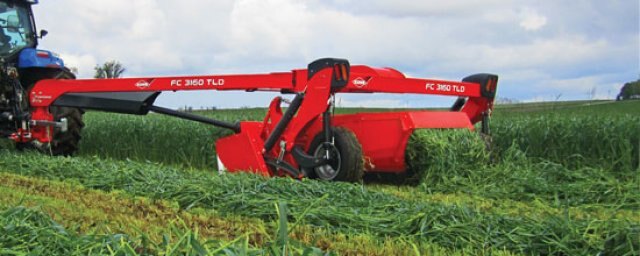

Kuhn Side Pull Disc Mower Conditioner

Videos
Call for Price
Overview
Kuhn not only invented the disc cutterbar but also pioneered the Disc Mower Conditioner. Whether you are cutting and conditioning grass or alfalfa, Kuhn offers many models to meet your cutting and conditioning needs. Since the introduction of the FingerComb conditioning system 25 years ago, Kuhn has provided farmers with crop conditioning systems that offer versatility and ease of adjustment necessary to match ever-changing field conditions. Another key feature on all of Kuhn’s FC Disc Mower Conditioners is the advanced suspension systems. With today’s increased harvesting speeds, minimum tillage techniques and field conditions, the demands on a Mower Conditioner’s suspension system can be extreme.
  Features

  Specifications FC 2860 TLD FC 3160 TLD FC 3560 TLD
  Working width (m) 2.7 3 3.5
  Working width (feet) 8'10" 10'2" 11'6"
  Transport width (m) 2.7 3.1 3.6
  Transport width (feet) 8'10" 10'4" 11'8"
  Number of discs with protecting skids 6 7 8
  PTO speed (rpm) 540 and 1000 (Optional) 540 and 1000 (Optional) 540 and 1000 (Optional)
  Conditioning Finger type conditioner Finger type conditioner Finger type conditioner
  Conditioning rotor speed (rpm) 760/1000 760/1000 780/1000
  Swath width (m) 0.9 - 2 0.9 - 2.3 0.9 - 2.6
  Swath width (feet) 3' - 6'8" 3' - 7'8" 3' - 8'8"
  Weight approx. (kg) 1470 1751 1950
  Weight (lb) 3240 3860 4300
  Minimum power requirement for PTO (kW) 50 60 -
  Minimum power requirement for PTO (hp) 67 80 84
  Tractor hydraulic equipment 2 Double Acting (DA) 2 Double Acting (DA) 1 SE + 1 DE



Specifications
Model
Side Pull Disc Mower Conditioner
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
Kuhn
