Kuhn not only invented the disc cutterbar but also pioneered the Disc Mower Conditioner. Whether you are cutting and conditioning grass or alfalfa, Kuhn offers many models to meet your cutting and conditioning needs. Since the introduction of the FingerComb conditioning system 25 years ago, Kuhn has provided farmers with crop conditioning systems that offer versatility and ease of adjustment necessary to match ever-changing field conditions. Another key feature on all of Kuhn’s FC Disc Mower Conditioners is the advanced suspension systems. With today’s increased harvesting speeds, minimum tillage techniques and field conditions, the demands on a Mower Conditioner’s suspension system can be extreme.
|
Features |
| |
Comparison |
|
| |
| |
Specifications |

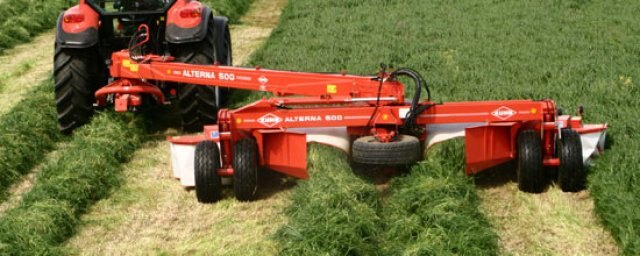

ALTERNA 500 |

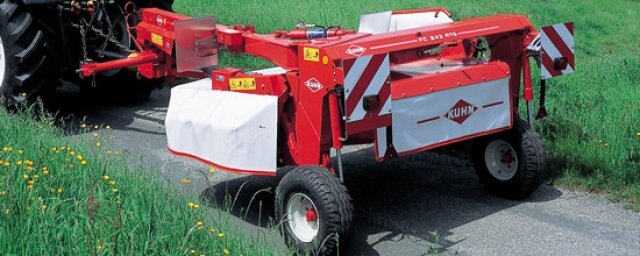

FC 243 TG/RTG |
FC 283 TG/RTG |
FC 303 GC/RGC |

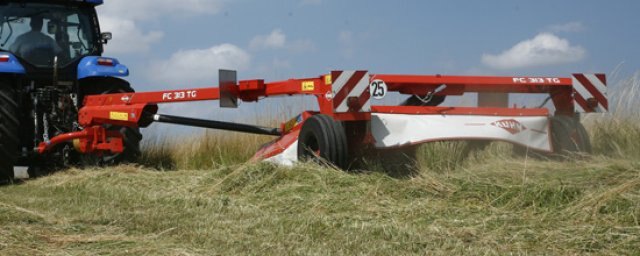

FC 313 TG/RTG |

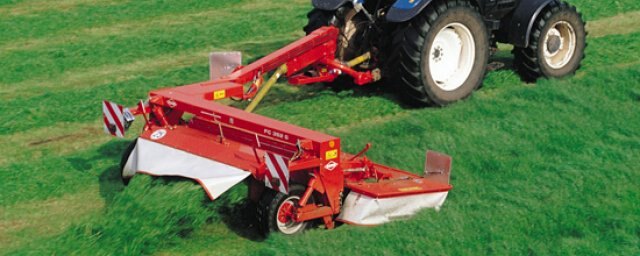

FC 352 G/RG |
FC 353 GC/RGC |
FC 4000 G/RG |
| |
Working width (m) |
4.85 |
2.4 |
2.8 |
3 |
3.11 |
3.5 |
3.5 |
4 |
| |
Working width (feet) |
15'9" |
7'10" |
9'2" |
9'10" |
10'2" |
11'6" |
11'6" |
13'1" |
| |
Transport width (m) |
2.5 |
2.5 |
2.99 |
3 |
3.3 |
3.5 |
3.5 |
4.2 |
| |
Transport width (feet) |
8'2" |
8'2" |
9'10" |
9'10" |
10'10" |
11'6" |
11'6" |
13'9" |
| |
Number of discs with protecting skids |
2 x 5 |
6 |
7 |
6 |
8 |
7 |
7 |
8 |
| |
PTO speed (rpm) |
1100 |
540 (1000 possible by inverting gearboxes) |
540 (1000 possible by inverting gearboxes) |
1000 |
540 (1000 possible by inverting gearboxes) |
540 and 1000 |
1000 |
1000 |
| |
Conditioning |
- |
With V-shaped nylon fingers. adjustable plate. retractable comb or rollers |
With V-shaped nylon fingers. adjustable plate. retractable comb or rollers |
With free swinging flail fingers or rubber rollers |
With V-shaped nylon fingers. adjustable flap and comb |
With free swinging flail fingers or rubber rollers |
With free swinging flail fingers or rubber rollers |
With free swinging flail fingers or rollers |
| |
Conditioning rotor speed (rpm) |
910/1000 |
615/888 |
615/1000 |
660/1000 |
615/1000 |
- |
600/850/1000 |
660/850/1000 |
| |
Swath width (m) |
1.9 - 2.9 |
0.9 - 1.4 |
1.2 - 1.8 |
1 - 2.2 |
1.3 - 2.1 |
1.1 - 2.7 |
1.1 - 2.7 |
1 - 2.4 |
| |
Swath width (feet) |
6'4" - 9'6" |
2'11" - 4'7" |
3'11" - 5'11" |
3'4" - 6'6" |
4'3' - 6'11" |
3'7" - 8'8" |
4' - 9' |
3'4" - 10'94" |
| |
Weight approx. (kg) |
3850 |
1395 (TG) - 1495 (RTG) |
1465 (TG) - 1565 (RTG) |
2350 (GC) - 2450 (RGC) |
1525 (TG) - 1655 (RTG) |
2050 |
2500 (GC) - 2600 (RGC) |
3050 (G) - 2950 (RG) |
| |
Weight (lb) |
8485 |
3075 (TG) - 3296 (RTG) |
3230 (TG) - 3450 (RTG) |
5170 (GC) - 5390 (RGC) |
3355 (TG) - 3641 (RTG) |
4520 |
5500 (GC) - 5720 (RGC) |
6733 (G) - 6512 (RG) |
| |
Minimum power requirement for PTO (kW) |
80 |
44 |
51 |
59 |
58 |
66 |
66 |
81 |
| |
Minimum power requirement for PTO (hp) |
110 |
60 |
70 |
80 |
80 |
90 |
90 |
110 |
| |
Tractor hydraulic equipment |
2 double acting valves + 1 three-pin electric socket |
1 double acting valve + 1 single acting valve |
1 double acting valve + 1 single acting valve |
1 double acting valve + 1 single acting valve |
1 SA + 1 DA |
1 double acting valve + 1 single acting valve |
1 double acting valve + 1 single acting valve |
1 double acting valve | |
|
| |
|
| |
