Kuhn, the inventor and leading innovator of disc-cutting technology, has produced over 650,000 cutterbars since inventing the Disc Mower over 40 years ago. Kuhn offers many choices for large or small operations to meet your hay-cutting needs. The Kuhn cutterbar is joined to frame and suspension systems that have been engineered to exceed the requirements of today’s increasing horsepower and greater acreages. The low profile cutterbar, fitted with heavy-duty discs and skids, cuts at a flat angle for a faster, smoother cut.
|
Features |
| |
Specifications |
GMD 2850 TL |

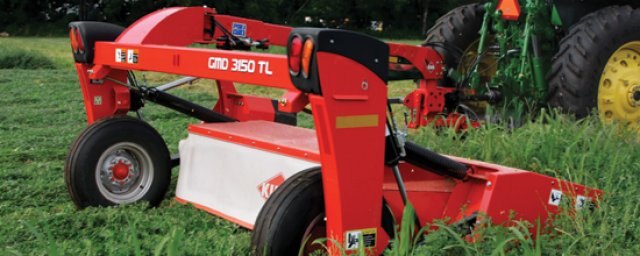

GMD 3150 TL |

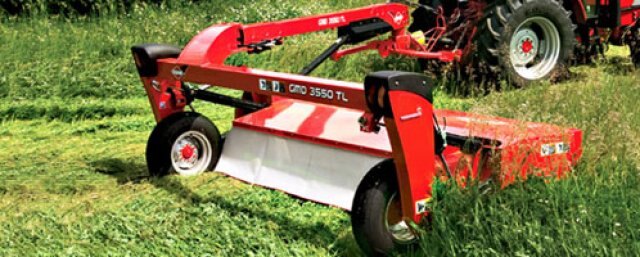

GMD 3550 TL |

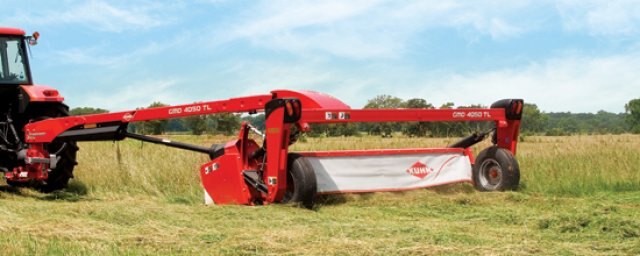

GMD 4050 TL |
| |
Working width (m) |
3 |
3.1 |
3.5 |
4 |
| |
Working width (feet) |
8'10" |
10'2" |
11'6" |
13' |
| |
Transport width (feet) |
8'10" |
10'3" |
11'8" |
13'1" |
| |
Average swath width (feet) |
5'8" |
- |
- |
- |
| |
Number of discs |
6 |
7 |
8 |
9 |
| |
PTO speed (rpm) |
540/1000 |
540/1000 |
540/1000 |
540/1000 |
| |
Transport width (m) |
3 |
3.1 |
3.5 |
4 |
| |
Weight (kg) |
1143 |
1270 |
1325 |
1360 |
| |
Weight (lb) |
2520 |
2800 |
2920 |
3000 |
| |
Minimum power requirement for PTO (kW) |
30 |
35 |
40 |
45 |
| |
Minimum power requirement for PTO (hp) |
40 |
47 |
54 |
60 |
| |
Tractor hydraulic equipment |
2 DA |
2 DA |
2 DA |
2 DA | |
