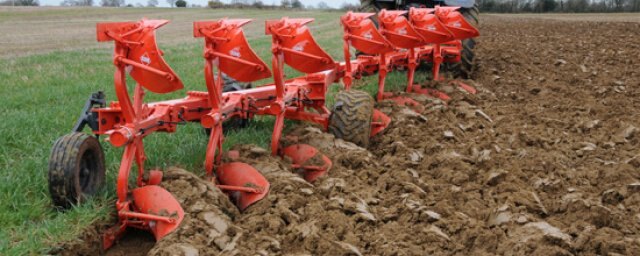

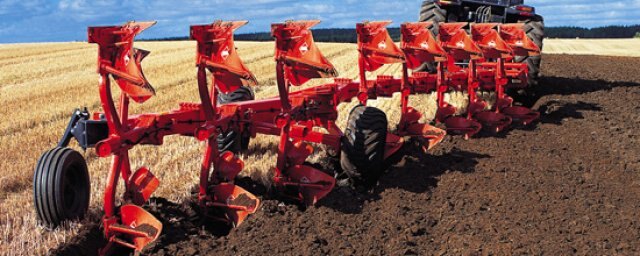

Kuhn is the world’s largest manufacturer of Roll-Over Plows including the Manager, Vari-Manager and Challenger. They are available with 5 to 12 bottoms and provide faster, more efficient plowing with no dead furrows and less soil compaction. Kuhn Plows have many types of moldboards to choose from, depending on the season, soil conditions and trash coverage. Because of their linkage, these plows can work with equal power using more bodies than a fully mounted Roll-Over Plow.
|
Features |
| |
Specifications |
MANAGER F10 - 5 bodies |
MANAGER F10 - 6 bodies |
MANAGER F10 - 7 bodies |
MANAGER F10 - 8 bodies |
| |
Number of bodies |
5 |
6 |
7 |
8 |
| |
Maximum authorised tractor power (kW) |
110 |
132 |
154 |
176 |
| |
Maximum Authorised Tractor Power (hp) |
149 |
179 |
209 |
239 |
| |
Safety |
Non Stop Hydraulic |
Non Stop Hydraulic |
Non Stop Hydraulic |
Non Stop Hydraulic |
| |
Plowing width (inches) |
14 - 16 and 18 |
14 - 16 and 18 |
14 - 16 and 18 |
14 - 16 and 18 |
| |
Underbeam clearance (inches) |
31" / 80 |
31" / 80 |
31" / 80 |
31" / 80 |
| |
Point-to-point clearance (inches) |
40" / 102 |
40" / 102 |
40" / 102 |
40" / 102 |
| |
Beam section (inches) |
7" / 180 |
7" / 180 |
7" / 180 |
7" / 180 |
| |
Type of bodies |
Any classic or diamond type bodies |
Any classic or diamond type bodies |
Any classic or diamond type bodies |
Any classic or diamond type bodies | |
