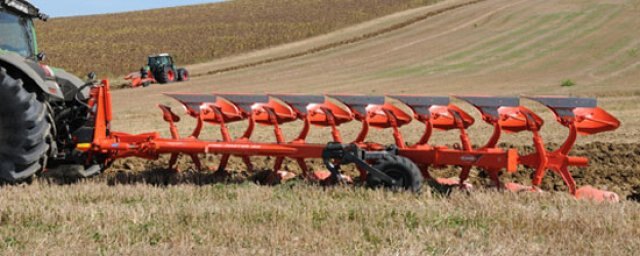

Kuhn is the world’s largest manufacturer of Roll-Over Plows including the Master, Multi-Master and Vari-Master. They are available with 2 to 7 bottoms and can provide faster, more efficient operation with no dead furrows and less soil compaction. Kuhn Plows have many different types of moldboards to choose from depending on the season, soil conditions and trash coverage. With Kuhn’s incorporated safety systems these plows avoid wear associated with shear bolt systems.
|
Features |
| |
Specifications |
VARI-MASTER 183 NSH - 5 bodies |
VARI-MASTER 183 NSH - 6 bodies |
VARI-MASTER 183 NSH - 7 bodies |
| |
Number of bodies |
5 |
6 |
7 |
| |
Maximum authorised tractor power (kW) |
202 |
243 |
283 |
| |
Maximum Authorised Tractor Power (hp) |
275 |
330 |
385 |
| |
Safety |
Non Stop Hydraulic |
Non Stop Hydraulic |
Non Stop Hydraulic |
| |
Plowing width (inches) |
12 to 19 |
12 to 19 |
12 to 19 |
| |
Plowing width (cm) |
- |
- |
30 to 48 |
| |
Underbeam clearance (cm) |
- |
- |
80 |
| |
Underbeam clearance (inches) |
31" / 80 |
31" / 80 |
- |
| |
Point-to-point clearance (cm) |
- |
- |
96 |
| |
Point-to-point clearance (inches) |
38" / 96 |
38" / 96 |
- |
| |
Beam section (mm) |
- |
- |
180 |
| |
Beam section (inches) |
7" / 180 |
7" / 180 |
- |
| |
Type of bodies |
Any classic or diamond type bodies |
Any classic or diamond type bodies |
Any classic or diamond type bodies | |
