ID # 13246801

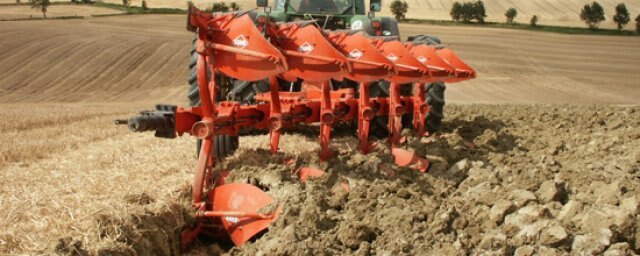

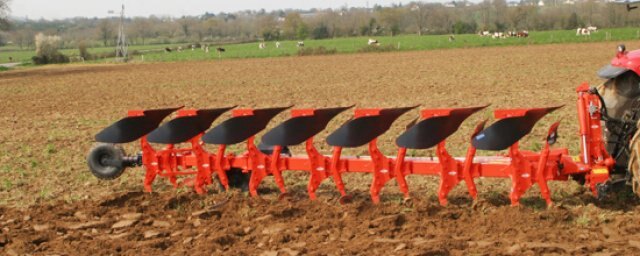

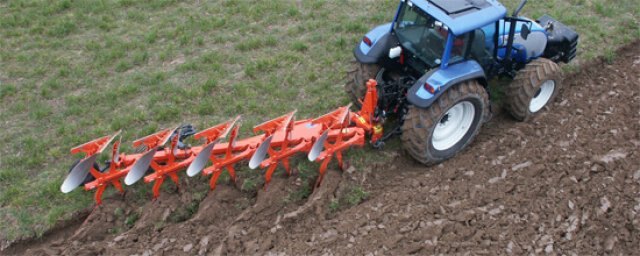

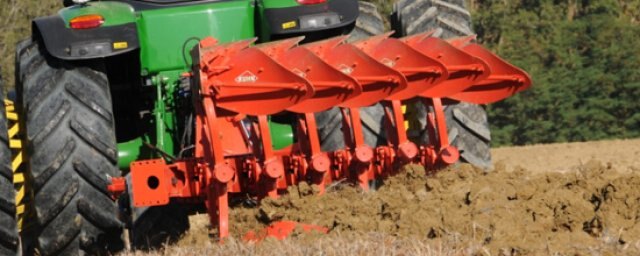

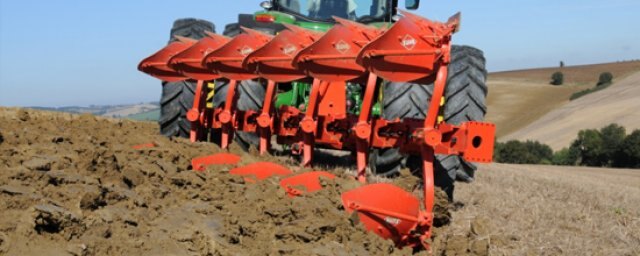

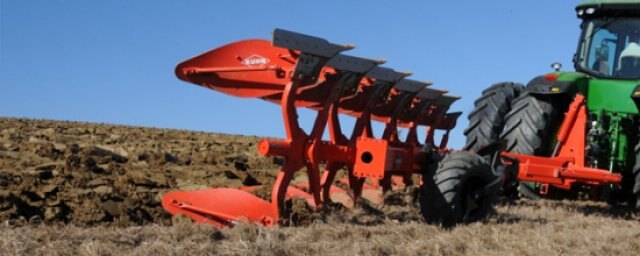

Kuhn Multi-Master 183 Mounted Roll-Over Plow

  • Kuhn Multi Master 183 Mounted Roll Over Plow
  • Kuhn Multi Master 183 Mounted Roll Over Plow
  • Kuhn Multi Master 183 Mounted Roll Over Plow
  • Kuhn Multi Master 183 Mounted Roll Over Plow
  • Kuhn Multi Master 183 Mounted Roll Over Plow
  • Kuhn Multi Master 183 Mounted Roll Over Plow
  • Kuhn Multi Master 183 Mounted Roll Over Plow
  • Kuhn Multi Master 183 Mounted Roll Over Plow
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Kuhn is the world’s largest manufacturer of Roll-Over Plows including the Master, Multi-Master and Vari-Master. They are available with 2 to 7 bottoms and can provide faster, more efficient operation with no dead furrows and less soil compaction. Kuhn Plows have many different types of moldboards to choose from depending on the season, soil conditions and trash coverage. With Kuhn’s incorporated safety systems these plows avoid wear associated with shear bolt systems.
  Features
  Specifications MULTI-MASTER 183 NSH - 5 bodies MULTI-MASTER 183 NSH - 6 bodies MULTI-MASTER 183 OL NSH - 5 bodies MULTI-MASTER 183 OL NSH - 6 bodies MULTI-MASTER 183 OL T - 5 bodies MULTI-MASTER 183 OL T - 6 bodies MULTI-MASTER 183 OL T - 7 bodies MULTI-MASTER 183 T - 5 bodies MULTI-MASTER 183 T - 6 bodies MULTI-MASTER 183 T - 7 bodies
  Number of bodies 5 6 5 6 5 6 7 5 6 7
  Maximum authorised tractor power (kW) 202 243 202 243 202 243 283 202 243 283
  Maximum Authorised Tractor Power (hp) 275 330 275 330 275 330 385 275 330 385
  Safety Non Stop Hydraulic Non Stop Hydraulic Non Stop Hydraulic Non Stop Hydraulic Traction bolt Non Stop Hydraulic Traction bolt Traction bolt Traction bolt Traction bolt
  Plowing width (inches) 14 - 16 - 18 and 20 14 - 16 - 18 and 20 14 - 16 - 18 and 20 14 - 16 - 18 and 20 14 - 16 - 18 and 20 14 - 16 - 18 and 20 14 - 16 - 18 and 20 14 - 16 - 18 and 20 14 - 16 - 18 and 20 14 - 16 - 18 and 20
  Plowing width (cm) - - 35 - 40 - 45 and 50 35 - 40 - 45 and 50 35 - 40 - 45 and 50 35 - 40 - 45 and 50 35 - 40 - 45 and 50 - - -
  Underbeam clearance (cm) - - 80 80 80 80 80 - - -
  Underbeam clearance (inches) 31" / 80 31" / 80 - - - - - 31" / 80 31" / 80 31" / 80
  Point-to-point clearance (cm) - - 96 96 96 96 96 - - -
  Point-to-point clearance (inches) 38" / 96 38" / 96 - - - - - 38" / 96 38" / 96 38" / 96
  Beam section (mm) - - 180 180 180 180 180 - - -
  Beam section (inches) 7" / 180 7" / 180 - - - - - 7" / 180 7" / 180 7" / 180
  Type of bodies Any classic or diamond type bodies Any classic or diamond type bodies Any classic or diamond type bodies Any classic or diamond type bodies Any classic or diamond type bodies Any classic or diamond type bodies Any classic or diamond type bodies Any classic or diamond type bodies Any classic or diamond type bodies Any classic or diamond type bodies

Specifications
Model
Multi-Master 183
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
Kuhn
