ID # 13246349

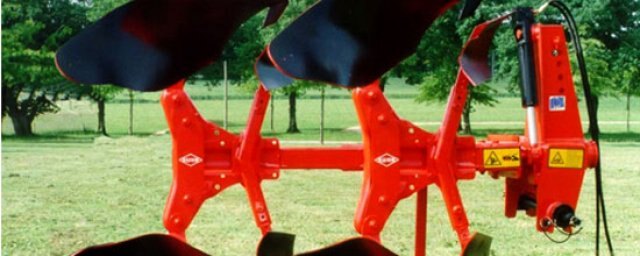

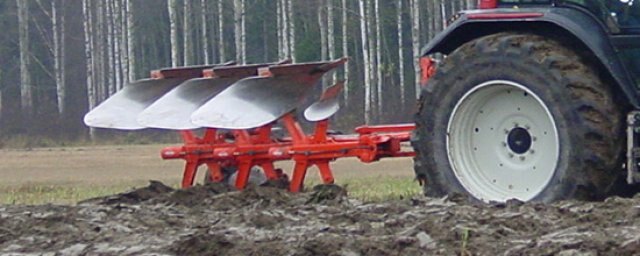

Kuhn Master 103 Mounted Roll-Over Plow

  • Kuhn Master 103 Mounted Roll Over Plow
  • Kuhn Master 103 Mounted Roll Over Plow
  • Kuhn Master 103 Mounted Roll Over Plow
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Kuhn is the world’s largest manufacturer of Roll-Over Plows including the Master, Multi-Master and Vari-Master. They are available with 2 to 7 bottoms and can provide faster, more efficient operation with no dead furrows and less soil compaction. Kuhn Plows have many different types of moldboards to choose from depending on the season, soil conditions and trash coverage. With Kuhn’s incorporated safety systems these plows avoid wear associated with shear bolt systems.
  Features

  Specifications MASTER 103 NSH - 2 bodies MASTER 103 NSH - 3 bodies MASTER 103 NSH - 4 bodies MASTER 103 T - 2 bodies MASTER 103 T - 3 bodies MASTER 103 T - 4 bodies
  Number of bodies 2 3 4 2 3 4
  Maximum authorised tractor power (kW) 44 66 88 44 66 88
  Maximum Authorised Tractor Power (hp) 60 90 120 60 90 120
  Safety Non Stop Hydraulic Non Stop Hydraulic Non Stop Hydraulic Traction bolt Traction bolt Traction bolt
  Plowing width (inches) 14 and 16 14 and 16 14 and 16 14 and 16 14 and 16 14 and 16
  Underbeam clearance (inches) 27.5" / 70 27.5" / 70 27.5" / 70 27.5" / 70 27.5" / 70 27.5" / 70
  Point-to-point clearance (cm) - - 90 - - -
  Point-to-point clearance (inches) 35" / 90 35" / 90 35" / 90 35" / 90 35" / 90 35" / 90
  Beam section (inches) 4" / 100 4" / 100 4.5" / 120 4" / 100 4" / 100 4" / 100
  Type of bodies Any classic type Any classic type Any classic type Any classic type Any classic type Any classic type

Specifications
Model
Master 103
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
Kuhn
