EasyCut TS/TC - The new trailed mowers from KRONE

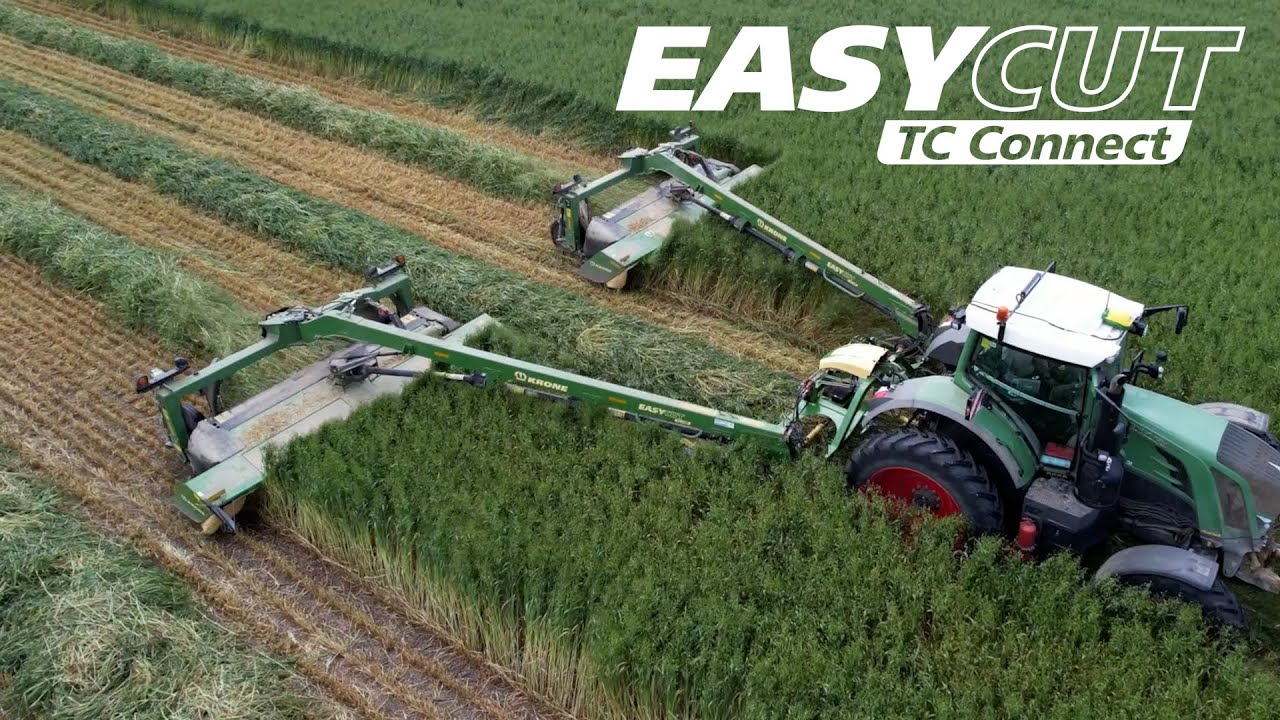

• Mowers with side-mounted (TS) and mid-mounted drawbar (TC)
• Robust and fully welded cutterbar with massive and permanently lubricated sprockets
• SmartCut: Stripe-free swath with especially wide overlap of the blade tracks
• SafeCut: Individually protected cutting discs
• Quick-change blades are standard specification
• DuoGrip: Centre of gravity mounting with double guidance for best ground adaptation
• Tine conditioner (CV) or roller conditioner (CR) for fast and uniform wilts
• Optional Collect cross belt increases your swathing options

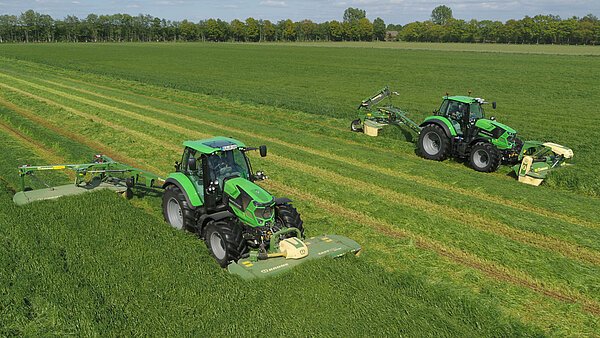

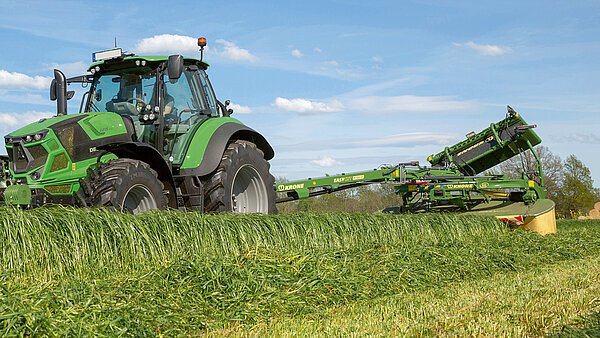

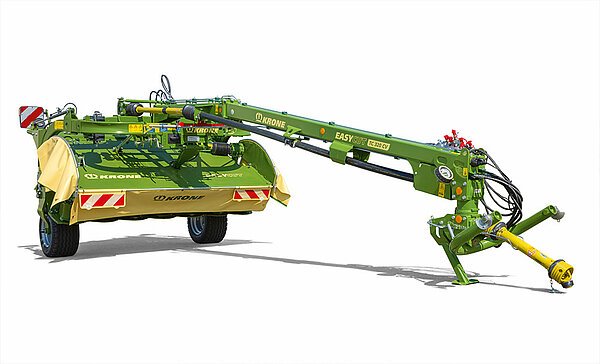

The EasyCut TS/TC models

• Multiple attachment options for great versatility
• Choice of conditioners to suit different crops
• Tried-and-tested – the solid EasyCut cutterbar
• Hydraulic suspension for superb contouring and sward protection

Performing in the most versatile conditions around the world, the new and stylish EasyCut TS/TC models stand out for their enormous versatility and flexibility. Choose from various drawbar ends and three different conditioners and opt for the Collect swathing belt as examples of the versatility on offer.

The KRONE cutterbar

• Fully welded cutterbar  Robust, sealed and permanently lubricated
• Durable satellite drive with large spur  wheels, Very quiet running and optimum power transmission
• Without inner shoe for trouble-free mowing

The closed, all-round welded cutterbar meets the highest quality standards and remains leak-proof and in shape even after many years of use. The large spur wheels in an oil bath can withstand the highest continuous loads and impress with their particularly quiet running.

• The wedge-shaped cutterbar guarantees clean cuts
• SmartCut: Generous blade overlap for an optimum crop flow to the rear
• Swathing or not swathing

Offering flexible height control, the wedge-shaped cutterbar gives users the versatility to cut short grass in meadows and pastures but also long-stemmed forage crops. An EasyCut mower delivers a reliable performance and clean cut.

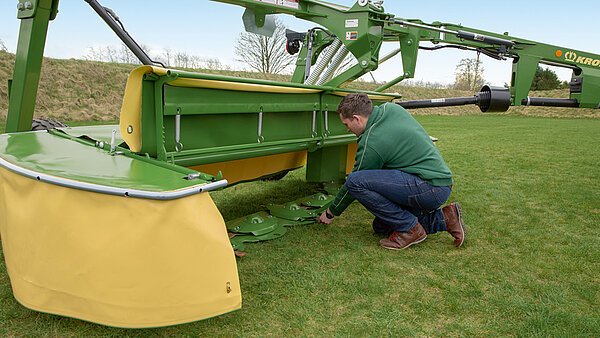

The KRONE quick-change blade system

• Quick-change blades
  allow operators to swap blades in the field quickly
• Modular disc design
• Minimal blade wear
  360° swivel range of the blades
• Excellent cut thanks to KRONE SmartCut
  Optimum overlap of the blade tracks

The quick-change blades, the modular design and the perfect arrangement of the mowing discs for a stripe-free swath are just a few examples which speak in favour of choosing an EasyCut disc mower.

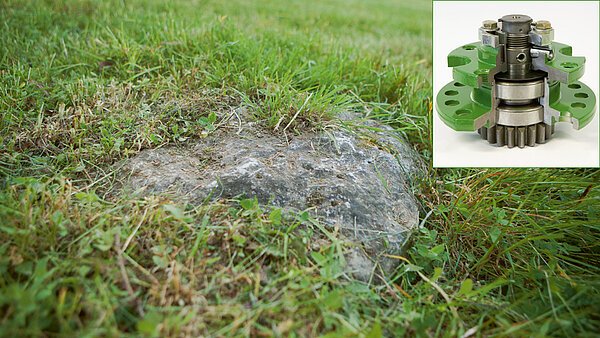

The KRONE SafeCut system

• Fully protected drives for greater reliability
• No collision with neighbouring cutting discs
• No signs of wear
• Quick replacement of the roll pins to ensure high operational reliability and minimum costs

Collisions may cause damage and incur repair costs. KRONE SafeCut offers a maximum of protection and peace of mind. The
DLG award-winning protection of the cutting discs against foreign objects for all EasyCut models is unique in terms of safety and operator comfort. SafeCut is part of the basic equipment of all KRONE disc mowers.

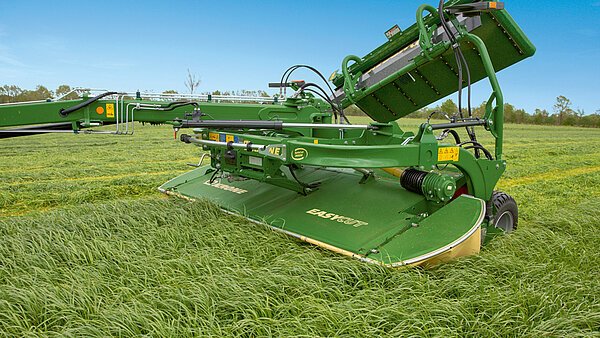

The KRONE DuoGrip centre-of-gravity suspension

• Dual steering of the cutterbar Supported in the centre of gravity- guided by suspension arms
• Uniform ground pressure across the entire work width
• Optimum guidance Less side pull, clean cuts
• Short and high-strength beam

Quality forage requires a clean swath. Clean cuts are attributed to the special design of the cutterbar and the special suspension. The KRONE DuoGrip not only supports the disc mower at its centre of gravity, but also guides it using suspension arms. The constant bearing pressure across the entire working width ensures a uniform cutting pattern, with maximum low drag resistance and excellent lateral guide.

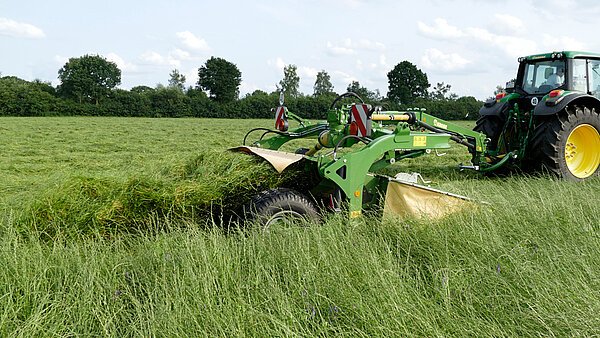

• Easy and quick Operation
• Optional deflectors spread the material across the full width
• Infinitely variable swath widths
• Manual gearbox, Adjustable degree of conditioning

The KRONE CV rotor with V-shaped and grippy steel tines spreads the crop at the full working width. Its massive 64 cm diameter and the helical arrangement of the tines warrant a continuous crop flow, high throughputs and superior conditioning.

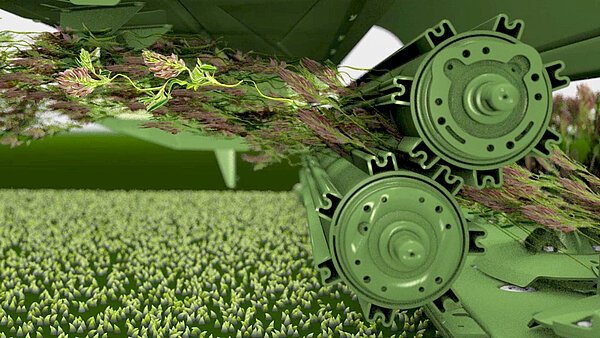

• Consistent crop flow
  by 25 cm diameter rollers
• High throughput
  from powered crop processor rollers
• Excellent conditioning
  with profiled rollers - "grip effect"

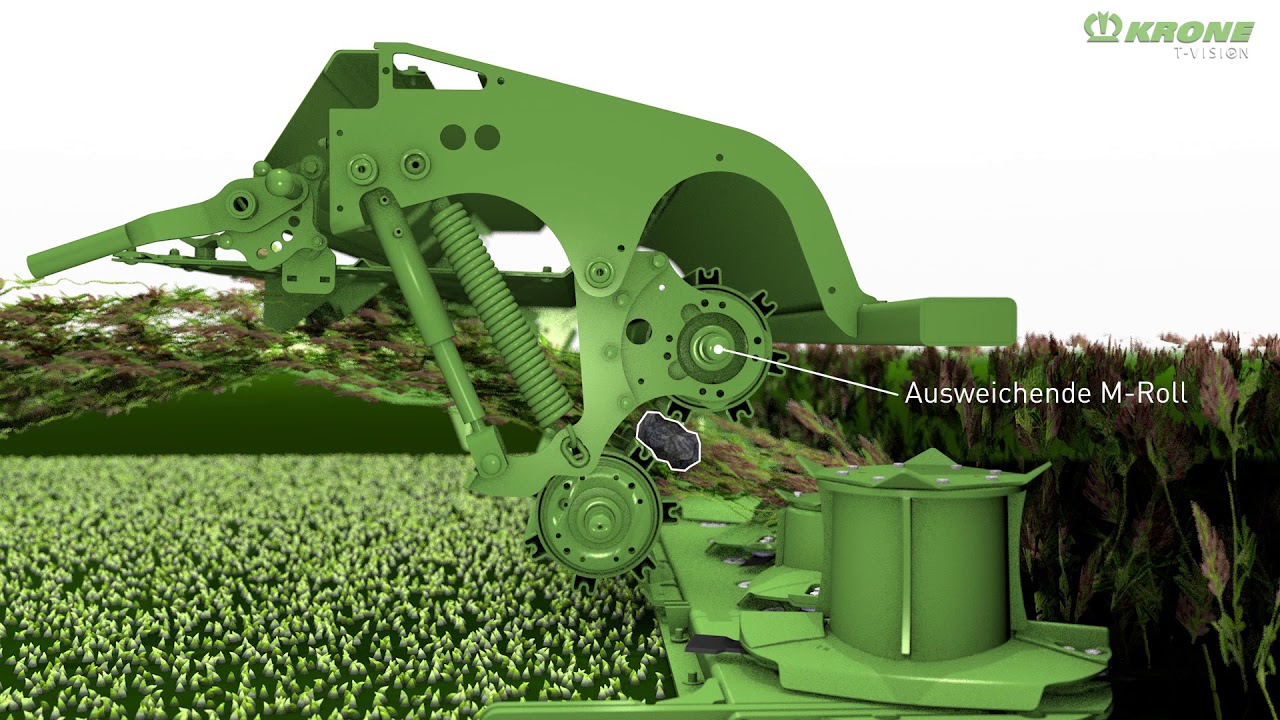

• Roller conditioner
  optionally with polyurethane rollers or as M-Rolls with steel profile

Leafy crops like Lucerne or clovers require a different type of conditioning than crops that are predominantly grass. The CR roller conditioners give particularly gentle treatment, leaving intact the delicate leaves which are so rich in protein and safeguarding the value of the feed. Spreading the crop will speed up wilting.

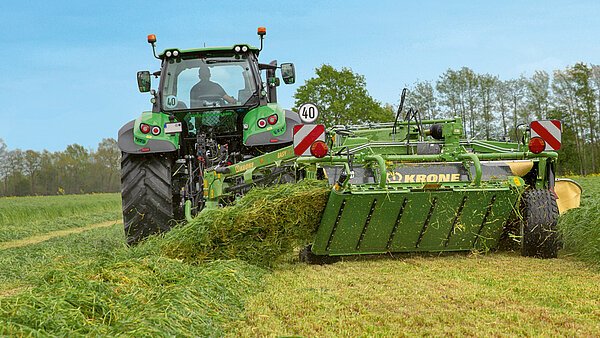

• Drive via own on-board hydraulics
• Infinitely variable crop throw
• Belt auto on/off during lift/lower
• Wide and high-capacity swathing belt
• Frameless design for reduced machine weight
• Massive and stronger drive rollers warrant a continuous crop flow also in difficult conditions

The hydraulic cross conveyor belt which is available for some of the trailed models saves time, reduces the number of passes and minimizes compaction. By feeding the crop to the swath without it contacting the ground, this system guarantees particularly clean forage.
