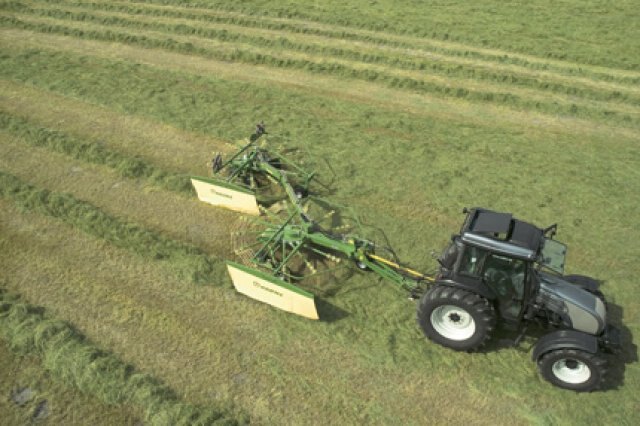

The KRONE 710/26 T twin-rotor side delivery rake with 13 tine arms not only offers excellent value for money but excellent quality of work. Swadro 710/26 T forms single and double windrows as well as two narrow windrows. Naturally it offers a hydraulic system that adjusts the main frame to set the work width and thus windrow width.

The models Swadro 807 and 809 are engineered to rake the crop into one massive windrow on either side of the tractor. The Swadro 810 additionally provides the additional opportunity of laying two small windrows in one pass. If the two large single windrows are laid side by side from two passes to and fro, a total working width of up to 14,00 m (45'11") can be acheived depending on the windrow size. In this manner, enough forage can be combined together to maximize the performance of any subsequent harvesting operation to their fullest, even in third and fourth cuts.

Raking 8 metres (26'3") of crop into one windrow: Swadro 907 is the KRONE twin-rotor side delivery rake with 8.00 m (26'3") work width. Running on a wide-tracking axle and boasting 15 tine arms and 6 wheels on each rotor, this rake delivers cleanest rakes and highest workrates. Maintenance-free rotors, the Dura-Max cam track, large guide rollers in permanently lubricated bearings and widely spaced deep groove ball bearings in Aluminium tine holder housings combine to give an outstanding operator comfort, highest workrates and ultimate durability.

Maintenance-free and continuously lubricated: The Swadro rotors are driven via completely enclosed, liquid grease filled bevel gear drives. This ensures uniform and optimum lubrication and further lubrication via a grease gun is not necessary.

Quick and simple: assembly and disassembly of the complete tine arm with bearing and cam follower roller. After removing only two bolts the complete unit can be pulled out of the rotor. The removal of two hollow roll pins means that the outer end of the arm can also be exchanged.

Cleanest sweeps – up to five double tines on each tine arm give a trailing action for cleanest rakes. Thick-walled arms and up to 10.5 mm (0.4") tines plus large-diameter coils combine to guarantee outstanding longevity, flexibility and strength.

Dura-Max: the cam-track, double hardened and impact resistant strength, is made from Bainite-hardened cast iron to ensure a high abrasion resistance while being completely maintenance-free. This camtrack comes with a three-year warranty.

Cardanic suspension as standard! The plate with an elongated hole allowing a free pendulum in direction of travel. From this point, the tridem axles guide the cardanic linked rotors.

Contaminated forage is unacceptable: Cardanic suspension is perfect for the production of high quality forage. The cardanic suspension means that the rotors optimally follow all ground contours, even lengthwise in the driving direction and this ensures that the predetermined working height is better maintained especially when working in uneven ground. This will pay for itself in a very short time. The tines follow the ground contours, operate cleanly and endure less stress. The KRONE Swadros leave nothing behind on the ground, not even in hilly or undulating terrain

The KRONE Jet Effect: clean landing, clean start! The trailing rotor linkage, combined with the cardanic suspension, makes perfect sense: as when the rotor is lowered, the rear wheels of the tridem axle touch the ground first and then the front wheels – when lifting this occurs in the reverse order. This is why the tines are unable to drop into the ground, damaging the windrow or contaminate the forage during the lowering and lifting process. This KRONE solution guarantees high quality forage.

Trailing rotors: The rotor mounts in a position behind its arm. This design combines with its cardanic suspension system to give ideal lift-out control and avoid damage to the windrow.

Optimized depth control – all Swadro 700, 800/26 and 900 rotors have cranks that allow setting their depth variably and conveniently. Accurate depth control is essential to achieve clean rakes without losses.

A single axled undercarriage for the Swadro 700 with 18 x 8.50 – 8/6 PR-RT tires comes as standard equipment: the large tires of the extra wide axle run closely to the working tines, which is ideal for clean raking.

The center delivery rake with 10 m (32'10") working width: Swadro 1000 is the KRONE centre delivery rake for high-output and high-acreage operations. Boasting two rotors with 15 tine arms each, it rakes up to 10 hectares (25 acres) per hour. The variable 8.80 m -10.00 m (28'11"- 32'10") working width adjusts hydraulically via telescoping arms. The maintenance-free rotors with cardan suspension and the ground hugging bogies with eight castering wheels combine with a superb operational comfort to make this center delivery rake a flexible and high-output machine.

High output, superior comfort and ultimate stability – thanks to the maintenance-free rotors, each equipped with 15 tine arms, the Dura-Max cam track, large guide rollers in permanently lubricated bearings and widely spaced deep groove ball bearings in the Aluminium tine holder housings.

No crop loss: The tandem-axle bogies on Swadro 1000 run on eight wheels for optimum ground hugging and cleanest rakes. The freely swivelling wheels provide positive tracking even in the tightest bends.

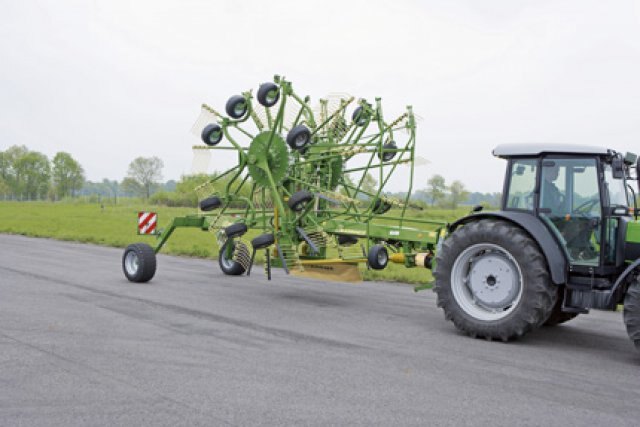

A serious machine: The trapezoidal main frame is strong and durable. The tine arms fold up to a transport height of less than 4 metres (13'1") and the transport chassis is approved for 40 km/hr (25 mph) for swift travel from one field to the next.

The KRONE 710/26 T twin-rotor side delivery rake with 13 tine arms not only offers excellent value for money but excellent quality of work. Swadro 710/26 T forms single and double windrows as well as two narrow windrows. Naturally it offers a hydraulic system that adjusts the main frame to set the work width and thus windrow width

For a safe connection to the pick-up hitch or to the tractor’s trailer eye: the drawbar can be adjusted in height with the hitch being controlled via a parallelogram linkage. The hydraulic cylinder on the hitch keeps the front rotor level during mounting and lifting.

Komfortabel: Die hydraulische Schwadtuchverstellung am hinteren Kreisel. Die Verstellung für unterschiedliche Schwadbreiten erfolgt vom Traktorsitz aus. Für den Straßentransport wird das Tuch hydraulisch eingezogen.

With tandem axle: a broad layout with 18" tires for optimum contour following. For the best possible slope stability, the front tires are each positioned in the farthest outer position. Adjustment of the working height is carried out via adjustable supports that are positioned with pins up a series of holes.

Single raking

Twin raking

Double raking

The models Swadro 807 and 809 are engineered to rake the crop into one massive windrow on either side of the tractor. The Swadro 810 additionally provides the additional opportunity of laying two small windrows in one pass. If the two large single windrows are laid side by side from two passes to and fro, a total working width of up to 14,00 m (45'11") can be acheived depending on the windrow size. In this manner, enough forage can be combined together to maximize the performance of any subsequent harvesting operation to their fullest, even in third and fourth cuts.

The electronic control box with electrical actuators for the adjustment of the working height is available as an option for the Swadro 810. The box fulfils two functions: the in-cab adjustment of the working height and the pre-selection of the individual left or right hand rotor lift.

On-the-move working height adjustment: the Swadro 810, when equipped with the optional actuators makes the adjustment of the working height sensitive and precise. The system is weatherproof and can be operated while travelling.

From a single to a twin windrow: no problem for the Swadro 810. If necessary, the inner rotor can be telescoped out from the tractor seat so that sufficient room is provided for the second windrow to be laid.

Fully equipped: two swath curtains on the Swadro 810. Single windrowing is done with the outer one, twin windrowing is done utilizing both. If the inner swath curtain is not needed it can simply be folded up out of the way.
