The trailed EasyCut disc mowers from KRONE
Versatile
Appropriate
Effi cient
Profi table |
|
|
Trailed disc mowers cater to a wide variety of demands and applications depending on country, region and type of operation. Our extensive range of mower versions offers our customers the choice to pick the specifi c machine that best suits their specifi c needs. These include the V steel tine conditioner with wide-distributing hood, CRi roller conditioner, cross conveyor merger and hydraulic swath board control.
|
|
|
SafeCut: The new and standard impact disc protection system offers a unique level of protection and functionality. The situation is familiar to every farmer – a disc collides with a stone, is damaged and requires repair. Offering maximum protection, the KRONE SafeCut system does not transfer the full load of the impact to the spur gears. Instead, the roll pin in the sprocket driveshaft breaks when there is a momentary overload. The pinion shaft continues spinning, jacking up the disc in question and moving it out of the risk zone and the orbit of the neighbouring discs to avoid damaging these as well.
|
|
|
The moment of impact: The roll pin breaks, the disc jacks 15 mm (0.6") up on the shaft threading and stops spinning actively, Eliminating the risk of colliding with the neighbouring discs and damaging these.
|
|
|
CV steel tine conditioner
Pivoting V-tines produce high-quality forage
Massive 640 mm (2') tine rotor
Freely pivoting steel tines for absolute peace of mind
Steplessly adjustable baffl e plate
Mechanical 600 rpm and 900 rpm gearbox
Adjustable wide-distributing hood |
|
|
Effi ciency is one criteria in hay and forage harvesting, quality is another. The high-capacity KRONE CV mower conditioner with V-type steel tines conditions the crop uniformly and across the full working width to promote wilting, reduce fi eld traffi c and produce top-quality forage.
|
|
|
Cutterbar and conditioner share the same gearbox, which also integrates the twospeed mechanical CV conditioner gearbox (600 rpm and 900 rpm).
|
|
|
Ultimate effi ciency – two mower conditioners in one machine

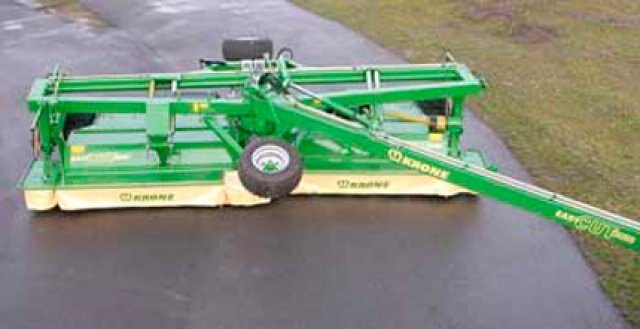

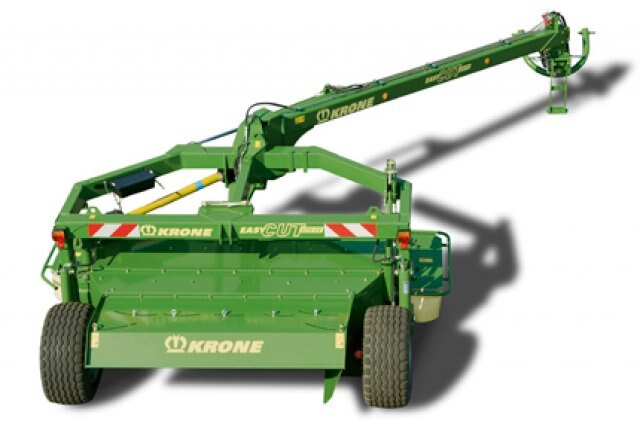

EasyCut 6210 CV
The middle drawbar swings the mower to either side
Swivel gearbox Enormous swivel range
Two cutterbars Excellent contour following
CV steel tine conditioner Two speeds: 600 / 900 rpm
Adjustable wide-distributing hoods |
|
|
Its 6.20 m (20'3“") working width and the central drawbar make EasyCut 6210 CV one of the most effective trailed mowers on the market. These machines stand out for superior effi ciency, maximum stability as well as an advanced level of specifi cation and operator comfort. The CV high-capacity conditioner produces best quality forage
. |
|
|

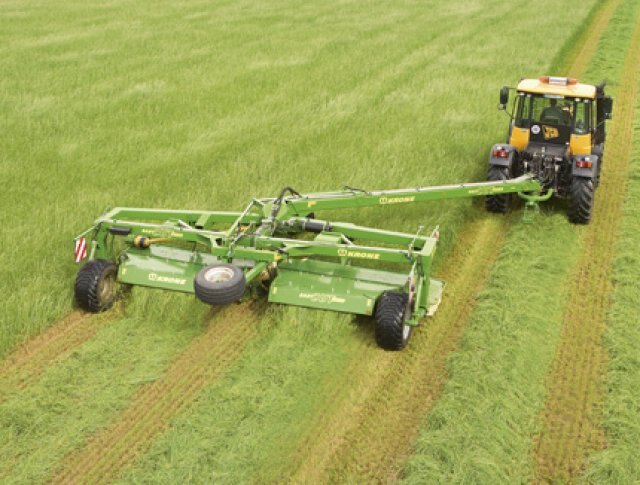

Take the choice – EasyCut 6210 CV cuts to the right or left of the tractor. Simply swing the drawbar to the other side as you do the headland turn and match up with the previous pass without mowing in beds. The tractor is not running in standing crop so that clean and loss-free cuts are guaranteed. You always use the machine to potential and, in combination with a front-mounted mower, at full width capacity. In sloping fi elds, it allows the tractor to run always on the hillside.
|
|
|

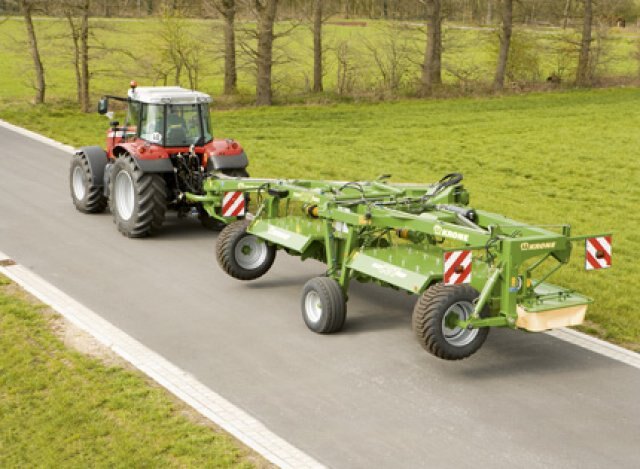

Time is money. It is not only effi ciency that counts for contractors but also the time spent in road transport. EasyCut 6210 CV is a swift road machine that travels at 40 km/h (25 mph). The robust running gear with air brake system and the large-diameter wheels translate into excellent road safety and operator comfort. The large warning panels and road lights provide safety at dawn and at night.
|
