The original: The established system of satellite gears is a KRONE development. Ever since it was introduced in 1989, this design has proven extremely well all over the world. A driveline of massive spur gears with up to 66 teeth transfers the power all the way down to the very last disc. Revolving at lower speeds, the large-diameter gears always have a number of teeth in mesh at any one time, giving quiet running, ultimate efficiency and maximum longevity. With each of the auxiliary gears driving just one disc, it is exposed to only minimum mechanical strain.

EasyCut – the better cut! The wedge-shaped cutterbar adjusts through a large setting range to cut short stubble in meadows and pastures and longer stubble in longstemmed field crops. EasyCut cuts blockage-free and clean. Benefitting from massive double spur gear bearings that are spaced at large gaps, the cutterbars are heavy-duty and hardwearing.

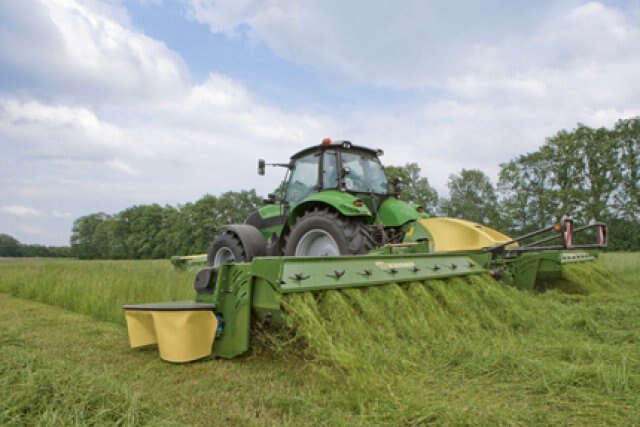

Mowers of finest engineering - Committed to greatest efficiency in any respect, KRONE manufactures mower combinations that stand out for their high performance and ease of pull – an achievement of a robust and advanced technology that delivers superior functionality and perfect 7.46 m (24'6") to 9.70 m (31'10") cuts.

No losses: The arms on the side mowers telescope to provide the best possible overlapping with the front mower. The combination produces perfect cuts without striping.

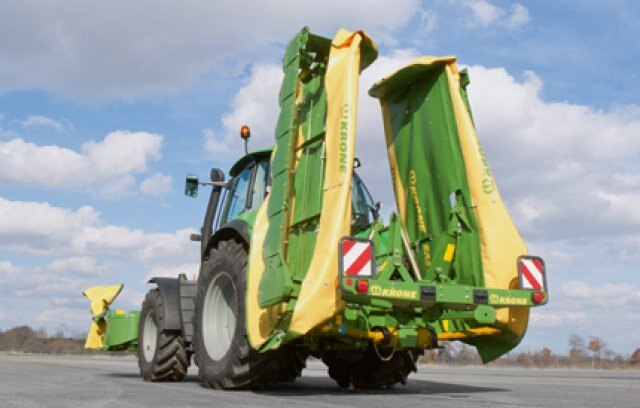

Nice and compact: Offering 3.70 m (12'2") to 4.00 m (13'2") storage heights and a 2.95 m (9'8") width, EasyCut B 750, B 890 and B 970 require little storage space and are parked on sturdy stands. And despite the generous 25 cm ground clearance the machines transport height does not exceed 4 m (13'2").

Combi Float – only from KRONE: The speciality of the system is the fact that it uses extra spools and the circuit of the single-acting coupler with free return line to maintain the pressure inside the reservoirs of the hydro-pneumatic system. The advantage of this system is that it maintains a uniform suspension of both mowers in undulating terrain and when working at various work widths.

Variable overlaps for full fl exibility - A wide variety of conditions asks for the proper equipment to match. The hydraulic sideshift feature on the mower wings is standard specifi cation, which eliminates striping and maximizes your effi ciency. Cutting straight lines, you operate at the maximum width and set overlapping to the absolute minimum, whereas you want wider overlaps and a narrow work width when you are cutting around bends. As you operate on the slope, simply retrieve a stored sideshift range to the right or left and avoid drifting and striping.

Hydraulic control: Double-acting rams inside the mower arms extend and retract the arms on the move to vary the degree of overlap.

Flexible: The wing decks shift up to 40 cm (1'4") to either side. Such a large range of shifting makes for cleanest cuts in diffi cult conditions

Short-cut to top quality - Efficiency is one parameter in hay and forage harvesting, quality is another. The high-performance and 640 mm (2'1") diameter KRONE CV conditioner with V-shaped steel tines spreads the crop at the full working width. Its massive rotor diameter and the helical arrangement of the tines warrant a continuous crop flow, high intakes and superior conditioning.

Firm grip on the crop: The V-tines are made from hardened steel and mount at a steep angle, treating the forage intensively and powerfully. The tines pivot to avoid foreign objects, yet their forward movement is restricted to increase the service life of the bolts.

The CR conditioner – the best choice for lucerne - Leafy crops like lucerne and clover require a different type of conditioning than crops that are predominantly grass. The CR roller conditioner is just the right conditioner for these crops, leaving the delicate leaves intact that are so rich in valuable protein to safeguard the value of farm-grown feedstuff. Spreading the crops wide, the system also makes for faster wilting. This optional CR conditioner version complements the KRONE range of mowing equipment to meet all farming needs.

Three into one, two or three will go! EasyCut B 1000 CV with steel tine conditioner and EasyCut B 1000 CR with roller conditioner are available with Collect conveyor belts, which provide full flexibility in presenting the windrows including spreading. The powerful belts handle even the heaviest crops most effectively.

Firm grip on the crop: The V-tines are made from hardened steel and mount at a steep angle, treating the forage intensively and powerfully. The tines pivot to avoid foreign objects, yet their forward movement is restricted to increase the service life of the bolts.

Short-cut to top quality - Efficiency is one parameter in hay and forage harvesting, quality is another. The high-performance and 640 mm (2'1") diameter KRONE CV conditioner with V-shaped steel tines spreads the crop at the full working width. Its massive rotor diameter and the helical arrangement of the tines warrant a continuous crop flow, high intakes and superior conditioning.
