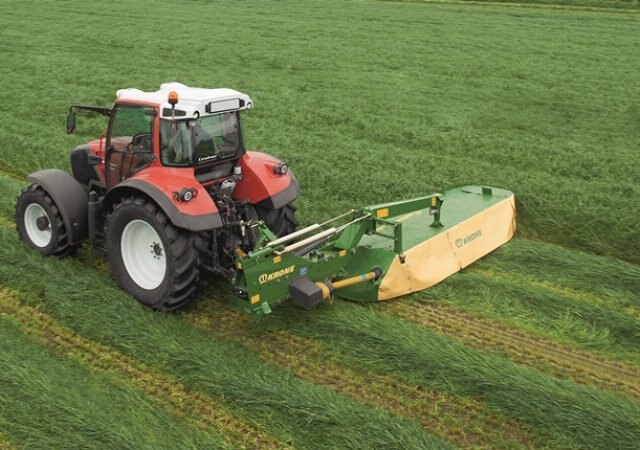

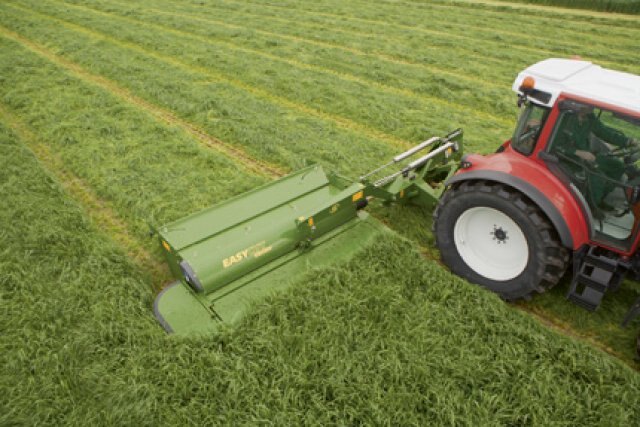

EasyCut R 280 CV, R 320 CV - These rear mowers are equipped with our CV conditioners that speed up the wilting process. The right-angle and V-type steel tines treat the crop across the full width of the mower bed.

EasyCut – the better cut: The wedge-shaped cutterbar adjusts through a large setting range to cut short stubble in meadows and pastures and longer stubble in longstemmed field crops. EasyCut cuts blockage-free and clean. Benefitting from massive double spur gear bearings that are spaced at large gaps, the cutterbars are heavy-duty and hardwearing.

The original: The established system of satellite gears is a KRONE development. Ever since it was introduced in 1989, this design has proven extremely well all over the world. A driveline of massive spur gears with up to 66 teeth transfers the power all the way down to the very last disc. Revolving at lower speeds, the large-diameter gears always have a number of teeth in mesh at any one time, giving quiet running, ultimate efficiency and maximum longevity. With each of the auxiliary gears driving just one disc, it is exposed to only minimum mechanical strain.

EasyCut – uniquely KRONE: The situation is familiar to every farmer – a disc hits a foreign object, gets damaged and needs replacing. In this situation, KRONE SafeCut offers a maximum of protection. The DLG Gold winning new disc shear-off system brings a new level of protection and operational reliability to the EasyCut mowers with and without CV conditioner. SafeCut is standard equipment on all EasyCut disc mowers.

Forget about stripes: With some discs turning in pairs towards each other and others away from each other, it was necessary to redesign the degree of blade overlap to ensure cleanest cuts. Therefore we increased the overlap between those discs that turn outwards – a modification that leads to stripeless cuts in light and young material. Vice versa, a larger gap between the blades that turn towards each other encourages the smooth flow of large masses to the rear.

Adjusting the ground pressure is easy: Adjusting the spring tension manually is easy and straightforward, because you simply refi t the pin. Increase the tension to decrease the ground pressure.

Hydraulic control from the seat: Enjoy superior operator comfort from the hydraulic suspension control system. Adjust the pressure fl exibly on the move and release the spring tension from the seat before you remove the mower from the tractor.

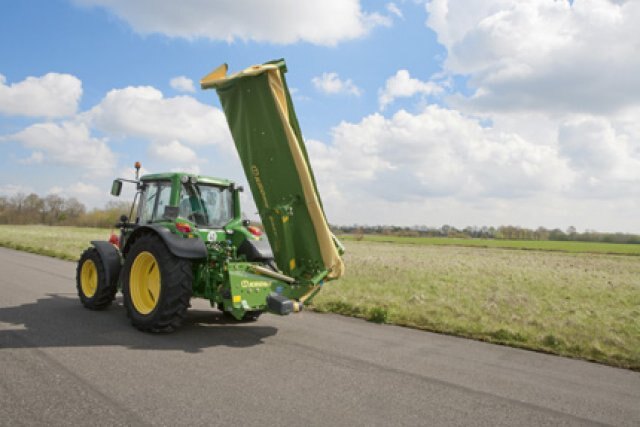

Safe road travel: The special design shifts the machine weight to the middle of the tractor, distributing it more uniformly across the axle and the linkage for better ride quality and better visibility in the rear-view mirrors. There is nothing in the way that might obstruct your view.

Fold it from the seat: The machine swings hydraulically into an upright position and beyond the dead centre point. The single-acting ram on the EasyCut R 280 and R 320 models employs an accumulator to move the machine into a 110° position whereas the EasyCut R 320 CV and R 360 models use a double-acting ram to swing the machine into a 124° position. Both versions fold the mower actively up and down for smooth and easy changeovers.

Unique functionality and easiest handling: KRONE disc mowers perform successfully everywhere in the world. After all, users from all over the world feed their experience back to us and we implement their feedback into the EasyCut production processes. The upright storage position is one innovative idea that was fed into the EasyCut R mowers, which offer compact storage in confined space. KRONE disc mowers offer plenty of innovative solutions that make farmers' lives easier and their work more profitable.

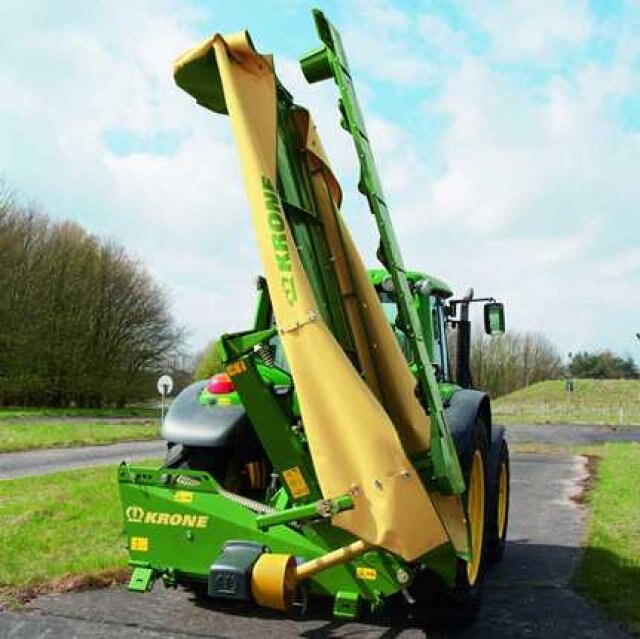

A unique KRONE design: Storing the machine in an upright transport position saves time and space. Optional stands give stability and make tractor attachment/ removal easier and simpler. You can of course store these mowers horizontally as well.

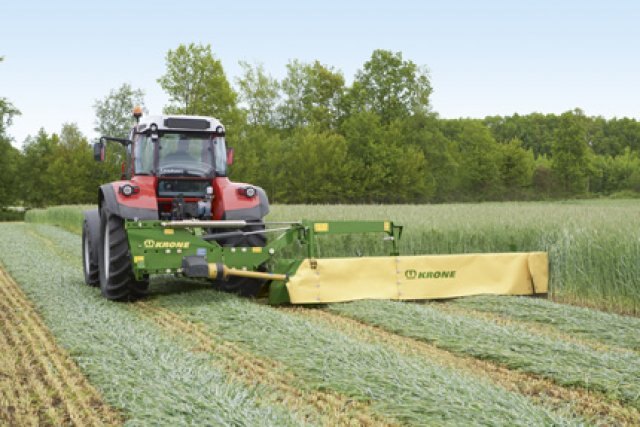

The competitive mower: The KRONE EasyCut R 360 model is a powerful mounted mower that works at a width of 3.60 m (11'10"). A very cost-effective and viable machine, EasyCut R 360 not only cuts your daily rations but also plays a major role in extensification programmes. Depending on the design and the sense of disc rotation, the mower can spread and swath the crop into two equal volume swaths.

Compact: Folding up rather than to the rear and mounting close to the tractor, the machine takes only very little load off the front axle. As a result, the tractor steers as easily as without the mower.
