ID # 42488311

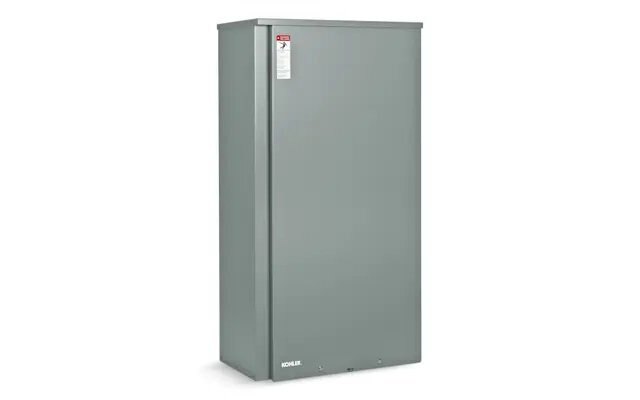

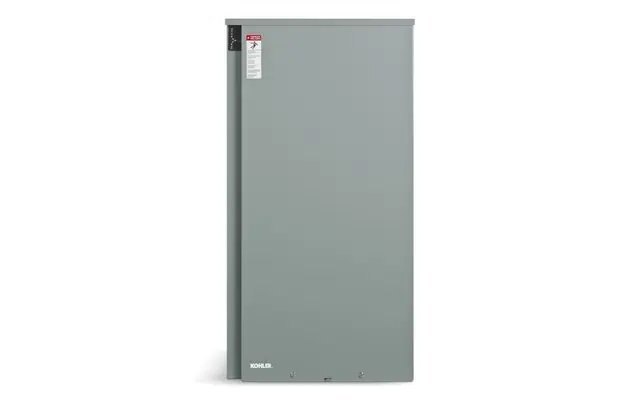

Kohler RXT ATS - 400-amp, Three Phase/3 Pole, 208V, CSA RXT-JCTC-400A-MV07

  • Kohler RXT ATS 400 amp, Three Phase/3 Pole, 208V, CSA RXT JCTC 400A MV07
  • Kohler RXT ATS 400 amp, Three Phase/3 Pole, 208V, CSA RXT JCTC 400A MV07
  • Kohler RXT ATS 400 amp, Three Phase/3 Pole, 208V, CSA RXT JCTC 400A MV07
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

It's the brains behind your generator system. The automatic transfer switch (ATS) continuously monitors the power coming from your utility. When the power goes out, the ATS automatically transfers power from the utility to your generator. When utility power is restored, the ATS turns off your generator and transfers back to power from the utility grid.



Specifications
Model
RXT-JCTC-400A-MV07
Category Name
Generators
Year
2026
Sale Type
New
Manufacturer
Kohler
Amps
400
Phase
Three Phase
Poles
3
Wires
4
Weight
104 lbs. (47 kg)
Controller
RDC2/DC2
Dimensions
1222 mm x 610 mm x 343 mm (48.1 in. x 24.0 in. x 13.5 in.)
Load Center
w/o Load Center
Enclosure Type
Indoor or Outdoor
Voltage @60 Hzs
208
Country Of Origin
US
Enclosure Material
Aluminum
Transfer Switch Type
Standard
Generator Compatibility
All KOHLER Generators with RDC2 or DC2 controllers
Position Indicating LEDs
Optional
Source Available Indicating LEDs
Optional
features
  • Designed for use only with KOHLER generators equipped with RDC2 or DC2 controls.
  • Installs indoors or outdoors.
  • Available in service-entrance models.
  • Optional external LED display.
  • Corrosion-resistant aluminum enclosure.
  • 5-year, 2000-hour limited warranty.
  • 400-amp models available
  • Volts: 208 V (three-phase).
  • Poles: 3 (three-phase).
literture

Name

Link
Dimensional Drawing PDF Download
Spec PDF Download
