ID # 42348952

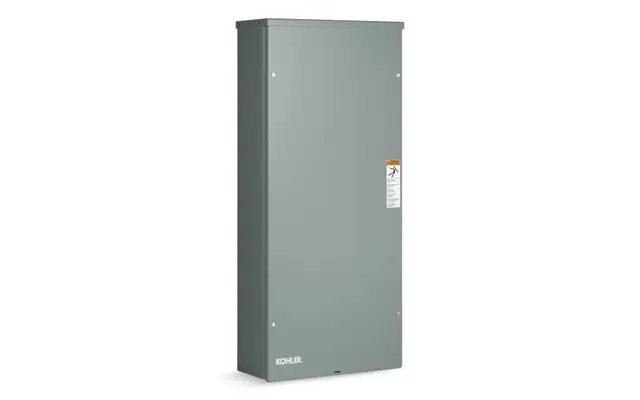

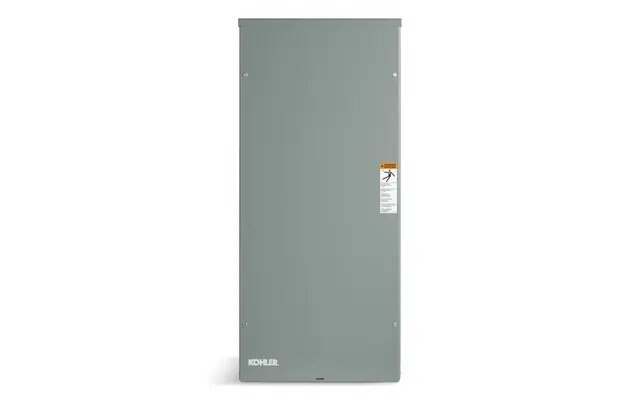

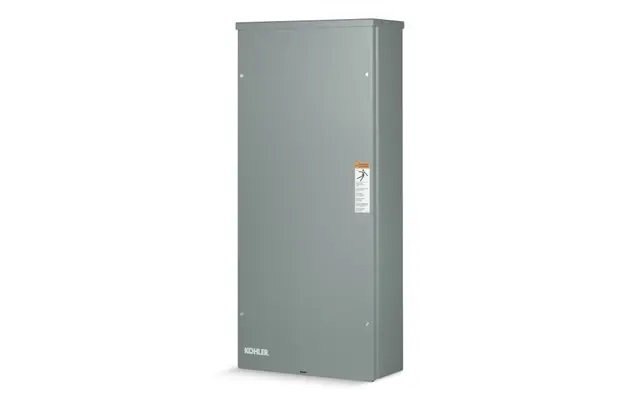

Kohler RDT ATS - 400-amp RDT-CFNC-400A-QS10

  • Kohler RDT ATS 400 amp RDT CFNC 400A QS10
  • Kohler RDT ATS 400 amp RDT CFNC 400A QS10
  • Kohler RDT ATS 400 amp RDT CFNC 400A QS10
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

It's the brains behind your generator system. The automatic transfer switch (ATS) continuously monitors the power coming from your utility. When the power goes out, the ATS automatically transfers power from the utility to your generator. When utility power is restored, the ATS turns off your generator and transfers back to power from the utility grid.



Specifications
Model
RDT-CFNC-400A-QS10
Category Name
Generators
Year
2026
Sale Type
New
Manufacturer
Kohler
Amps
400
Phase
Single Phase
Poles
2
Wires
3
Weight
89 lbs. (40 kg)
Controller
MPAC 500
Dimensions
1222 mm x 560 mm x 269 mm (48.1 in. x 22.0 in. x 10.6 in.)
Load Center
w/o Load Center
Enclosure Type
Indoor or Outdoor
Voltage @60 Hzs
240
Country Of Origin
US
Enclosure Material
Aluminum
Transfer Switch Type
Standard
Generator Compatibility
All Single Phase KOHLER Residential/Small Business Generators
External Alarm Module Available...
Optional
Accessory Board With Audible Alarm...
Optional
features
  • Compatible with all KOHLER generators.
  • 400-amp models available, with or without load centers; Volts: 240; Poles: 2
  • User-friendly LED display indicates performance status.
  • Ideal for adding generator to buildings with previously installed electrical.
  • Options available to install indoors or outdoors.
  • Available in service entrance models.
  • Provides quiet weekly exercise with complete system diagnostics.
  • Steel or aluminum enclosures available.
  • Ask your dealer about available accessories that let you customize your system.
  • 5-year, 2000-hour limited warranty.
literture

Name

Link
Dimensional Drawing PDF Download
Spec PDF Download
