ID # 42109341

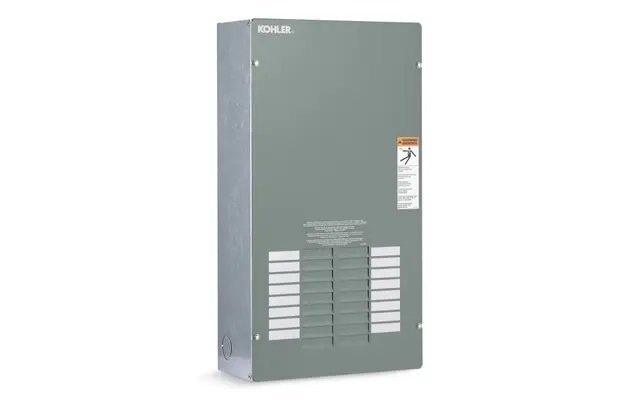

Kohler RXT ATS - Indoor, 100-amp, 12 space Load Center GM85273-SA6

  • Kohler RXT ATS Indoor, 100 amp, 12 space Load Center GM85273 SA6
  • Kohler RXT ATS Indoor, 100 amp, 12 space Load Center GM85273 SA6
  • Kohler RXT ATS Indoor, 100 amp, 12 space Load Center GM85273 SA6
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

It's the brains behind your generator system. The automatic transfer switch (ATS) continuously monitors the power coming from your utility. When the power goes out, the ATS automatically transfers power from the utility to your generator. When utility power is restored, the ATS turns off your generator and transfers back to power from the utility grid.



Specifications
Model
GM85273-SA6
Category Name
Generators
Year
2026
Sale Type
New
Manufacturer
Kohler
Amps
100
Phase
Single Phase
Poles
2
Wires
3
Weight
26 lbs. (12 kg)
Controller
RDC2/DC2
Dimensions
610 mm x 330 mm x 154 mm (24.0 in. x 13.0 in. x 6.0 in.)
Load Center
w/Load Center
Enclosure Type
Indoor
Voltage @60 Hzs
240
Country Of Origin
US
Enclosure Material
Steel
Transfer Switch Type
Standard
Generator Compatibility
All single-phase KOHLER Generators with RDC2 or DC2 controllers
Position Indicating LEDs
Optional
Source Available Indicating LEDs
Optional
features
  • Designed for use only with KOHLER generators equipped with RDC2 or DC2 controls.
  • Installs indoors or outdoors.
  • Available in service-entrance models.
  • Optional external LED display.
  • Corrosion-resistant aluminum enclosure.
  • 5-year, 2000-hour limited warranty.
  • 100-amp models available
  • Volts: 240 V (single-phase).
  • Poles: 2 (single-phase).
