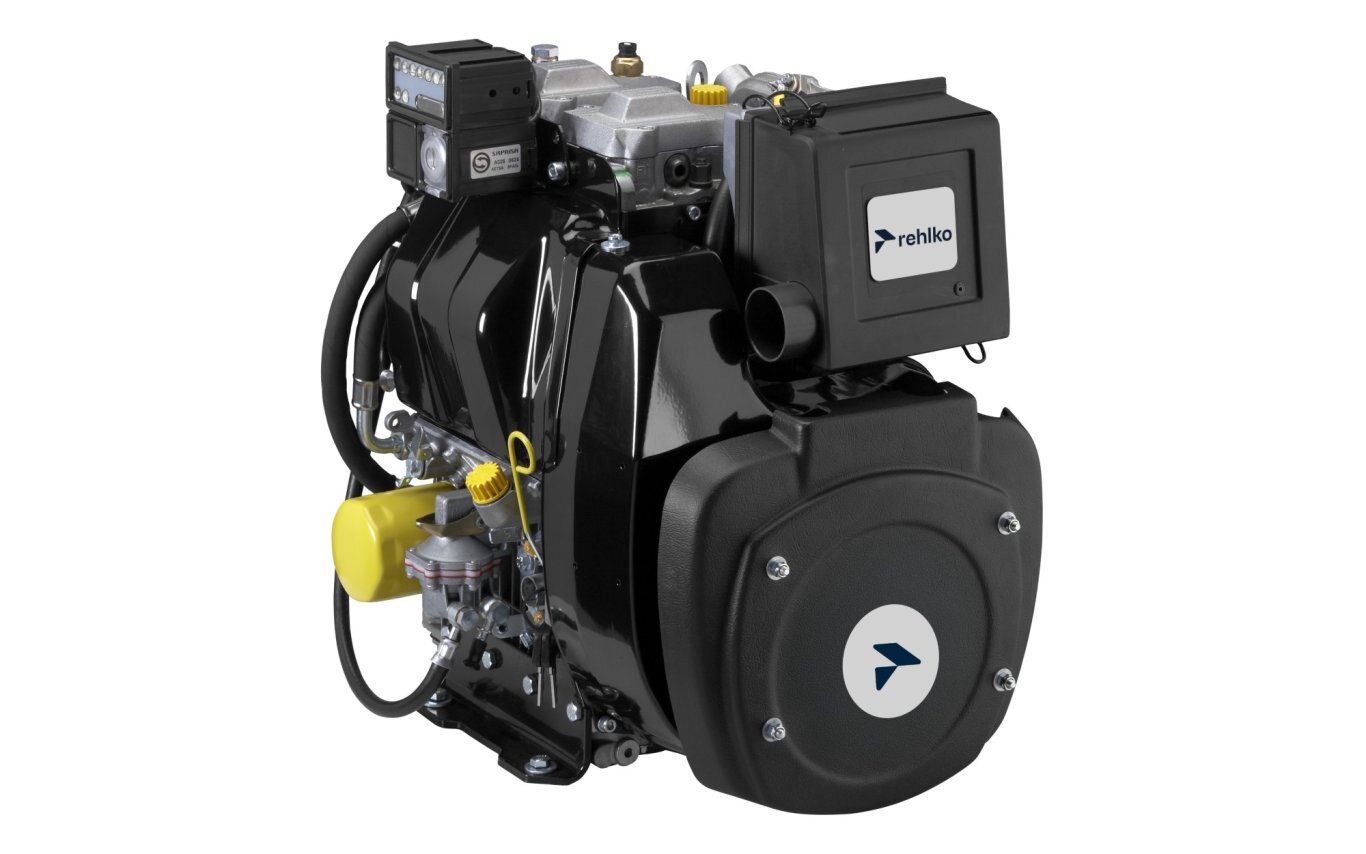

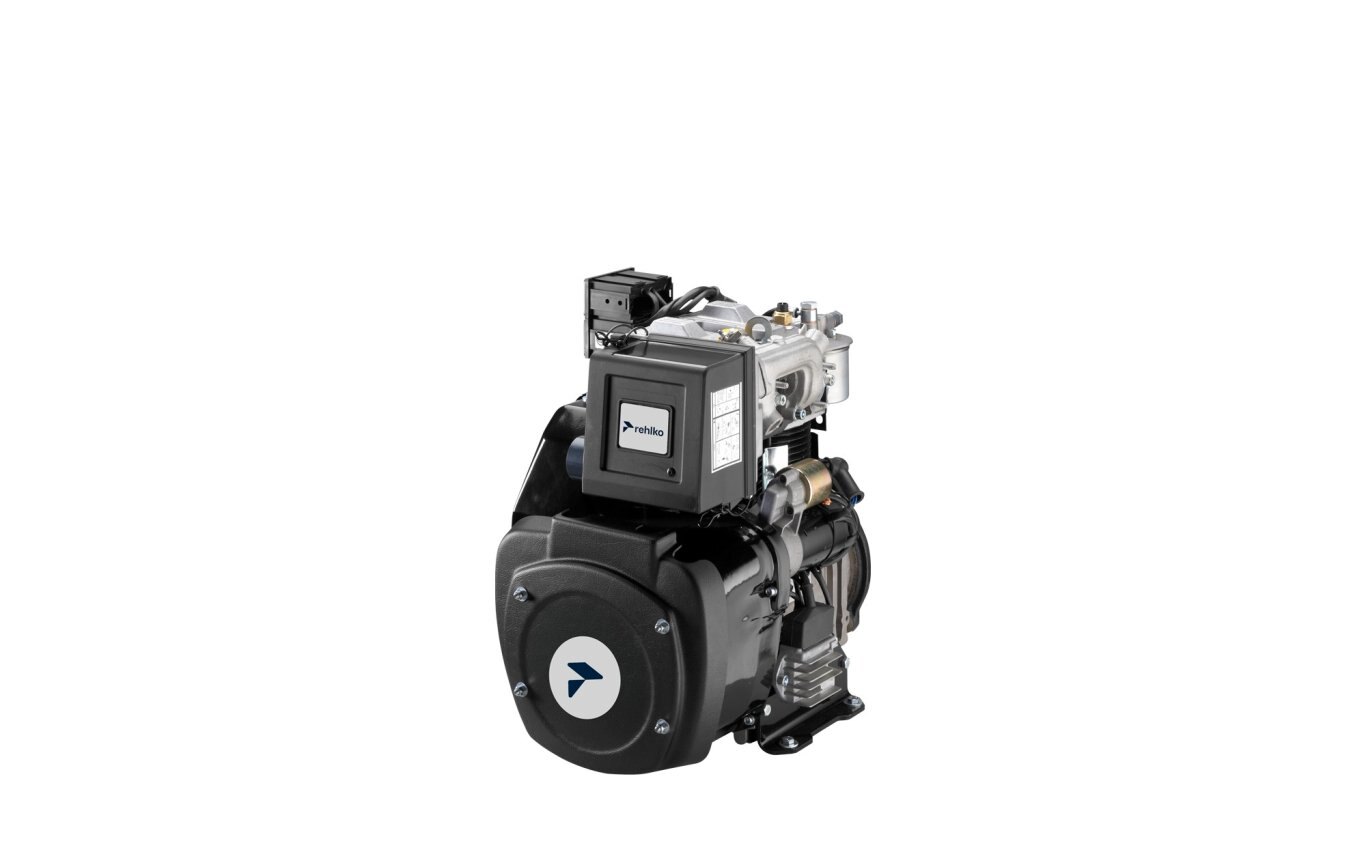

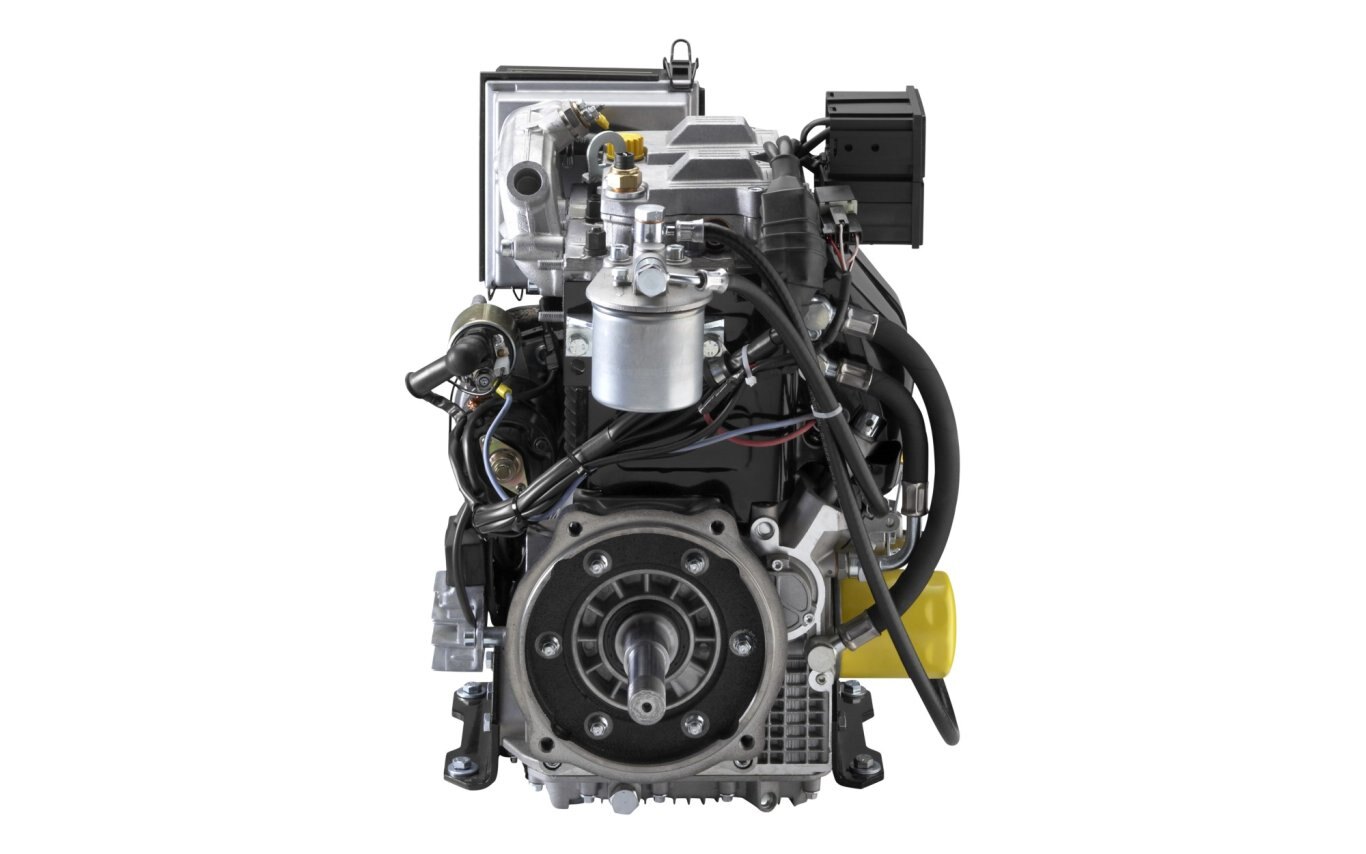

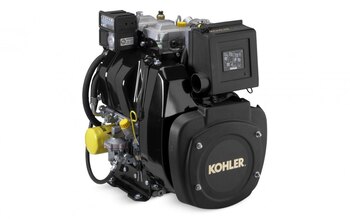

Kohler Diesel Air-Cooled KD425-2

  • Kohler Diesel Air Cooled KD425 2
  • Kohler Diesel Air Cooled KD425 2
  • Kohler Diesel Air Cooled KD425 2
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Our air-cooled diesel engines are engineered with state-of-art air filters to increase durability, and lengthen service intervals. Couple all of that with the engine's cast iron cylinder liners and you've got a machine that doesn't know how to quit.

Specifications
Model
KD425-2
Category Name
Engines
Year
2026
Sale Type
New
Manufacturer
Kohler
Bore
85 (3.3) mm (in)
Power
13 (17.4)@3600RPM kW (hp)
Dry Weight
63 (138.9) kg (lbs)
Engine Type
Commercial
Lubrication
Full pressure w/full-flow filter
Displacement
851 (51.9) cm3 (in3)
Oil Capacity
1.8 (1.9) L (US qt)
Maximum Torque
42 (31)@2200RPM Nm (lb-ft)
Stroke In (mm)
75 (3) mm (in)
Compression Ratio
19.0:1
Dimensions L X W X H
485x464x503 (19.1x18.3x19.8) mm (in)
features
  • New rugged design for the most extreme conditions
  • Equipped with a larger air filtration cartridge with increased capacity
  • Cyclonic separator with one-way valve for dust discharge
  • New integrated sound dampener provide reduced noise levels
engine uses

Equipment Types

This engine powers the following equipments

literture

Name

Link
ServiceManual Download
Owner’s Manual Download
Documents
