Kohler
ID # 41396351

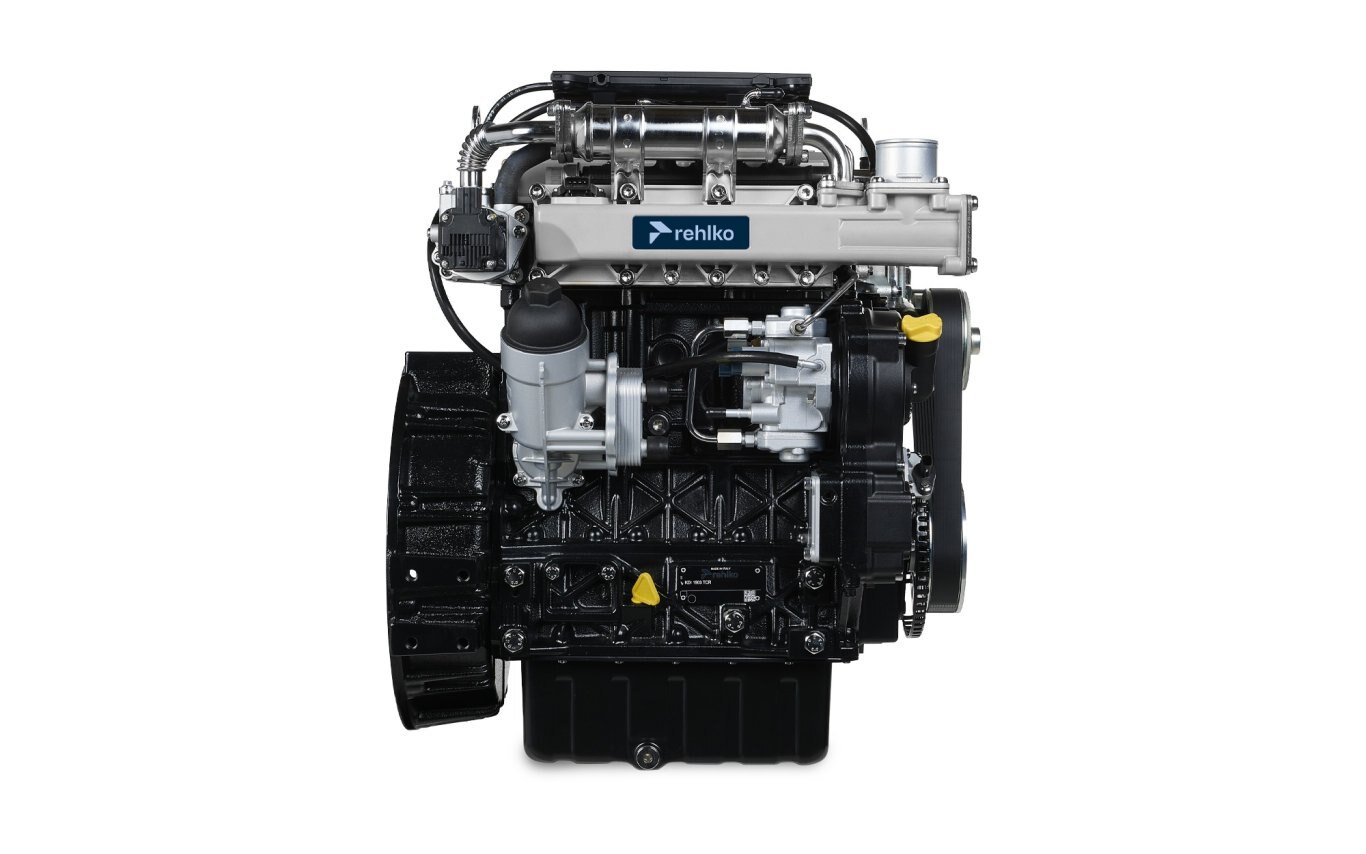

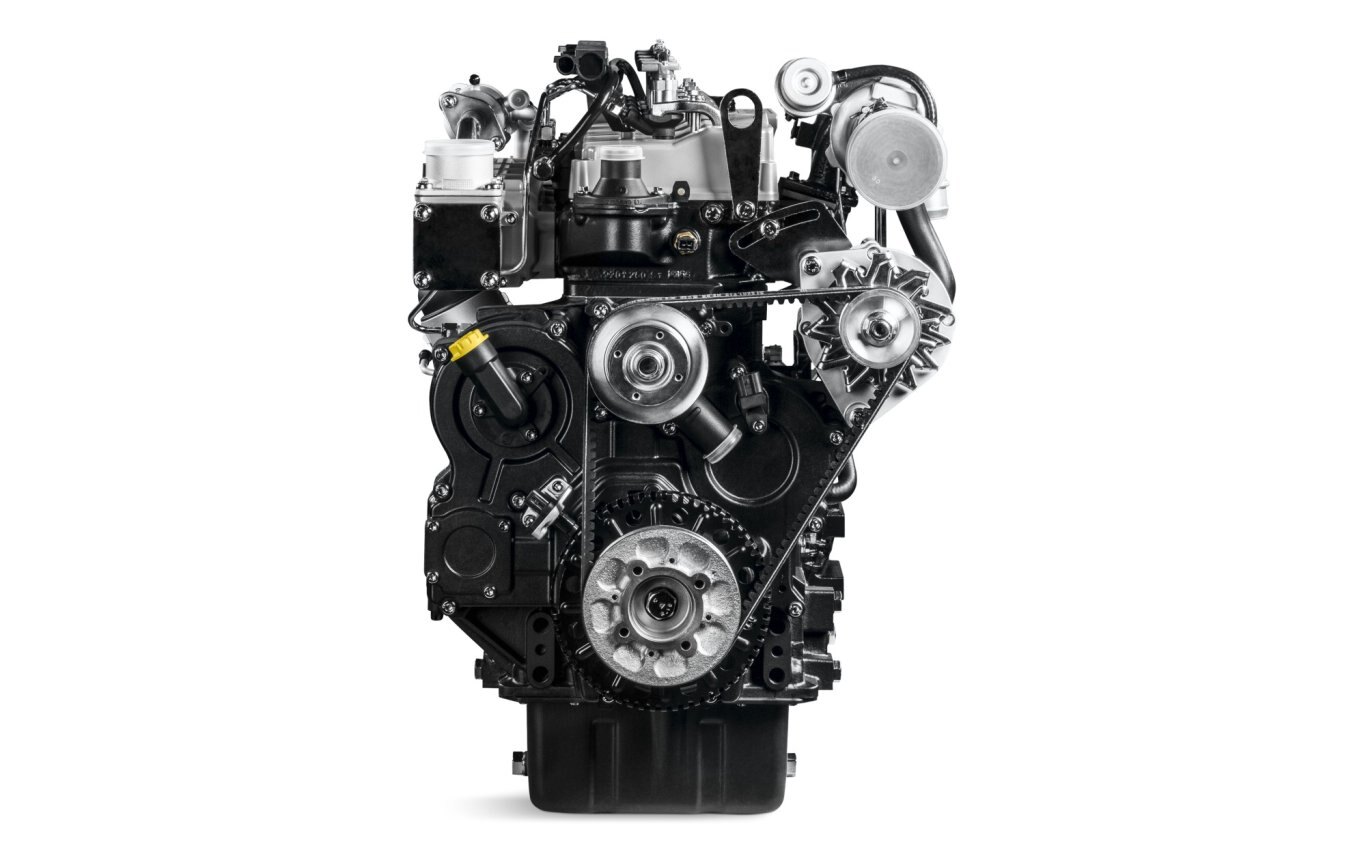

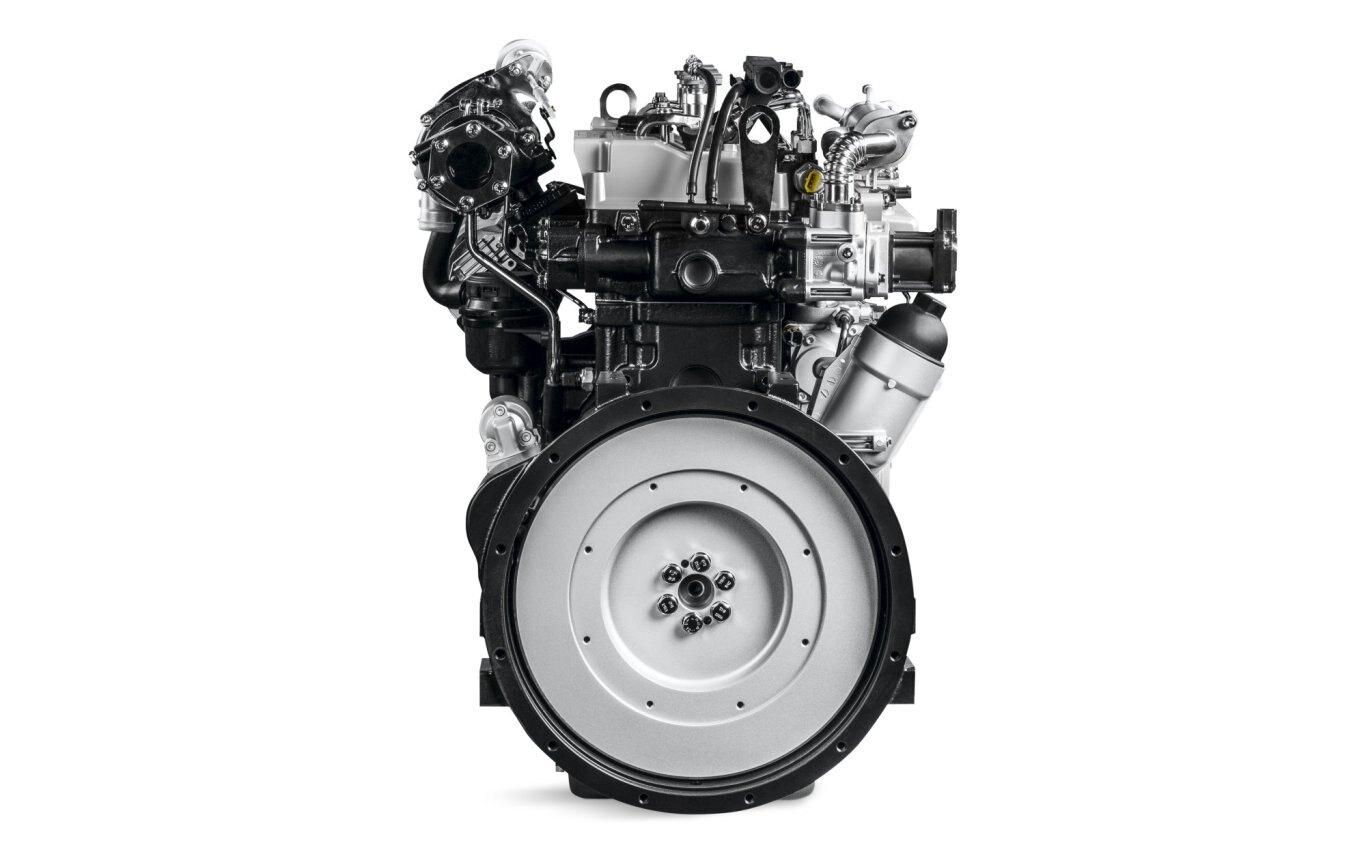

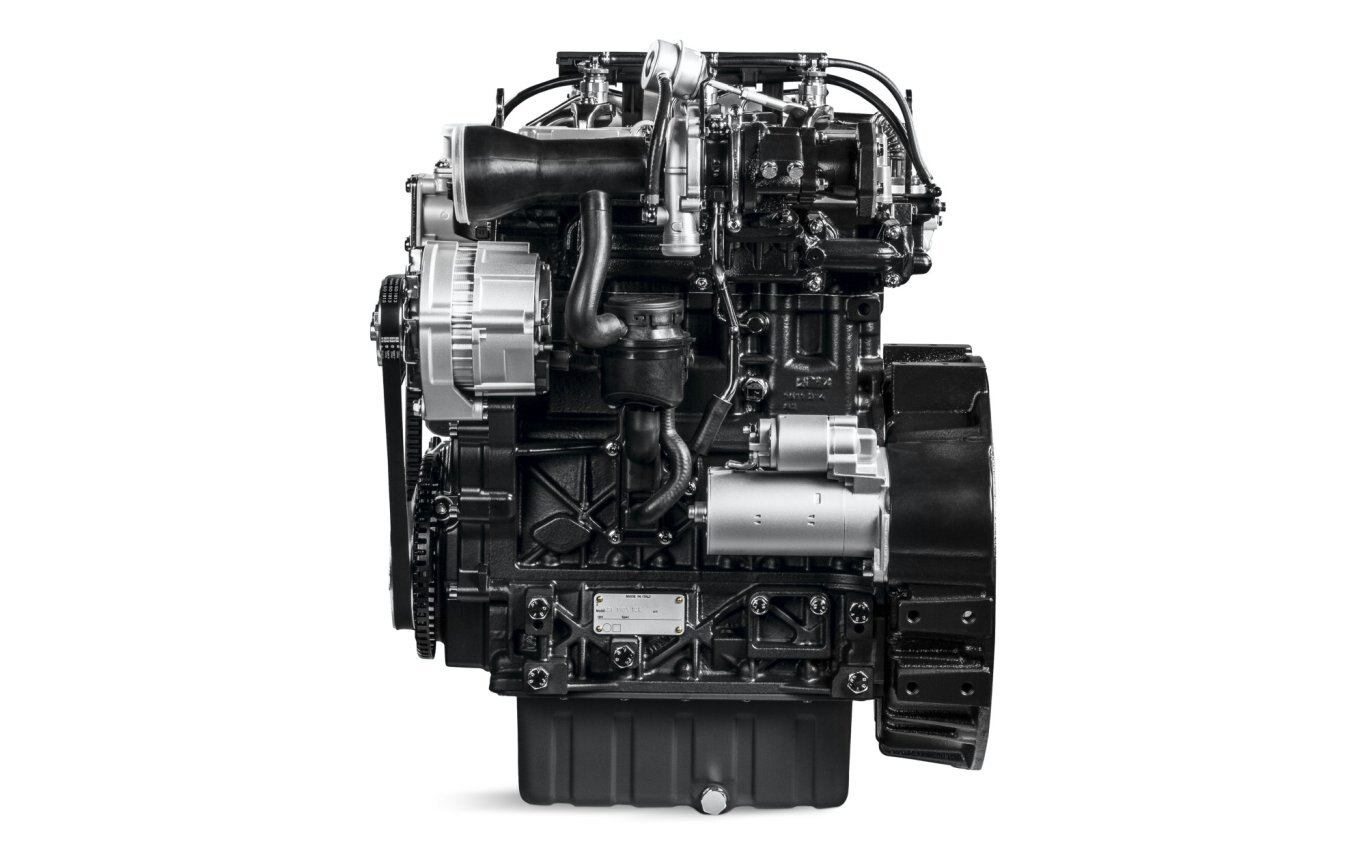

Kohler Diesel KDI Electronic Common Rail KDI1903TCR
Call for Price
Overview
Specifications
features
engine uses
literture
Documents
With the KDI diesel engine, we started from scratch to build an entirely new engine experience. Using state-of the-art technology to control the combustion process, we created a diesel that delivers more power and more torque in a smaller frame. So you can keep your performance and downsize your engine.
Model
KDI1903TCR
Category Name
Engines
Year
2026
Sale Type
New
Manufacturer
Kohler
Bore
88 (3.5) mm (in)
Power
42 (56)@2600RPM kW (hp)
Dry Weight
233 (513.7) kg (lbs)
Engine Type
Commercial
Lubrication
Full pressure w/full-flow filter
Displacement
1861 (113.6) cm3 (in3)
Oil Capacity
8.5 (8.9) L (US qt)
Maximum Torque
225 (165.9)@1500RPM Nm (lb-ft)
Stroke In (mm)
102 (4) mm (in)
Dimensions L X W X H
598x530x726 (23.5x20.9x28.6) mm (in)
Feature
- One engine platform for the entire world
- Smart emission management system
- Excellent fuel efficiency
- Long service intervals
- Low noise, low vibration
ENGINE USES
Equipment Types
This engine powers the following equipments
- 4WD Tractor
- Aerial Platform
- Air Compressor
- Backhoe Loader
- Compact Shovel Loader
- Compaction Roller
- Concrete Mixer
- Concrete Sprayer
- Excavator
- Firefighting Pump
- Forklift
- Fruit Picking/Harvestor
- Fruit Yard/Vineyard Tractor
- Generator Set
- Line Striper
- Motor Sweeper
- Pressure Washer
- Self-Priming Water Pump
- Skid Steer Loader
- Stringing Equipment
- Telescopic Handler
- Water Pump (Irrigation)
- Welder
- Wheeled Loader
- Wood Chipper
Rehlko_KDI_1903_2504.pdf Model
KDI1903TCR
Category Name
Engines
Year
2026
Sale Type
New
Manufacturer
Kohler
Quantity
0
Bore
88 (3.5) mm (in)
Power
42 (56)@2600RPM kW (hp)
Dry Weight
233 (513.7) kg (lbs)
