ID # 13954151

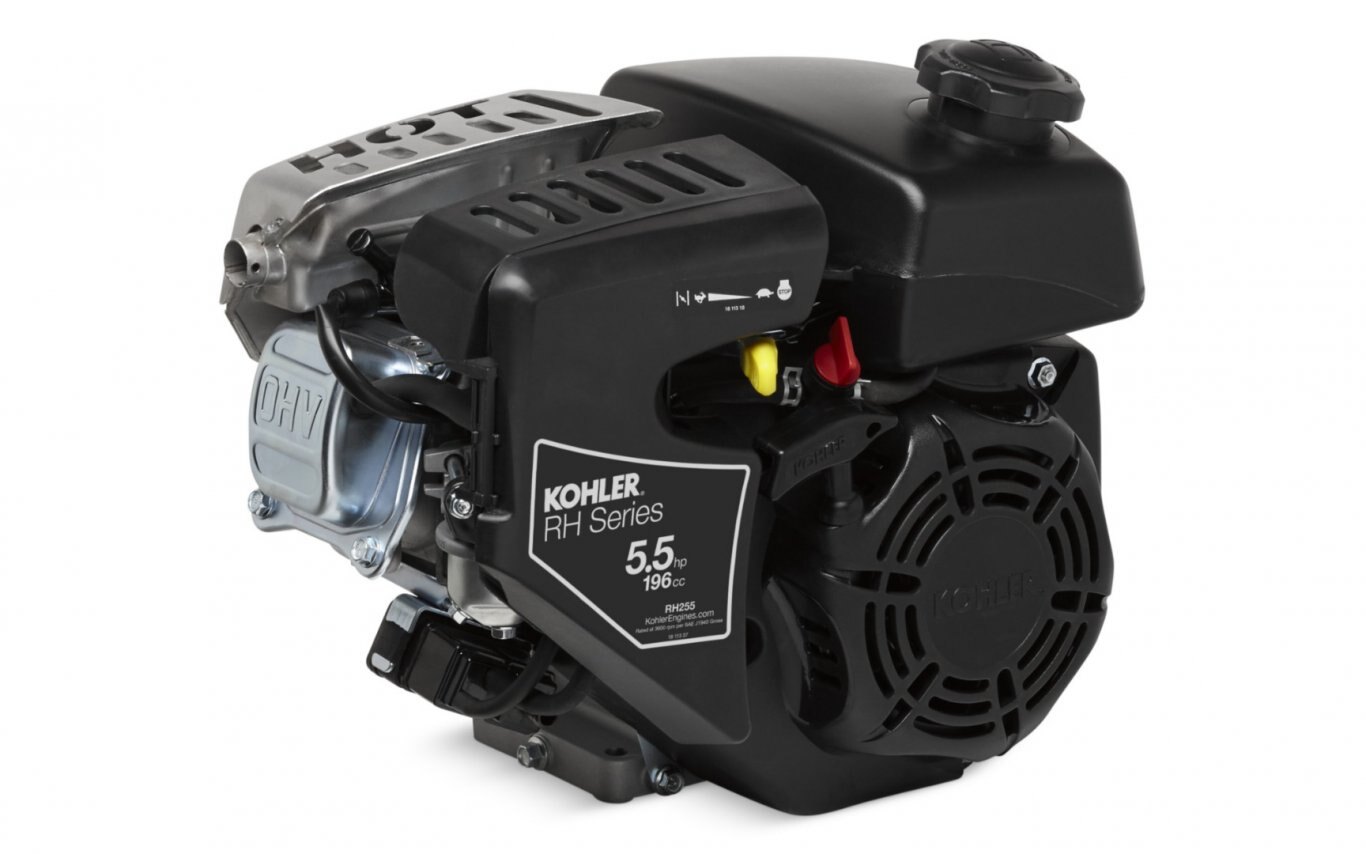

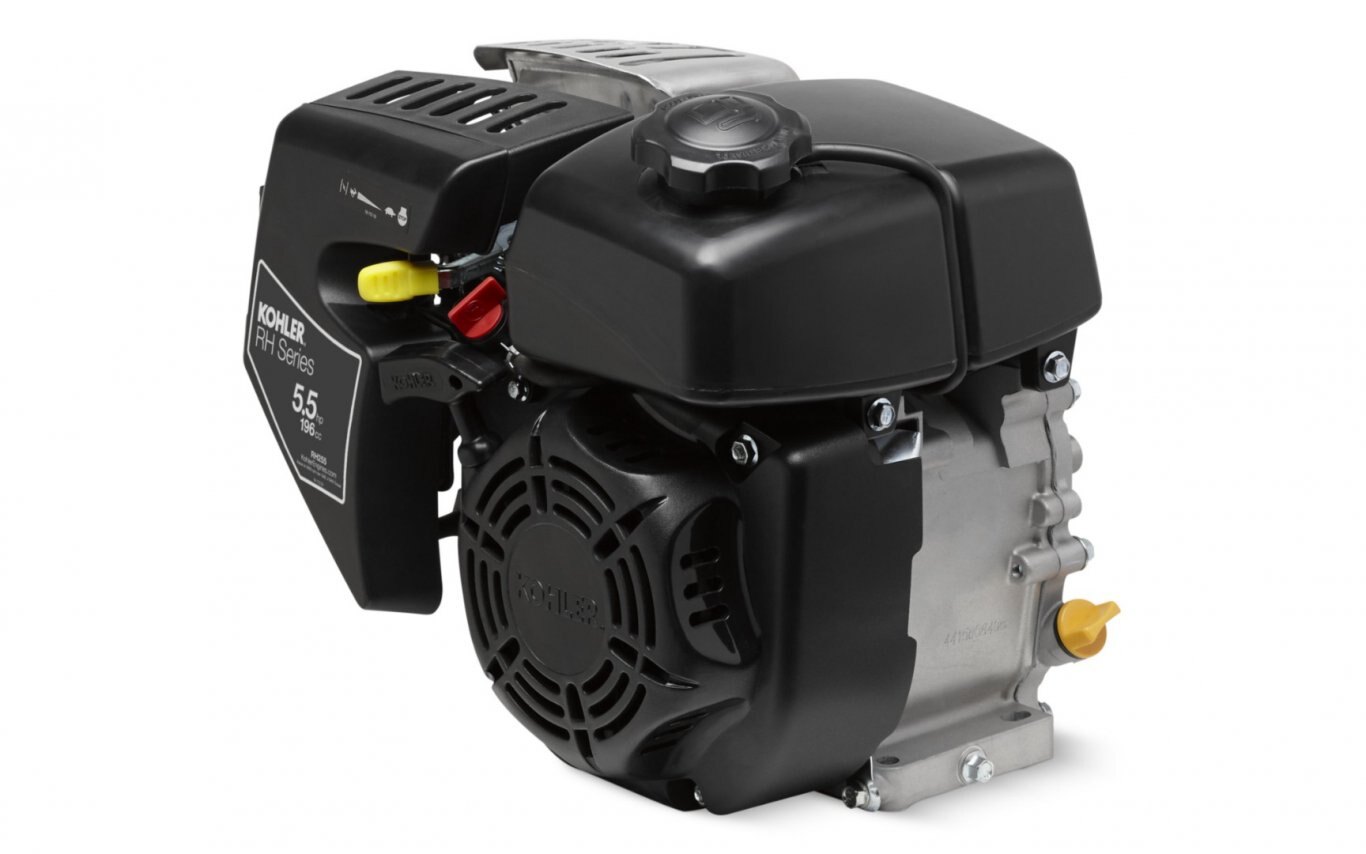

Kohler RH Series RH255

  • Kohler RH Series RH255
  • Kohler RH Series RH255
  • Kohler RH Series RH255
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Get pro-grade features on an easy-to-handle engine.

The 2000 Series has overhead valve design for better fuel efficiency, and user-friendly features like Accu-Fill and Easy-Pull technology.
  Features
  • Designed for effortless starts with electronic ignition
  • Easy-pull ergonomic handle
  • Easy pours and less spilling with Accu-Fill® fuel tank's 45% larger angled fuel neck
  • Simple starts and stops with all-in-one throttle/choke/shut-off control lever
  • Lightweight design makes for easy maneuverability
  Engine Uses

Equipment Types

This engine powers the following equipment

  • Go-Kart
  • Chipper
  • Edger
  • Tiller
  • Log Splitter
  • Pressure Washer
  • Pump



Specifications
Model
RH255
Category Name
Engines
Year
2018
Sale Type
New
Manufacturer
Kohler
HP (kW) 1
5.5(4.2)
Displacement (cc)
12 (196)
Bore In (mm)
2.7 (68)
Stroke In (mm)
2.1 (54)
Gross Torque Ft Lbs (Nm) 1
10.5 (14.2)
Compression Ratio
8:05:01
Dry Weight Lbs (kg)
28.8 (16)
Oil Capacity US Qts (L)
0.63 (0.6)
Lubrication
Splash
Dimensions LxWxH (in)*
12.2 x 12.8 x 12.8
Backpressure Limit 2
25
Certified Power HP (kW) 3
6.1 (4.6)
Certified RPM
3600
Engine Type
Consumer
