ID # 13954120

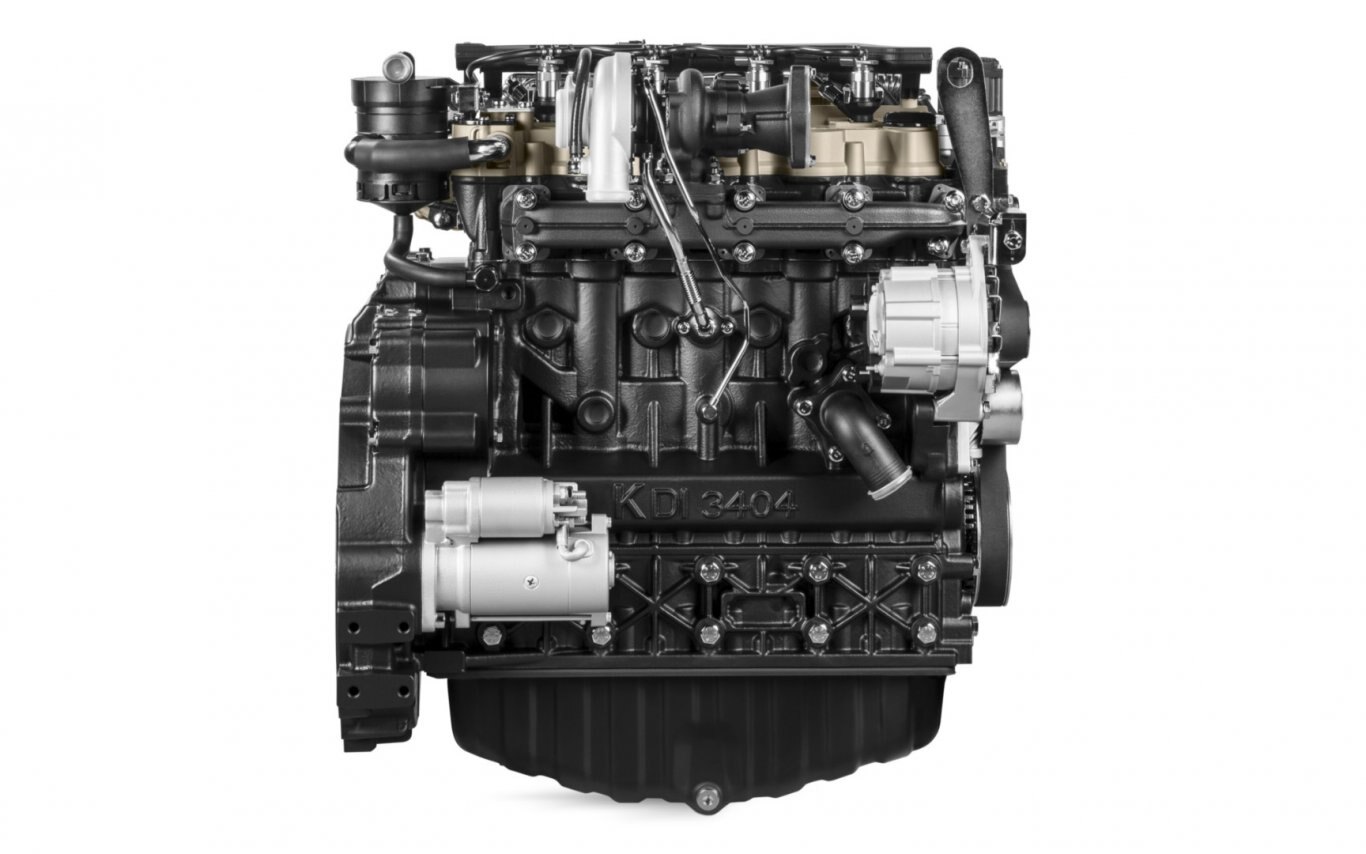

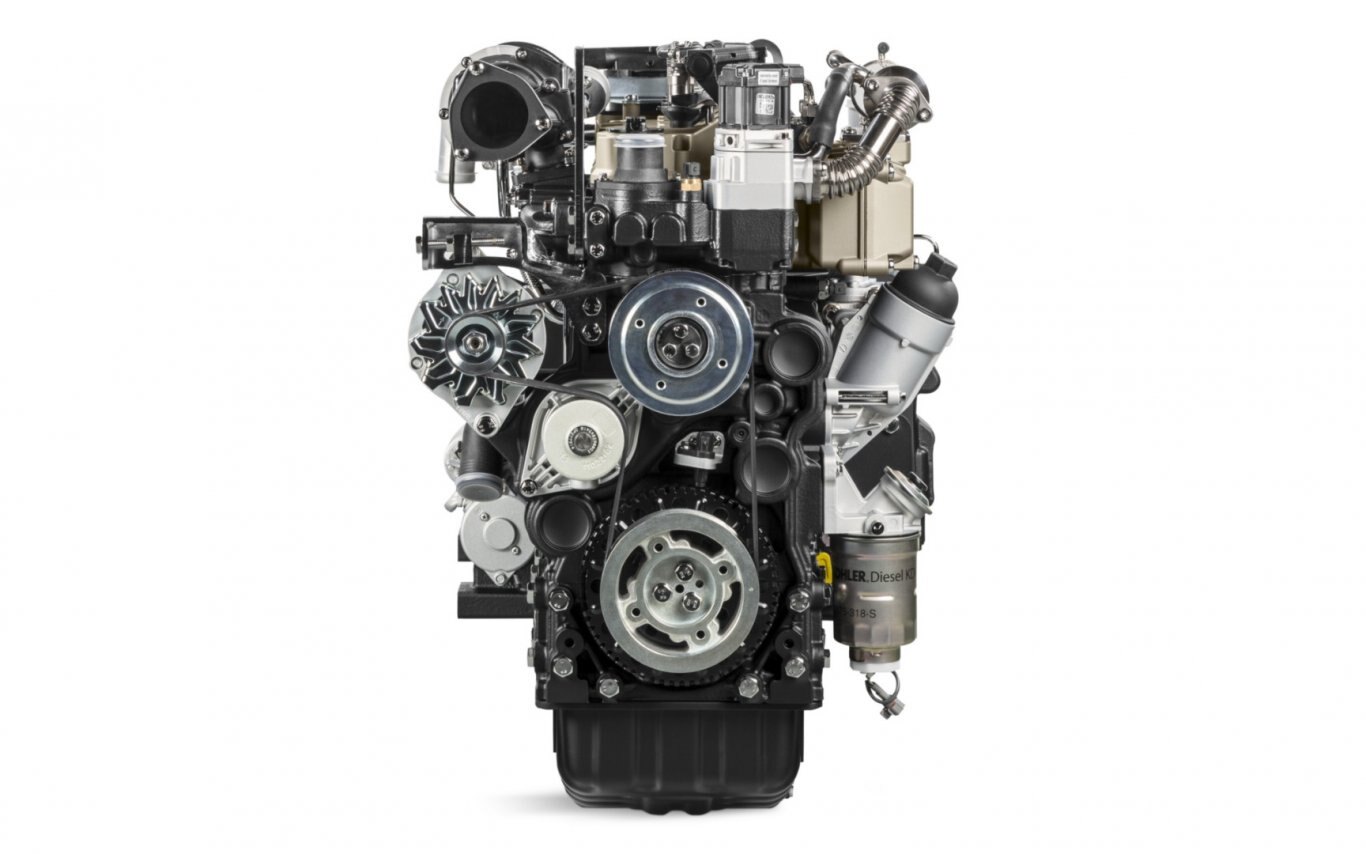

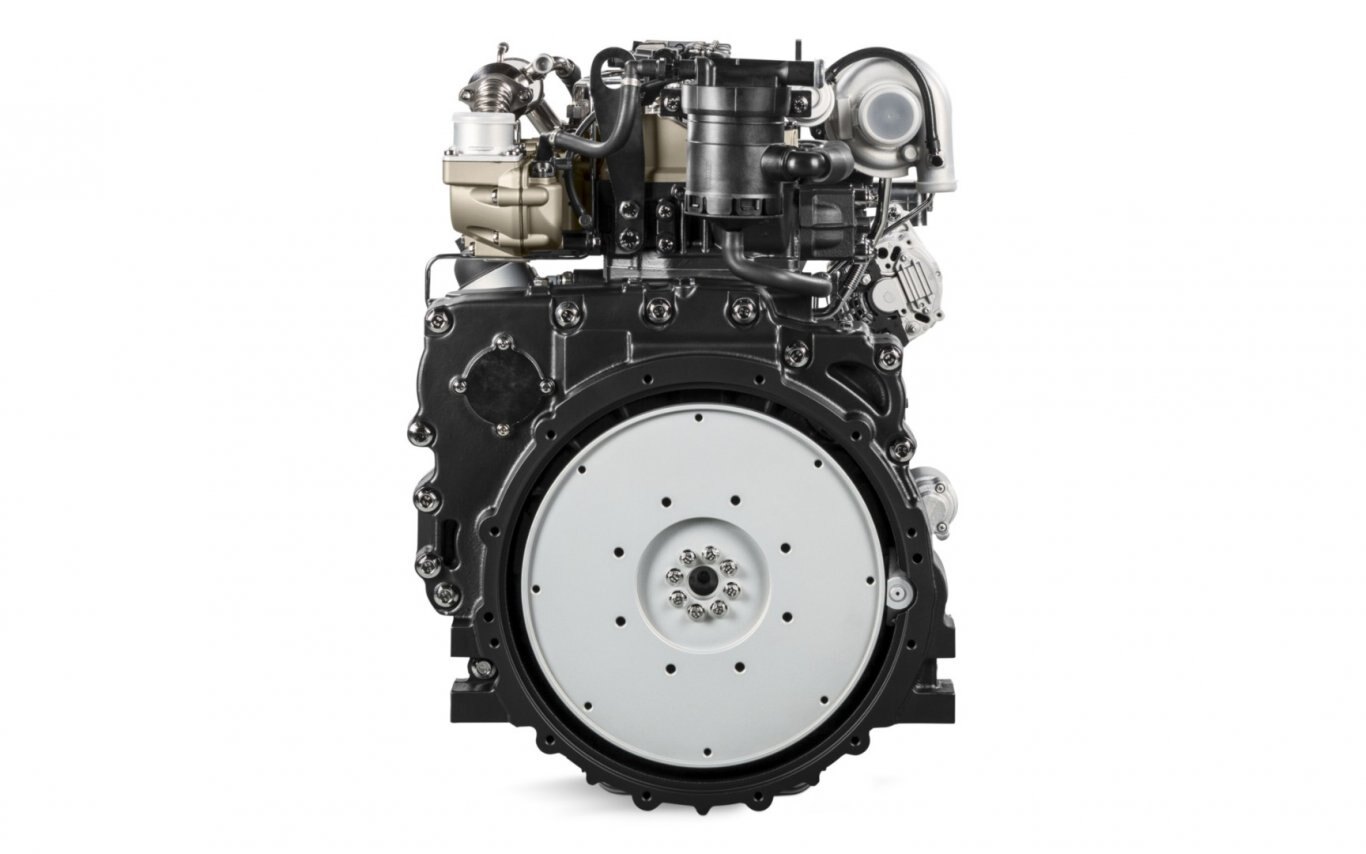

Kohler Diesel KDI Electronic Common Rail KDI3404TCR-SCR

  • Kohler Diesel KDI Electronic Common Rail KDI3404TCR SCR
  • Kohler Diesel KDI Electronic Common Rail KDI3404TCR SCR
  • Kohler Diesel KDI Electronic Common Rail KDI3404TCR SCR
  • Kohler Diesel KDI Electronic Common Rail KDI3404TCR SCR
  • Video Button Maxresdefault
  • Video Button Hqdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Say hello to the revolutionary KOHLER® KDI Diesel engine. A Tier 4 Final force of nature that comes loaded with four valves, high pressure injection and a turbocharger and up to 368 ft. lbs. of torque. Make no mistake, it was born to take on the jobs other engines can't.
  Exclusive Features
  • High-pressure (29,000 PSI) direct injection delivers efficient fuel performance and savings
  • Optimized combustion system helps achieve the industry's toughest emissions standards
  • Built to last with heavy-duty construction for demanding applications
  • Low noise, low vibration
  Features

Equipment Types

This engine powers the following equipment

  • Telescopic Handler
  • Tractor
  • Generator
  • Wheeled Loader
  • Cement Mixer



Specifications
Model
KDI3404TCR-SCR 122HP
Category Name
Engines
Year
2018
Sale Type
New
Manufacturer
Kohler
HP (kW) 1
122(90)
Displacement (cc)
205 (3359)
Bore In (mm)
3.8 (96)
Stroke In (mm)
4.6 (116)
Gross Torque Ft Lbs (Nm) 1
350.55 (475)
Dry Weight Lbs (kg)
868 (394)
Oil Capacity US Qts (L)
16.5 (15.6)
Lubrication
Full Pressure
Dimensions LxWxH (in)*
28.2 x 22.8 x 32.1
Engine Type
Commerial
