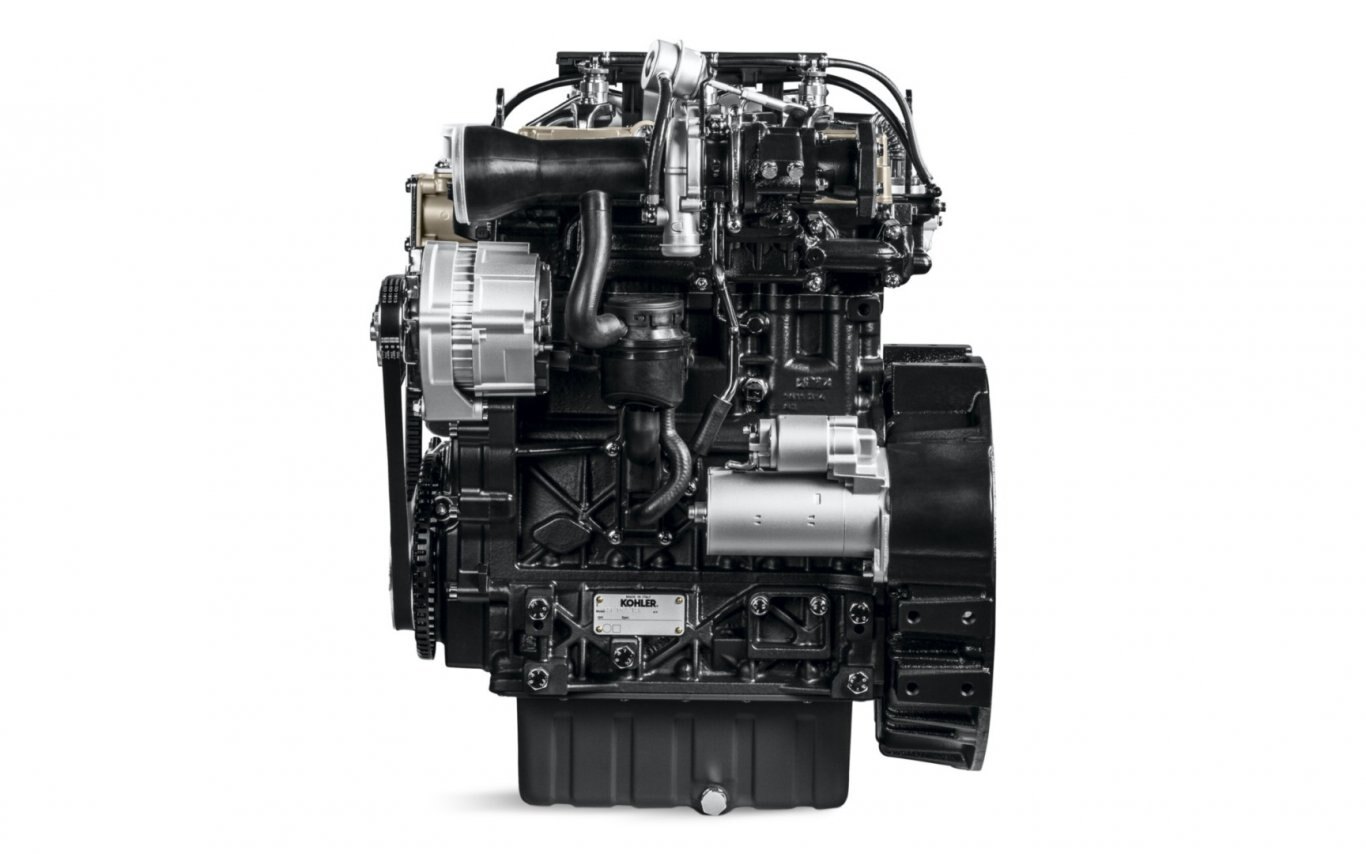

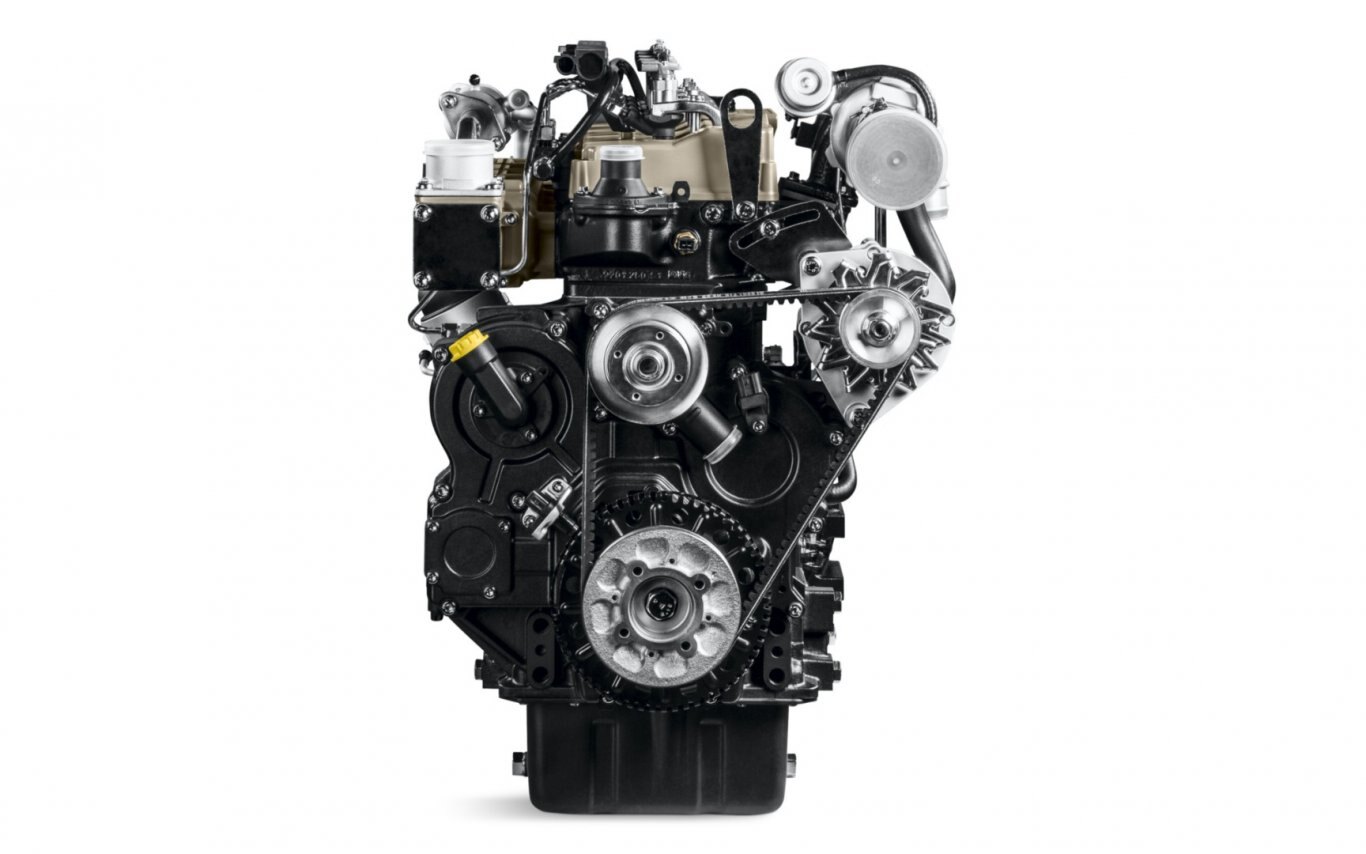

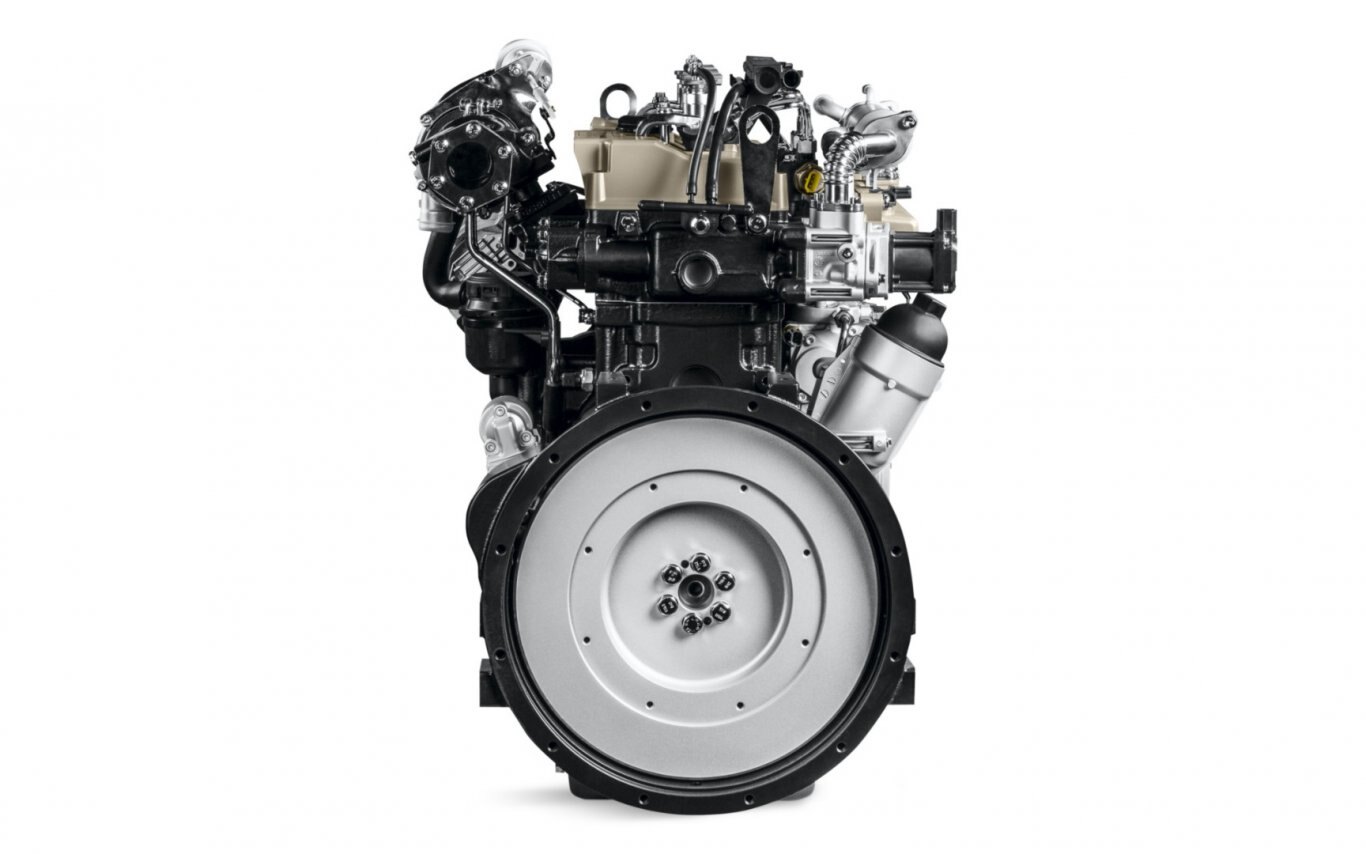

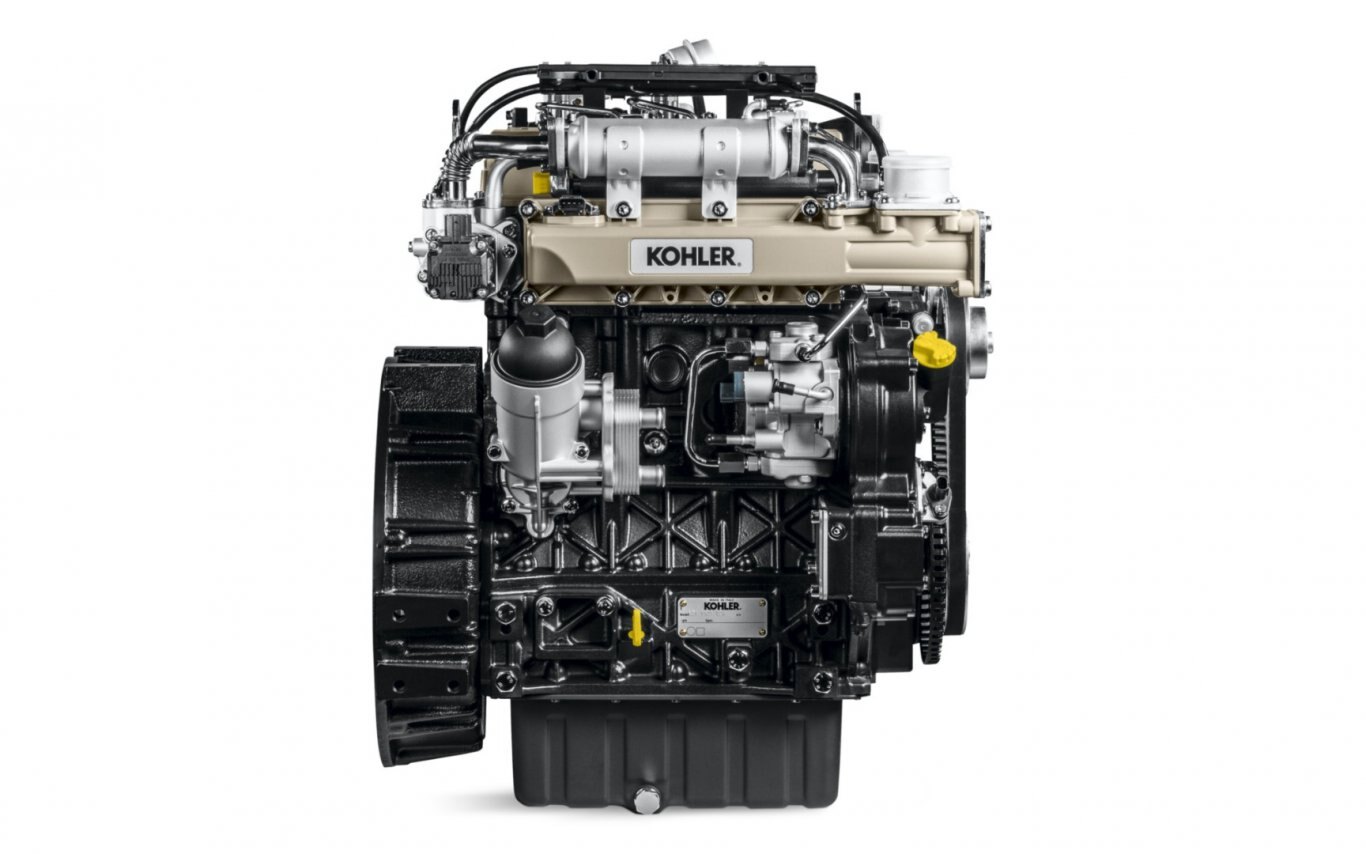

Kohler Diesel KDI Electronic Common Rail KDI1903TCR

  • Kohler Diesel KDI Electronic Common Rail KDI1903TCR
  • Kohler Diesel KDI Electronic Common Rail KDI1903TCR
  • Kohler Diesel KDI Electronic Common Rail KDI1903TCR
  • Kohler Diesel KDI Electronic Common Rail KDI1903TCR
  • Video Button Maxresdefault
  • Video Button Hqdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Say hello to the revolutionary KOHLER® KDI Diesel engine. A force of nature that comes loaded with four valves, high pressure injection and a turbocharger and up to 368 ft. lbs. of torque. Make no mistake, it was born to take on the jobs other engines can't.
  Exclusive Features
  • High-pressure (29,000 PSI) direct injection delivers efficient fuel performance and savings
  • Optimized combustion system helps achieve the industry's toughest emissions standards
  • Built to last with heavy-duty construction for demanding applications
  • Low noise, low vibration

  Engine Uses

Equipment Types

This engine powers the following equipment

  • Generator
  • Compressor
  • Roller
  • Refrigerating Group
  • Welder
  • Aerial Platform
  • Tractor
  • Wood-Chipper
  • Excavator
  • Telescopic Handler
  • Forklift
  • Skid Steer Loader
  • High Pressure Washer



Specifications
Model
KDI1903TCR
Category Name
Engines
Year
2018
Sale Type
New
Manufacturer
Kohler
HP (kW) 1
56(42)
Displacement (cc)
113.5 (1861)
Bore In (mm)
3.5 (88)
Stroke In (mm)
4 (102)
Gross Torque Ft Lbs (Nm) 1
165.9 (225)
Compression Ratio
NA
Dry Weight Lbs (kg)
512.6 (233)
Oil Capacity US Qts (L)
8.9 (8.5)
Lubrication
Full Pressure
Dimensions LxWxH (in)*
23.5 x 20.5 x 28.18
Engine Type
Commerial
