ID # 13954108

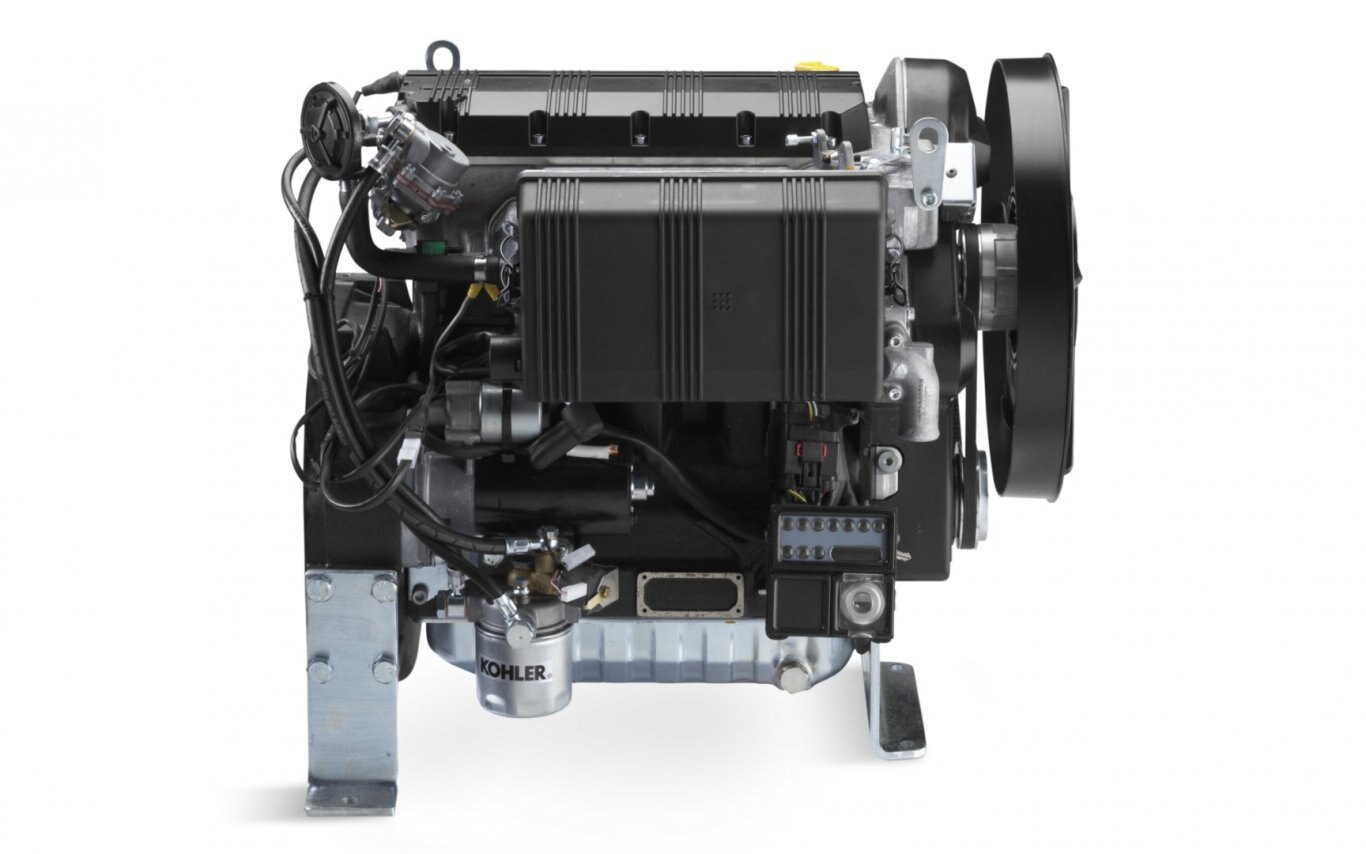

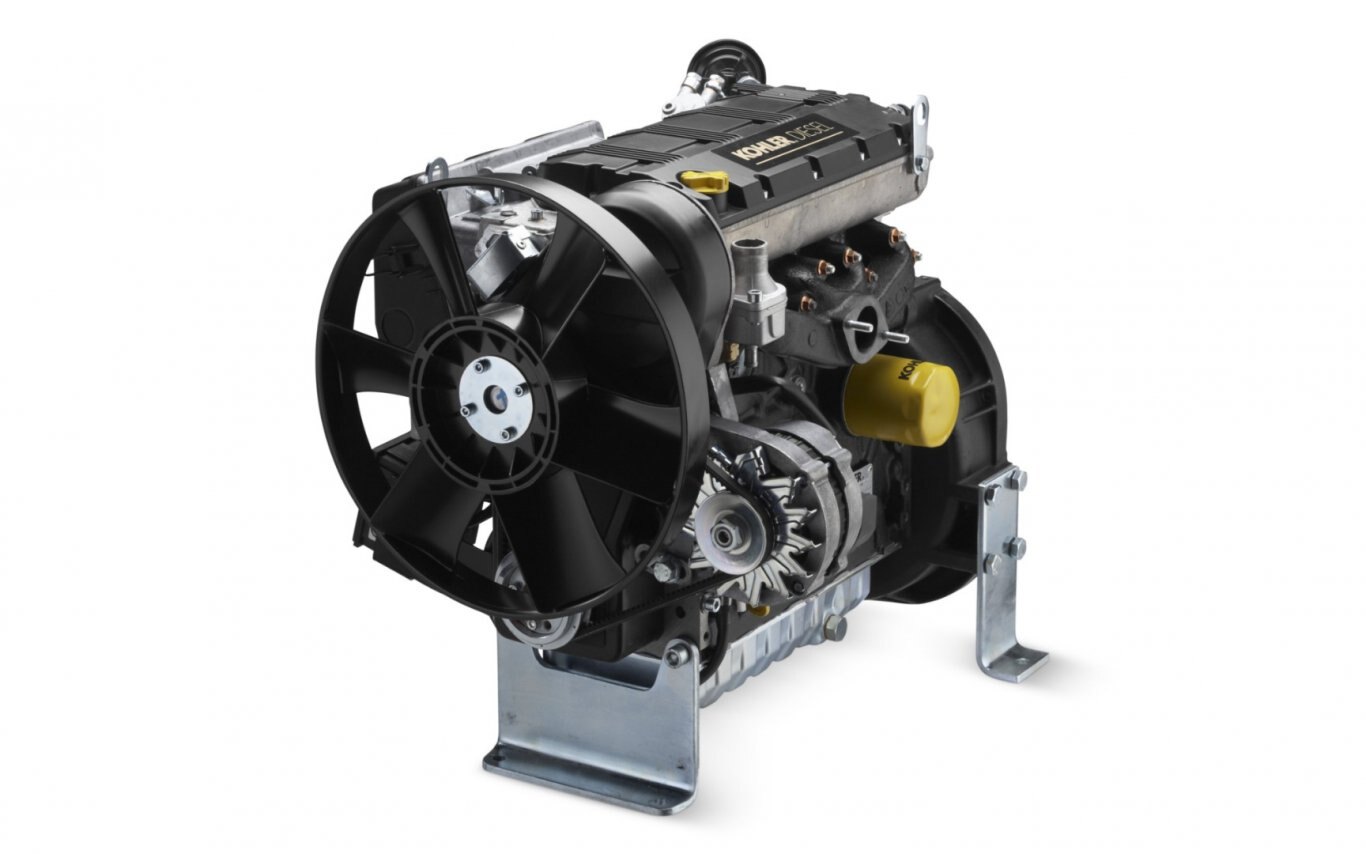

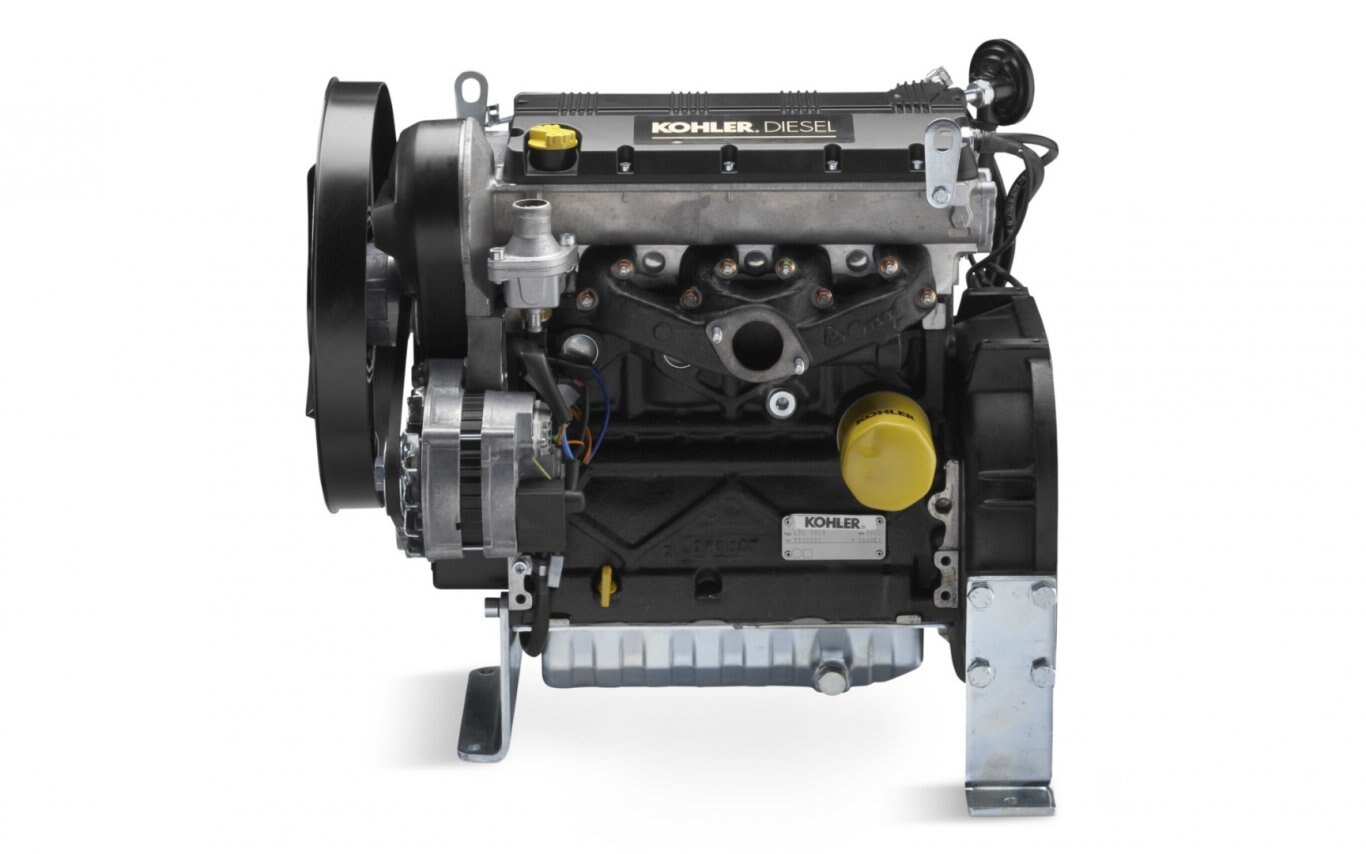

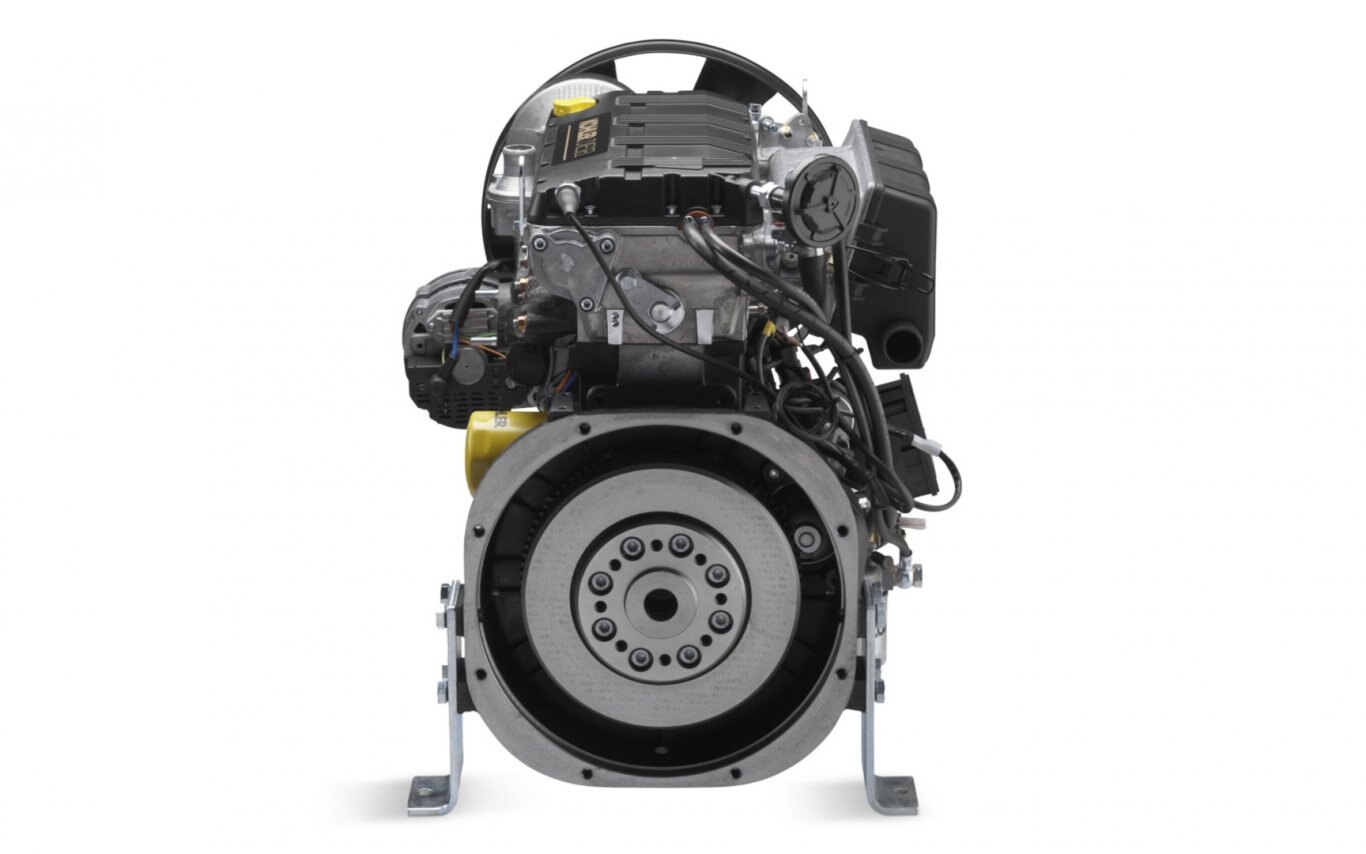

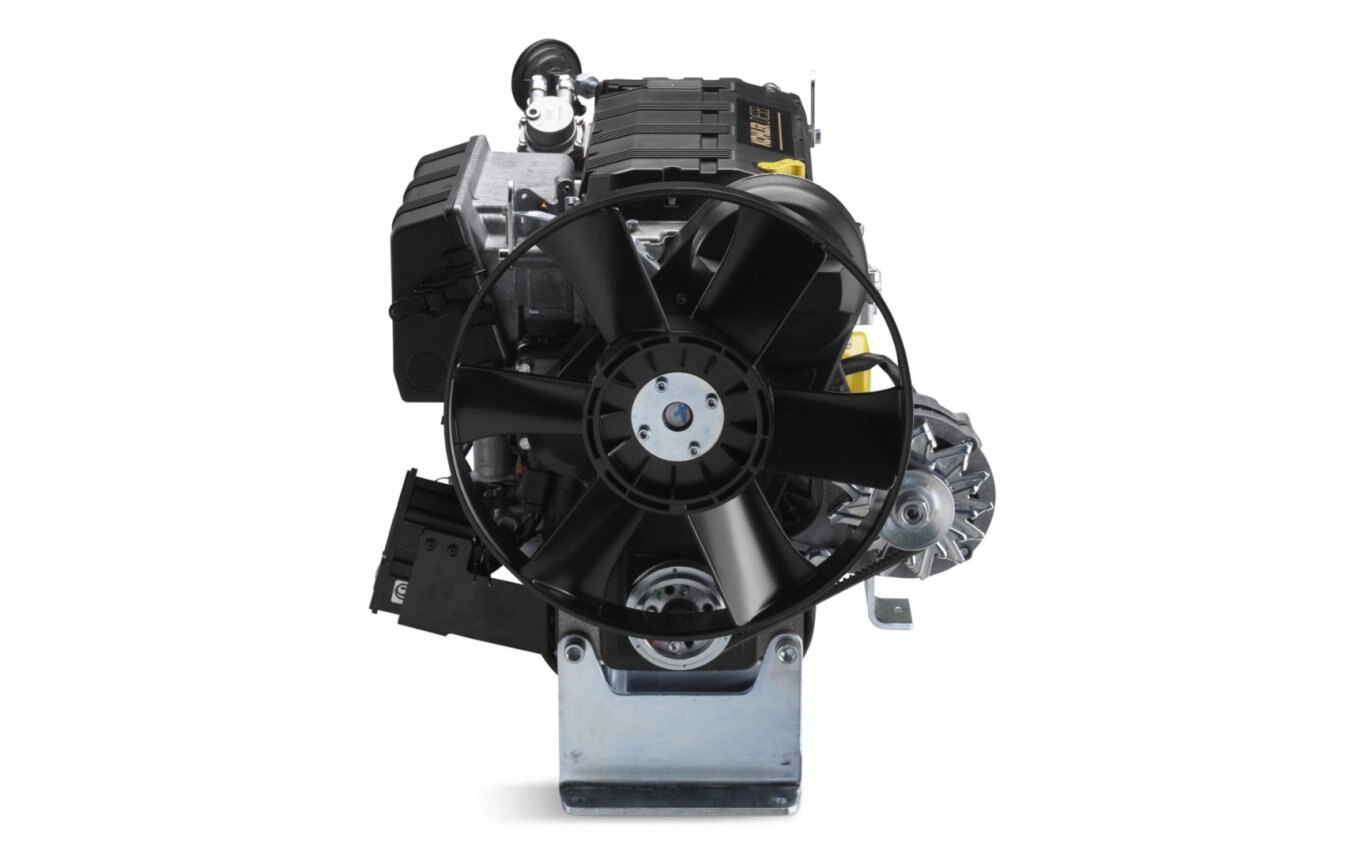

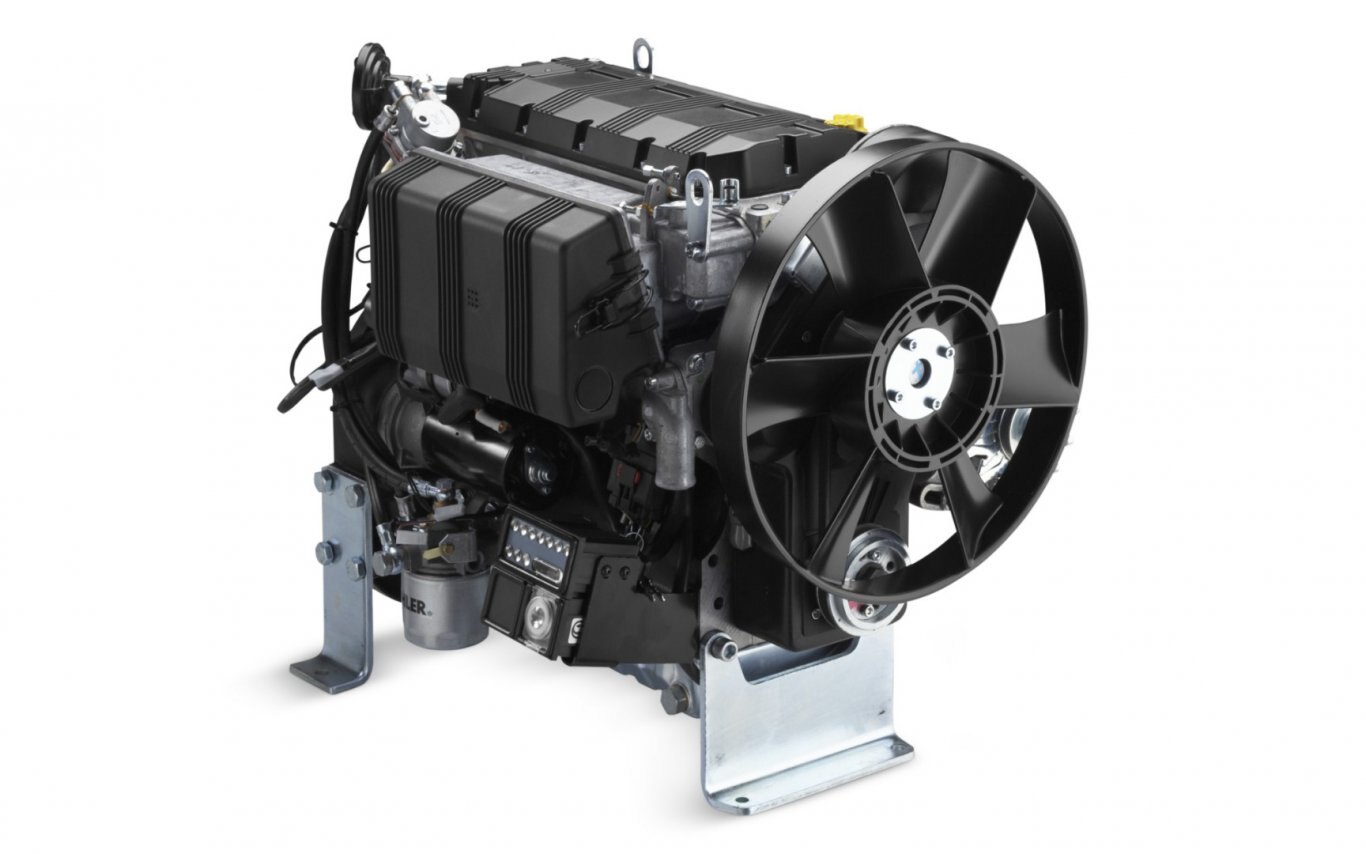

Kohler Diesel Liquid-Cooled KD625-2

  • Kohler Diesel Liquid Cooled KD625 2
  • Kohler Diesel Liquid Cooled KD625 2
  • Kohler Diesel Liquid Cooled KD625 2
  • Kohler Diesel Liquid Cooled KD625 2
  • Kohler Diesel Liquid Cooled KD625 2
  • Kohler Diesel Liquid Cooled KD625 2
  • Video Button Maxresdefault
  • Video Button Hqdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Our air-cooled diesel engines are engineered with state-of-art air filters to increase durability, and lengthen service intervals. Couple all of that with the engine's cast iron cylinder liners and you've got a machine that doesn't know how to quit.
  Features
  • New rugged design for the most extreme conditions
  • EPA/CARB Tier 4 Compliant
  • Equipped with a larger air filtration cartridge with increased capacity
  • Cyclonic separator with one-way valve for dust discharge
  • New integrated sound dampener provide reduced noise levels

  Engine Uses

Equipment Types

This engine powers the following equipment

  • 4x4 Tractors
  • Aerial Platform
  • Generator
  • Fruit Harvester
  • Compact Shovel Loader
  • Asphalt Cutter
  • Welder
  • Refrigerating Groups
  • Sweeper
  • Motor Compressor
  • Mini Excavator
  • Mini Dumper
  • Dumper
  • Cement Mixer
  • Farm Machinery



Specifications
Model
KD625-2
Category Name
Engines
Year
2018
Sale Type
New
Manufacturer
Kohler
HP (kW) 1
25.2(18.8)
Displacement (cc)
76.2 (1248)
Bore In (mm)
3.7 (95)
Stroke In (mm)
3.5 (88)
Gross Torque Ft Lbs (Nm) 1
38.7 (52.5)
Compression Ratio
17.5:1
Dry Weight Lbs (kg)
242.6 (110)
Oil Capacity US Qts (L)
2.8 (2.6)
Lubrication
Full pressure w/full-flow filter
Dimensions LxWxH (in)*
24.9 x 22 x 23.6
Engine Type
Commerial
