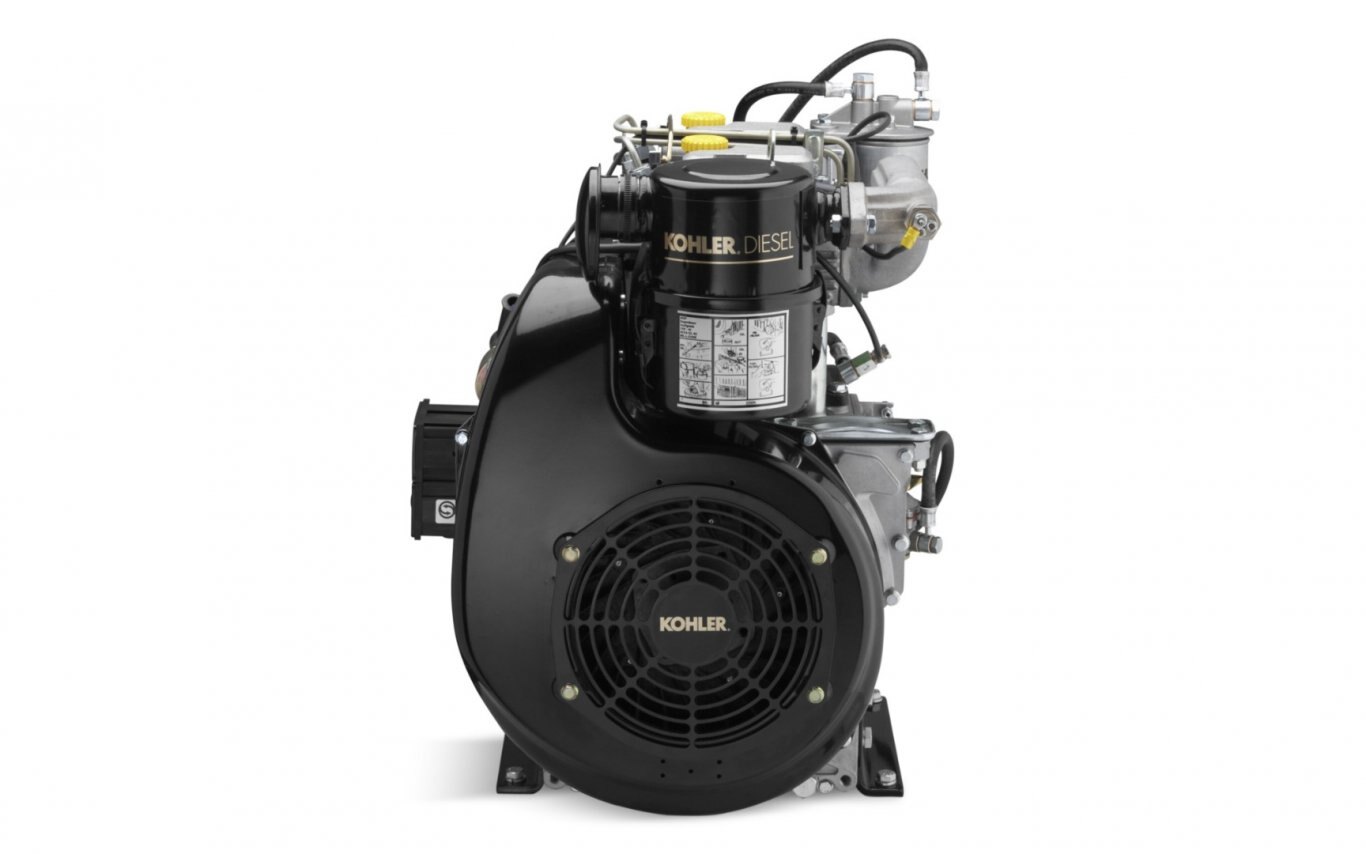

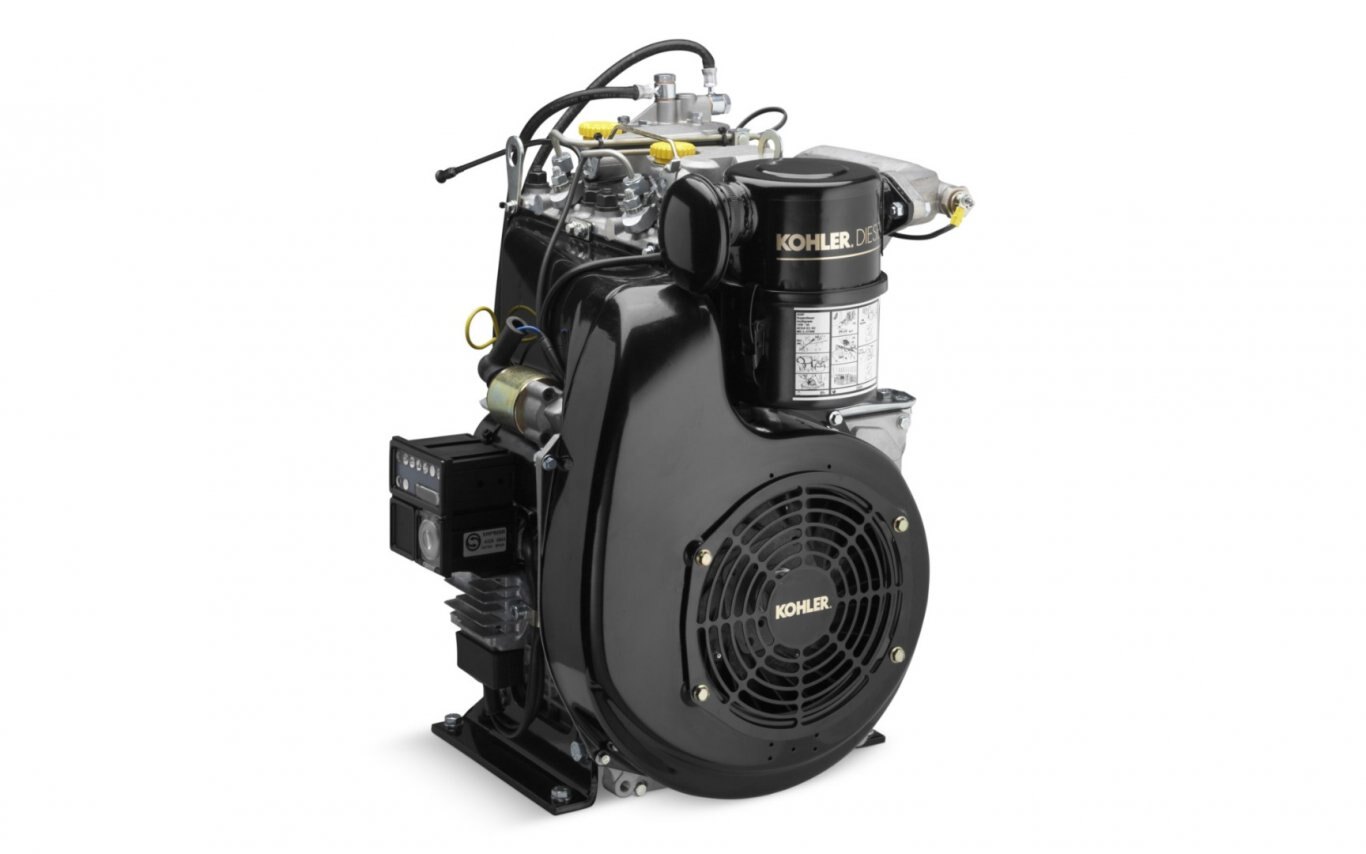

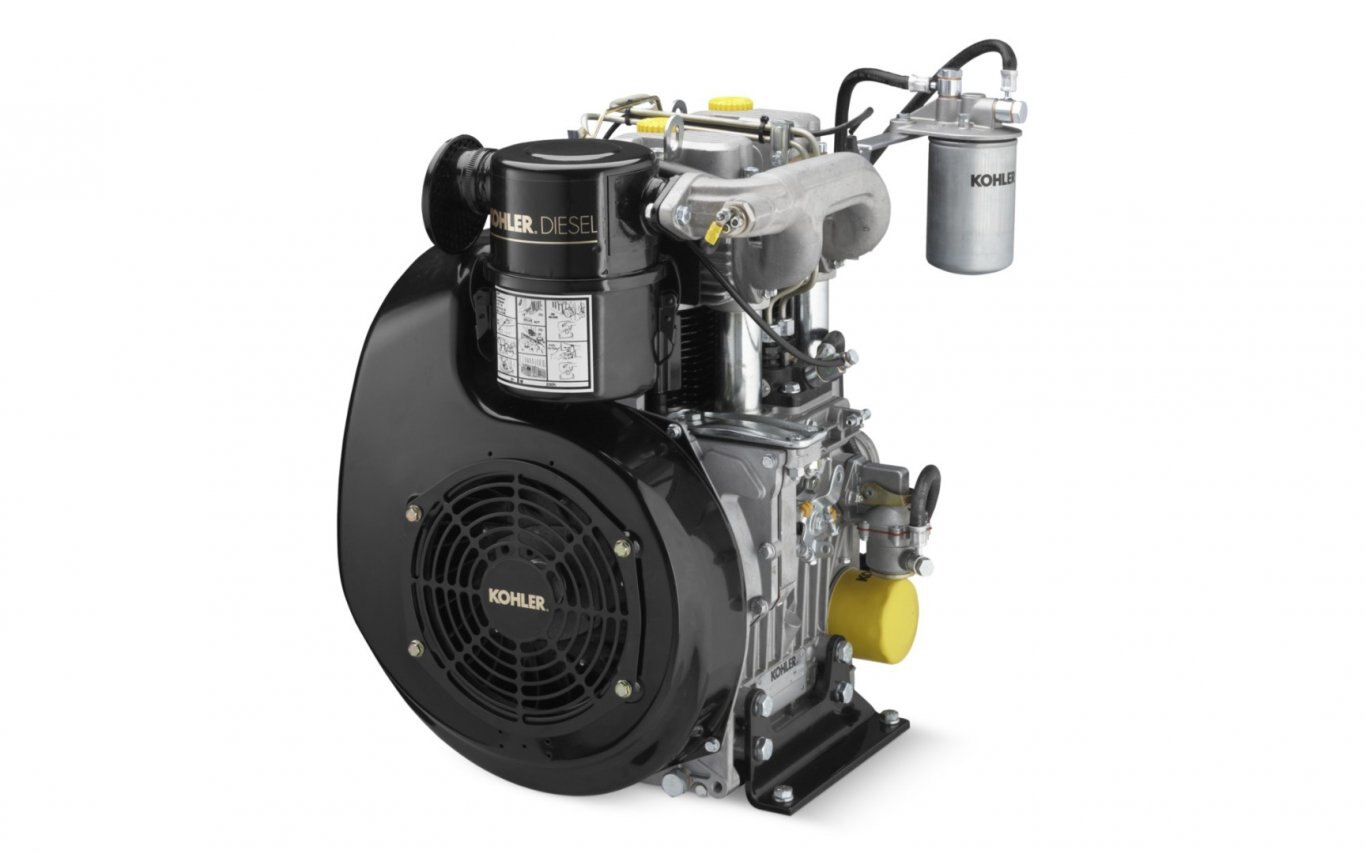

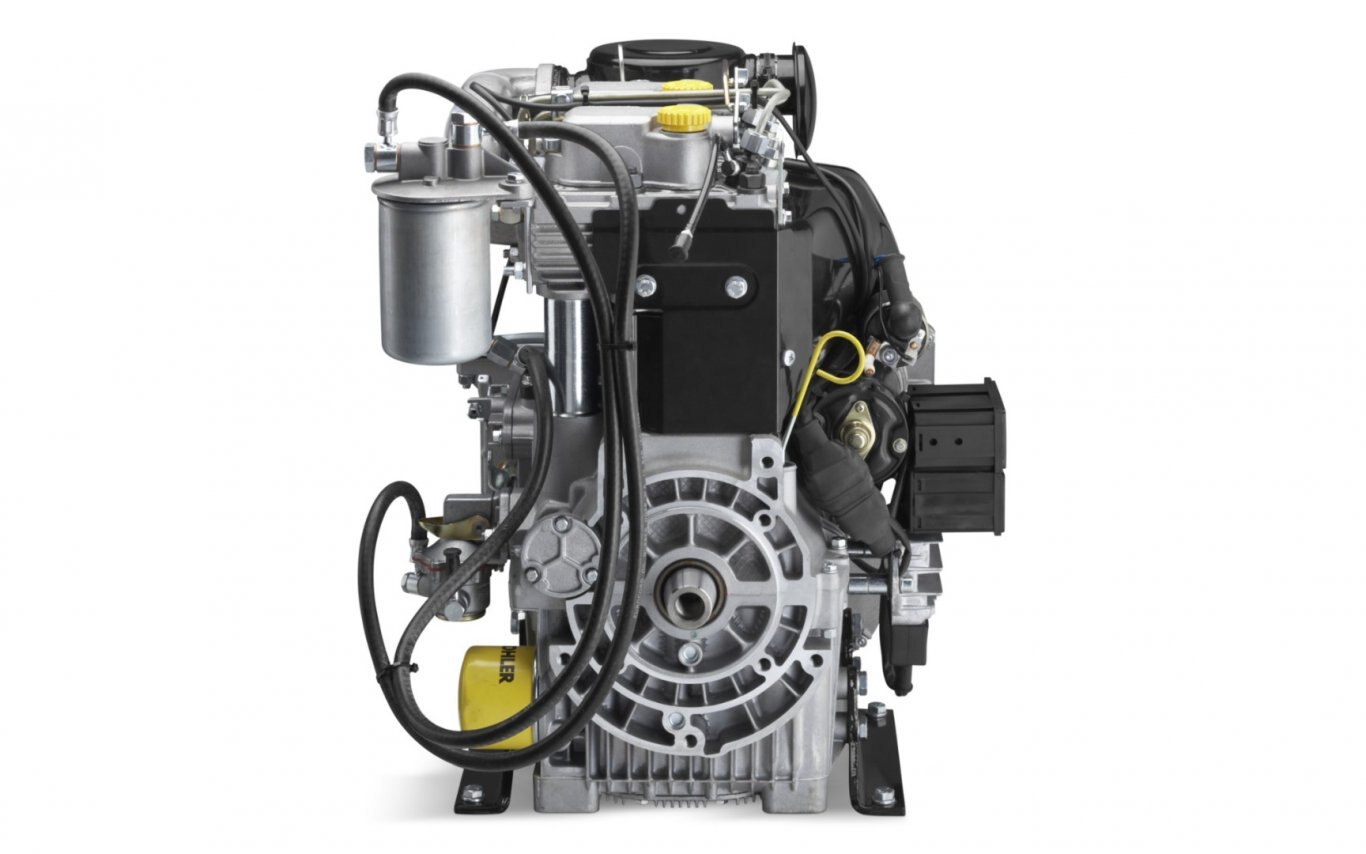

Kohler Diesel Air-Cooled KD477-2

  • Kohler Diesel Air Cooled KD477 2
  • Kohler Diesel Air Cooled KD477 2
  • Kohler Diesel Air Cooled KD477 2
  • Kohler Diesel Air Cooled KD477 2
  • Video Button Maxresdefault
  • Video Button Hqdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Our air-cooled diesel engines are engineered with state-of-art air filters to increase durability, and lengthen service intervals. Couple all of that with the engine's cast iron cylinder liners and you've got a machine that doesn't know how to quit.
  Features
  • New rugged design for the most extreme conditions
  • Equipped with a larger air filtration cartridge with increased capacity
  • Cyclonic separator with one-way valve for dust discharge
  • New integrated sound dampener provide reduced noise levels



Specifications
Model
KD477-2
Category Name
Engines
Year
2018
Sale Type
New
Manufacturer
Kohler
HP (kW) 1
21.7(16.2)
Displacement (cc)
58.2 (954)
Bore In (mm)
3.5 (90)
Stroke In (mm)
3 (75)
Gross Torque Ft Lbs (Nm) 1
40.6 (57.5)
Compression Ratio
19.0:1
Dry Weight Lbs (kg)
138.9 (63)
Oil Capacity US Qts (L)
1.9 (1.8)
Lubrication
Full pressure w/full-flow filter
Dimensions LxWxH (in)*
22.7 x 19 x 22.2
Engine Type
Commerial
