Kohler

ID # 13952713

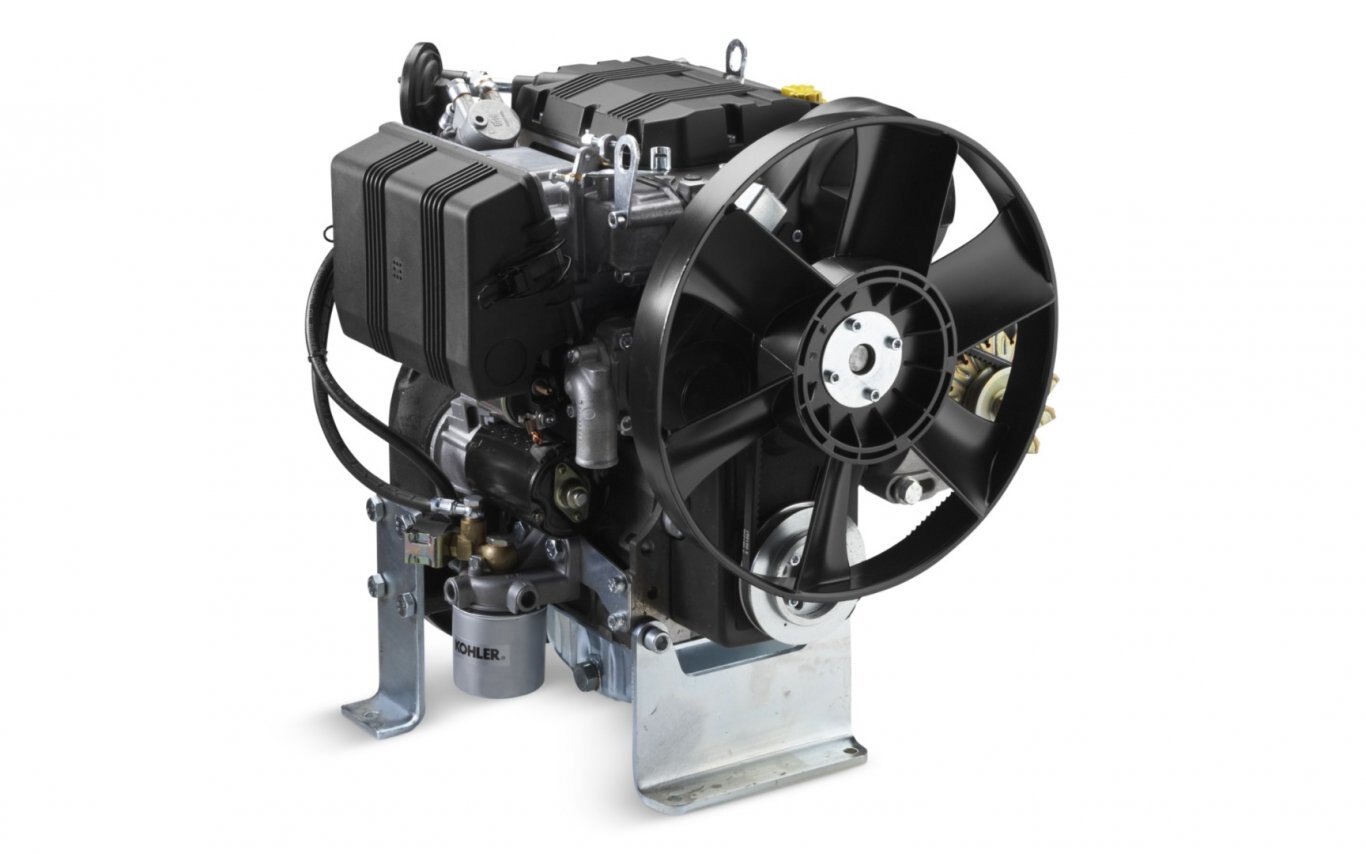

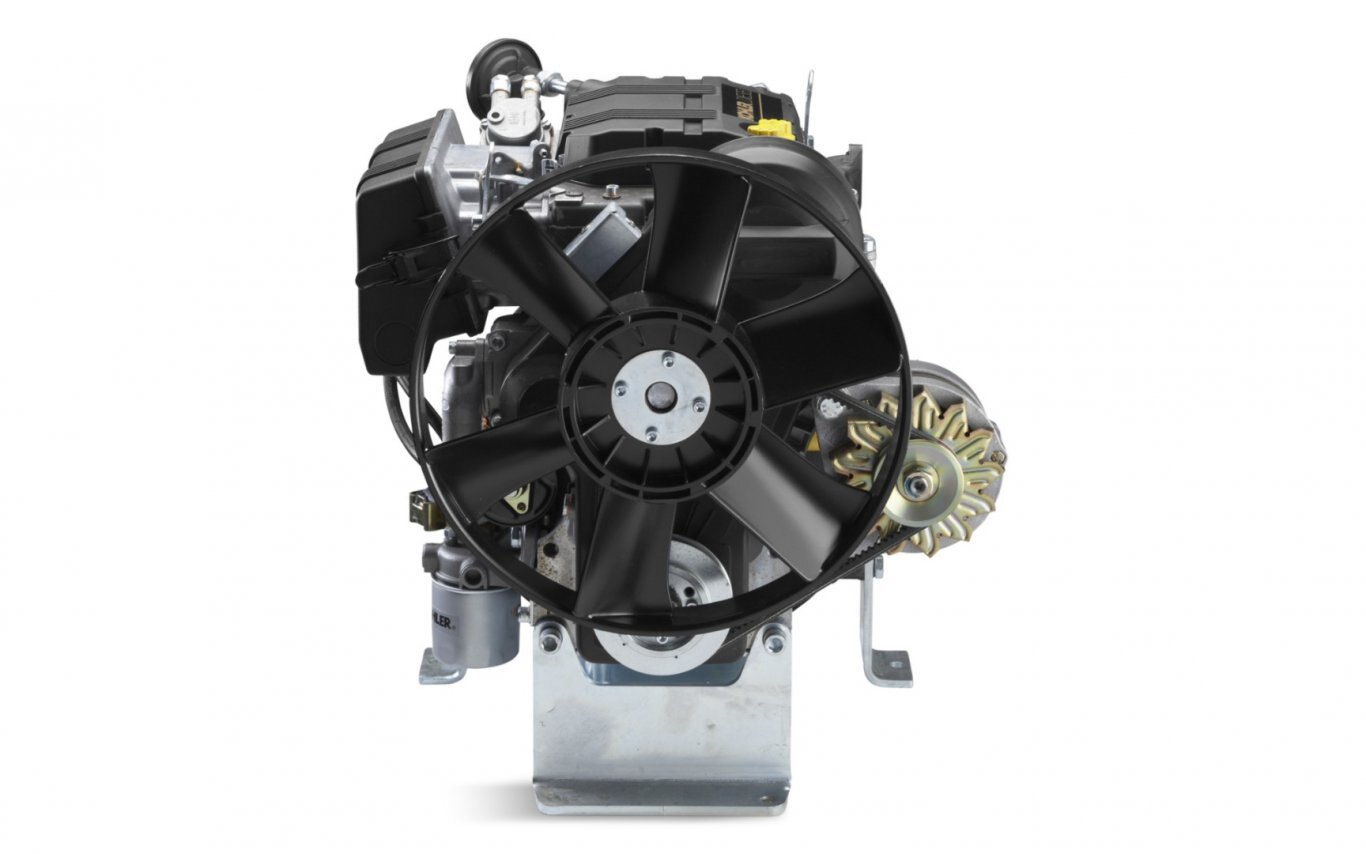

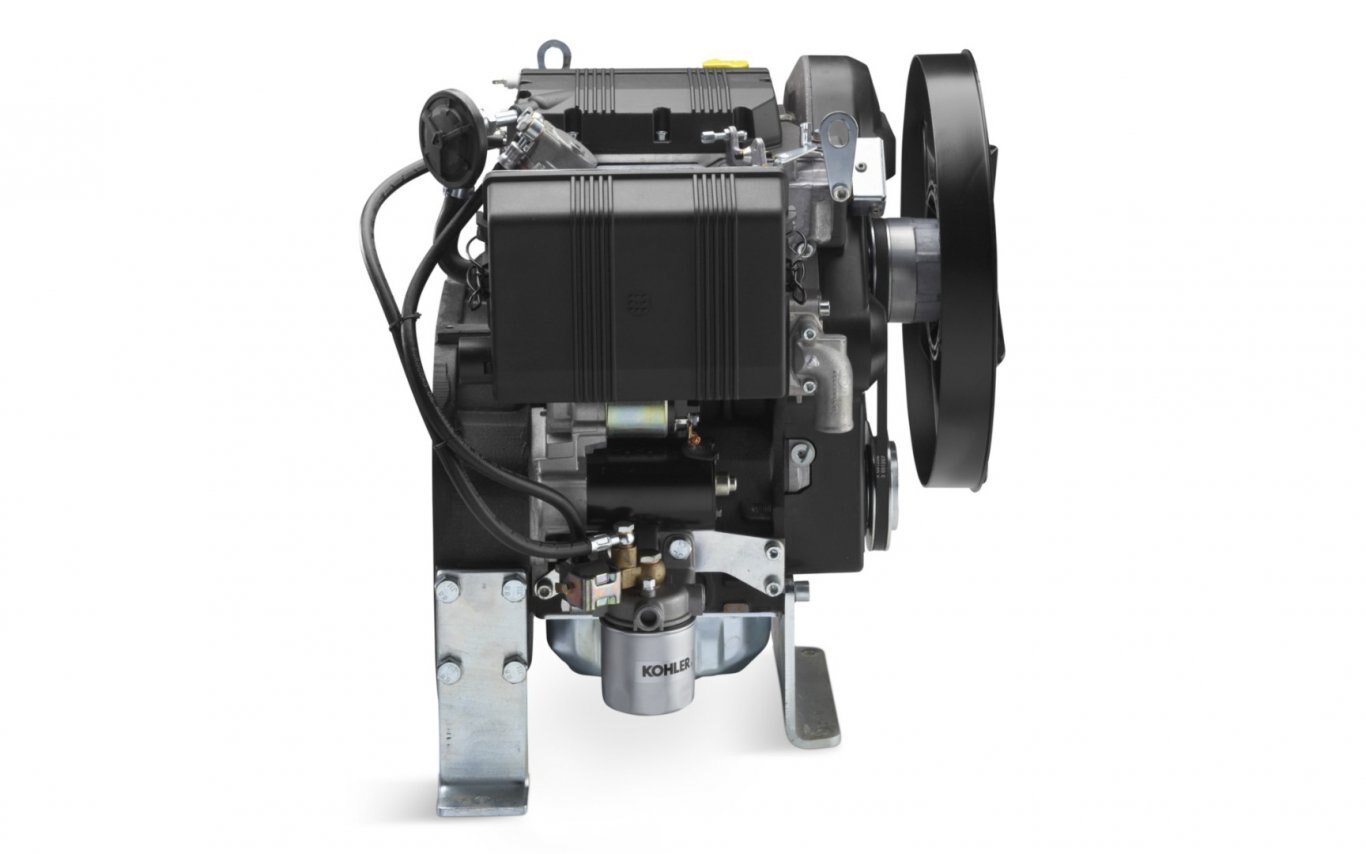

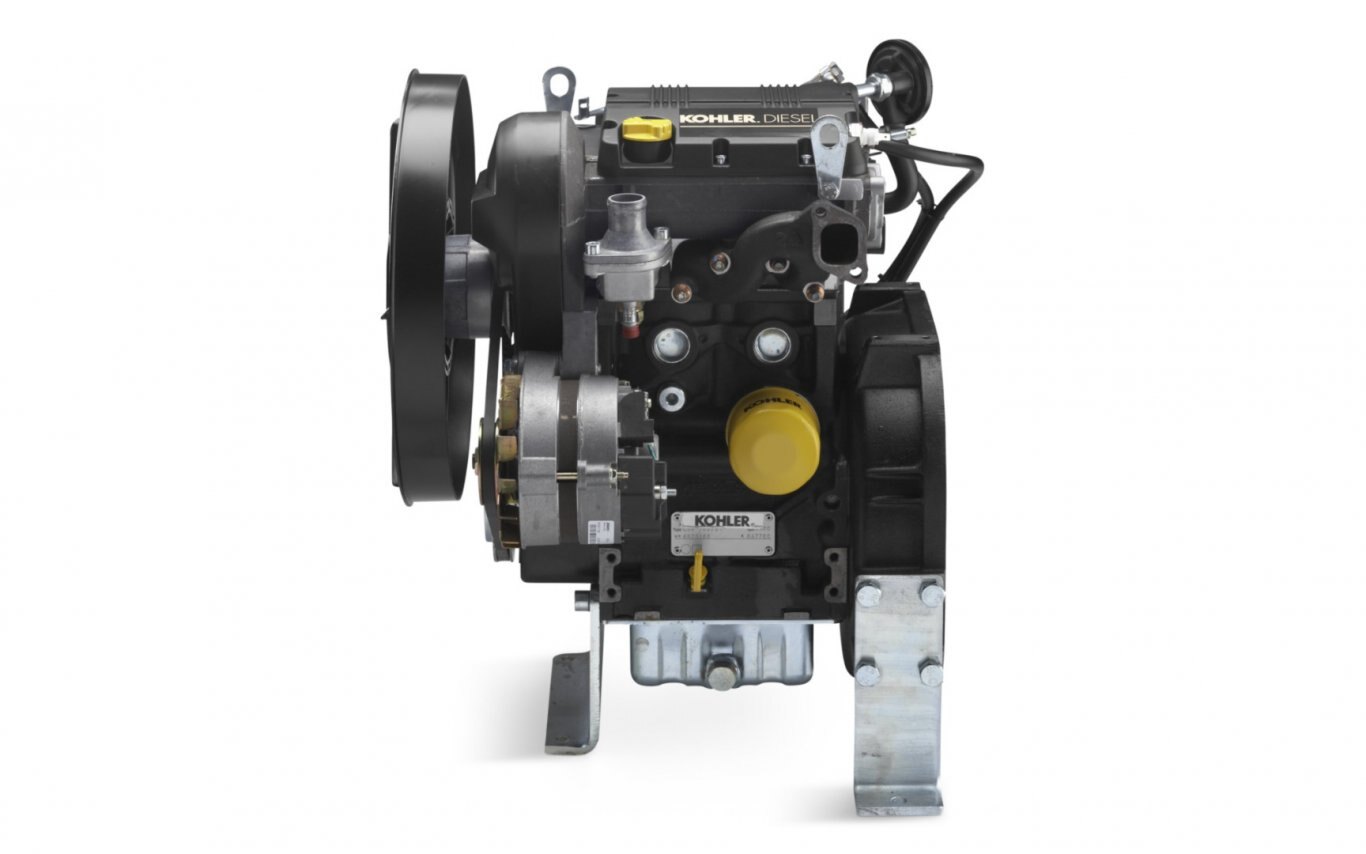

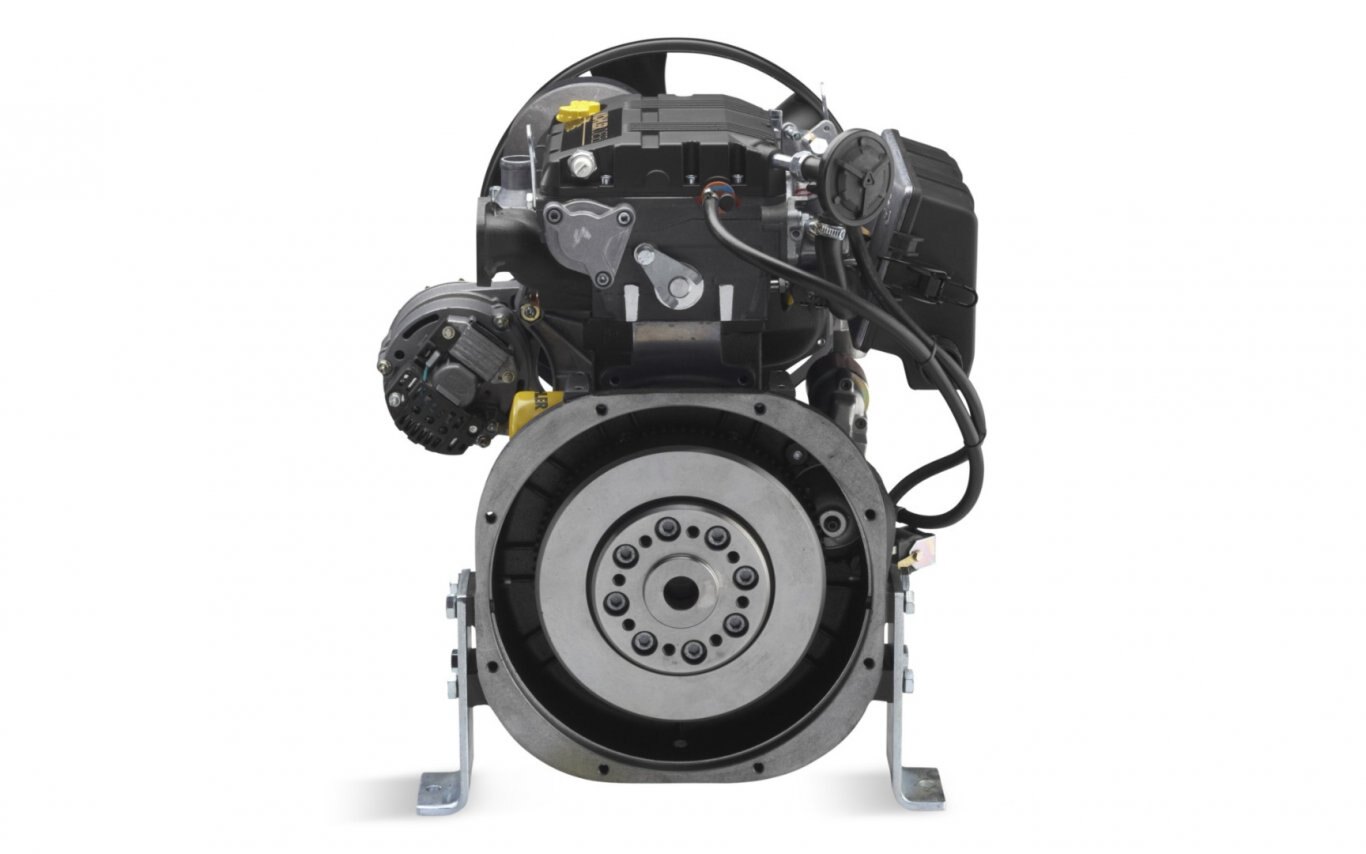

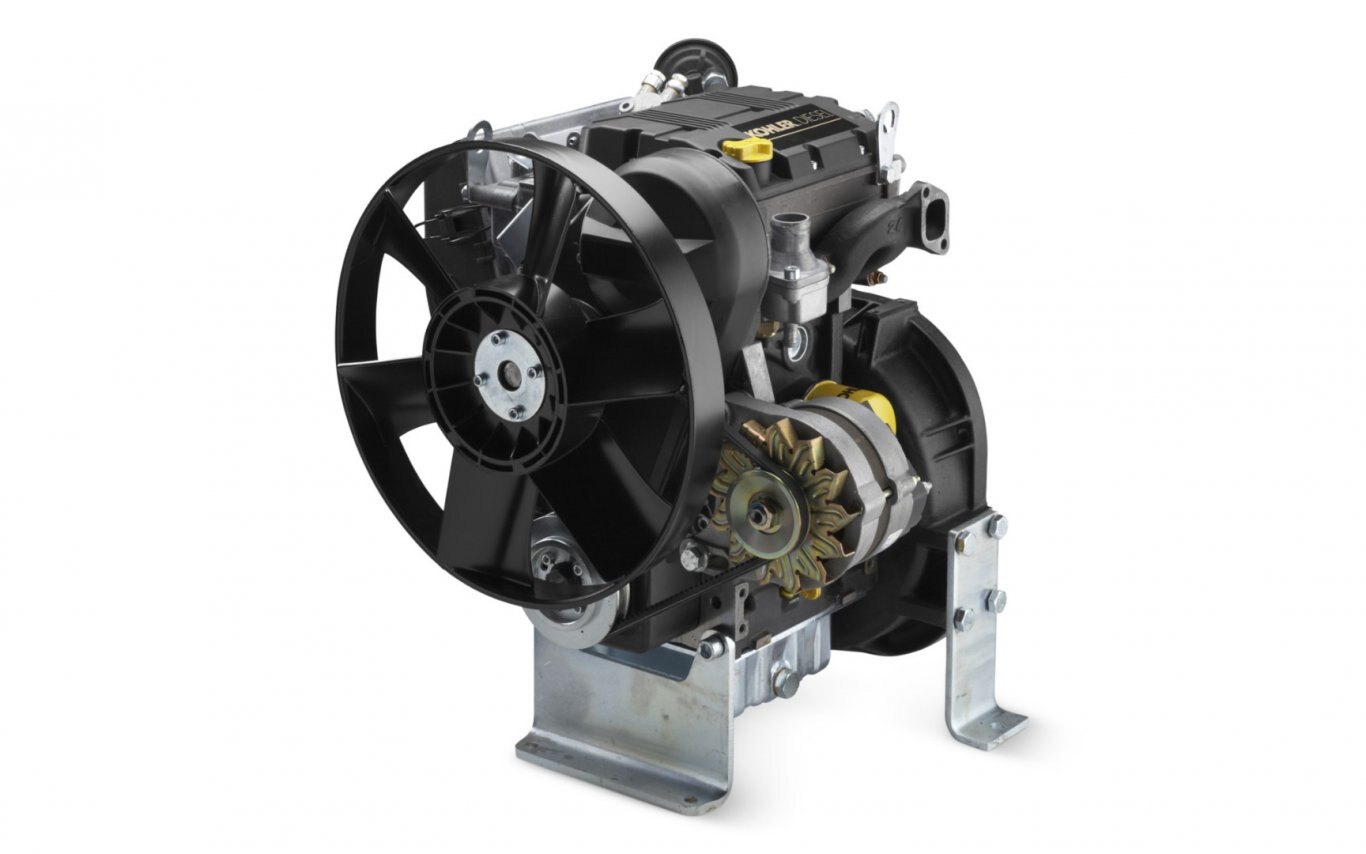

Kohler Diesel Liquid-Cooled KDW702

Videos
Call for Price
Overview
Knock-you-on-your tail, punch-you-in-the mouth full-throttle power. That's what you're getting with KOHLER® liquid-cooled diesel engines. Fast-acting fuel injection technology delivers the punch you need and fuel savings you expect. And our belt-driven, overhead camshaft delivers low-turbulence performance for near-silent operation.
  Exclusive Features
  • Integrated fuel-injection system and overhead cam help ensure less maintenance and fewer trips to the shop
  • Superior balance, lower cylinder volume, and belt-driven valve train provide nearly non-existent noise and smooth operation
  • Cast-iron block construction ensures durability and lasting performance.
  • 3-year limited warranty

   Engine Uses

Equipment Types

This engine powers the following equipment

  • Cement Mixer
  • Generator
  • Refrigerating Groups
  • Asphalt Cutter
  • Fruit Harvester
  • 4x4 Tractors
  • Aerial Platform
  • Compact Shovel Loader
  • Sweeper
  • Motor Compressor
  • Mini Excavator
  • Welder
  • Mini Dumper
  • Dumper
  • Farm Machinery



Specifications
Model
KDW702
Category Name
Engines
Year
2018
Sale Type
New
Manufacturer
Kohler
HP (kW) 1
15.4(11.5)
Displacement (cc)
41.9 (686)
Bore In (mm)
3 (75)
Stroke In (mm)
3.1 (77.6)
Gross Torque Ft Lbs (Nm) 1
25 (34)
Compression Ratio
22.8:1
Dry Weight Lbs (kg)
145.4 (66)
Oil Capacity US Qts (L)
1.7 (1.6)
Lubrication
Full pressure w/full-flow filter
Dimensions LxWxH (in)*
16.6 x 16.2 x 20.3
Engine Type
Commerial
