ID # 22164128

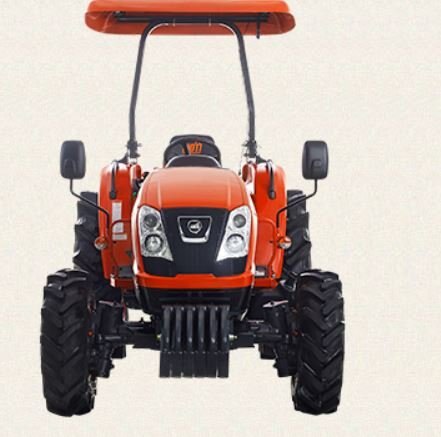

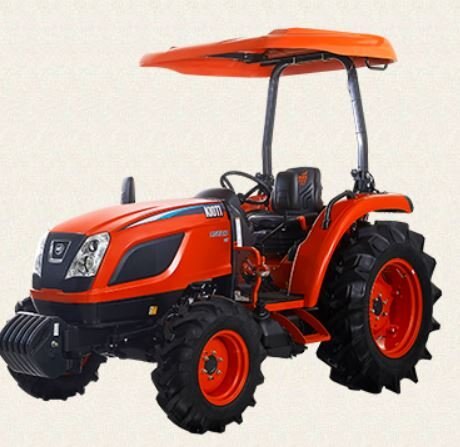

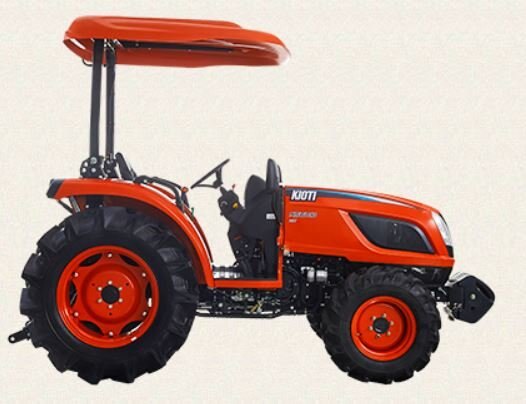

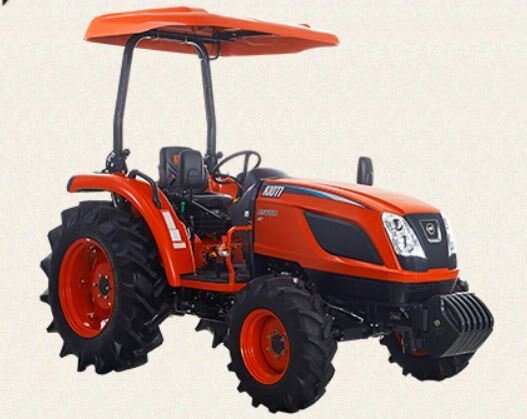

Kioti NS4710

  • Kioti NS4710
  • Kioti NS4710
  • Kioti NS4710
  • Kioti NS4710
  • Kioti NS4710
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  • Open Station (ROPS)
  • KIOTI ECO Engine Technology
  • Hydraulic Independent PTO
  • Single Lever Joystick
  • 3-Point Hitch with Telescopic Lower Links & Stabilizers
Specifications
Model
NS4710
Category Name
Tractors
Year
2022
Sale Type
New
Manufacturer
Kioti
Shuttle
Dry Type Single Stage
PTO Type
Independent
Transmission Type
Synchro Shuttle
Engine Gross Power
44.9 hp ( 33.5 kW)
hitch
Control Type
Position with Draft Control
Standard Category
Category 1
Lift Capacity, 24" Aft Of Hitch
2,493 lbs. (1,131 kg)
tires



Kioti NS4710

Agriculture

 Front
Rear



8-16
13.6-24
Kioti NS4710

Turf

 Front
Rear
29-12.5-15
21.5-16.1
Kioti NS4710

Industrial

 Front
Rear
10-16.5
14.9-24
Kioti NS4710

R14

 Front
Rear
10-16.5
7.5-24



engine
Fuel Type
Diesel
Aspiration
Turbo Charged
Rated Speed
2,600 rpm
Displacement
111.4 cu. in. (1,826 cc)
Engine Model
3HT-S4TM45A
No. Of Cylinders
3
Engine Gross Power
44.9 hp ( 33.5 kW)
Fuel Tank Capacity
13.2 gal. (50 L)
weight
Weight With Ag Tires
4,027 lbs. (1,827 kg.)
features

Projection Head and Working Lamp

With LED projection head and working lamps, the operator will experience safer and easier operation in low light conditions.Kioti NS4710

3-Point Hitch with Telescopic Lower Links

Standard telescopic lower link ends and stabilizers allow the operator to easily connect & adjust a wide variety of 3-point implements. The standard rear 3-point control lever easily raises and lowers the lift arms from outside the tractor when attaching implements.Kioti NS4710

Ergonomic Joystick Lever

An ergonomically designed joystick lever for front loader operation is standard on NS Series tractors.Kioti NS4710

Deluxe Suspension Seat

Ergonomically designed, adjustable suspension seat allows the operator to ride in comfort no matter what the task may be.Kioti NS4710

Hydraulic Independent PTO

The standard rear PTO is easily engaged by the simple turn of a knob. A safety interlock prevents the engine from starting when the PTO switch is left on. All models come standard with a selectable manual or automatic PTOKioti NS4710 option. When the Auto PTO is engaged, the PTO will automatically shut off when the 3-point control is raised, eliminating exposure to the running implements.

Eco-Friendly Diesel Engine

The Common Rail Diesel Engine (CRDI) improves fuel efficiency while reducing noise levels. With this eco-friendly Tier 4 engine, the NS Series offers the operator a quiet work environment with powerful performance.Kioti NS4710

Power Steering

Hydrostatic power steering minimizes the effort required to make tight, repetitive turns.Kioti NS4710

Tail Lamp

Tail lights improve operator safety by increasing visibility in low light conditions.Kioti NS4710

Foldable ROPS

A fold-down roll bar allows operators to move into tight areas quickly and easily.Kioti NS4710

Simple Maintenance

KIOTI tractors are designed for easy maintenance. Liftable hoods and removable side panels allow convenient access for daily service checks. Maintaining your tractor for long life and high performance has never been easier.Kioti NS4710


hydraulics
Pump
Gear
Pump Capacity (Max. Flow Rate)
16.5 gpm (62.4 L/min)
implements
Diesel engine with Daedong ECO Technology

Products : Implements


Mowing, cutting, tilling, haying, hauling. Whatever the job is, KIOTI has user-friendly, high performance implements to help you get it done.
attachments

Front End Loaders : KL5810

Fits all NS Series Models. (NS4710, NS4710 HST, NS5310 HST, NS6010, NS6010 HST) The KIOTI KL5810 front end loader is specifically designed for the NS Series. The KIOTI loader, with a built-in parking stand, is designed to be quickly and easily attached and detached. KL Series loaders utilize the tractor’s hydraulic system, feature single-lever control with float and come with a bucket level indicator. *Specifications may vary with tractor model, front axle configurations, tire size option and type of attachment and are subject to change without notification.Kioti NS4710

Backhoes : KB2465

Fits KIOTI DK10 Series (DK4510/5010/5510), NS Series (NS4710/NS4710 HST/NS5310 HST/NS6010/NS6010 HST), NX4510, NX5010, NX5510, NX6010, RX6620 tractors. Specifications may vary depending on tractor model and are subject to change without notification. Tractors must be equipped with ROPS and seat belt that will provide greater safety.

Kioti NS4710
transmission
Shuttle
Synchronized
Main Gear
Hydostatic
Max. Travel Speed
16.7 mph (26.8 km/h)
Min. Travel Speed
0.9 mph (1.5 km/h)
No. Travel Speeds
12 x 12
Transmission Type
Manual
power take-off
PTO Power
36.6 hp (27.3 kW)
Mid PTO Speeds
2,000 rpm (Optional)
PTO Type Trans
Independent
Rear PTO Speeds
540 rpm
brakes and clutch
Brake
Wet Disc Type
Clutch
Dry type single stage
equipment and panel

Standard Equipment

  • Power Steering
  • Rear PTO
  • Single Remote Hydraulic Valve
  • Wet Multi Disc Brakes
  • Joystick Valve
  • Drawbar
  • Headlights
  • Parking Brake
  • PTO cover

Optional Equipment

  • Sun Canopy
  • Beacon Light
  • Rear Working light
  • Front Weights
  • Mid PTO
  • Clevis Type Drawbar
  • Rear View Mirror (1ea)
  • Second Remote Hydraulic Valve (Non-Detent)
  • Second Remote Hydraulic Valve (Detent)
  • Fuel Heater Kit

Instrument Panel

  • Digital Hour Meter
  • Coolant Temperature Gauge
  • Electrical Tachometer
  • Fuel Gauge
  • Engine Oil Pressure Light
  • High Beam, Emergency Flasher, Direction Indicators
  • Glow Plug Light
  • Alternator Light



dimensions w- ag tire
Width
67.1 in. (1,705 mm)
Wheelbase
98.4 in. (2,500 mm) w/o Beacon
Ground Clearance
13.4 in. (340 mm)
Length W/ 3-point
136.4 in. (3,465 mm)
Height From Top Of ROPS
98.4 in. (2,500 mm) w/o Beacon
Turning Radius W/ Brake
10.94 ft. (3.34 m)
Rear Tread Ag Tires - Min
54.3 in. (1,380 mm)
Front Tread Ag Tires - Min
51.1 in. (1,297 mm)
