Kioti

ID # 13329504

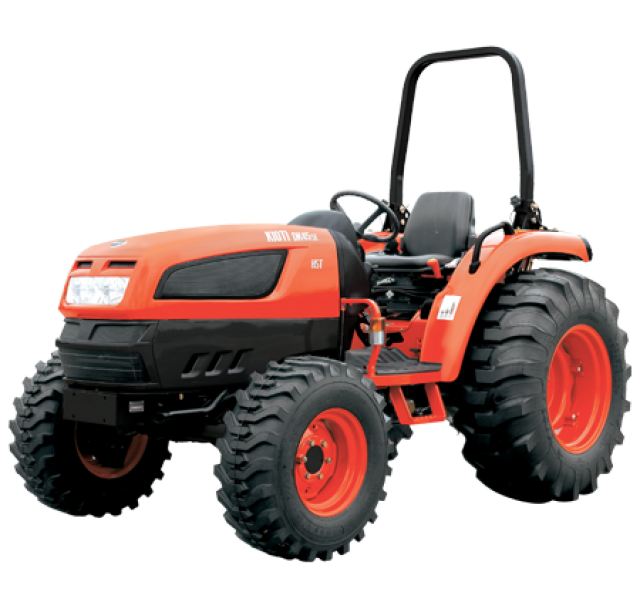

Kioti DK45SE HST

Call for Price
Overview
DK / DKSE Series
The DK/DKSE Series is fully featured, comfortable, and ready for any job that demands a durable compact tractor. Ranging from 40 HP to 90 HP, this series of high-performance compact tractors pack impressive power and smooth handling into one dependable workhorse.
  Main Features
  • Open Station (ROPS)
  • Single lever joystick with quick connect hydraulics
  • Rear differential lock
  • Twin HST Pedals
  • Push-button hydraulic independent PTO
  • Category I three-point hitch with telescopic end links

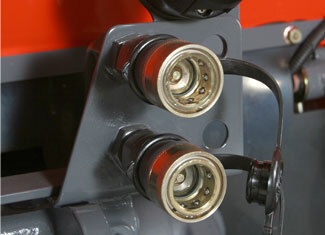

  • Mid/rear hydraulic remote connections
  • Flip up PTO guard
  • Deluxe CAB model also available
  Features

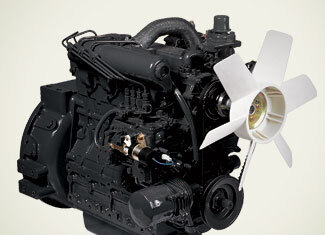

Modern and Elegant DesignThe exceptionally quiet KIOTI diesel engines produce little vibration at working RPMs and meet or exceed all EPA and CARB regulations through optimal combustion and fuel economy.











Modern and Elegant DesignThe Rear PTO is standard and is easily engaged by the simple push of a button. A mid-PTO is optional. Rear and mid-PTOs can be operated independently or simultaneously.

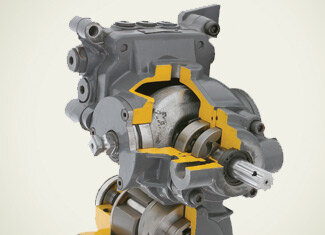

Modern and Elegant DesignThe DK45SE HST has been equipped with a performance proven, heavy duty HST drive unit. A dual pedal controls traveling speed and direction. Changing between forward and reverse is done without clutching or hand shifting. With the KIOTI HST drive system, your hands remain free for steering and implement control.









Modern and Elegant DesignFor smooth operation of tillage tools without overloading the tractor or the implement, the draft sensing system automatically controls the lower link position to maintain the user selected draft setting.

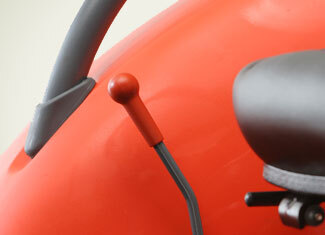

Modern and Elegant DesignDetent valve is equipped to make spray work easy via simple lever control.











Modern and Elegant DesignPower steering is standard and minimizes the effort required to make tight and repetitive turns, even with a fully loaded bucket.

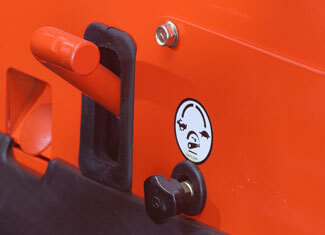

Modern and Elegant DesignThe MLS valve allows the user to lower the speed of an implement, thus decreasing the impact and increasing the operational efficiency.

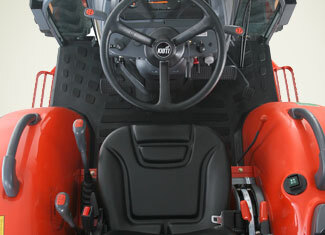

Modern and Elegant DesignThe flat deck design allows you to conveniently enter from either side.

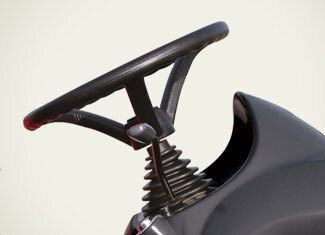

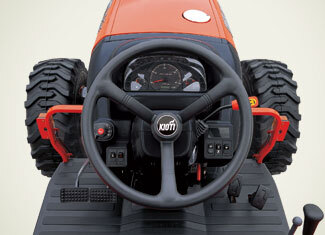

Modern and Elegant DesignWith the push of a lever, the steering wheel tilts toward the operator. When exiting the tractor, it can be easily moved out of the way.

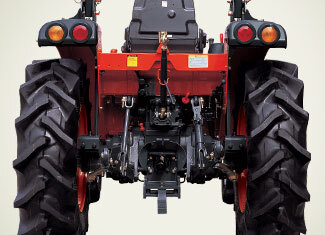

Modern and Elegant DesignA category 1, 3-point hitch with standard telescopic link ends make attaching implements quicker and easier than fixed links and also enhances operator safety. Telescopic stabilizers and a RH leveling box provide the operator with a wide range of customizable 3-point hitch options to handle the job at hand.











Modern and Elegant DesignAll instruments are in full view of the operator. At a glance, the operator can check the engine RPMs and temperature, the fuel level and all other critical engine and tractor functions. The electronic hour meter accurately records the real working hours of the tractor.

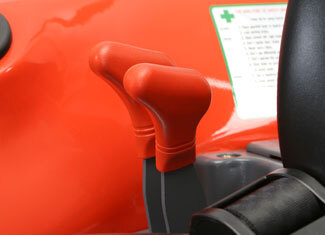

CRDI Diesel Engine with Daedong ECO Technology The conveniently located lift control lever allows the operator to raise and lower implements.

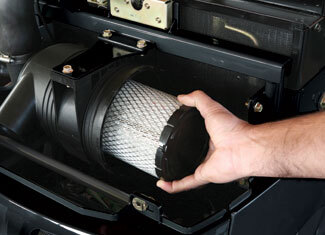

Power Shuttle TransmissionA dual stage cartridge protects the engine from dust and dirt resulting in prolonged engine life. Located conveniently at the front of the engine, servicing of the cartridge is simple.









Torque CompensationThe multiple position stabilizer adjusts lift arms to a wide range of attachments and allows for easy adjustments based on the job at hand.













Turn Assist ControlThe 4WD is engaged with the simple push of a button.









Projection Head and Working LampA rear wheel differential lock pedal can be applied to increase traction.

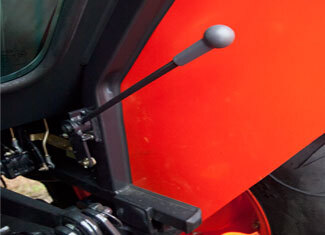

Projection Head and Working LampAllows operator to control the 3-point hitch from the ground at the rear of the tractor. Attaching implements is easier and safer with this control within easy reach.

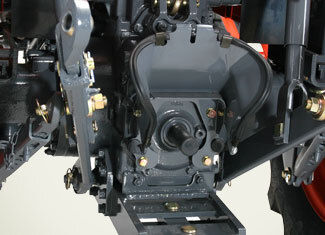

Deluxe Suspension SeatThe PTO guard flips up so you can install the implement's drive shaft with ease.

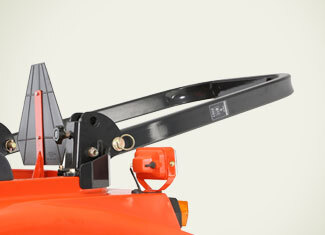

PTO Cruise ControlA fold-down roll bar allows you to move into tight areas quickly and easily.

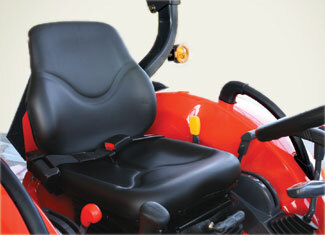

Remote Hydraulic Valves and JoystickA high quality, fully adjustable seat minimizes operator fatigue and assures operator comfort during long hours of work. A retractable seatbelt is standard on all KIOTI tractors to ensure operator safety.

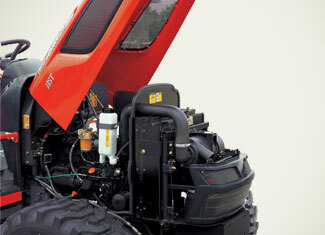

External Hydraulic Lift CylinderKIOTI Tractors are designed for easy access and simple maintenance. Oil level can be checked without raising the hood. The hood opens completely, exposing the top of the engine. Side panels are easily removed to expose all daily service check areas. KIOTI makes it easy to maintain your tractor for long life and high performance.

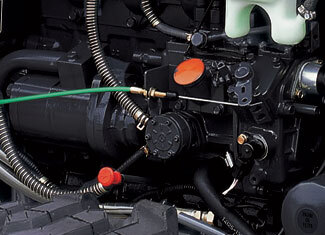

Large Capacity Fuel TankThe tandem hydraulic pump provides high capacity and flow for smoother operation and higher efficiency, even under the toughest conditions.

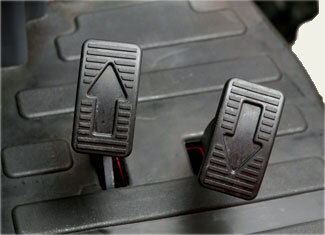

Large Capacity Fuel TankThe DK45SE HST employs a two pedal system for forward and reverse with smooth engagement, acceleration and deceleration. Pedal pressure is minimized which reduces operator fatigue during long hours of use and when doing repetitive tasks.









Large Capacity Fuel TankThe DK45SE HST Cab provides excellent visibility to the front, rear and sides. The rear roof position of the cabs air conditioning and heating unit also allows for greater visibility of the loader and loader attachment. Other standard features include a radio/ CD player and rear and side windows for ventilation.

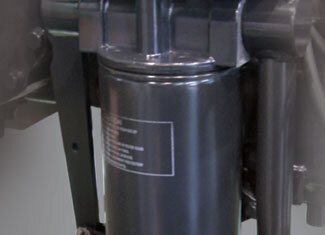

Large Capacity Fuel TankAn additional and separate filter for KIOTI HST transmissions prevents possible contamination from other hydraulic systems and helps to assure product life. The addition of an oil cooler for the HST system prevents system oils from overheating under heavy loads and harsh working conditions.














Specifications
Model
DK45SE HST
Category Name
Tractors
Year
2015
Sale Type
New
Manufacturer
Kioti
Engine Size
2,197 cc
Engine Model
4A220LWH
Engine Gross Power
45 HP (33.6 KW)
Rated Speed
2,600 rpm
No Of Cylinders
4
Fuel Type
Diesel
Aspiration
Natural
Fuel Tank Capacity
11.9 gal (45 L)
Transmission Type
Hydrostatic Drive
Shuttle
None
Main Gear
Hydrostatic
No Of Travel Speeds
3 Range HST
PTO Type Trans
Hydraulic, Independent
Brakes
Wet Disc
