Kioti

ID # 13244117

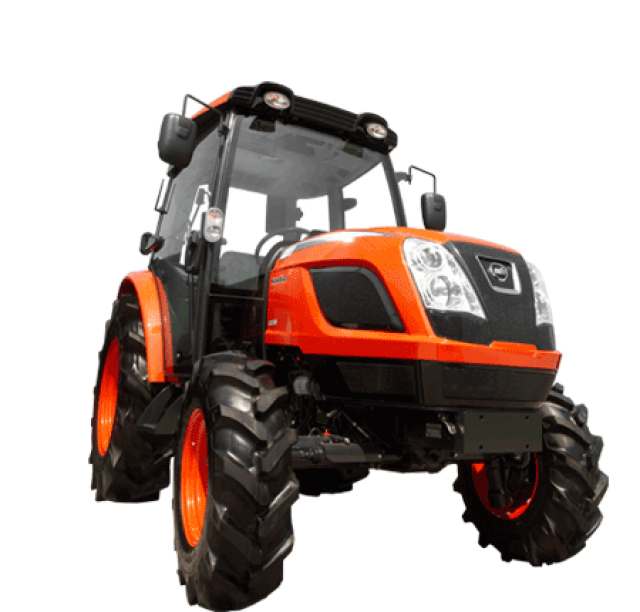

Kioti NX4510 Cab

Videos
Call for Price
Overview

 Main Features
Engine Gross Power: 45 HP (33.6 kw)
PTO Type: Independent
Transmission Type: Synchro Shuttle
Shuttle: Dry Type Single Stage


  • 24x24 Manual Transmisson
  • CRDI diesel with Daedong ECO Technology
  • Independent PTO with Auto and Manual Selection
  • PTO Cruise Control
  • True Speed Cruise Control
  • Rear Differential Lock
  • Torque Compensation
  • Deluxe Cab with Panoramic View
  Features

CRDI Diesel Engine with Daedong ECO TechnologyThe new Common Rail Diesel Engine (CRDI) improves fuel efficiency while reducing noise levels. With this eco-friendly Tier 4 engine, the NX series offers the operator a quiet work environment with powerful performance.











Torque CompensationThis feature enables the engine to maintain a consistent and stable torque level under all conditions















Turn Assist ControlThe optional turn assist control kit will drop the engine rpm by 10% automatically when turning sharply. This feature will allow for more precise work and reduces fuel consumption during sharp turns.













Anti-Stall FunctionWhen the "Anti-Stall function" is engaged, the tractor will protect itself from instant engine stall when there is momentary engine overload. The operator can also fix and set maximum speed limit when safe and precise working is needed.

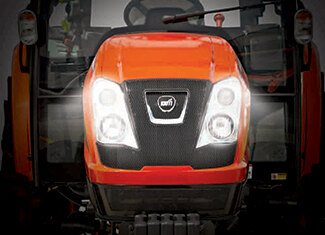

Projection and Working LampWith the new projection head and working lamp, the operator will experience safer and easier operation after the sun goes down.















PTO Cruise ControlWith one touch, engine speed may be set to maintain steady PTO rpm to maximize working efficiency. When engaged, the operator may manipulate the PTO rpm by simply clicking a switch.

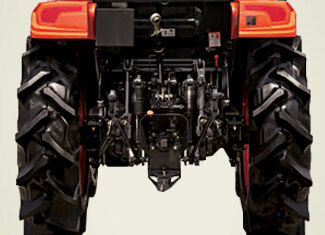

Hydraulic Independent PTOThe standard rear PTO is easily engaged by the simple push of a button. A safety interlock prevents the engine from starting when the PTO switch is left on. All models come standard with a selectable manual or automatic PTO option. When the Auto PTO is engaged, the PTO will automatically shut off when the 3-point control is raised, eliminating exposure to the running implements.

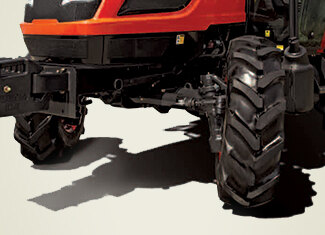

Power SteeringHydrostatic power steering minimizes the effort required to make tight, repetitive turns. The steering wheel tilts with the simple push of a lever, allowing easy adjustment to fit the operator needs.

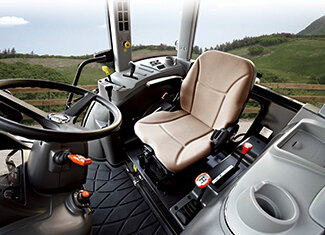

Deluxe Suspension SeatErgonomically designed, fully adjustable suspension seat allows the operator to ride in comfort no matter what the task may be. A pocket on the back of the seat allows easy access for the operator's manual

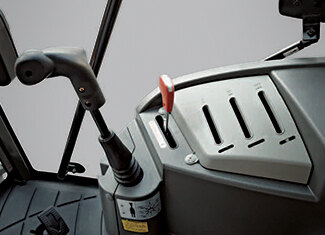

Ergonomic Joystick LeverAn ergonomically designed joystick lever for front loader operation is standard on NX series tractors.

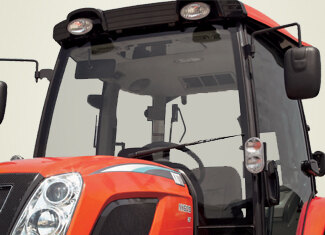

Window WiperThe standard window wiper (rear optional) improves visibility and keeps the window free from rain and dust.

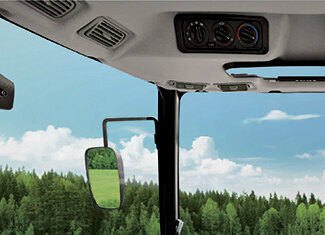

Advanced Air Conditioning SystemThe improved Cooling and Heating system will ensure comfortable working conditions for the operator year round.

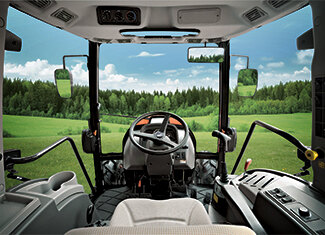

Panoramic ViewThe comfortable cab with upgraded interior minimizes operator fatigue even after a long work day. The improved wiper position maintains a clear view for the operator



Specifications
Model
NX4510 Cab
Category Name
Tractors
Year
2014
Sale Type
New
Manufacturer
Kioti
Color
Orange
Engine Gross Power
45 HP (33.6 KW)
No Of Cylinders
3
Fuel Tank (gal)
14.8 US Gal (56 l)
Displacement
111.4 cu.in. (1,826 cc)
Transmission
Manual
Rated Speed (rpm)
2,600 rpm
Width
65.6 in (1,665 mm)
Wheel Base
75.6 in (1,920 mm)
Brakes
Wet Multi Disc
Engine Model
3F183T
Fuel Type
Diesel
Aspiration
Natural
Transmission Type
Manual
Shuttle
Synchronized
Main Gear
Synchronized
No Of Travel Speeds
24 x 24
PTO Type Trans
Independent
PTO Power
37.6 HP (28 KW)
Rear PTO Speeds (1st)
540 rpm
Mid PTO Speeds
2,000 rpm (Optional)
Clutch
Dry Single Plate
Height From Top Of ROPS Cab
94.1 in (2,390 mm)
Wheelbase
75.6 in (1,920 mm)
Ground Clearance
13.7 in (350 mm)
Front Tread Ag Tires
55.2 in (1,352 mm)
Rear Tread Ag Tires
52.1 in (1,324 mm)
Pump
Gear
Pump Capacity (Max Flow Rate)
16.5 gpm (62.4 lpm)
Standard Category
Category I
Lift Capacity 24'' Aft Of Hitch Lb (kg)
3,177 lbs (1,441 kg)
Control Type
Position with Draft Control
Weight With Ag Tires
4,392 lbs (1,992 kg)
