Kioti

ID # 13207677

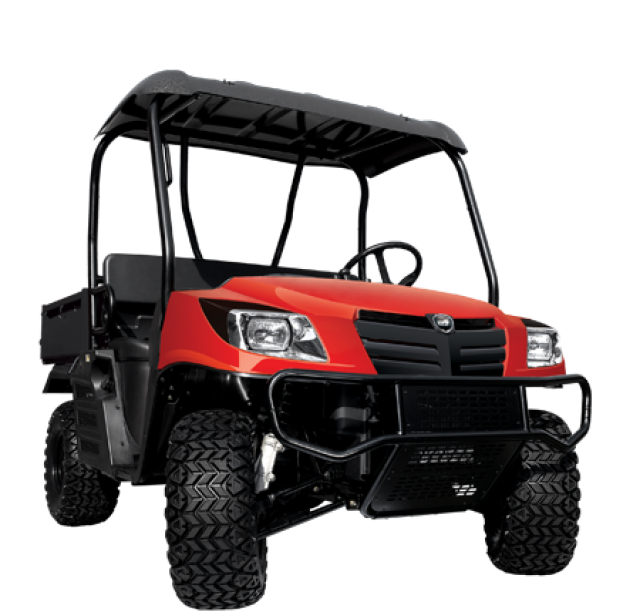

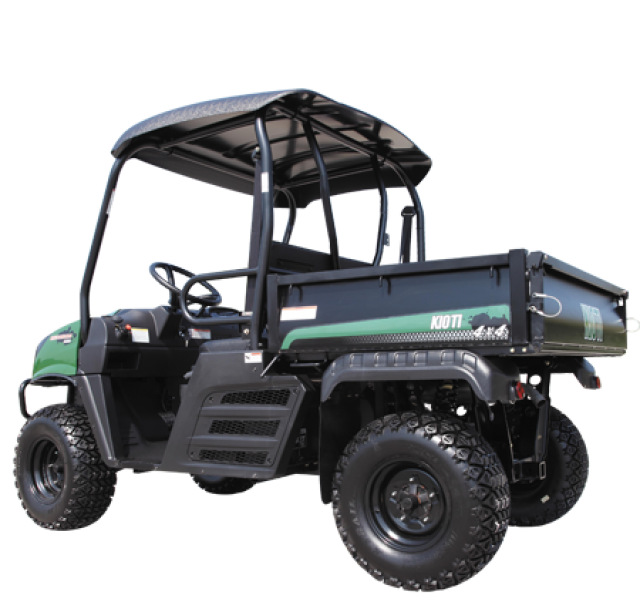

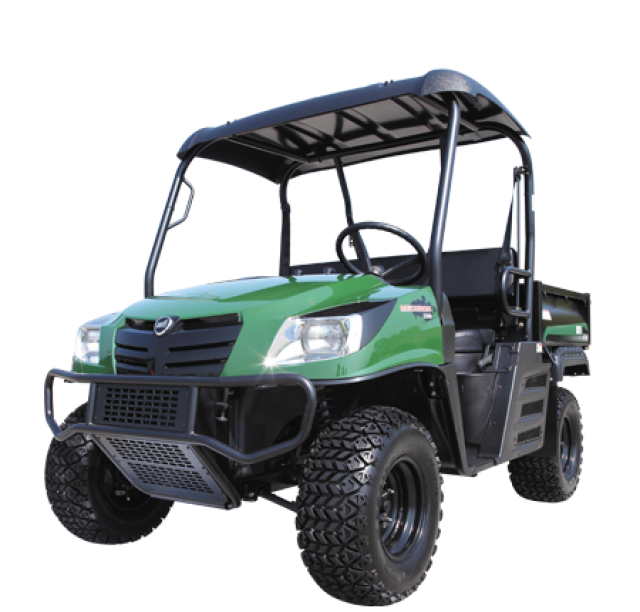

Kioti MECHRON® 2200

Call for Price
Overview
Tough. Reliable. And a heck of a lot of fun. There’s a reason the MECHRON® 2200 is called the Ultimate Transport Vehicle.™ - See more at: http://www.kioti.com/products/utv-mechron-2200/#sthash.HOkiA6ir.dpuf
  Main Features
Engine Gross Power: 22 HP (16.4 KW)
PTO Type: N/A
Transmission Type: 2 speed CVT
Shuttle: N/A
  •  CVT with 4WD
  • 12” ground clearance
  • Widest cargo bed in its class
  • 1,500 lbs payload capacity
  • 1,300 lbs towing capacity
  • Front limited slip differential
  • Rear mechanical actuated differential lock
  • MacPherson strut type front suspension
  • Adjustable wishbone type rear suspension
  • Four wheel hydraulic disc brakes
  Features

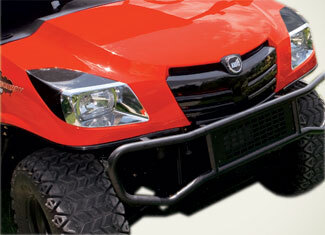

HoodThe sleek design and automotive like finish gives the MECHRON® a strong and dynamic look.

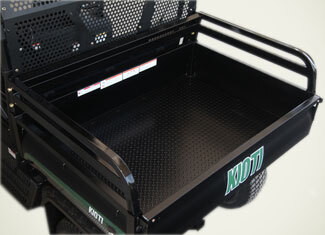

Cargo BedWith the widest cargo bed in its class and a 1,100 lbs load capacity, the MECHRON® provides excellent payload capabilities. Add the optional hydraulic dump kit and you can easily place any load where you want it.

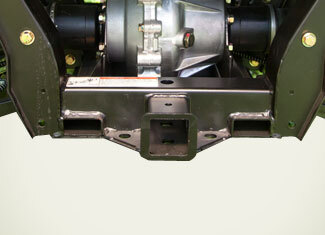

Rear Hitch ReceiverWith the 2-inch rear hitch receiver you can attach and pull trailers as well as implements that are receiver equipped. Rear hitch comes standard.

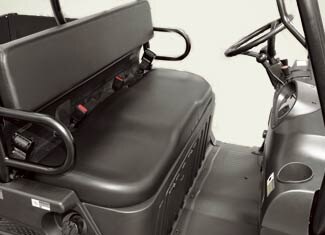

Bench SeatThe contoured bench seat is the widest in its class and seats three comfortably. Three seat belts come standard.

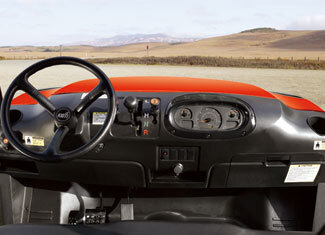

Standard Instrument ClusterSpeedometer in MPH (km/hr), hour meter, fuel gauge, coolant temperature gauge, and turn signal indicators are standard.

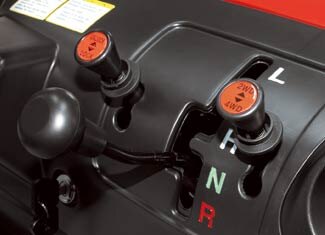

Differential LockLimited slip differential on the front, mechanically actuated differential for the rear, and standard four-wheel drive allow the MECHRON® to pull heavy loads and handle the most rugged terrain.

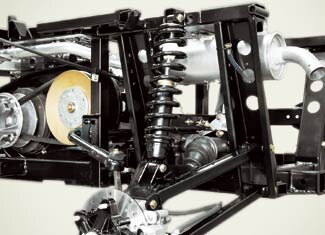

Adjustable Rear SuspensionThe adjustable Wishbone type suspension allows you to fine tune the MECHRON® to fit your specific needs.

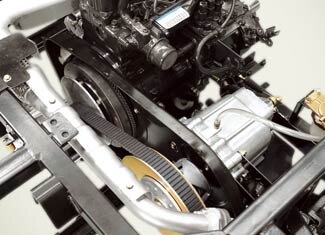

TransmissionThe MECHRON® uses a continuously variable transmission (CVT) and has a time proven Daedong gearbox with 2 speeds, (Hi/Lo) and 4WD.

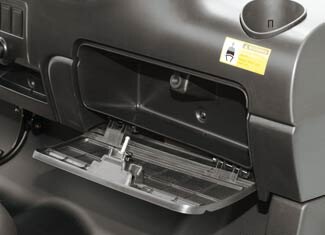

Storage CompartmentsFeatures an open dash storage area on the driver side and a closed dash storage area with a waterproof lid on the passenger side.

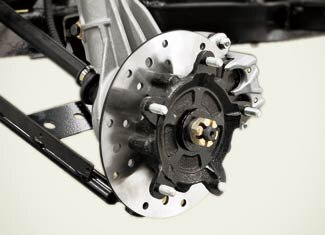

Brake SystemLong lasting front and rear hydraulic disc brakes with a mechanical parking brake provides excellent performance and enhanced safety.

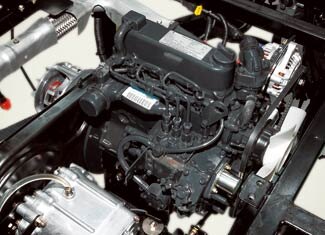

EngineThe Daedong 22 HP diesel engine has been field proven for durability and dependability while offering improved fuel economy.

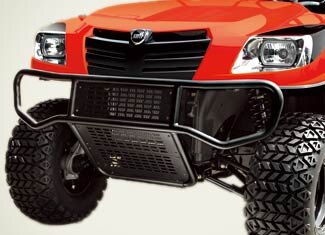

Brush GuardThe heavy-duty steel brush guard offers protection for the headlights, radiator, and front differential from rocks, tough brush, and other debris on the trail. An optional front mounted winch allows for greater versatility when it comes to tough jobs and difficult terrain.

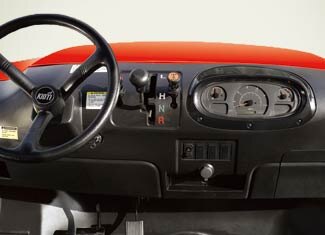

Dash BoardA cockpit-designed dash features ergonomically located controls and instruments that allow the driver to view critical functions at a glance.















Wheels and TiresLarger 12-inch wheels and 25-inch tires provide a smooth ride and 12 inches of ground clearance. Three tire options are available including Heavy Duty worksite, Turf and ATV tires.



Specifications
Model
MECHRON® 2200
Category Name
ATVs
Year
2014
Sale Type
New
Manufacturer
Kioti
Color
Red,Green
Engine
3C100LWU
Suspension (Front)
Independent, MacPherson Strut type
Suspension (Rear)
Independent, Double A-Arm (Wishbone type)
Length
112.3 in (2,852 mm)
Width
60.7 in. (1,543 mm)
Height
76.4 in. (1,940 mm)
Wheelbase
76.4 in (1,940 mm)
Turning Radius
13 ft. (3.96 m)
Ground Clearance
12 in. (304 mm)
