Kioti

ID # 13201640

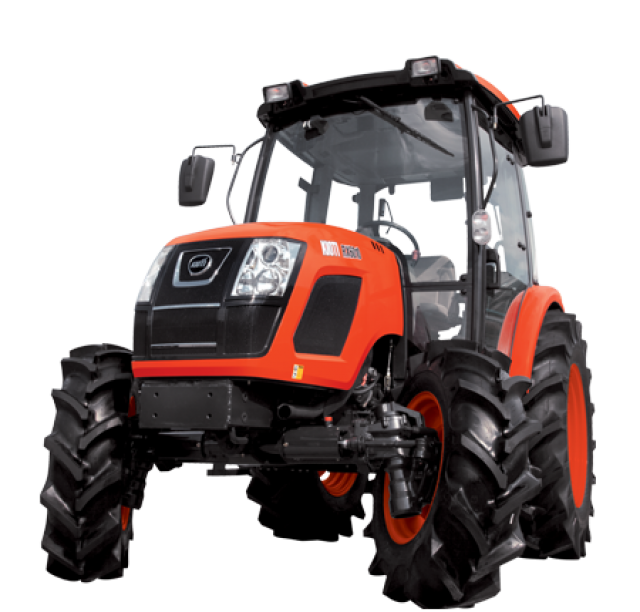

Kioti RX6010 Cab

Call for Price
Overview

RX Series

With a deluxe climate controlled cab and the heaviest lift capacity in its class, the RX series delivers ultimate comfort and incredible power. So you can take on the most demanding jobs without even breaking a sweat.
  Main Features
Engine Gross Power: 59 HP (44.0 KW)
PTO Type: Independent
Transmission Type: Manual
Shuttle: Synchronized
  •  Deluxe cab with heat and AC
  •  External hydraulic three-point lift cylinders with 5,242 lbs of lift capacity
  • 12 X 12 synchro shuttle transmission
  • Rear differential lock
  • Independent PTO with auto and manual selection
  • Single lever joystick valve
  • Remote hydraulic valves
  Features

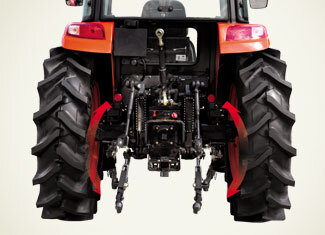

External Hydraulic CylinderThe RX series tractor has two external hydraulic lift cylinders (left and right) with a lift capacity of 5,242 lbs.















Deluxe Grill and HoodThe new streamlined hood design improves the visibility of the operator. The 60 degrees hood-opening angle enables convenient access for better maintenance.

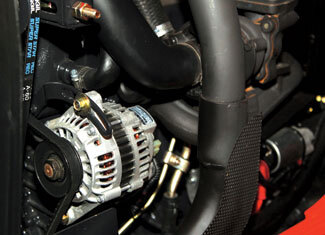

Environmentally Friendly Turbo EngineThe 59hp Turbo Engine delivers awesome power as well as a quiet and smooth operating environment.

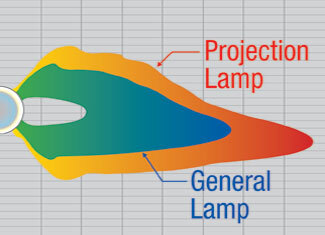

New Projection HeadlampThe new projection headlamp and working lamp really light up the night, offering safer and easier operation in dark operating conditions.

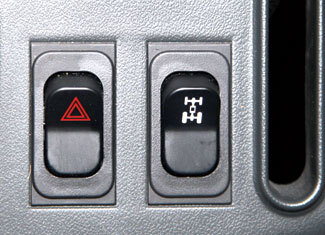

Hydraulic 4WDThe 4WD is engaged with the simple push of a button.

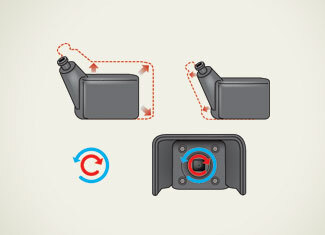

Fuel TankThe 23.8-gallon fuel tank allows productive working hours without the need for frequent refueling.















Interior ComfortThe climate control system and air filter keep the operator comfortable, even while working in the harshest environments.

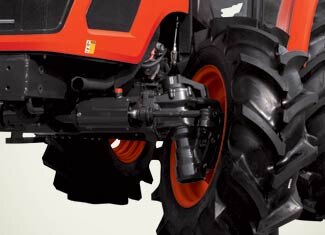

Power and Tilt Steering WheelThe standard power steering minimizes the effort required to make tight, repetitive turns. The steering wheel tilts with the simple push of a lever for easy adjustment.

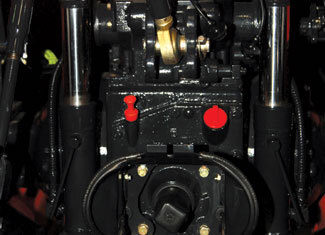

Remote Hydraulic ValveStandard dual remote hydraulic valves (2nd, 3rd optional) accommodate a wide variety of attachments and implements. Mid-mount hydraulics and single lever joystick for loader operations come standard on the RX series.

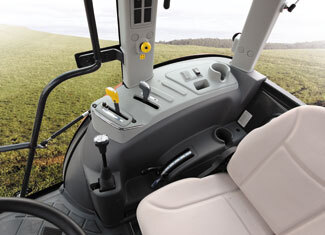

Deluxe SeatThe ergonomic, fully adjustable suspension seat allows the operator to ride comfortably, no matter what the job.

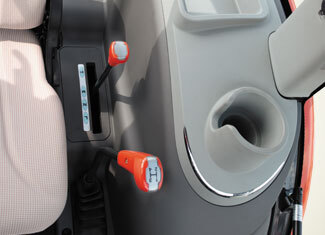

12x12 Fully Synchronized TransmissionThe fully synchronized transmission provides smooth and easy shifting on the move. The transmission features 12 forward and 12 reverse gears to handle anything.















Specifications
Model
RX6010 Cab
Category Name
Tractors
Year
2014
Sale Type
New
Manufacturer
Kioti
Color
Orange
Engine Model
4B243TLWM
Engine Gross Power
59 HP (44.0 KW)
Rated Speed
2600 rpm
No Of Cylinders
4
Fuel Type
Diesel
Aspiration
Turbo Charged
Displacement
148.6 cu.in (2,435 cc)
Fuel Tank (gal)
23.8 u.s.gal (90 L)
Transmission Type
Manual
Shuttle
Synchronized
Main Gear
Syncronized
PTO Power
49.1 HP (36.6 KW)
Rear PTO Speeds (1st)
540 rpm
Brakes
Wet Multi Disc
Clutch
Dry Single Plate
Width
68.1 in. (1,730 mm)
Wheelbase
82.7 in. (2,100 mm)
Ground Clearance
15.7 in. (400 mm)
Standard Category
Category II
Control Type
Position, Draft and Mixed
