Kioti

ID # 13201545

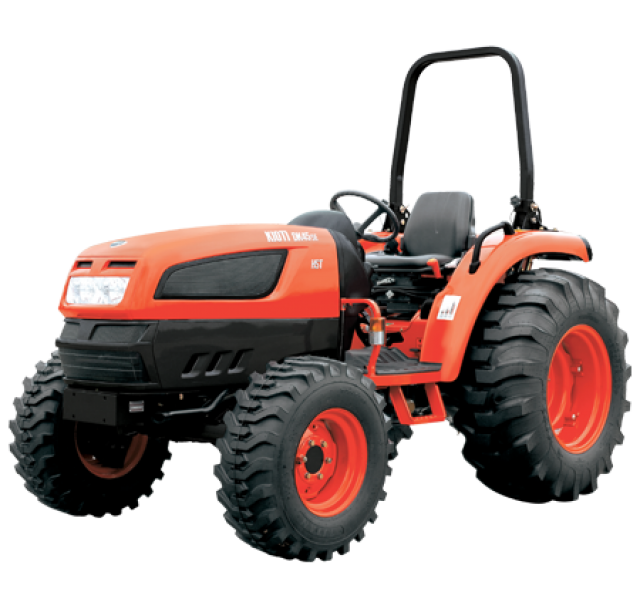

Kioti DK45SE HST

Call for Price
Overview

DK / DKSE Series

The DK/DKSE Series is fully featured, comfortable, and ready for any job that demands a durable compact tractor. Ranging from 40 HP to 90 HP, this series of high-performance compact tractors pack impressive power and smooth handling into one dependable workhorse.
  Main Features
Engine Gross Power: 45 HP (33.6 KW)
PTO Type: Hydraulic, Independent
Transmission Type: Hydrostatic Drive
Shuttle: None
  •  Open Station (ROPS)
  •  Single lever joystick with quick connect hydraulics
  • Rear differential lock
  • Twin HST Pedals
  • Push-button hydraulic independent PTO
  • Category I three-point hitch with telescopic end links
  • Mid/rear hydraulic remote connections
  • Flip up PTO guard
  • Deluxe CAB model also available
  Features

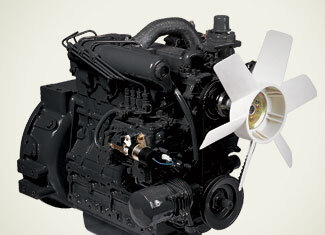

Environmentally Friendly EngineThe exceptionally quiet KIOTI diesel engines produce little vibration at working RPMs and meet or exceed all EPA and CARB regulations through optimal combustion and fuel economy.













Hydraulic Independent PTOThe Rear PTO is standard and is easily engaged by the simple push of a button. A mid-PTO is optional. Both rear and mid-PTOs can be operated independently or simultaneously.













Hydrostatic TransmissionThe DK45SE HST has been equipped with a performance proven, heavy duty HST drive unit. A dual pedal controls traveling speed and direction. Changing between forward and reverse is done without clutching or hand shifting. With the KIOTI HST drive system, your hands remain free for steering and implement control.











Hydraulic PortFor smooth operation of tillage tools without overloading the tractor or the implement, the draft sensing system automatically controls the lower link position to maintain the user selected draft setting.













Hydraulic Valve (D/T, Double Acting Valve)Detent valve is equipped to make spray work easy by simple lever control.















Power SteeringPower steering is standard and minimizes the effort required to make tight and repetitive turns even with a fully loaded bucket.













MLS ValveThe MLS valve allows the user to control the speed of the 3-point lift arms, thus decreasing the impact and increasing the operational efficiency.













Flat Deck DesignThe flat deck design allows for easy entry from either side.

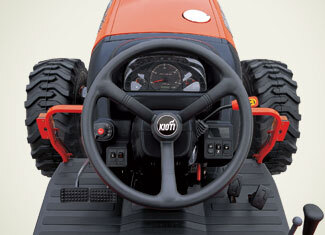

Tilt Steering With the push of a lever, the steering wheel tilts toward the operator. When exiting the tractor, it can be easily moved out of the way.

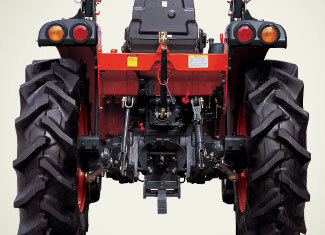

3-Point HitchA category 1, 3-point hitch with standard telescopic link ends make attaching implements quicker and easier than fixed links and also enhances operator safety. Telescopic stabilizers and a RH leveling box provide the operator with a wide range of customizable 3-point hitch options to handle the job at hand.

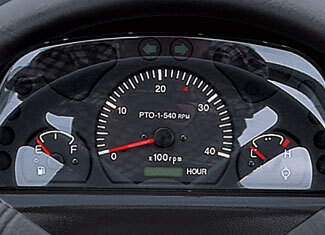

Centralized Instrument PanelAll instruments are in full view of the operator. At a glance, the operator can check the engine RPMs and temperature, the fuel level and all other critical engine and tractor functions. The electronic hour meter accurately records the real working hours of the tractor.











Lift Control LeverThe conveniently located lift control lever allows the operator to raise and lower implements.

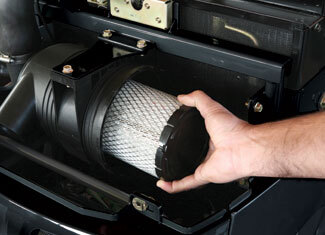

Air FilterA dual stage cartridge protects the engine from dust and dirt resulting in prolonged engine life. Located conveniently at the front of the engine, servicing of the cartridge is simple.













Multiple Position StabilizerThe multiple position stabilizer adjusts lift arms to a wide range of attachments and allows for easy adjustments based on the job at hand.













Electric over Hydraulic 4WDThe 4WD is engaged with the simple push of a button.















Differential LockA rear wheel differential lock pedal can be applied to increase traction.

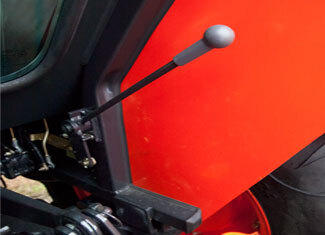

Remote Rear Implement Control LeverAllows operator to control the 3-point hitch from the ground at the rear of the tractor. Attaching implements is easier and safer with this control within easy reach.













Flip-up PTO GuardThe PTO guard flips up so you can install the implement's drive shaft with ease.















Foldable ROPSA fold-down roll bar allows you to move into tight areas quickly and easily.

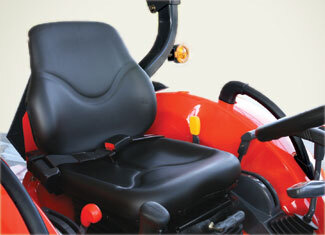

Comfortable Seat with SuspensionA high quality, fully adjustable seat assures operator comfort for long hours of work and minimizes operator fatigue. A retractable seatbelt is standard on all KIOTI tractors to ensure operator safety.

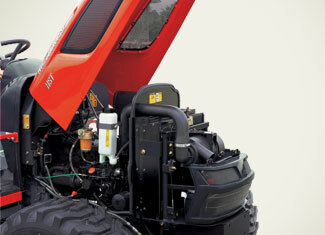

Simple MaintenanceKIOTI Tractors are designed for easy access and simple maintenance. Oil level can be checked without raising the hood. The hood opens completely, exposing the top of the engine. Side panels are easily removed to expose all daily service check areas. KIOTI makes it easy to maintain your tractor for long life and high performance.

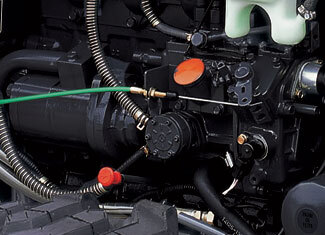

Hydraulic PumpThe tandem hydraulic pump provides high capacity and flow for smoother operation and higher efficiency even under the toughest conditions.

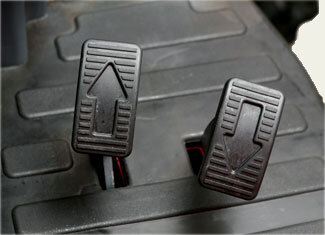

HST PedalThe DK45SE HST employs a two pedal system for forward and reverse with smooth engagement, acceleration and deceleration. Pedal pressure is minimized which reduces operator fatigue during long hours of use and when doing repetitive tasks.

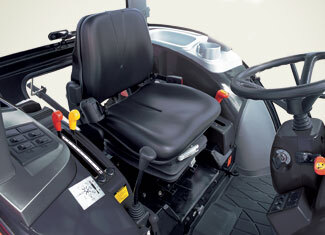

Deluxe CabinThe DK45SE HST Cab provides excellent visibility to the front, rear and sides. The rear roof position of the cabs air conditioning and heating unit also allows for greater visibility of the loader and loader attachment. Other standard features include a radio/ CD player and rear and side windows for ventilation.

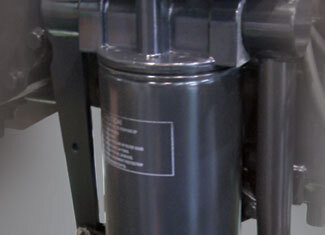

Hydraulic Filter and Oil CoolerAn additional and separate filter for KIOTI HST transmissions prevents possible contamination from other hydraulic systems and helps to assure product life. The addition of an oil cooler for the HST system prevents system oils from overheating under heavy loads and harsh working conditions.











Specifications
Model
DK45SE HST
Category Name
Tractors
Year
2014
Sale Type
New
Manufacturer
Kioti
Color
Orange
Engine Model
4A220LWH
Engine Gross Power
45 HP (33.6 KW)
Rated Speed
2,600 rpm
No Of Cylinders
4
Fuel Type
Diesel
Aspiration
Natural
Displacement
134.06 cu. in. (2,197 cc)
Fuel Tank (gal)
11.9 gal (45 L)
Transmission Type
Hydrostatic Drive
Shuttle
None
Main Gear
Hydrostatic
No Of Travel Speeds
3 Range HST
Max Travel Speed Of Forward W/ Ag1 @ Engine Rated Speed
15.6 mph (25.1 kph)
PTO Type Trans
Hydraulic, Independent
PTO Power
36 HP (26.8 KW)
Rear PTO Speeds (1st)
540 rpm
Mid PTO Speeds
2,000 rpm (Optional)
Brakes
Wet disc
Width
63.9 in. (1,625 mm)
Ground Clearance
14.7 in. (375 mm)
Control Type
Position, Draft, Mixed Control
