Kinze - 261 Mach Till

  • Kinze 261 Mach Till
  • Kinze 261 Mach Till
  • Kinze 261 Mach Till
  • Kinze 261 Mach Till
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

High-speed disk tillage

width 26′ | transport width 13′ 10″

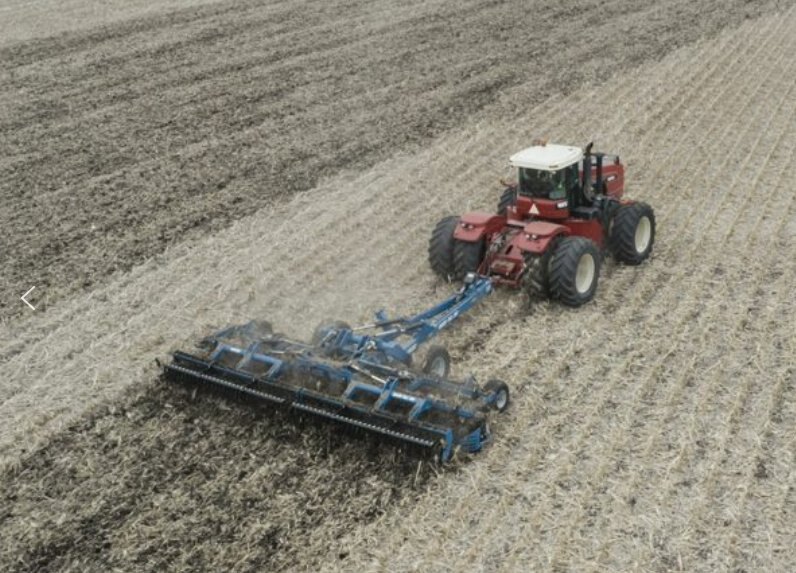

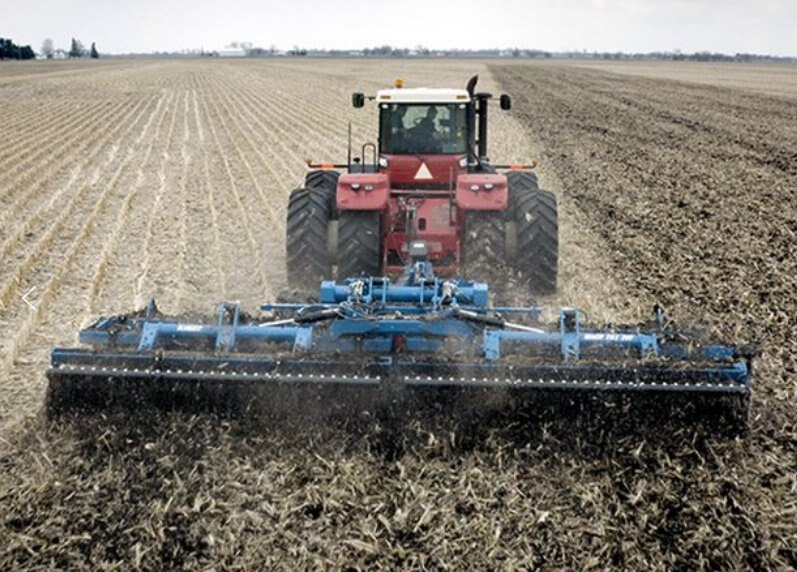

On farms that have a large mechanical front wheel drive (MFWD) or smaller articulating tractor, the 2-section 261 Mach Till is the most popular model. Operations wanting to simplify their tillage passes across the field and maximize their return on investment, find the 32 acres per hour productivity rate fits well with their farming practices. With discs that have 11½” of clearance, rocks and other obstacles are easily avoided and productivity maintained.

TRUE. BLUE. Advantage.
Specifications
Model
261 Mach Till
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Kinze
key benefits
  • Independently mounted discs have 11½” of clearance to enable discs to clear rocks and other obstacles while following land contours
  • Four robust rubber spring elements pre-load the disc arms and keep discs firmly engaged with the soil (heavy duty disc arms optional)
  • Heavy-built frame provides the weight necessary for working in all soil conditions and is supported by four high-flotation tires
  • Consistent working depth is maintained by distributing the frame weight wing-to-wing by the pressure compensated hydraulic weight distribution system

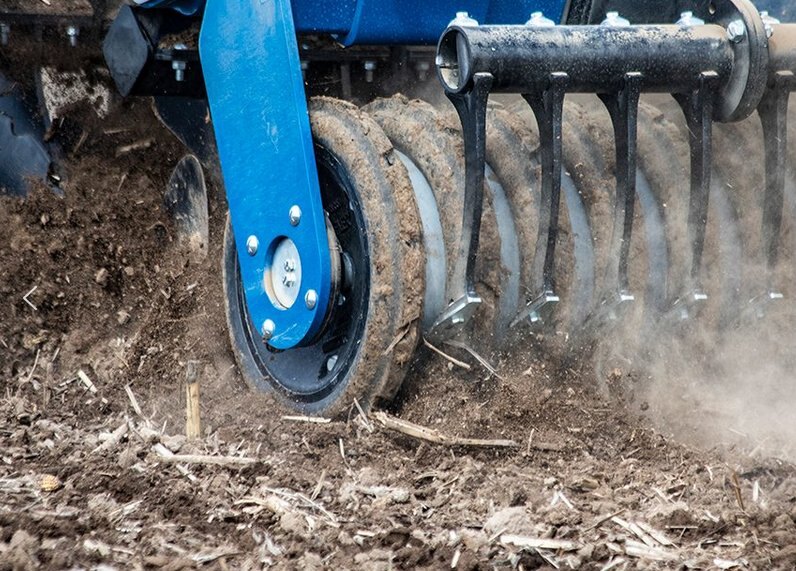

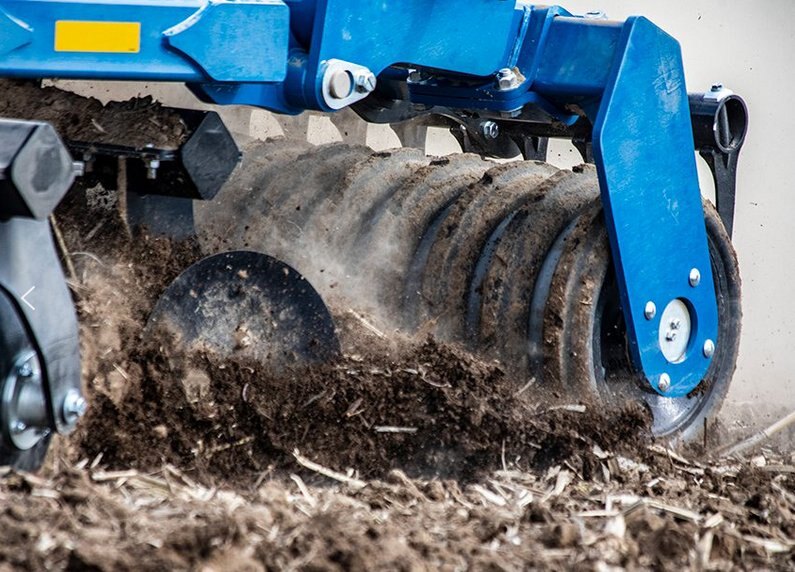

  • The full width rubber furrow roller provides optimum, non-compacting soil and residue firming in various soil conditions
  • Both the concave smooth and double-V discs are shallow-faced to provide an aggressive cutting edge while eliminating soil compaction layers
  • Discs are spaced 10″ apart to enhance residue flow and eliminate plugging
  • Maintenance-free double-sealed bearings, carbide roller scrapers, composite bushings, and oversized pins throughout provide many acres of low maintenance operation
  • Tills an average of 32 acres per hour at 10 mph using a 390–450 HP tractor operating at 80% field efficiency
features & options
  • Category 4 articulating hitch
  • Tungsten carbide scrapers
  • Hydraulic weight distribution
  • Hydraulic gauge wheels
  • 2-Section heavy built frame
  • OTICO furrow rollers
  • Independent disc arms (heavy duty optional)
  • Mechanical depth control
  • Hydraulic jack
  • Transport width of 13′-10″
  • 20″ or 22″ smooth and double-V discs
