ID # 13488045

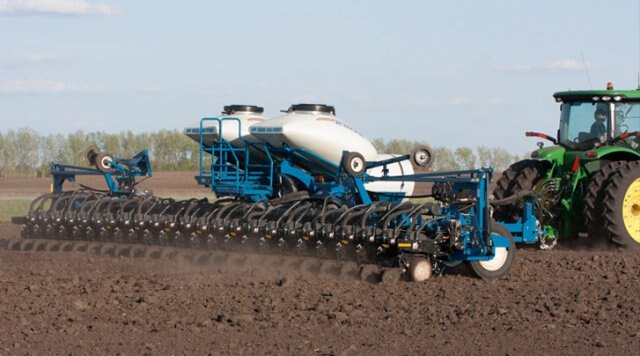

Kinze3700 Planters Front Fold

  • Kinze3700 Planters Front Fold
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
40- and 60-foot planting widths. Unmatched strength. Unmatched versatility. Tremendous center flex. Bulk fill with 110-bu seed tank capacity. And plenty of choices: precision ag tools, pneumatic down pressure, auto-swath control and more! Two-section toolbar with 30 degree toolbar flex up and down.
 Toolbar/Frame
Two-Section Center Flex Toolbar http://www.kinze.com/images/planters/features/9a41a458-2537-11e2-8437-848f69d9afaa.png
Handles like a much smaller planter! Rugged 7" x 7" x 1/2" toolbar. Reinforced with overhead truss construction (4" x 7" x 3/8").
Industrial-Grade Cylinders http://www.kinze.com/images/planters/features/0064088c-560c-4712-b710-c45a9f933280.png
Superior reliability over ag-grade cylinders used by competition. Tested and proven.
Center Flex http://www.kinze.com/images/planters/features/f83331fe-253b-11e2-8437-848f69d9afaa.png
30 degrees up, 30 degrees down. Tremendous flex for rolling terrain and terraces.
  3000 SERIES ROW UNIT

Quick, uniform emergence in all conditions. Proven year after year by outstanding results and the overwhelming satisfaction of Kinze customers worldwide.

  • Accurate seed placement and spacing
  • Consistent depth control
  • Superior seed-to-soil contact
  • Quick, easy adjustments
  • Row unit/frame mounted tillage attachments
3000SeriesRowUnitFeatures
  Seed Monitoring

Computerized Smart Sensor

  • “See” and count every seed with new high-definition, one-piece optical seed tube.
  • Count up to 120 seeds/second. Track population changes instantly.
  • Self-diagnostics ensures tube isn’t blocked or dirty.
  • Compatible with Precision Planting 20/20 Seed Sense®, Ag Leader® STMM or any system using Dickey-John® seed tubes.
  • New smoother, stronger seed tube.
Computerized Smart Sensor

 Transmission/Drive System
Mechanical Contact Drive System http://www.kinze.com/images/planters/features/c7cd19ac-324f-4ffc-b834-1b5f059c2e6d.jpg
Simple. Reliable. Easy to operate. Spring-loaded 4.10" x 6" tires. Smooth. Reliable. No clutches. No chains to remove for transport. Less horsepower vs hydraulic drives.
Easy-Access End-Mounted Transmissions
http://www.kinze.com/images/planters/features/48f9a890-2391-11e2-8437-848f69d9afaa.pngWheel modules provide easy end-mounted access. Consistent populations. More yield potential. Precision-cut plated sprockets readily available. No tools needed. Split drive system reduces driveline torque on contours, curves, corners. Throw-out clutches shut off optional split row interplants in seconds.
Electric Point Row Clutches http://www.kinze.com/images/planters/features/12222552-2393-11e2-8437-848f69d9afaa.png
Shut off either side of the planter ... right from the cab.



Specifications
Model
3700 Front Fold
Category Name
Agriculture
Year
2016
Sale Type
New
Manufacturer
Kinze
