ID # 29247499

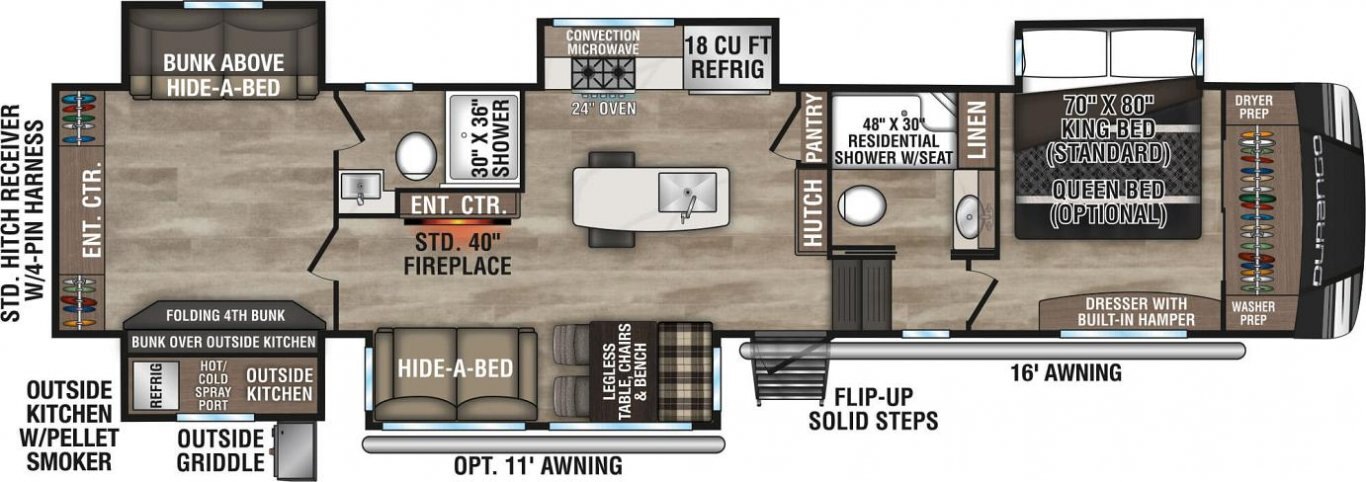

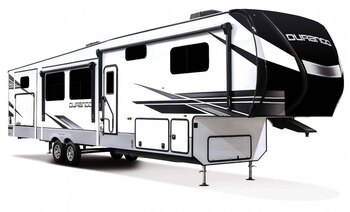

KZ RV DURANGO D348BHF
Videos
Overview

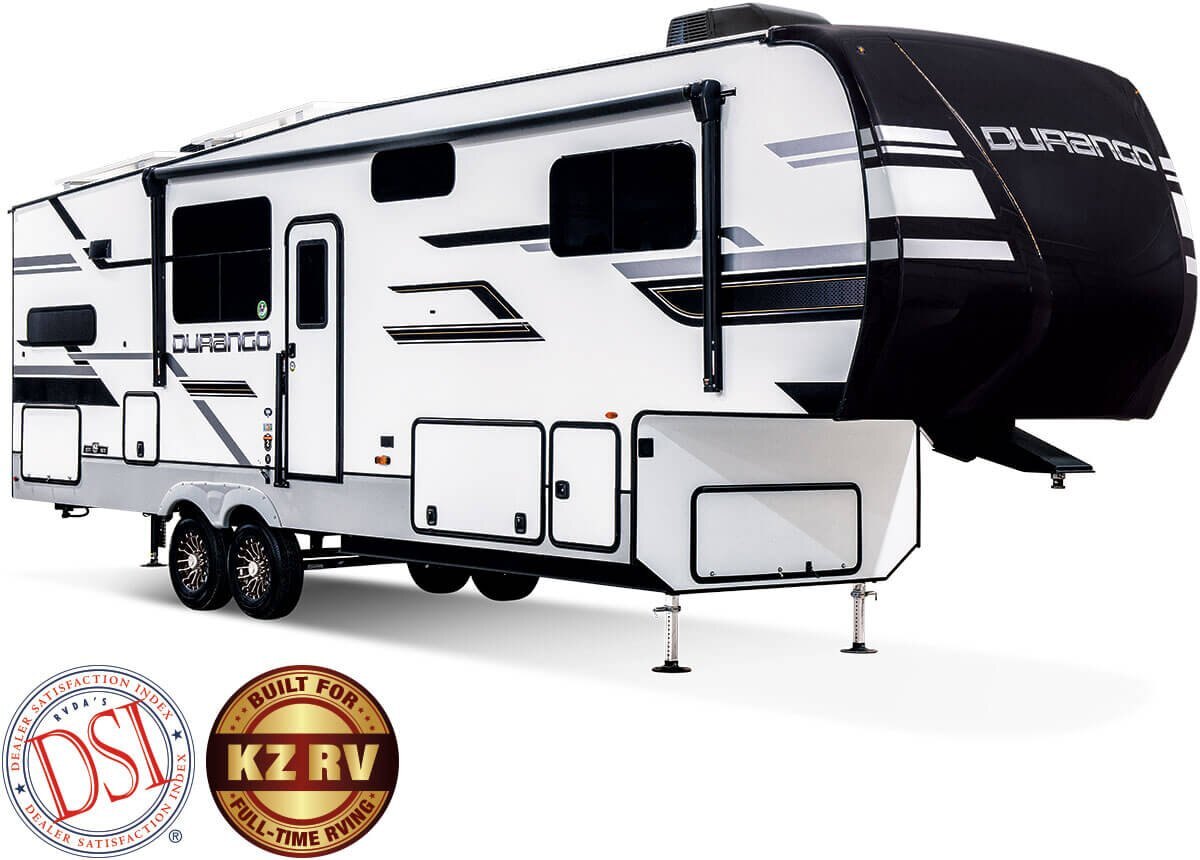

FULL-PROFILE LUXURY FIFTH WHEELS
Durango offers all the upscale staples at an affordable price. Durango is approved for full-time RVing with an all-weather insulation package. |
KEY FEATURES: - Off-the-grid solar package
- Solar prep on roof for easy expandable prep
- King-size bed standard
- Smart TVs
- 30" convection microwave
- 24" oven with four burner range
|
Specifications
Gray Water Cap. (Gal.)
100
Fresh Water Cap. (Gal.)
76
Waste Water Cap. (Gal.)
50
Refrigerator (Cubic Feet)
18
Exterior Height (with A/C)
12' 11"
CCC (Cargo Carrying Capacity)
1,685
UVW (Unloaded Vehicle Weight)
13,310
Water Heater Cap. (On-Demand Tankless)
***
décor
standard features
Standard Features
|
CONSTRUCTION - Steel Powder Coated I-Beam w/Drop-Frame Pass-Thru Storage
- R-13* 2" Block Foam Bonded Sidewalls w/EGS Metal Backing Strips (to support all int. cabinets)
- Lamilux® Gelcoat Fiberglass
lamilux.com/composites/products/basic-requirements/high-gloss.html - Fully-Insulated Sliderooms
lci1.com/slide-outs - 1-Piece, Seamless, Walk-on, Tufflex Roofing Material w/Lifetime Warranty - More Info
- 5/8" Tongue & Groove, Screwed & Glued Plywood Floor Decking
- Fully-Vented Attic System
- Completely Heated Water System
- Pex® In-Floor Heated Waterlines & Kitchen Gray Pipes (all waterlines & drainlines are located above all insulation)
- Fully Heated & Enclosed Underbelly
- Radius Front Cap (for increased turning radius on short bed trucks)
- Extra-Reinforced Heavy-Duty Front Fiberglass Cap
- All-Weather Insulation Package (upgrades roof, floor, ceiling, endcaps & tanks to R-38*)
|
|
EXTERIOR - Dexter® Axles w/Self Adjusting Brakes & Height Adjusting Hangers
dexteraxle.com/Products/Sprung-Axles/Light-Duty
Nev-R-Adjust® Brakes Flyer - 8-Lug Heavy-Duty Aluminum Rims w/16" E-Range Nitrogen-Filled Radial Tires (H-range on select models)
- 100% Exterior LED Running Lights & Taillights
- LED Front Docking Light & Sewer Hookup Light
- Electric Power Awning w/LED Light Strip
lci1.com/products/rv-supplier/rv-and-trailer-awning-solutions - (2) 30 LB. Propane Bottles on Same Side of Coach for Easy Access
- Side-Mounted Sealed Battery Compartment
- Partially Painted Front Cap
- 50 AMP Service w/Marine Power Cord
- 15,000 BTU Ducted Roof A/C w/Pre-Wire for Optional 15,000 BTU Bedroom A/C
- 3" x 14" Foam-Core In-Floor Straight-Line Heating System w/35,000 BTU Furnace
- Deluxe Heated Water Convenience Center (includes black tank flush, power fresh tank water fill, winterizing system, outside shower)
- Fully-Finished, Heated & Sealed Basement Storage Compartment
- Roof Ladder
- No-Slide Rubberized Basement Flooring
- Dual Lock Basement Storage Slam Latches
- Satellite Pre-Wire (roof & ground)
- Pre-Wire for Exterior TV
- Full-Perimeter Rain Gutter System (incl. rear & additional gutters over sliderooms)
- LP Quick Connect
- Undermount Spare Tire
|
|

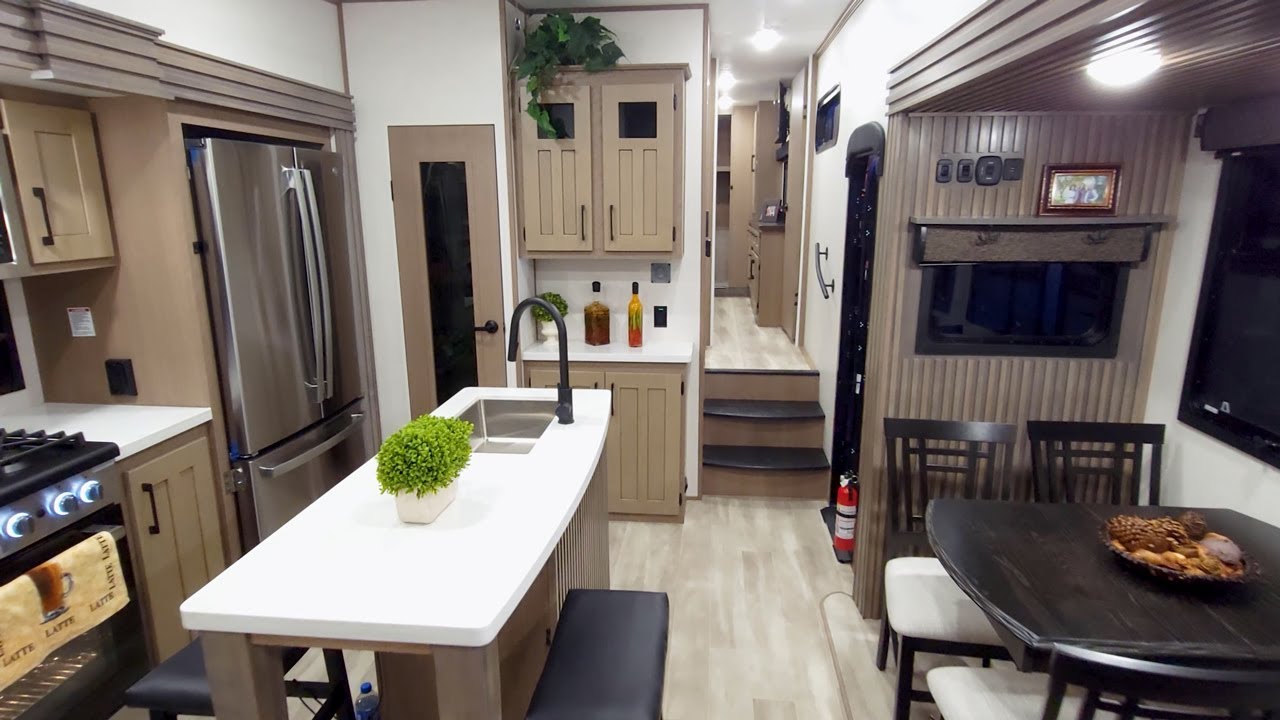

LIVING ROOM/KITCHEN - Heavy-Duty 100 LB Drawer Glides on Every Drawer
- Baltic Birch Drawer Boxes
- 5" Black Cabinet Hardware
- XL Toggle Light Switches
- Large Ceiling Crown Molding
- All LED Ceiling & Cabinet Lights w/Multiple On/Off Switches
- Deluxe Residential-Style Furniture
- HD Flat Panel TV w/Swing Arm Bracket & Storage behind TV (most models)
- Ceiling Fan (where applicable)
- Solid-Surface Kitchen Countertops & Sink Covers w/Large Handholds
- Residential Stainless Steel Sink
- Pullout High Arching Faucet
- Kitchen Window (most models)
- All-Wood Lumber Core Screwed Cabinets w/Hardwood Doors
- Adjustable Pantry Shelves (where applicable)
- All Kitchen OH Cabinets Include Shelf
- 4" High Density Foam Cushions on all Booth Dinettes
|
|
BATHROOM/BEDROOM - Residential 1-Piece Fiberglass Shower Stall w/Built-in Seat & Glass Doors
- Shower Skylight
- Porcelain Foot-Flush Toilet
- All LED Lights in Bed & Bath w/Multiple Large Switches
- Vent Fan in all Baths
- Large Linen Closet in Every Bathroom
- One-Level, Full-Height Bedrooms
- Headboard w/Power Outlet Near Bed
- XL Under-Bed Storage
- Luxurious Bedspread
- Dual Drawers, Large Hanging Space
- Washer & Dryer Prep in Front Closet
- Bedroom TV Pre-Wire
|
kz advantage package (mandatory)
KZ Advantage Package (mandatory)
EXTERIOR - 4 Point Auto Electric Leveling
- Polar White Gelcoat Exterior Fiberglass
- Painted Fiberglass Front Cap
- 5-Sided Aluminum Framing
- 50 AMP Service w/2nd A/C Prep
- 15K Ducted A/C
- 5/8" Tongue & Groove Plywood Floor
- Key-Alike for Baggage & Entry Doors
- Friction Hinge Entry Door w/Shade Prep & Screenshot Features
- Power Front Jack
- Undermount Spare Tire
- Nitrogen-Filled Tires
- Battery Disconnect
- Black Tank Flush
- Backup Camera Prep
- Roof-Mounted Solar Prep w/Connection
- All-Weather Insulation Package (heated, enclosed & insulated underbelly, plus foil in floor, roof, front, rear)
- 2" Towing Receiver Hitch w/4-Pin Wire Harness Connection (3,000 LB tow rating & 300 LB hitch rating)
- Roof Ladder
- (2) Attic Vents
- Leash Latch w/Bonus Beverage Opener
- Metal Latches on Baggage Doors
- Frameless Windows
- 2nd Solar Prep on Roof for Easy Expandable Prep
|
INTERIOR - Blancher Cherry Cabinetry
- Beauflor Flooring in Slideouts
- Solid Hardwood Slideout Fascia
- Solid-Surface Countertops w/Deep Undermount Stainless Steel Kitchen Sink w/Sink Cover
- Trash Can under Sink
- 24" Oven w/4-Burner Range
- 30" Convection Microwave
- Power Vent Fan in Main Area
- Tri-Fold HAB Sofa
- (3) Motion Sensor Lights (entry, closet, basement)
- 40" Wideview Fireplace
- 43" Smart LED TV
- JBL 2.0 Sound Bar w/Bluetooth
- 12V Dual USB Charging Station
- Night Roller Shades
- Porcelain Foot-Flush Toilet
- Stainless Steel Bathroom Sink
- Plywood Bed Base
- Serta Comfort Foam 70" x 80" King Mattress
- Legless Table Base for Dinette Table, Chairs & Bench (select models)
- Pocket Door for Bathroom
- Soft Auto-Close Drawer Glides
- RV Airflow A/C System w/Air Filter - More Info
|
kz convenience package (mandatory)
KZ Convenience Package (mandatory)
EXTERIOR - KZ Engage Powered by OneControl w/7" Screen (control system monitors tank levels & battery levels, controls slide rooms, leveling system, awnings, inside/outside lighting)
- Power Awning w/LED Light Strip
- Magnetic Catches for Baggage Doors
- Omnidirectional HDTV Antenna w/Wi-Fi Prep
|
INTERIOR - 18 CU FT House Refrigerator w/2,000W Inverter
- Matte Black Residential Kitchen Faucet w/Sprayer
- Curved Hardwood Step in Hallway
- Wood Accent Trim on Corners/Entry Doors
- Electric Outlet in Bunk Area
- 24" Microwave
- Vision S Prep (blind spot monitoring)
- On-Demand Tankless Water Heater
- Lithium Battery Ready
- JBL Flip 5 Bluetooth Speaker w/Locking Wall-Mount in Basement Storage Area
|
peace of mind package (mandatory)
Peace Of Mind Package (mandatory)
- 16" Goodyear Tires w/8 Lug Aluminum Wheels
- MORryde CRE3000 Suspension
- MORryde 4-Step StepAbove RV Entry Steps & Safe T Handrail
- TST TPMS w/Banded Sensors on the Rim
|
options
Options
EXTERIOR - 2nd A/C Ducted (15,000 BTU)
- Dual Pane Windows (Frameless)
- Wireless Backup Camera - Observation & Vision S
- (2) 100AH Lithium Batteries
- Boondocker 48V Solar System
- Generator Prep (includes start/stop harness)
- 6.5 KW LP Onan Generator (requires prep)
- 2nd LED Lighted Power Awning (mandatory D301RLT, D311BHD, D333RLT, D348BHF, D349DBF)
- 32" Exterior TV w/Bracket
- Pellet Smoker & Table (mandatory D321RKT, D348BHF)
|
|
INTERIOR - 32" Bedroom LED TV
- Theater Seating w/Heat & Massage Features IPO Tri-Fold HAB (D311BHD, D348BHF, D349DBF)
- 12 CU FT G/E Refrigerator IPO 18 CU FT House Residential Refrigerator w/2,000W Inverter
- Power Vent Fan in Bathroom (mandatory)
- Power Vent Fan in 2nd Bathroom (mandatory D348BHF)
- Serta Comfort Foam Queen Mattress 60" x 80"
- Full-Timer’s Hardwood Desk IPO Dinette Table

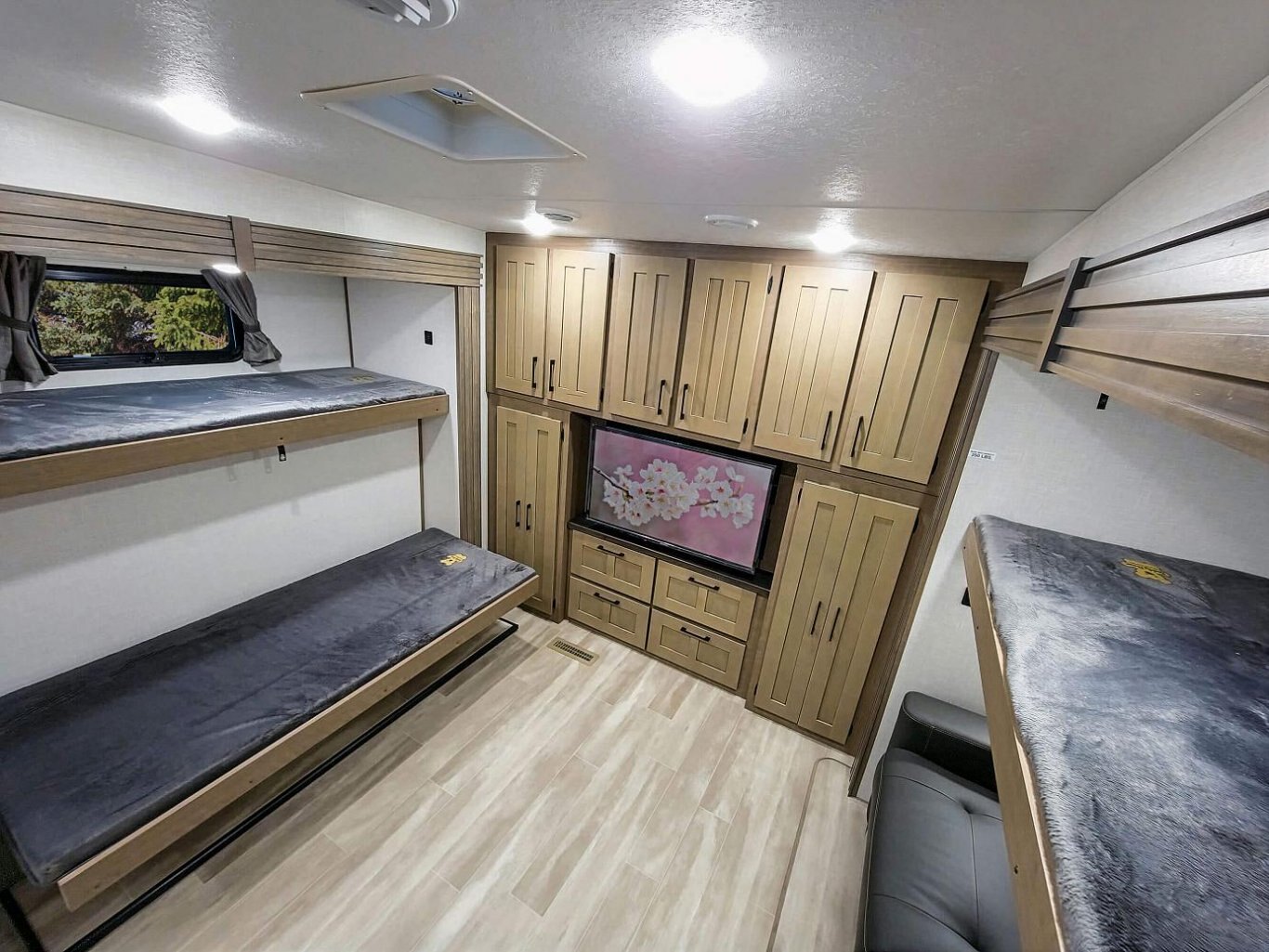

- Hide-A-Bed Sofa IPO Lower Bunk (mandatory D348BHF)
- Double Over Double Bunks IPO Queen (D349DBF)
- Ottoman w/Storage
|
boondocker solar system
BOONDOCKER SOLAR SYSTEM
- Boondocker Solar System is Now a 48V System Instead of 24V (more efficient)
- (8) 220W Solar Panels = 1,760 Watts of Solar Power
- 5,000 Watt Victron Inverter/Charger 48V – Powers Everything in Your Fifth Wheel + (1) 15,000 BTU A/C w/Soft Start for A/C
- 100 Amp Victron MPPT Solar Charge Controller
- (2) 200AH 48V Lithium Batteries (which is equal to (8) 100AH 12V lithium batteries)
- Victron DC-DC Converter 48V to 12V 70 Amp Converter
- Victron Battery Protect 12/48 Volt 65 Amp Low Battery Protect
- Victron Battery Monitor w/Built-in Bluetooth – Allows for Accurate State of Charge to be Displayed
- Victron Cerbo Communication Hub – Connects All Victron Devices Plug in to Have Single Point Monitoring
- Victron Global Linx – Connects to Cerbo to Allow Wi-Fi & Cell Card Monitoring (allows for system to be monitored remotely)
- Victron Touch Screen Display – Shows All Functions of the System
- Download the VictronConnect App to Get Live Status Info & Configure Victron Products w/Built-in Bluetooth
- Solar Panels Are Made in USA and Are Backed by a 10-Year Warranty
|
