John Deere 622 FLEX CUTTING PLATFORM

  • John Deere 622 FLEX CUTTING PLATFORM
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

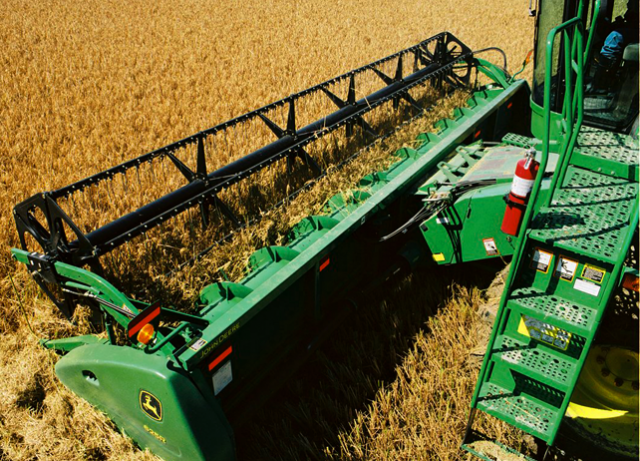

622 Flex Cutting Platform

With the 622 Flex Cutting Platform, you'll benefit from four-inch double-cut knives that provide both increased cutting capacity and harvesting speed.
  Features
  • Epicyclic knife drive to increase drive capacity
  • Raised-height skid shoe
  • Perma-Glide™ floating divider point
  • Safe and damage-free storage



Specifications
Model
622 FLEX CUTTING PLATFORM
Category Name
Agriculture
Year
1916
Sale Type
New
Manufacturer
John Deere
Type
Knife system with in-line gearbox 102 mm 4 in.
Cutterbar Angle
10 degree (angle)
Cutterbar Length, Ft (m)
6.7 m 22 ft
Flex Cutterbar Float Range, In (mm)
152 mm 6 in.
Backshaft Speed, Rpm
490 rpm
Knife Speed, Cycles/min
520 cycles/min
Diameter, In (mm)
660 mm 26 in.
Operating Speed, Rpm
Slow down 135, 152 rpm Speedup 170 rpm
Number For Slats
6
Cutting Width, Ft (m)
6.7 m 22 ft
Overall Width, Ft (m)
7.5 m 23.7 ft
Approximate Weight, Lb (kg)
1,912 kg 4,215 lb
