Guaranteed income

with the best Jacto technology

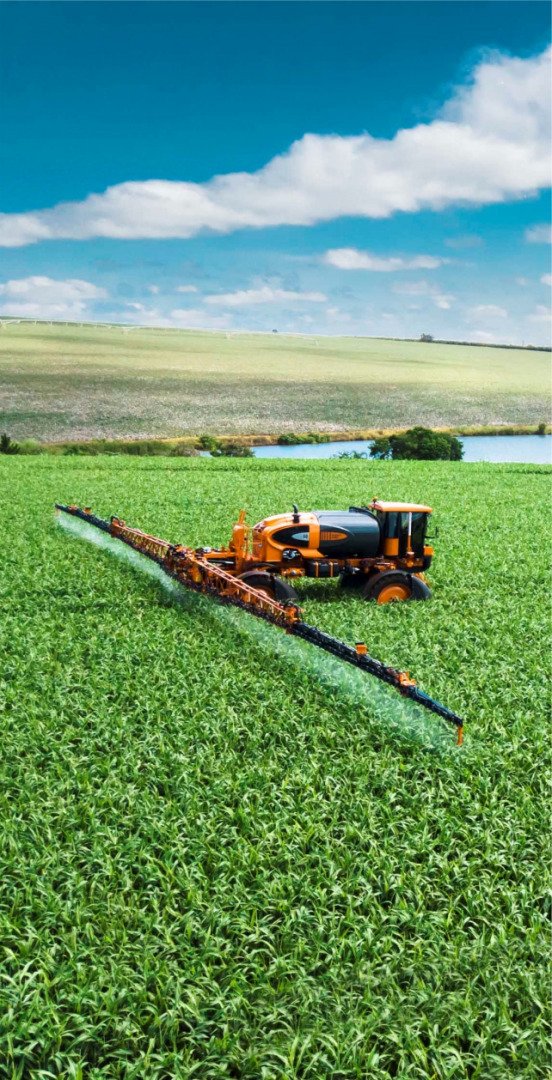

Precision and quality in spraying

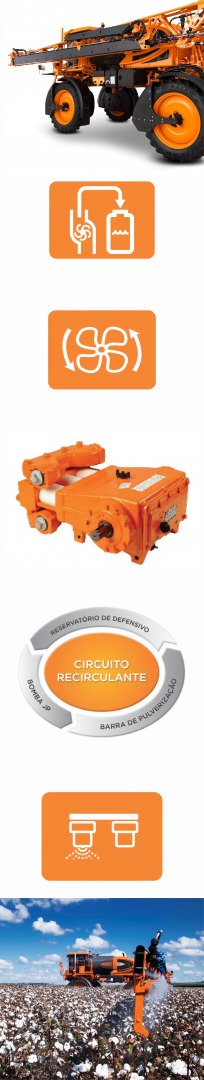

Operations center: Simplicity and handling for carrying out operations; everything located on one side of the equipment;

Supply: Easy and quick to operate; fill in up to 3.5 minutes with the optional centrifugal pump;

Incorporation: Allows working with liquids and solids efficiently and quickly in the operation;

Mechanical spray agitation: Correct spray mixture homogenization, agitation is independent of the flow in the spray circuit, which allows better quality in the application;

Electronic spray control: Piston pump with electronic flow control allowing to operate with quality and precision even with machine speed variation;

Automatic calibration: exclusive solution that allows greater quality and speed in the calibration of the equipment; 3x faster when compared to conventional calibration processes;

Recirculating circuit: Better response time; better cleaning of the circuit and cleaner filters reducing the time and maintenance and increasing the useful life of the components; the solution is circulating 100% of the time in the nozzle branch, allowing a continuous flow with the tank;

Section control: Nozzle by nozzle control technology; reduction of up to 10% in the use of agrochemicals;

Automatic cleaning: The system recirculates the water, several times with different pressures, throughout the circuit (tank, valves, filters, branches, nozzles, etc.) causing the residual chemical products decanted or impregnated in the system to be removed and expelled through the spray boom; greater security in the exchange of products.

Strength and performance in the field

Hydrostatic transmission system 4x4 with intelligent control of traction, integrated to the diesel engine of 243 hp and distribution of ideal weight between the axles, allows to spray in the most different types of terrain; the system automatically identifies the need for traction control in the vehicle without the need for the operator to act; more comfort and precision in the spraying operation; exclusive braking system with hydraulic ABS control integrated into the transmission system; more safety in the operation of the equipment with comfort and precision in the spraying operation, reducing fuel consumption.

Operational efficiency; higher productivity at lower cost

Can operate at speeds of up to 21.7 mph in the spraying operation

and 34 mph in transport;

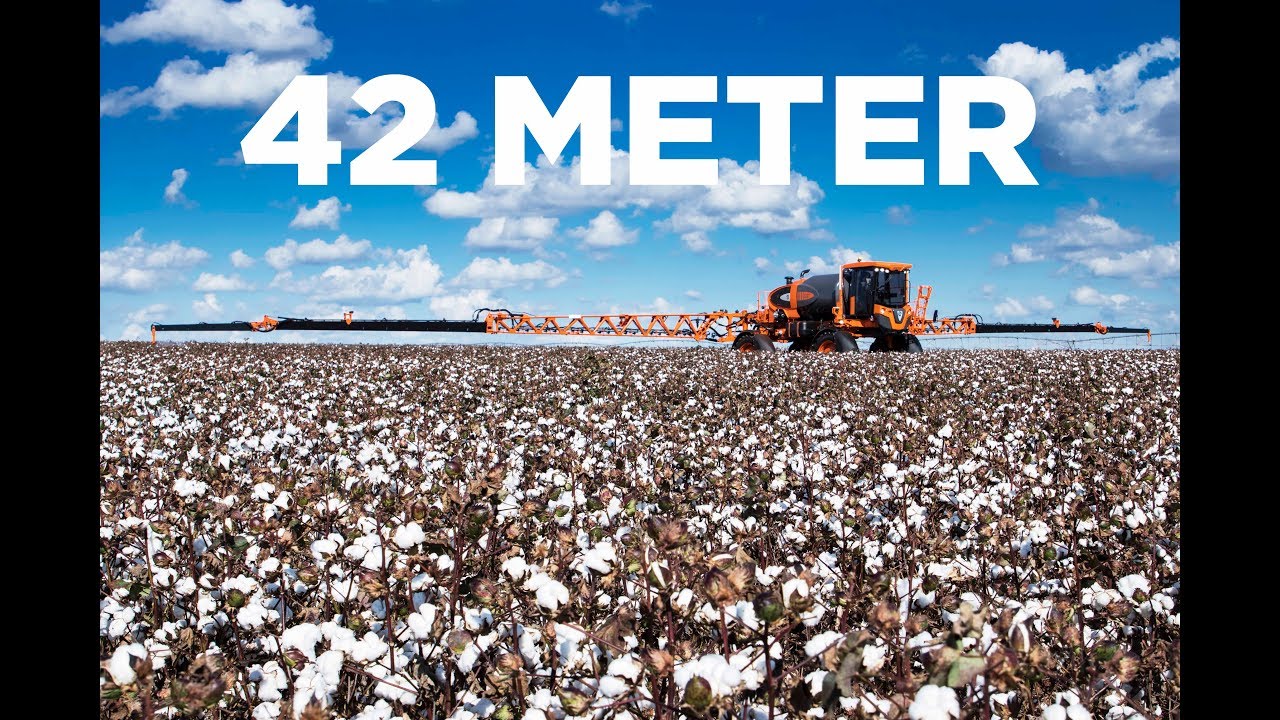

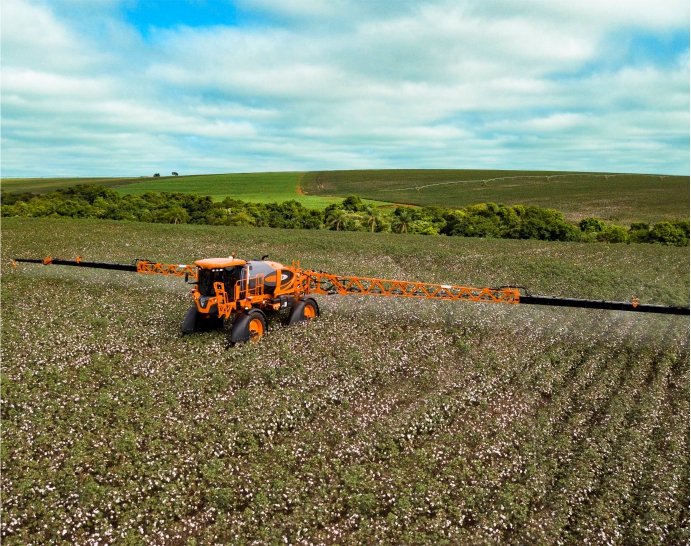

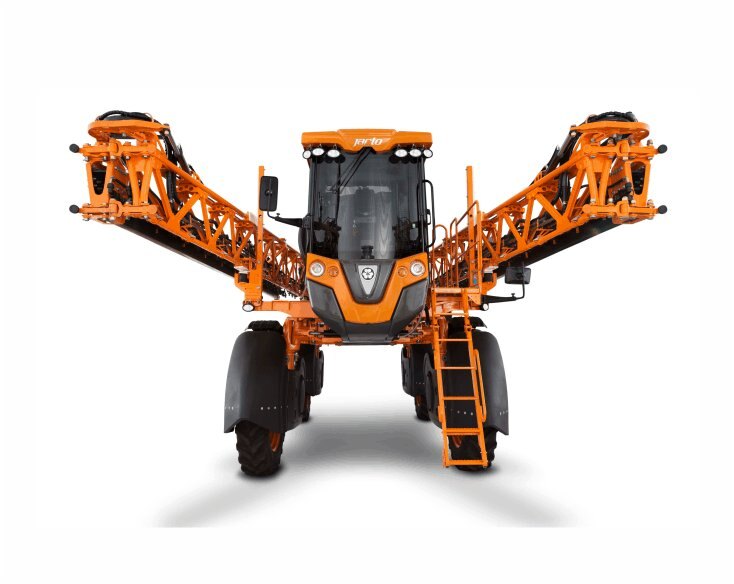

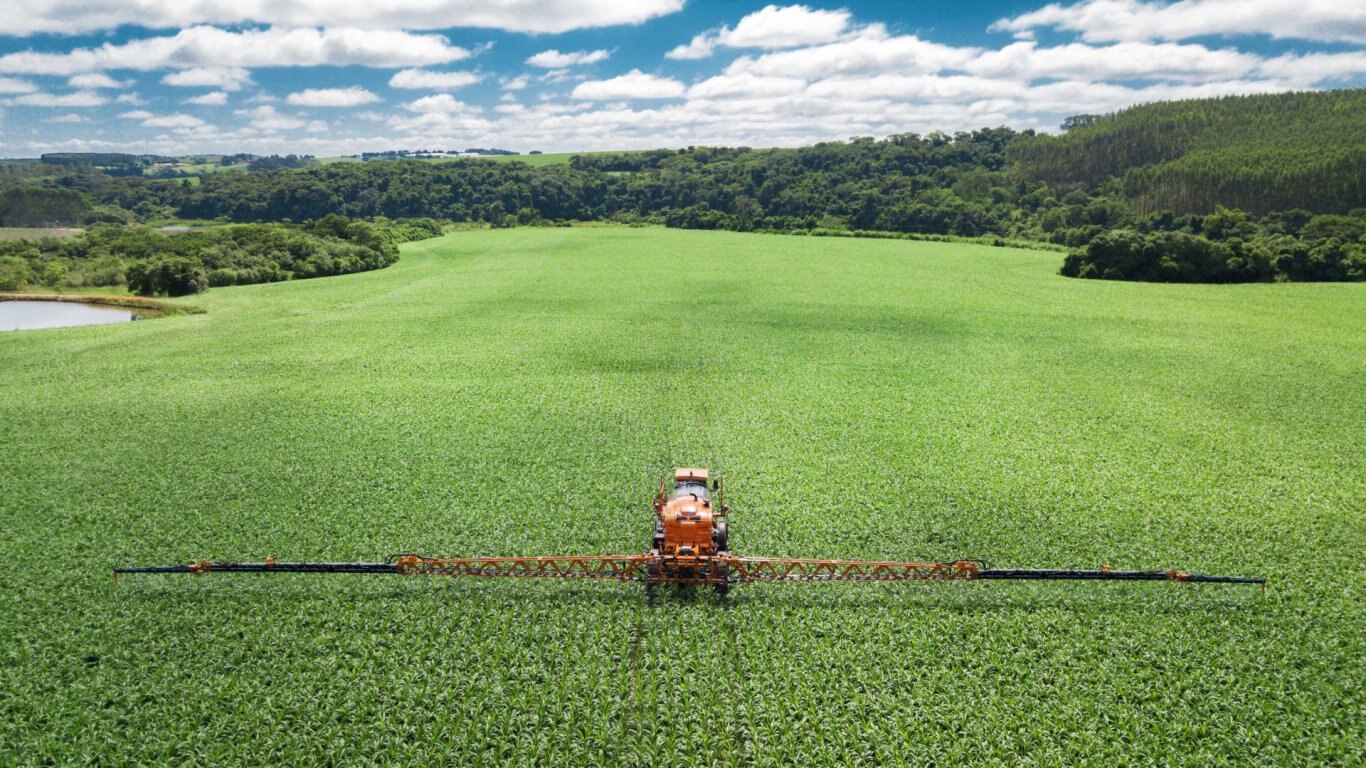

equipped as standard with the exclusive Unitrack steering system allowing to work with a 35% smaller turning radius; reduces maneuvering crop dents by up to 40%; 2.5 times faster than the conventional system; increase in treated area by up to 10%; a set of solutions that allow daily operating income to reach up to 2879 acres per day, the trapezoidal hydraulic suspension boom stability system adapts to different types of terrain; a sensor system in conjunction with the hydraulic damping system allows the operator to choose the correct damping level for the boom system, adapting the boom stability to the terrain profile; it has the exclusive feature of the operations copier that allows to optimize and standardize the spraying operations in a simple and agile way.

Less compaction with maximum productivity

With 23391 lb (empty machine) when equipped with a 118 ft boom, it allows to operate with low pressure on the tires, reducing soil compaction and increasing crop productivity, all with low fuel consumption; less weight for traction of the equipment.
