Jacto

ID # 24565495

Jacto - Uniport 3030 Canavieiro

Videos
Call for Price
Overview

A new ally for the sector

sugar-energy industry.

Jacto Uniport 3030 Canavieiro Technology

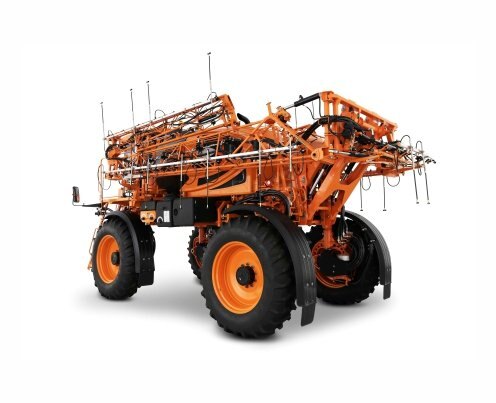

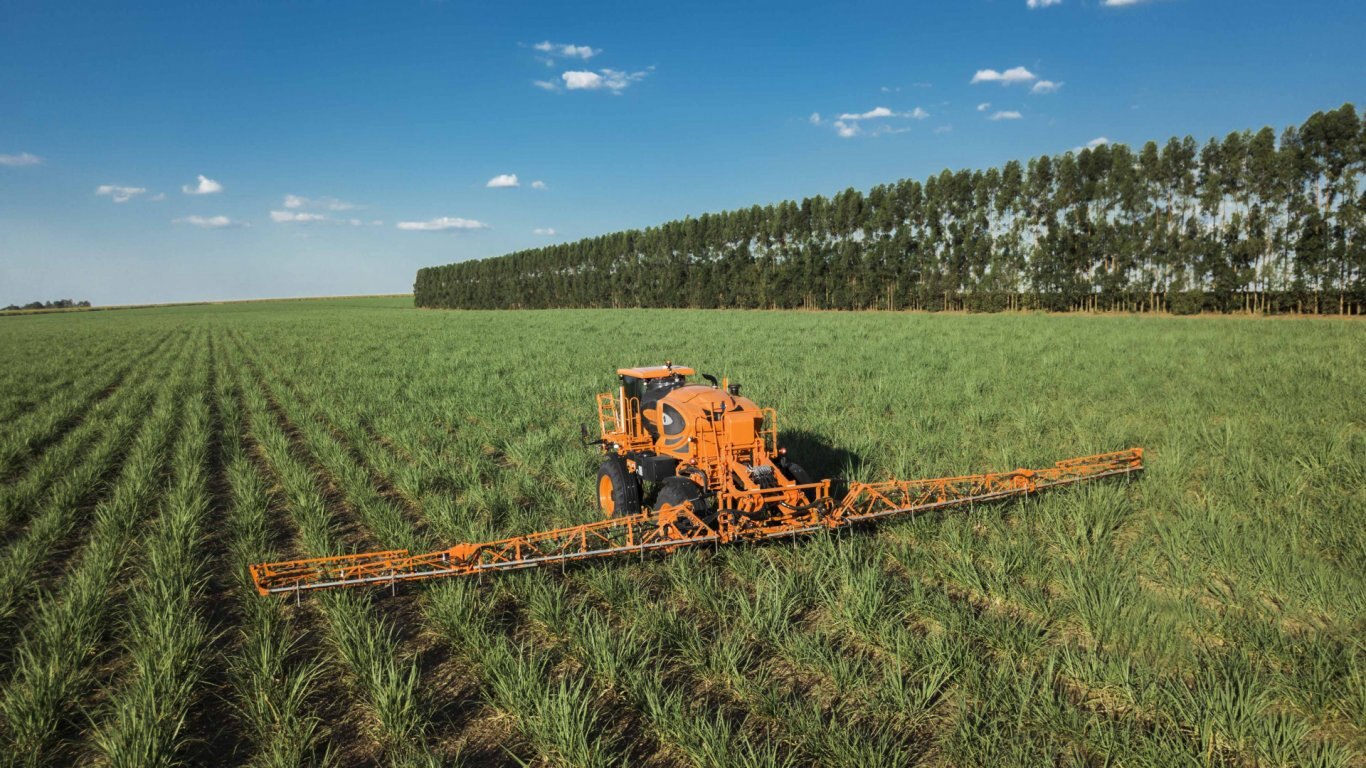

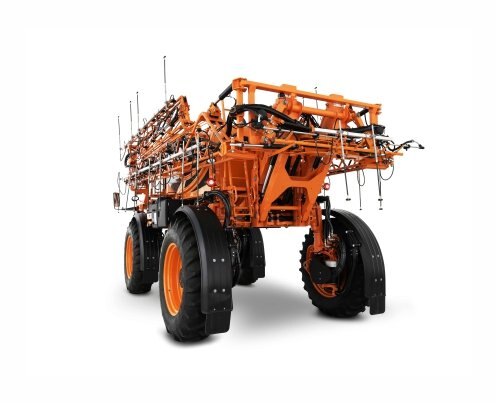

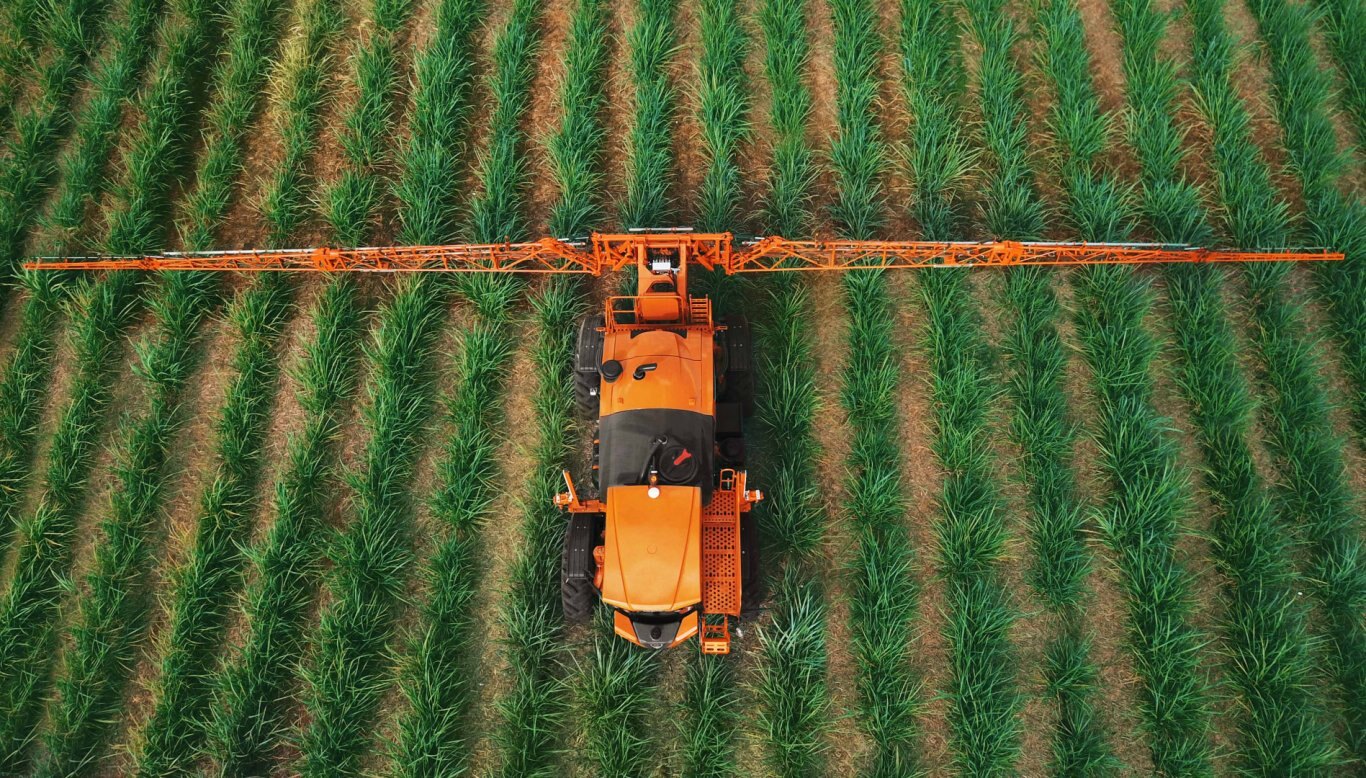

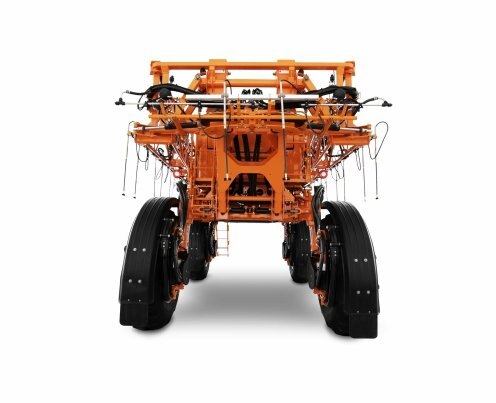

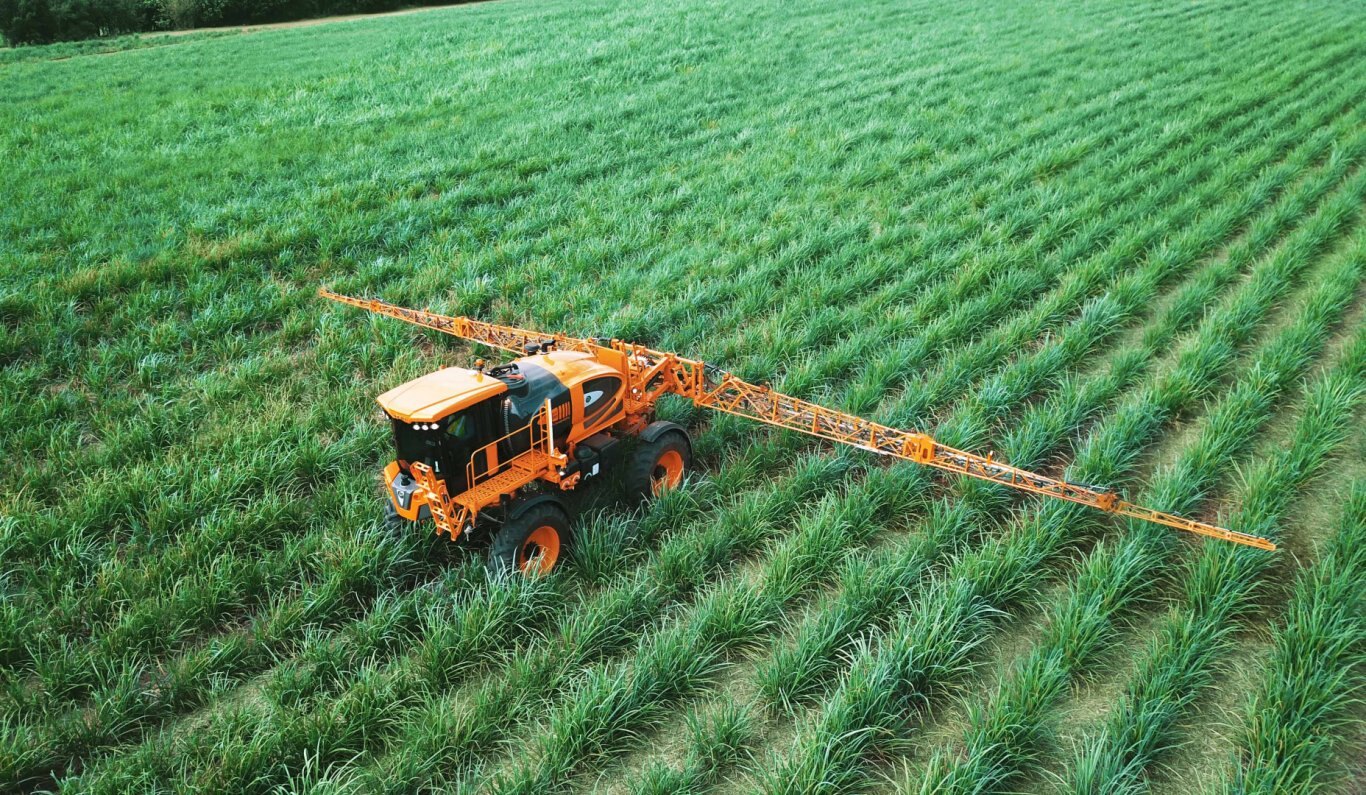

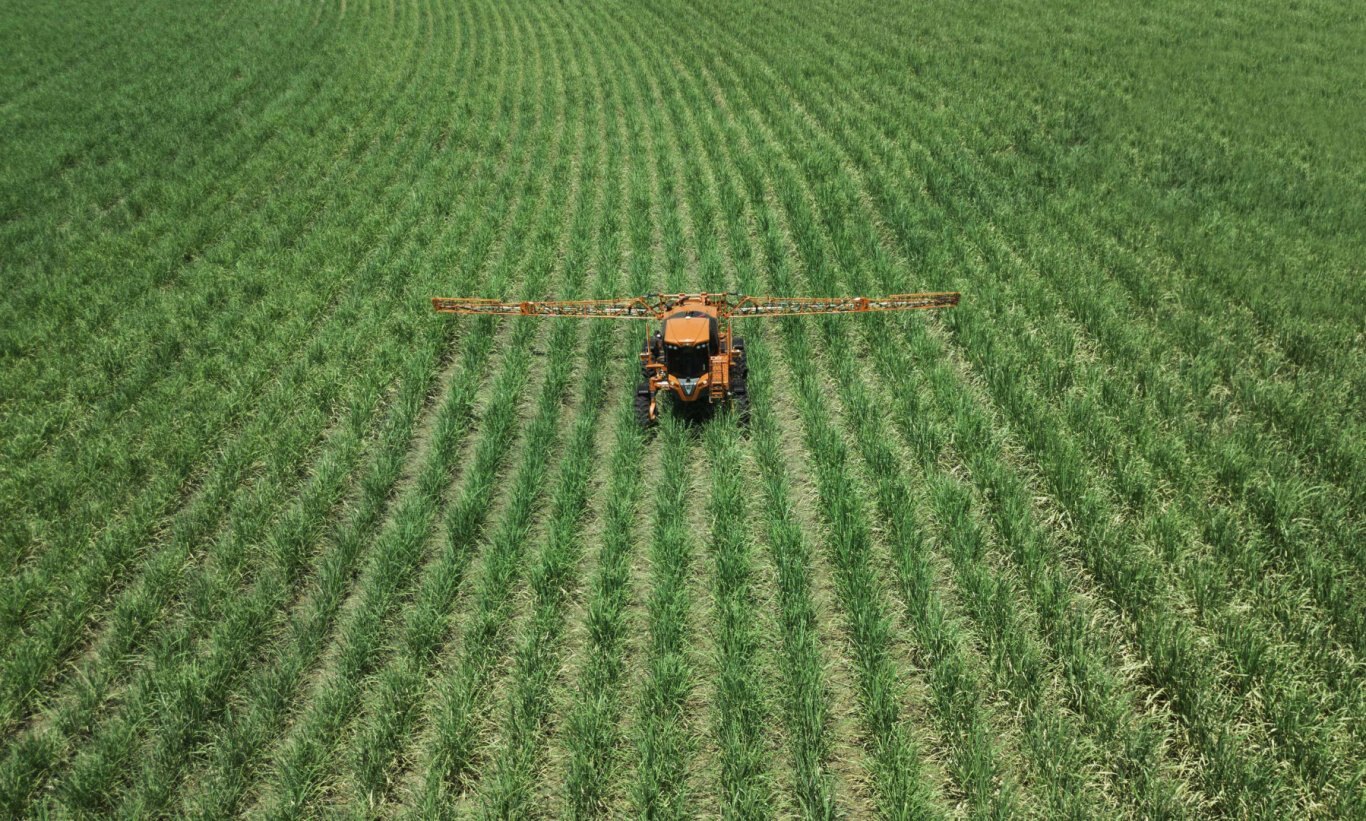

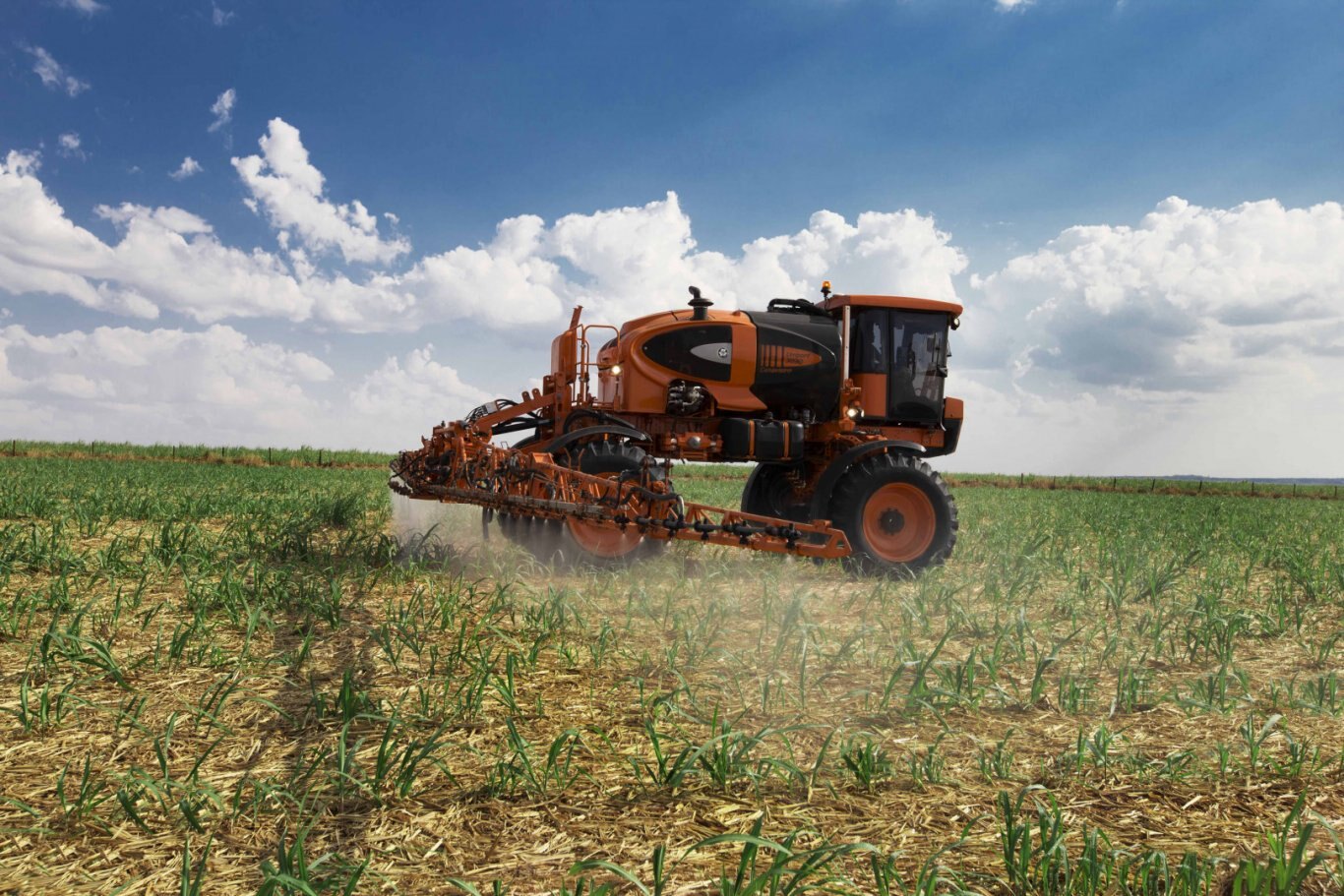

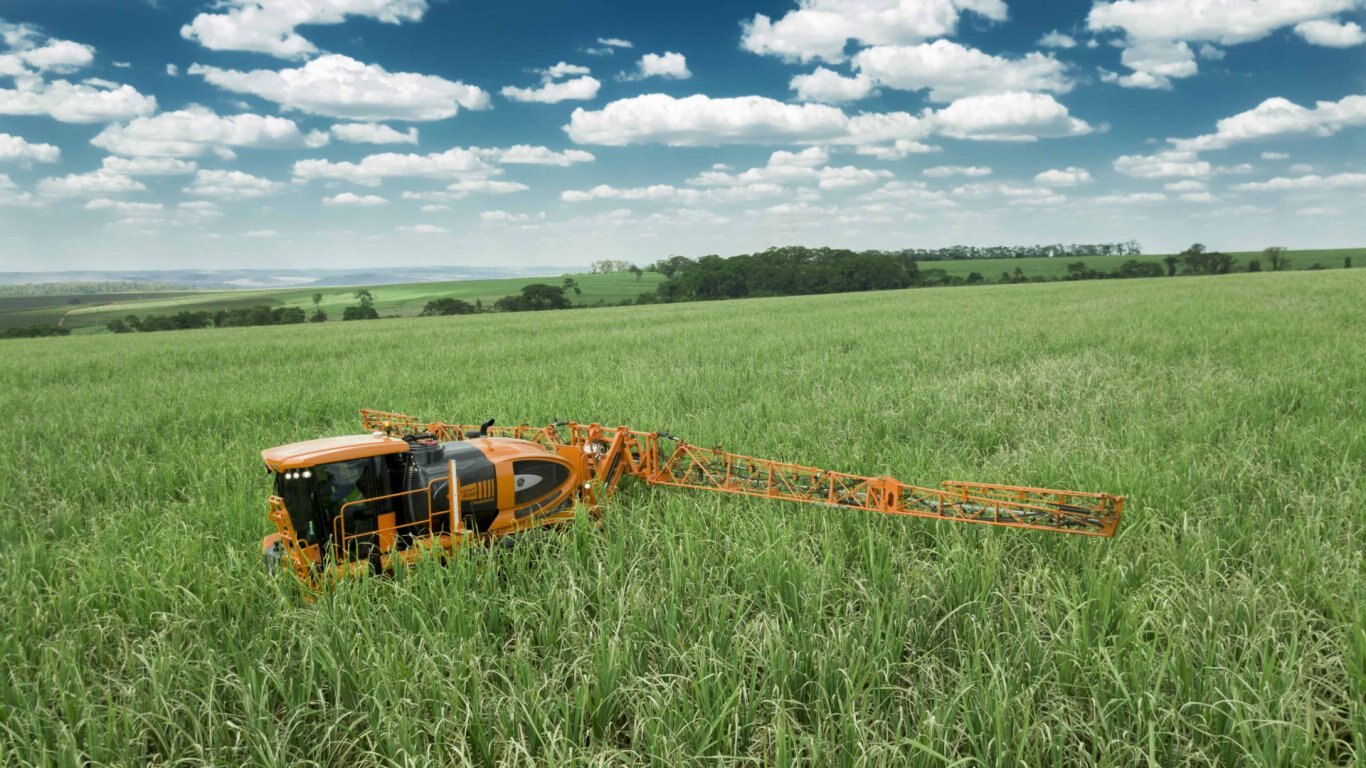

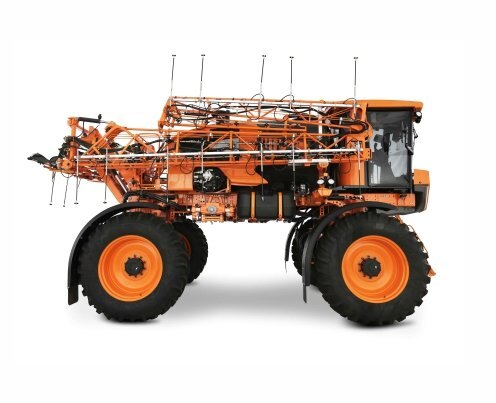

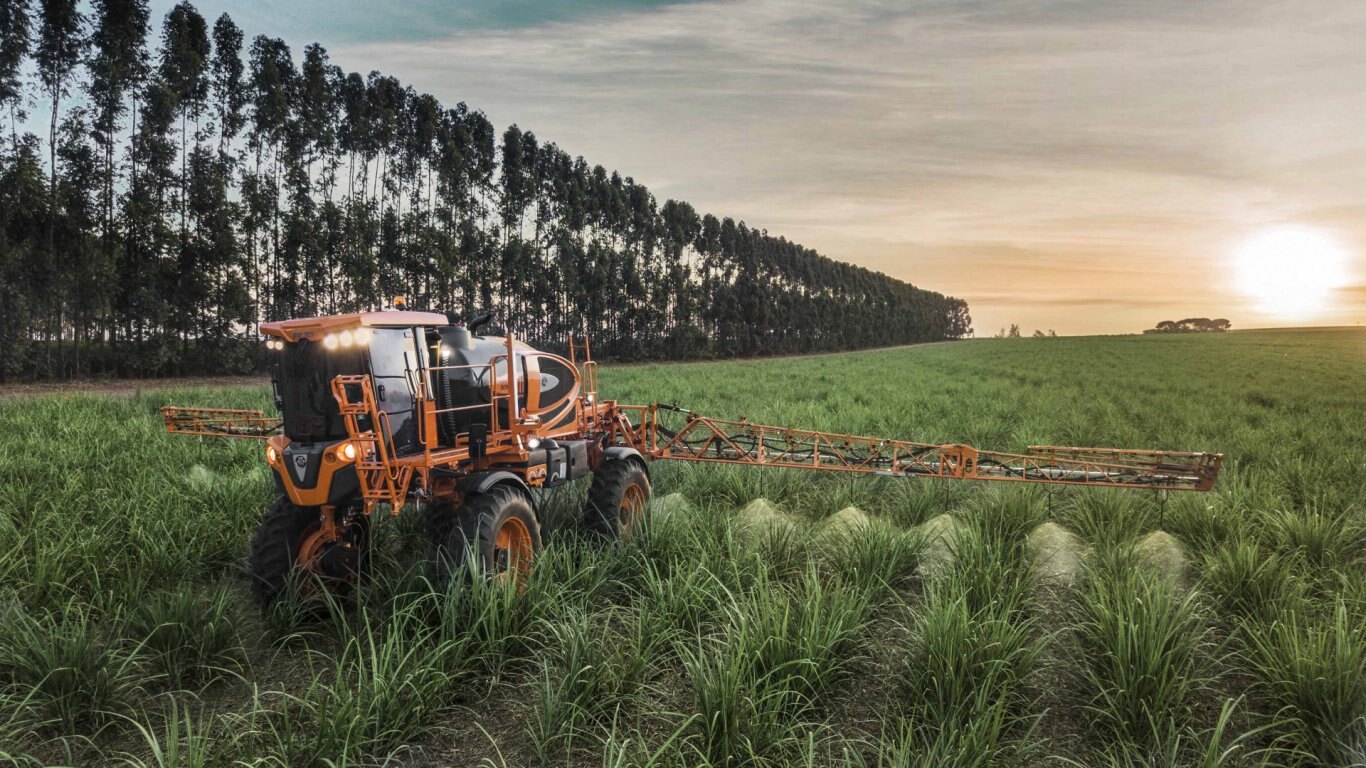

Self-propelled sprayer with 792 gallon Tank and 78 meter boom The Uniport 3030 Canavieiro is the only sprayer developed specifically for the cultivation of sugar cane: Larger ground clearance on the market, greater working height of spray boom at the end of the cycle, UNITRACK rear directional system (optional) that reduces time of maneuvers in the carriers, set of pendants and nozzles as standard, spray booms developed for work on finishes and borders and more stable sugar cane tires between the planting and low compaction lines.

Power and torque just right

The technology of those who most understand and supply agricultural engines to the market, integrated with an intelligent transmission, allows the farmer to face, with safety and economy, the most diverse working conditions. The Cummins QSB 6.7 diesel engine with 243 hp is electronically governed and adjusted to work at low revs, offering maximum torque and lower fuel consumption, providing all the necessary power with maximum economy. In line with Brazilian pollutant emission standards, it meets MAR-I and is approved to work with Biodiesel B20 (up to 20% in the mixture).

Jacto Uniport 3030 Canavieiro Comfort and driving pleasure

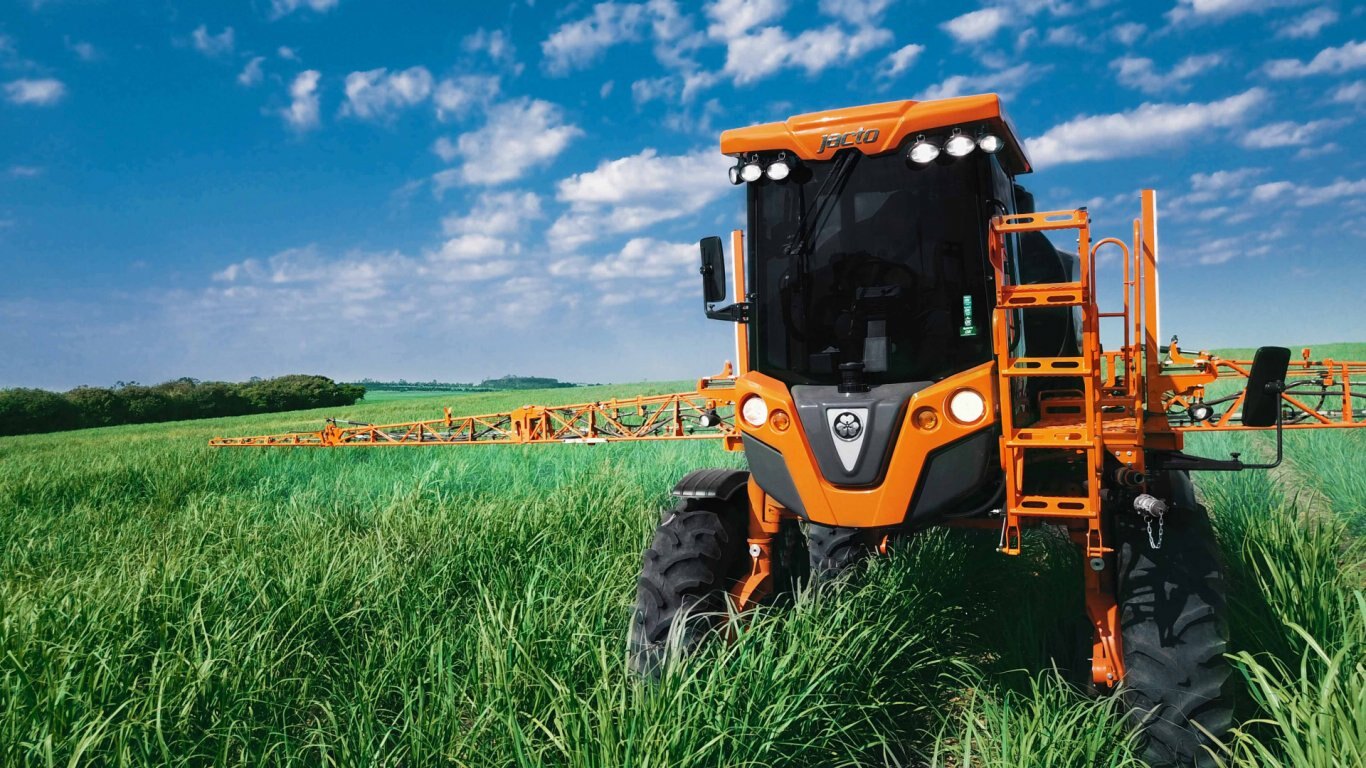

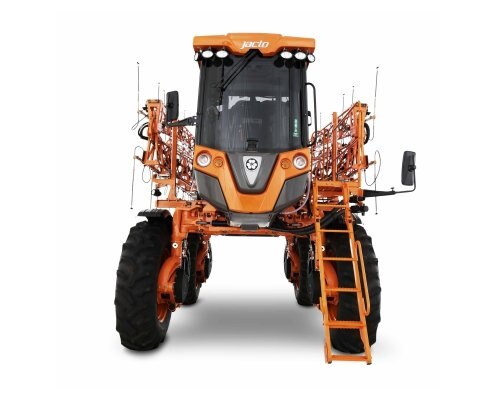

Equipped with cabin in front of the vehicle; greater visibility and safety for operation; air conditioning system with automatic temperature control; air suspension seat; commands and displays located in ergonomic positions; large percentage of glazed area to improve the visibility of the operation in the field; a set of solutions that offer comfort to those who operate the equipment; mounted on a modern chassis without welding, it uses rivets and high alloy steel in its construction, giving the equipment great durability; coupled with its independent suspension system with air springs and automatic height control provide operations at higher speeds with great comfort; it is more operational efficiency for spray quality equipment.

Jacto Uniport 3030 Canavieiro Distributed strength and intelligence

With intelligent hydrostatic transmission 4x4 and independent automatic traction control, it provides greater traction capacity in different types of soil. The final torque transmission to the wheels is carried out by planetary type gearboxes. It allows movement at speeds of up to 24.8 mph, (with 18.4 x 38 "tires and a ground clearance of 5 ft) depending on road conditions, being limited to the spraying areas and the internal roads of the property.

Specifications
Model
Uniport 3030 Canavieiro
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Jacto
spraying
Crop Sugar Cane
Area size Over 500 ha
Boom lenght 78 ft
Main tank

Capacity

793 gallons

Working height 1.6 up to 8 ft
Nozzle Distance 19.7 in
Nozzle holder Quadrijet
Nozzle sets Pendants

26 sets
Nozzles

5 sets that accompany the machine according to the customer's need
Spray pump Model

JP 300
Maximum Flow Rate

79 gpm




dimensions / weight
Lenght 24.7 ft
Maximum Width (Tire 18,4 x 38") 10.9 ft
Height (Tire 18,4 x 38") 12.9 ft
Distance between Axis 12.5 ft

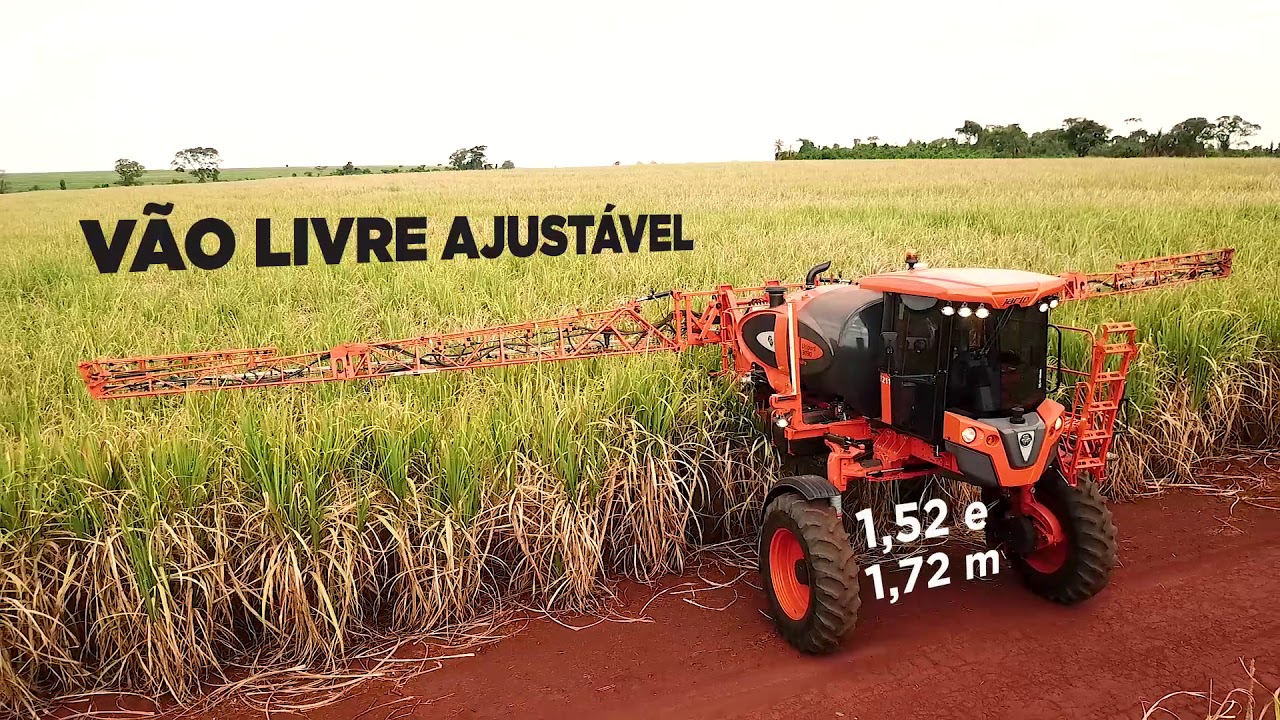

Ground Clearance (Tire 18,4 x 38")

4.5 | 5.6 ft
Track Width Adjustment (Tire 18,4 x 38")

8.9 up to 10.7 ft
Weight Empty machine

1984 lb

vehicle
Fuel tank 106 gallon (optional) Capacity

73 gallon (series)
Transmission 4x4 hydrostatics with independent electronic traction control
Suspension Independent, with pneumatic springs, height control and hydraulic shock absorbers.
Tires 18,4 x 38" (series) 380/90 R46 (optional)
Engine Model

Cummins QSB 6.7
Emissions

MAR-I
Maximum power

243 hp @ 2.500 rpm
Fuel

Diesel or Biodiesel B20




precision agriculture

Lightbar

Omni 700 (series) GFX-750 (Optional)
Hydraulic autopilot Omni 700 (series) GFX-750 (Optional)
GPS signal corrections available TerraStar C PRO & RTK (Omni 700) RTX or RTK (GXF 750)
Automatic section control 9 sections (Multicontrol System)

(Series)
Temperature and humidity sensor (series)
Variable application rate (optional)
Ekos Solutions for agricultural operation management (Series)
