Jacto

ID # 24562809

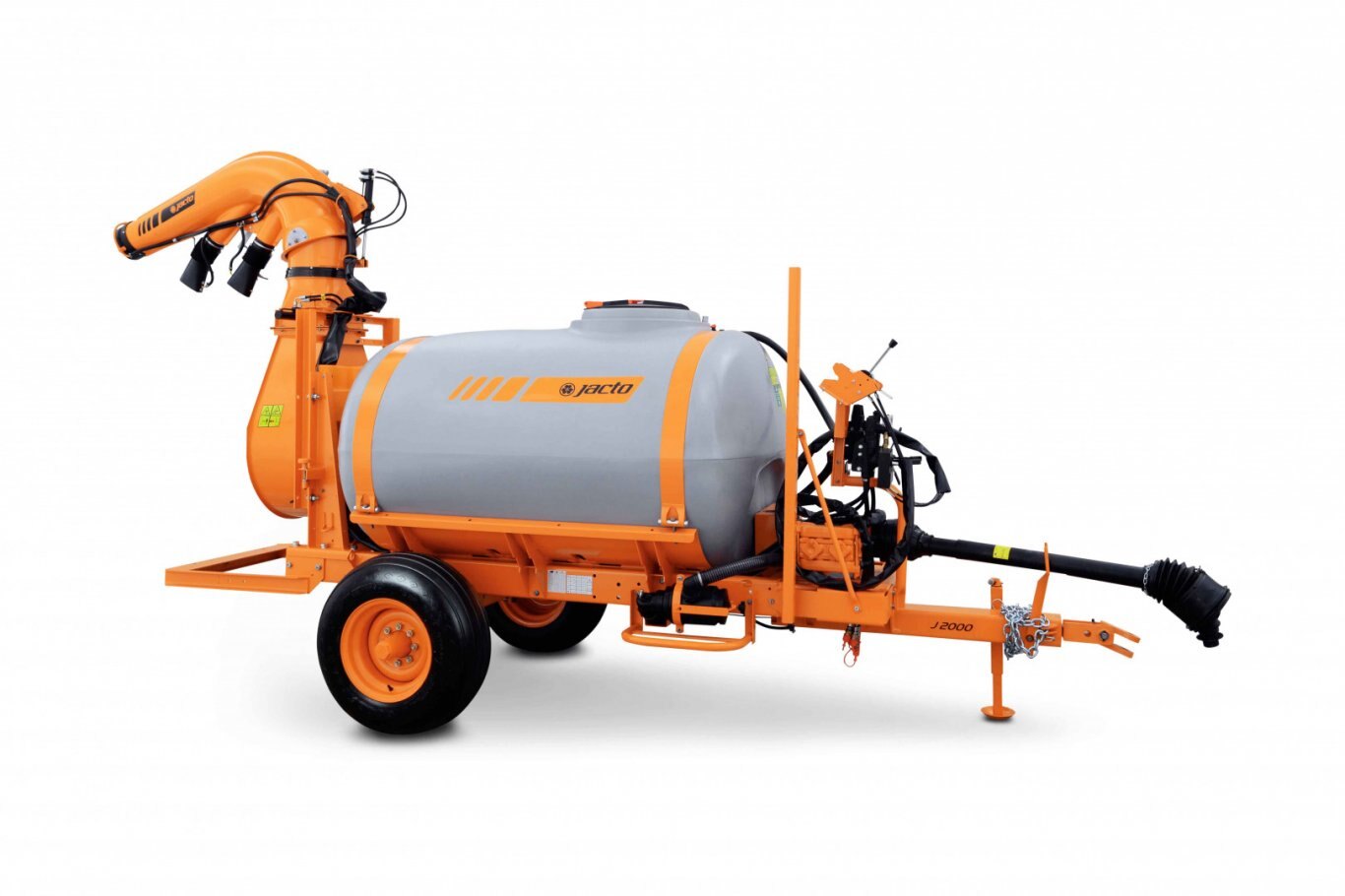

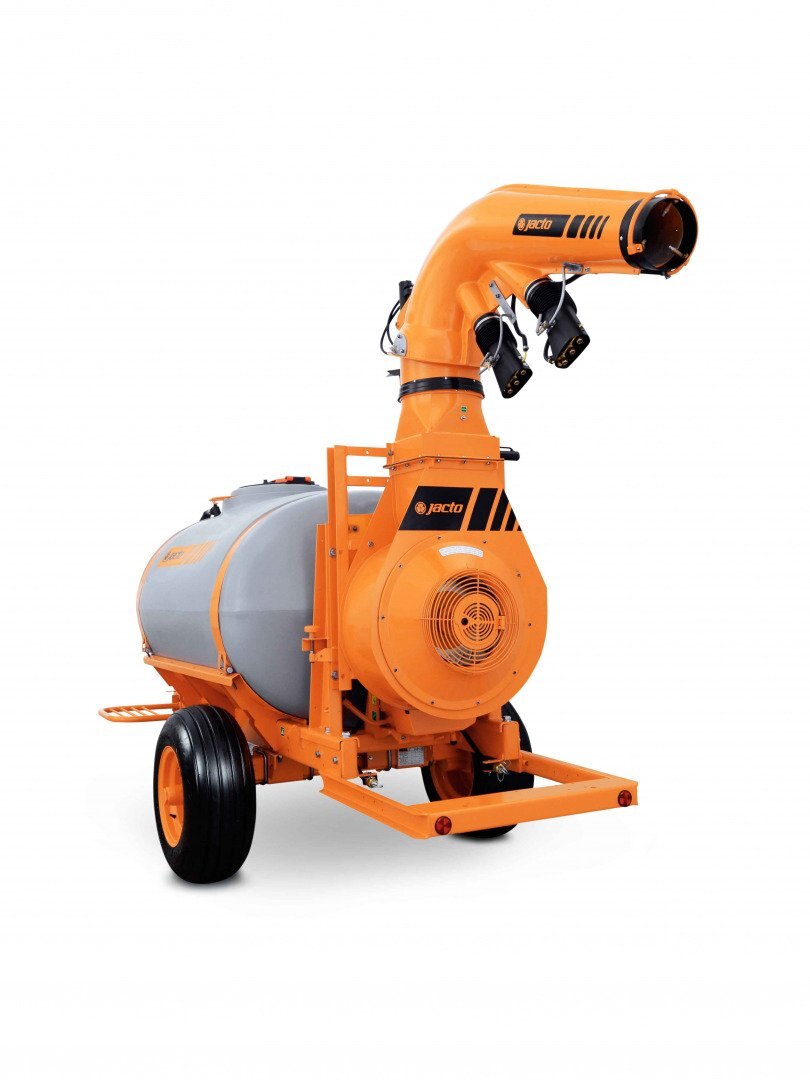

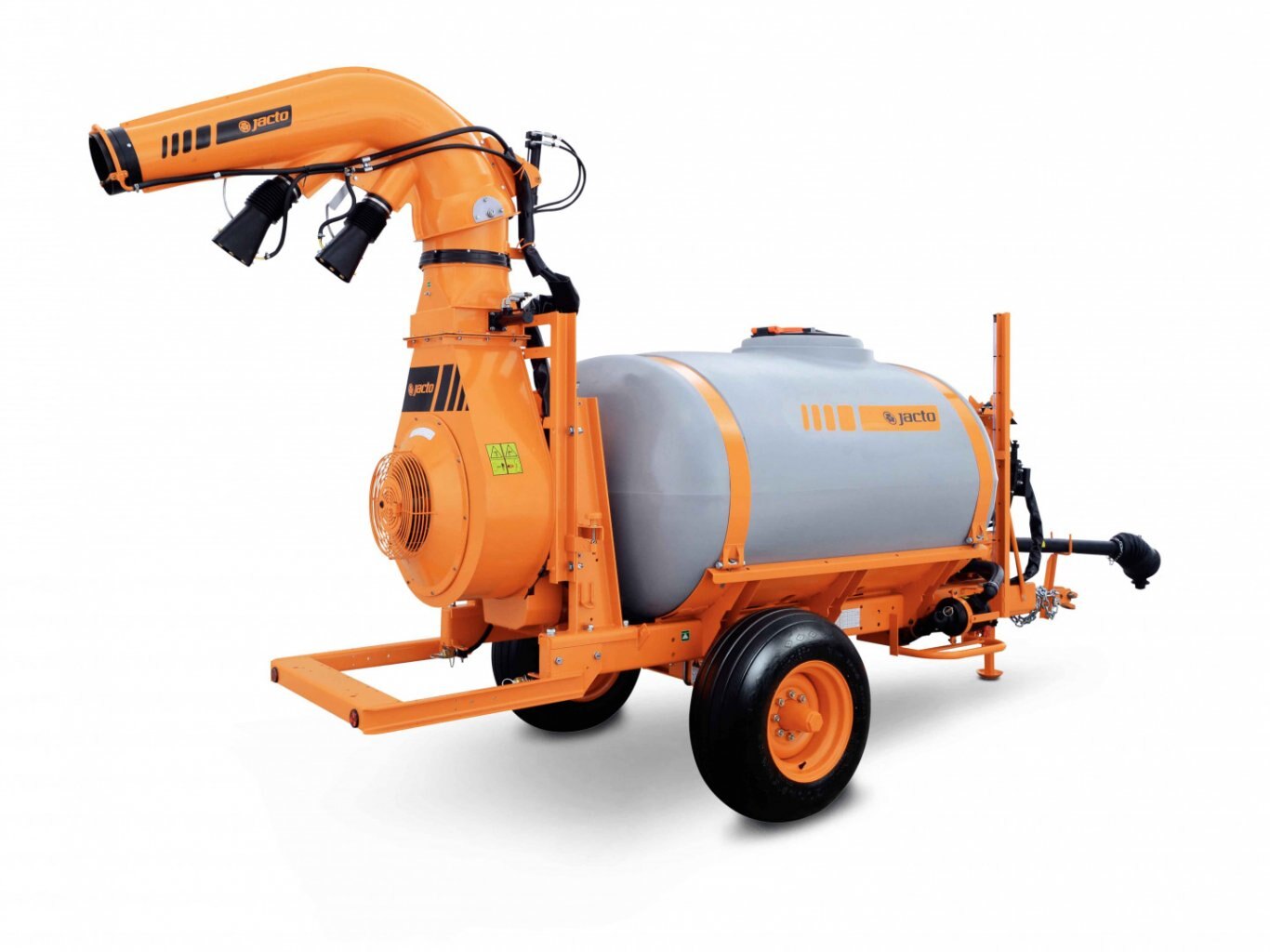

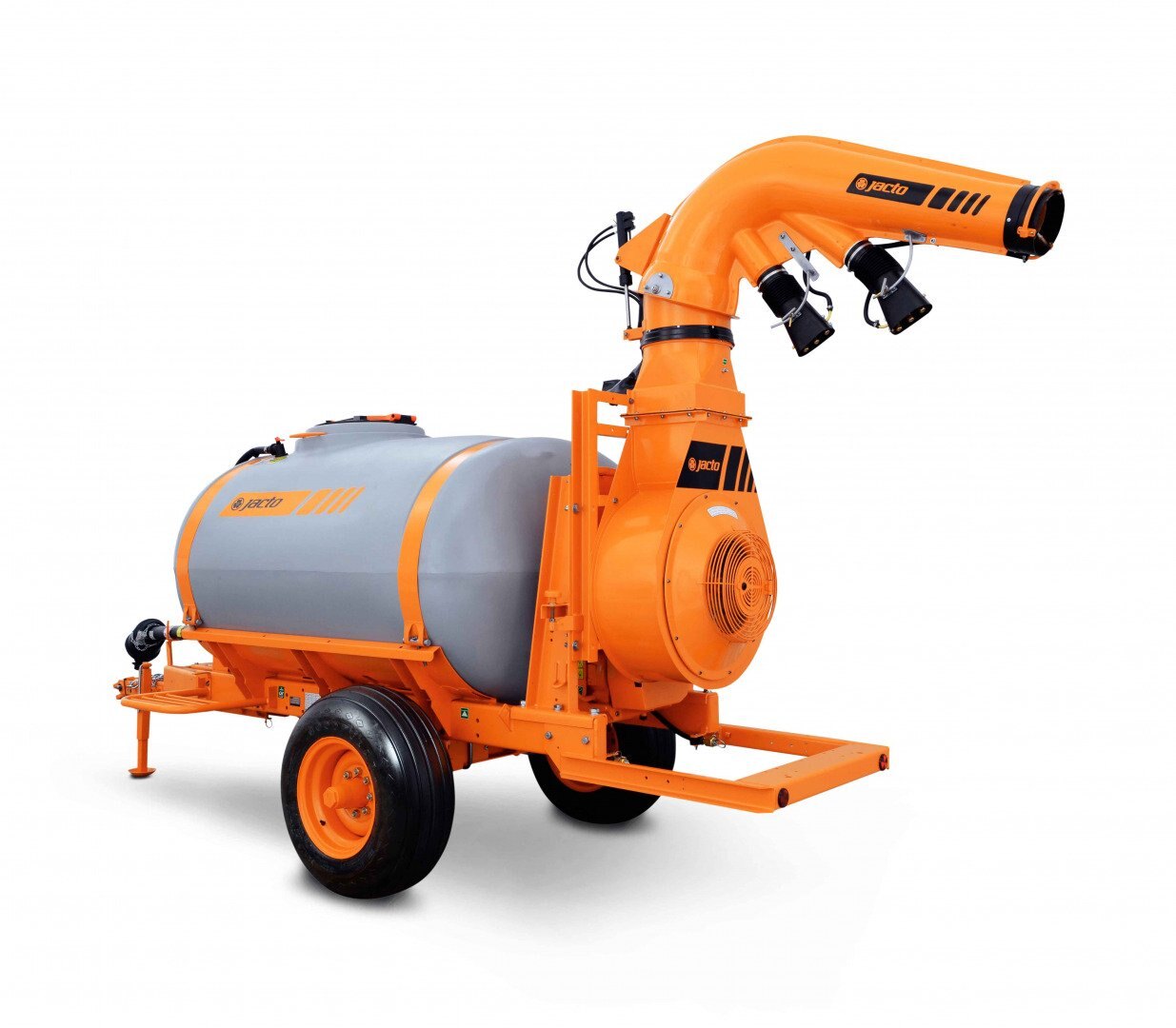

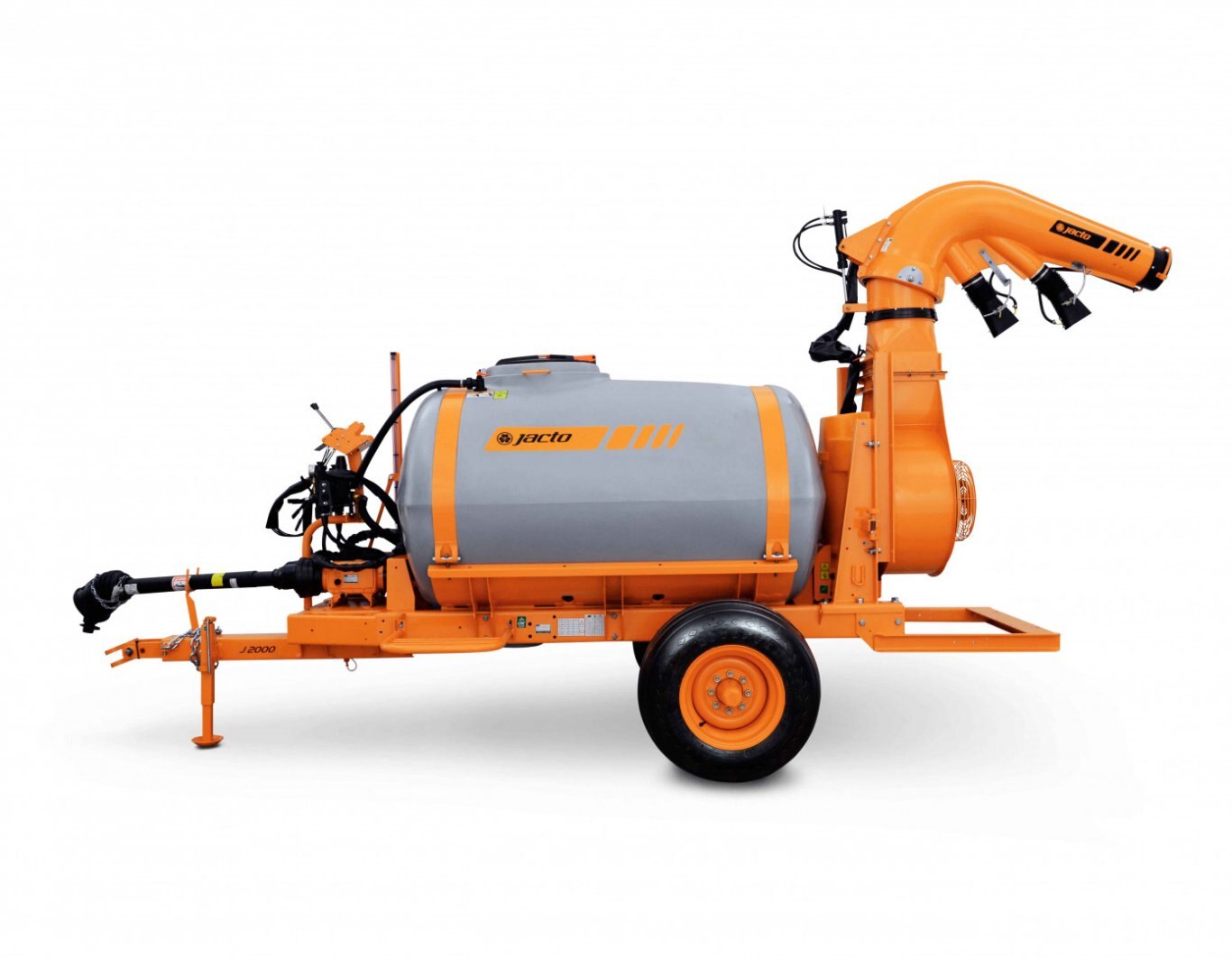

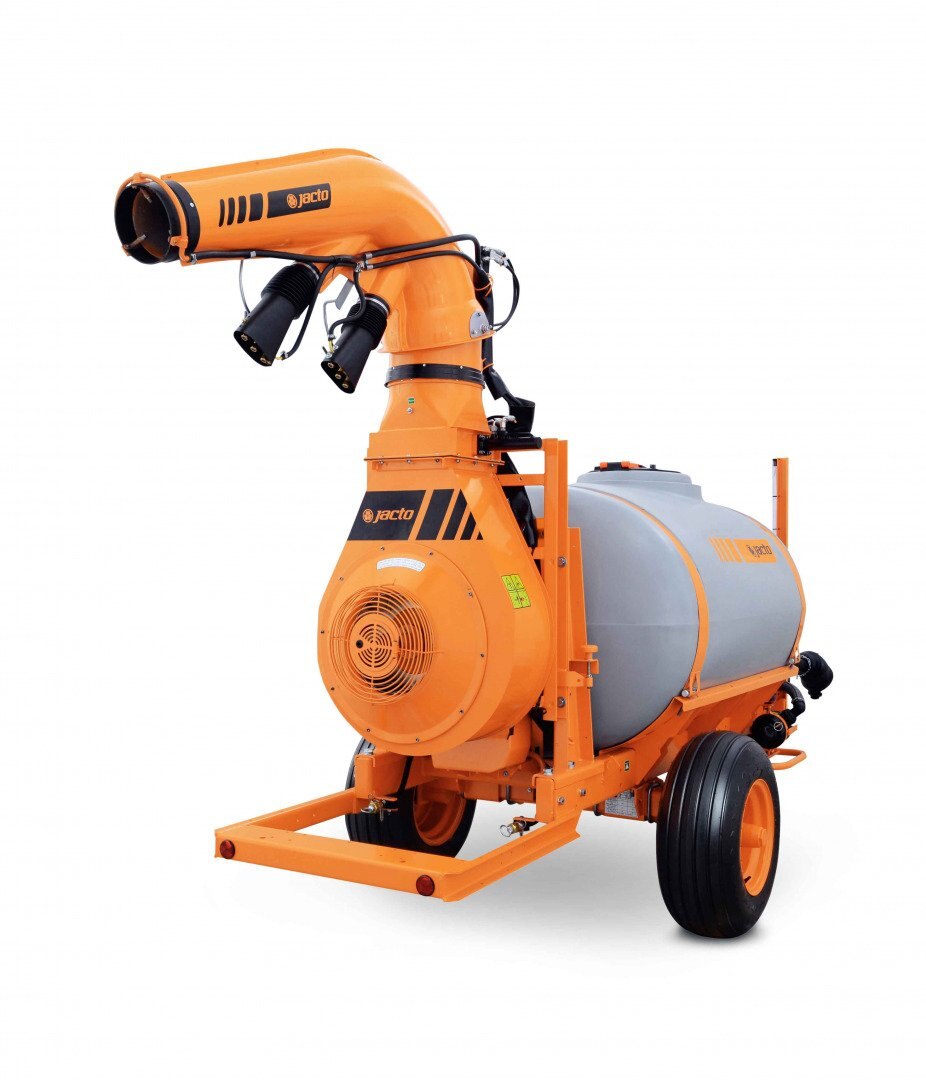

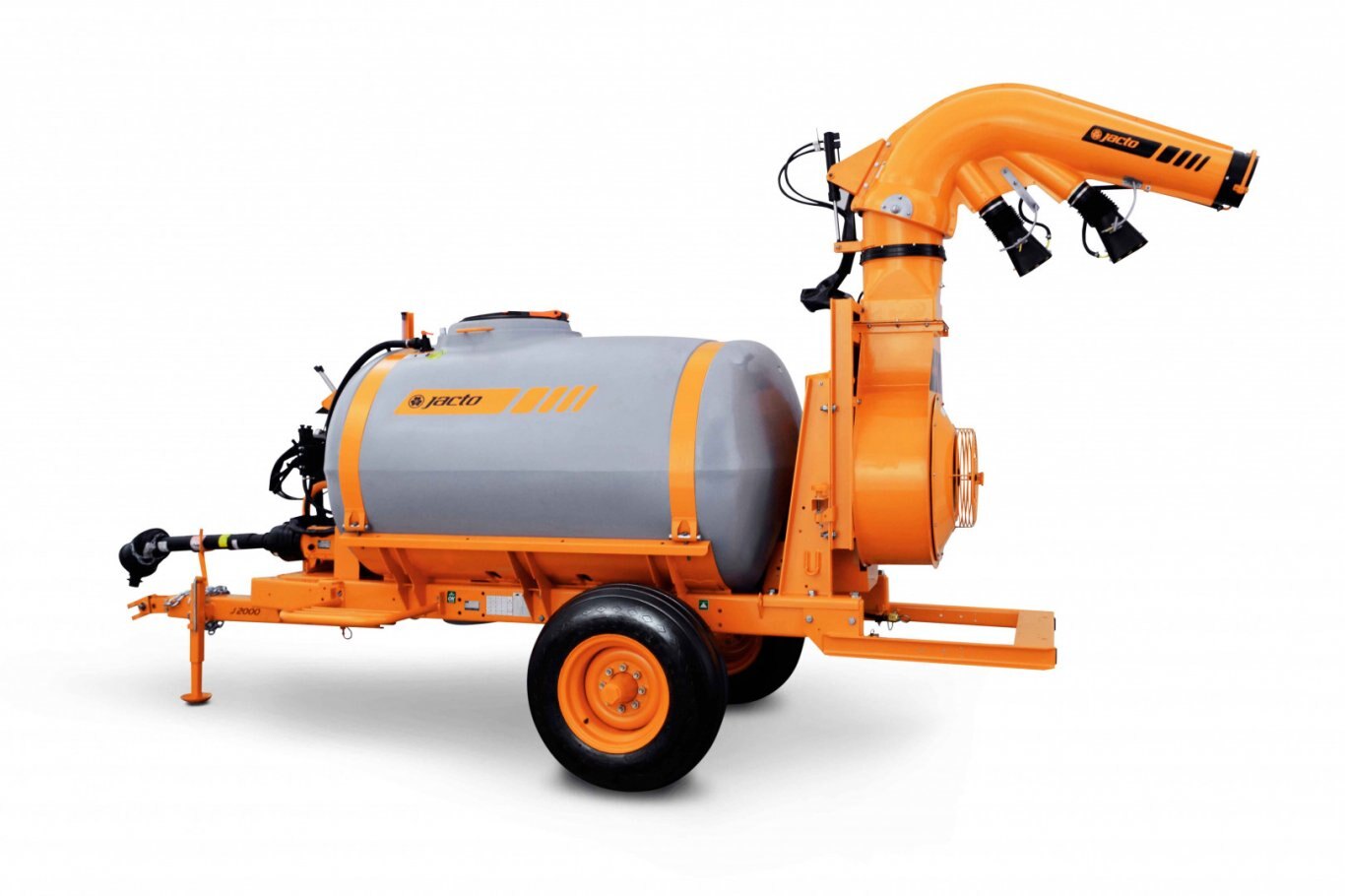

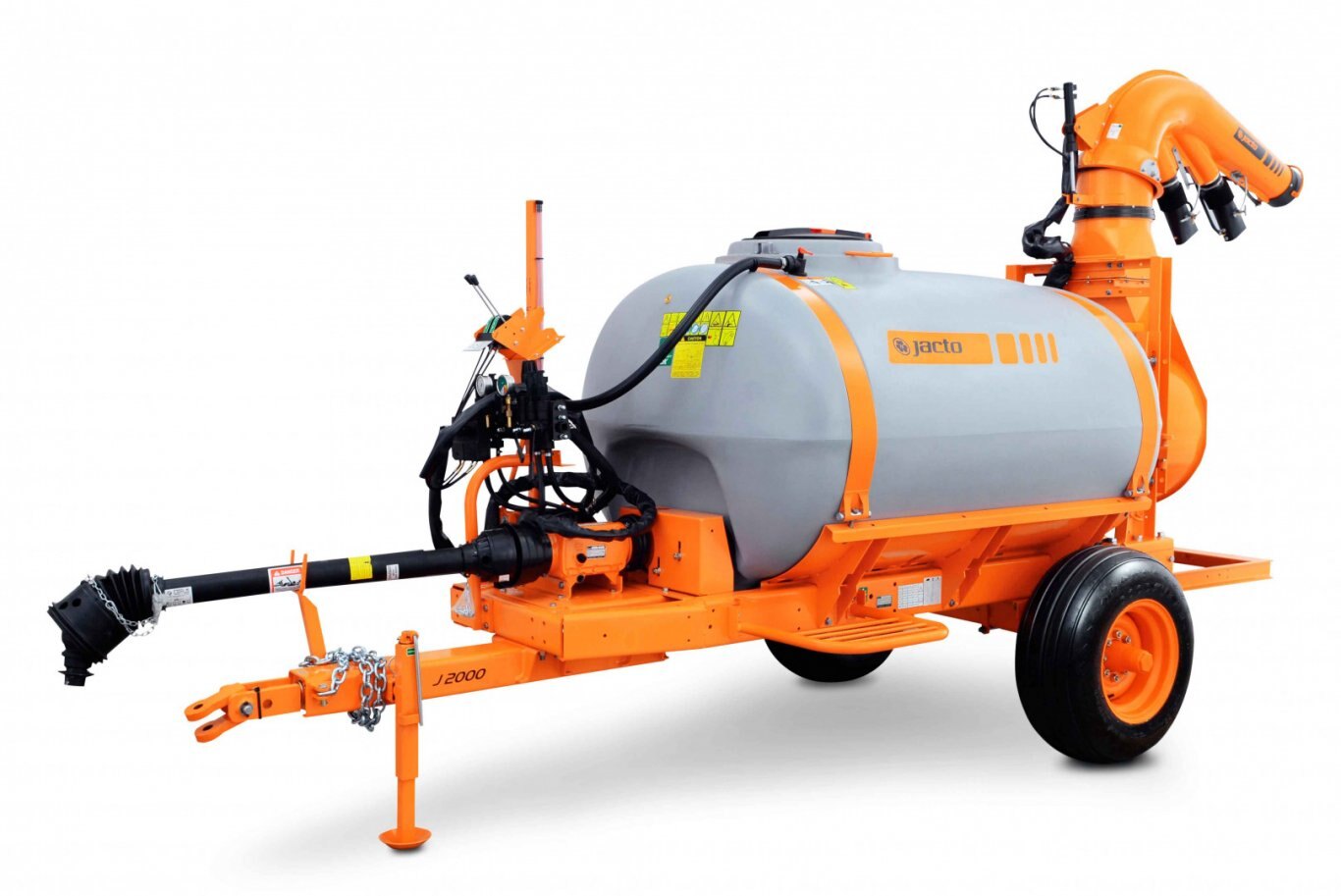

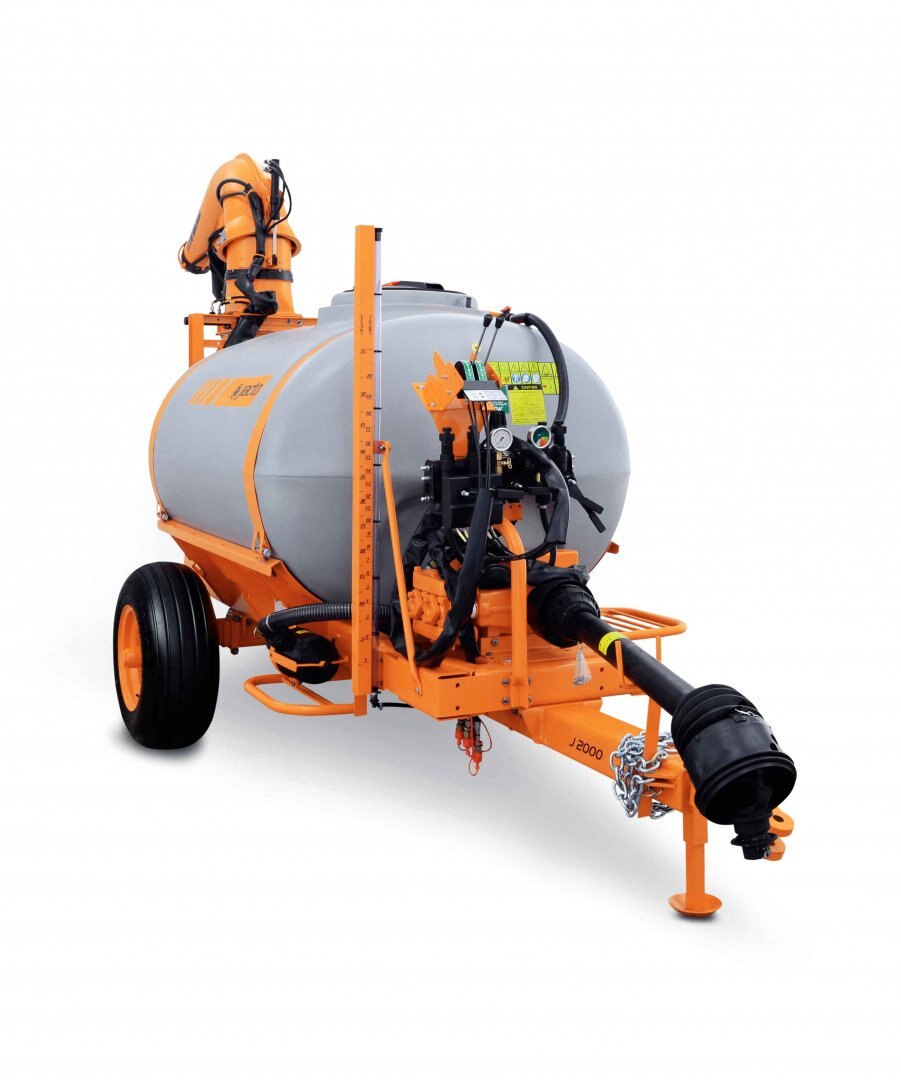

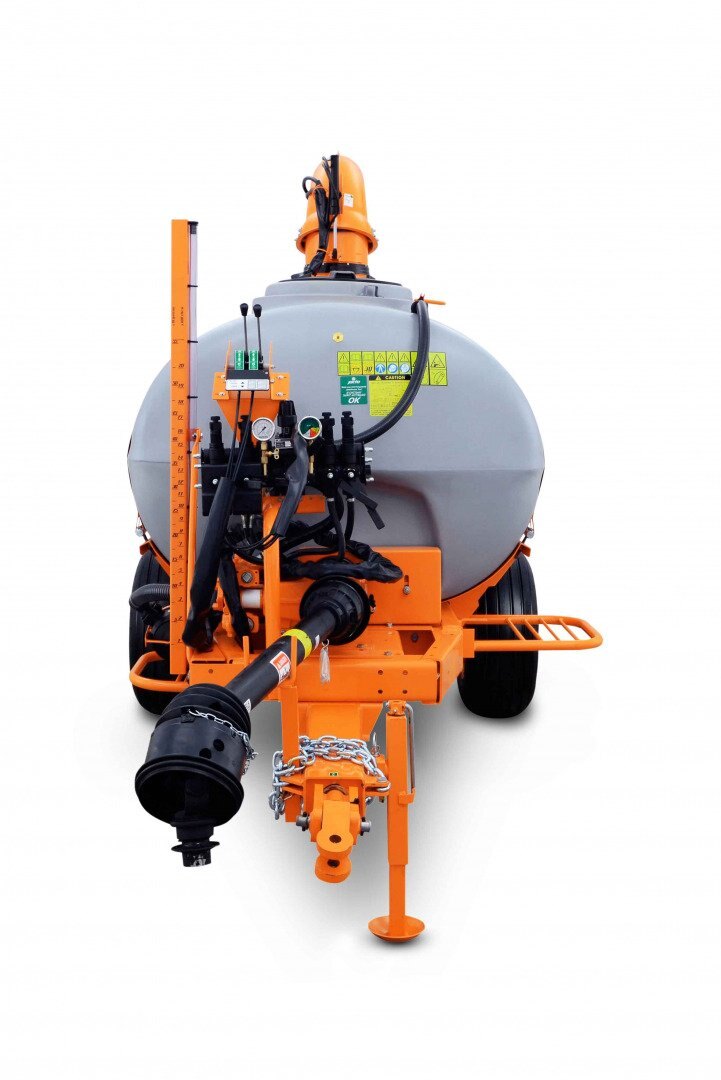

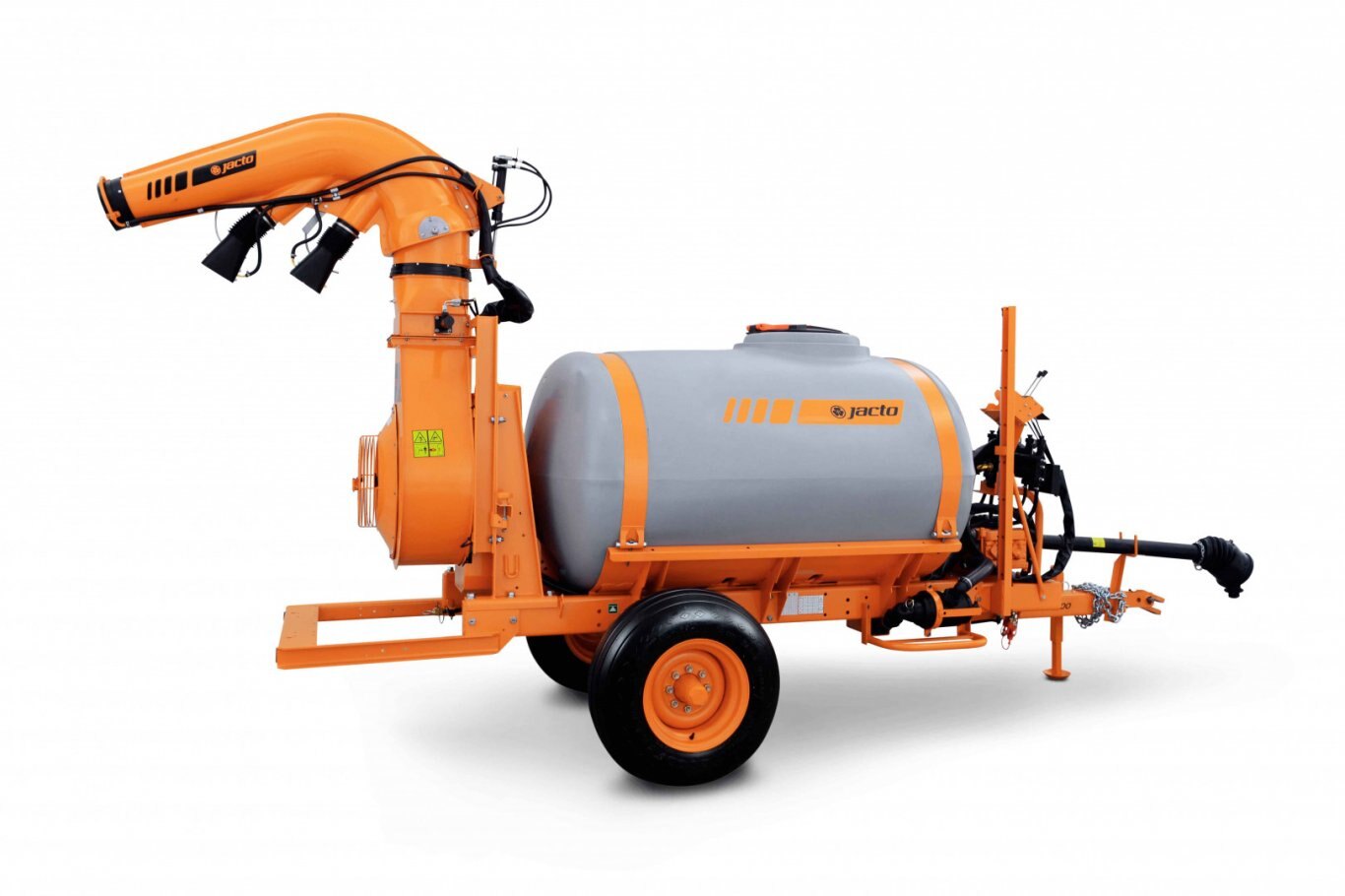

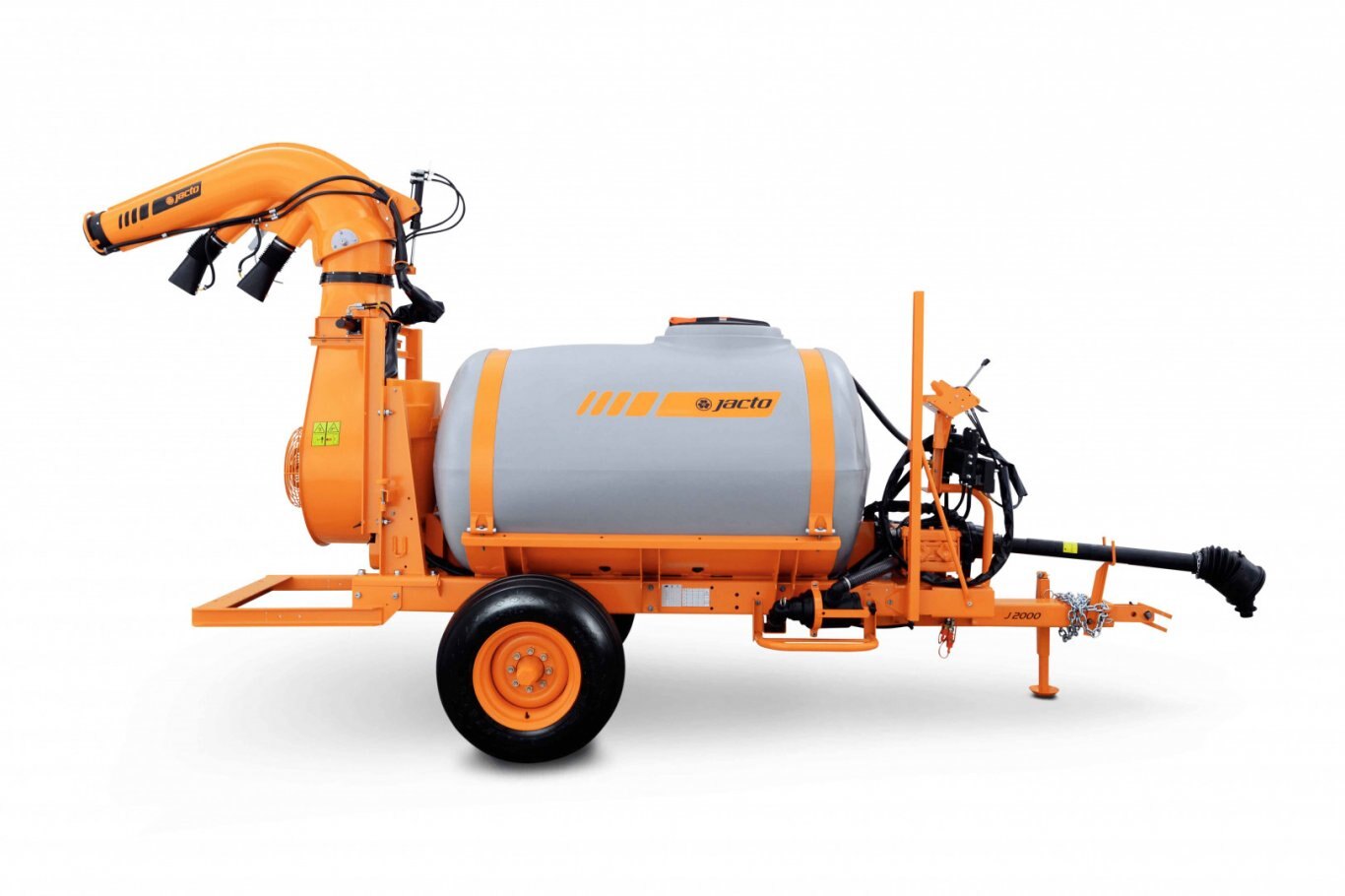

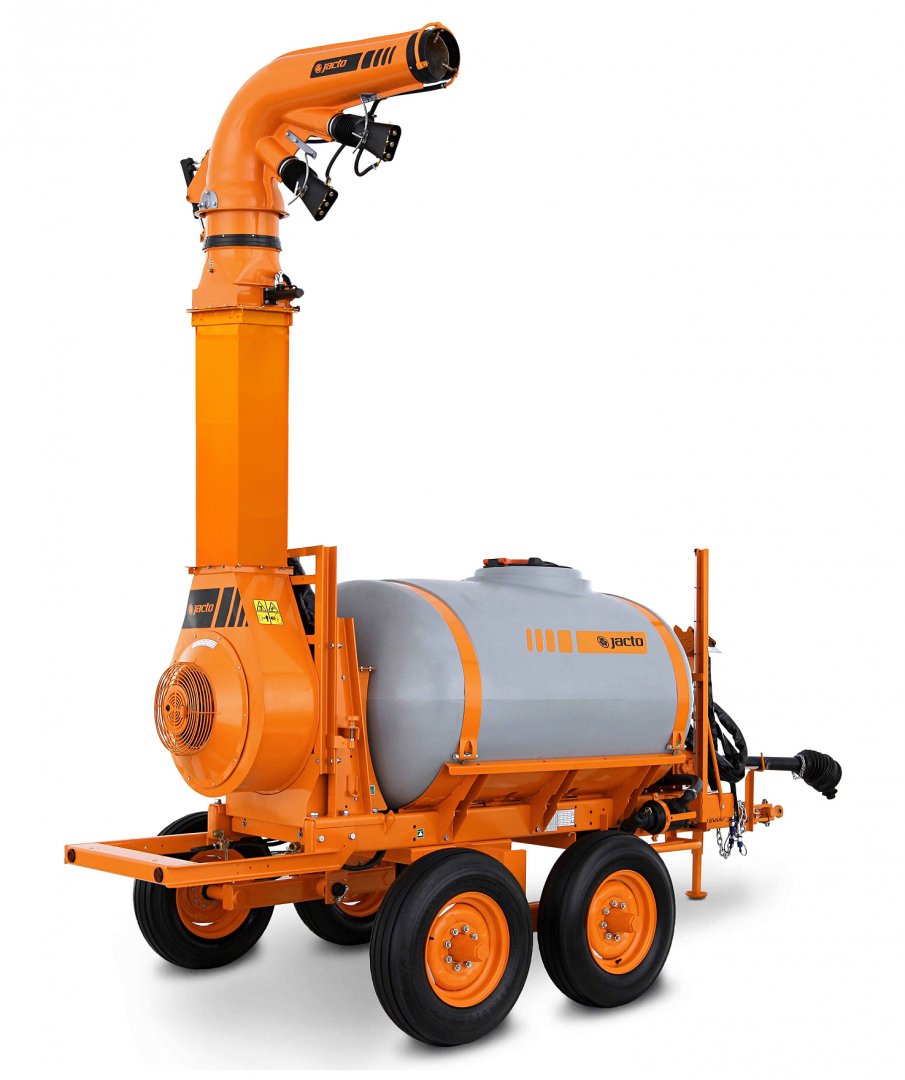

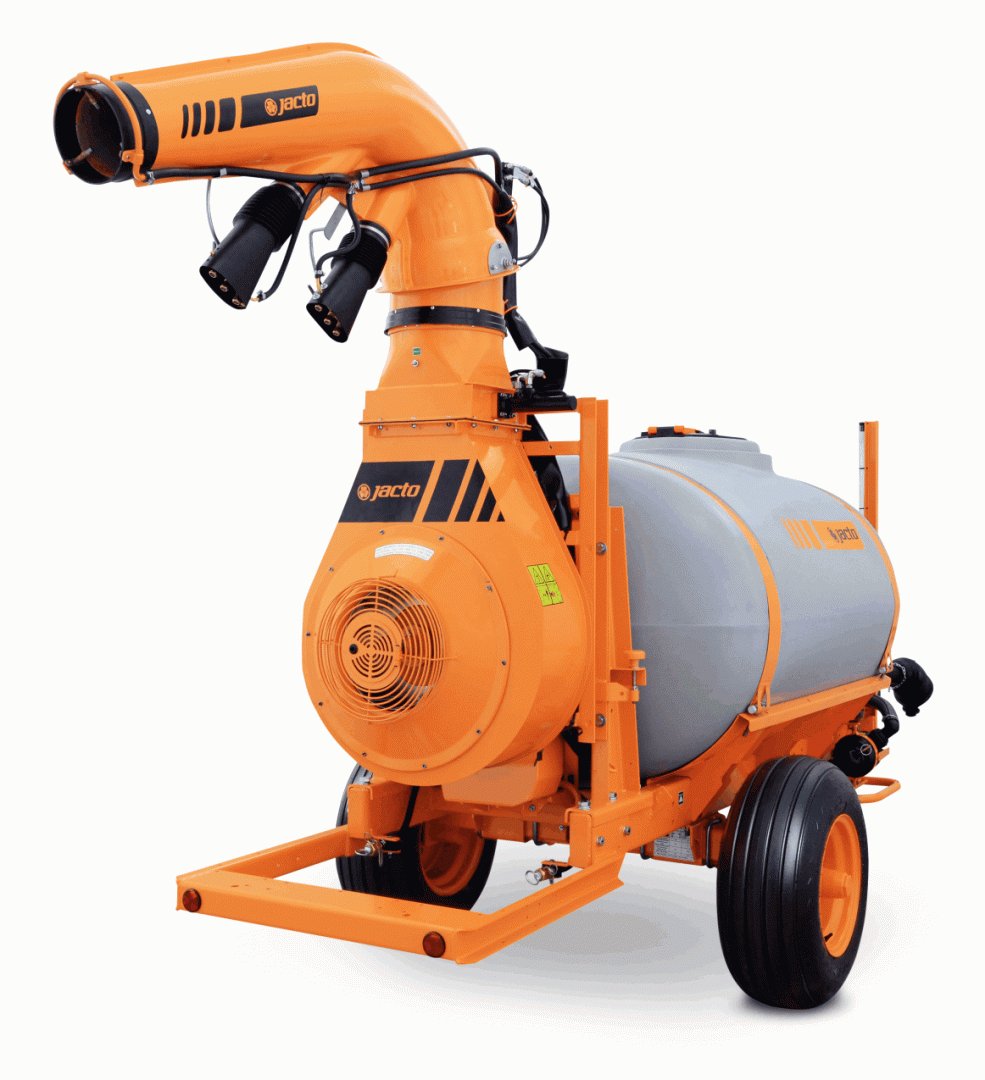

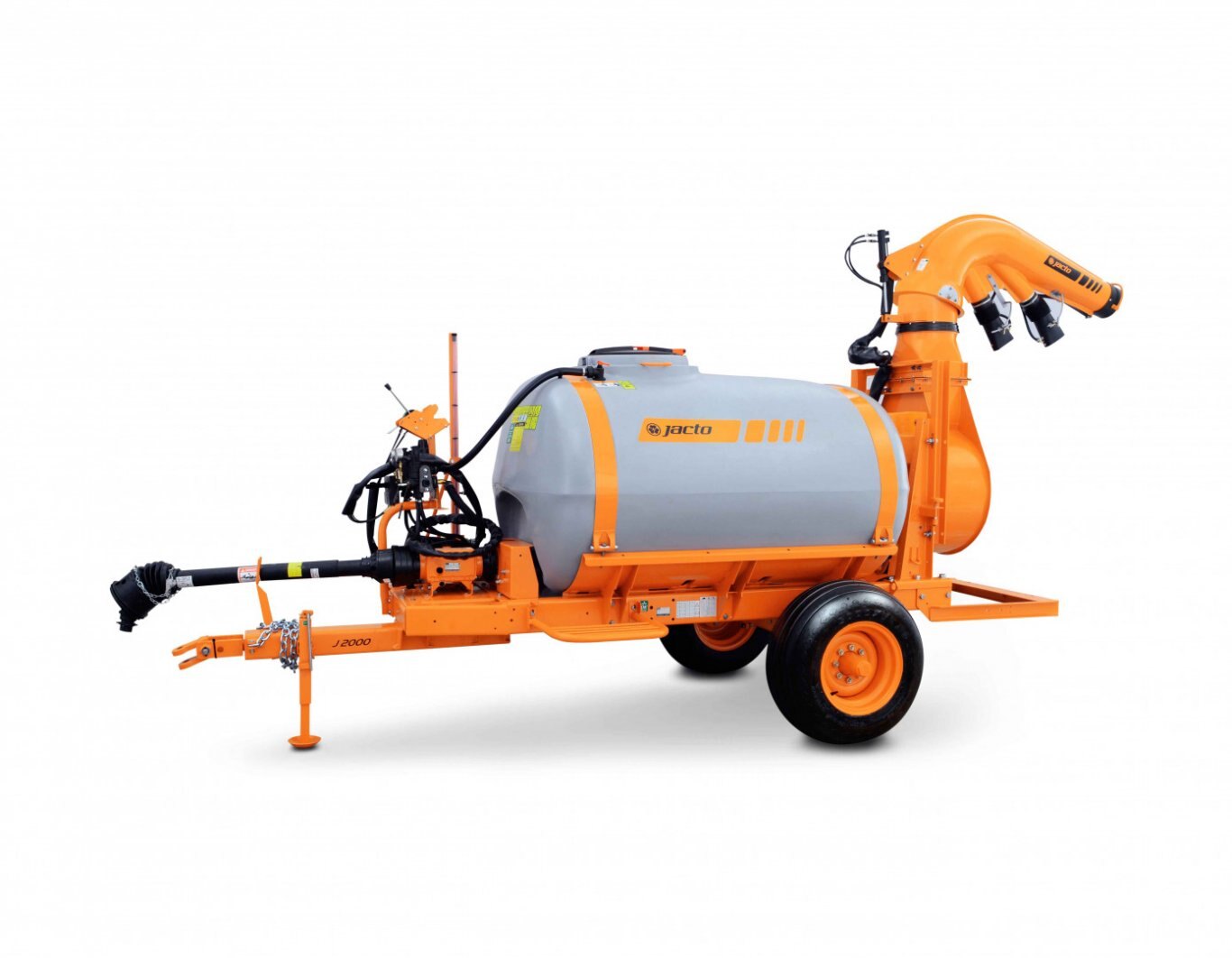

Jacto - Jatão 2000

Call for Price
Overview

High Reach Spraying.

Protection for your Crops

With favorable wind, it reaches up to 115 feet, wich can provides good coverage in this application range.

Jacto Jatão 2000 Model that Satisfy your Need

Very versatile, it can be used in several cultures and non-agricultural applications, such as:

  • horticultura
  • floriculture
  • cereals
  • livestock
  • fruit growing
  • sanitary disinfection.

With hydraulic adjustment of the duct, it facilitates the operation and the maneuvers more agile.

Jacto Jatão 2000 Spraying Agility

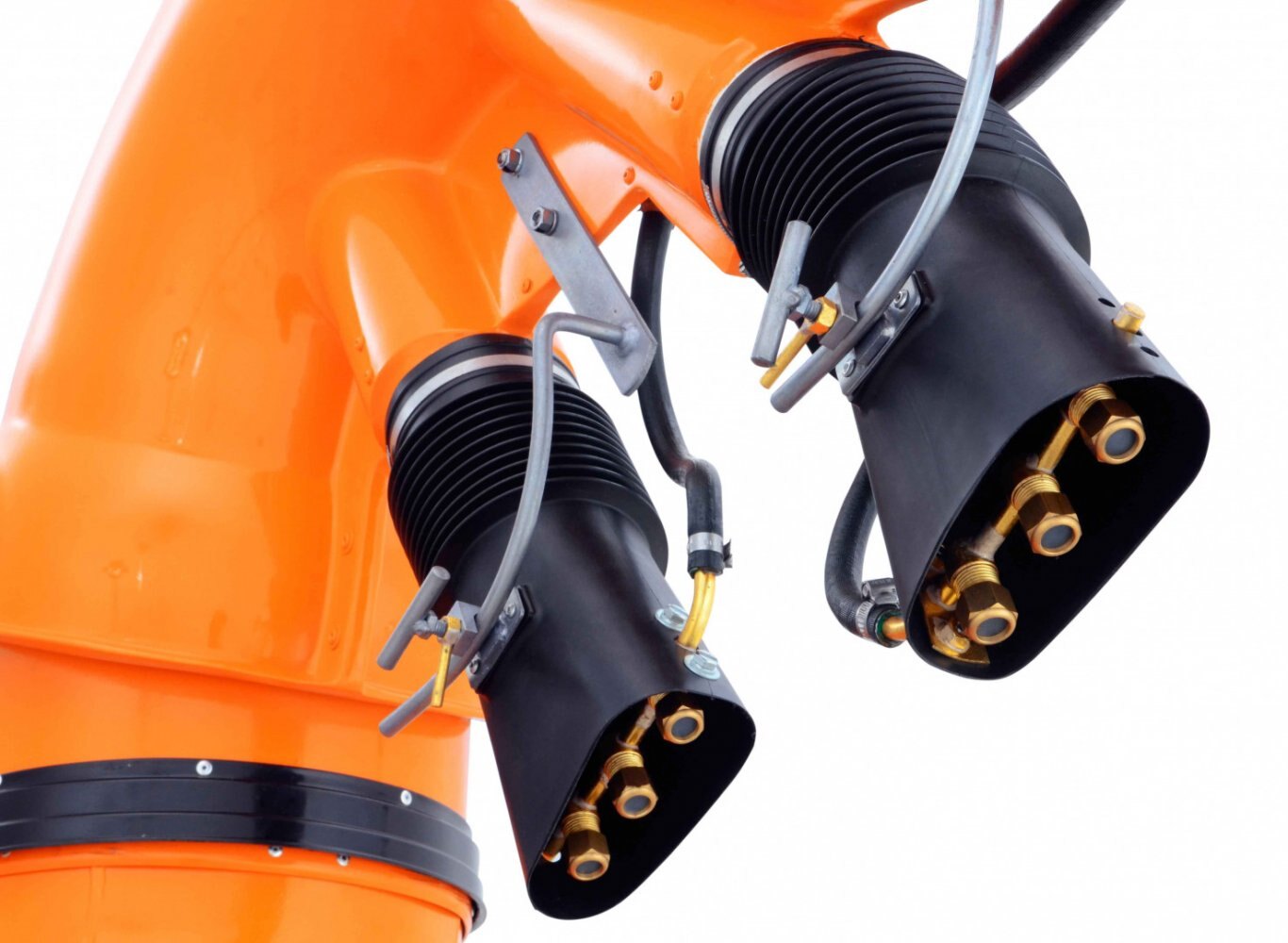

Auxiliary ducts allow applications close to the tractor.

The air duct is easy to adjust from horizontal and vertical positions.

With the extension (optional), it helps in application in taller crops.

Jacto Jatão 2000 Perfect Combination

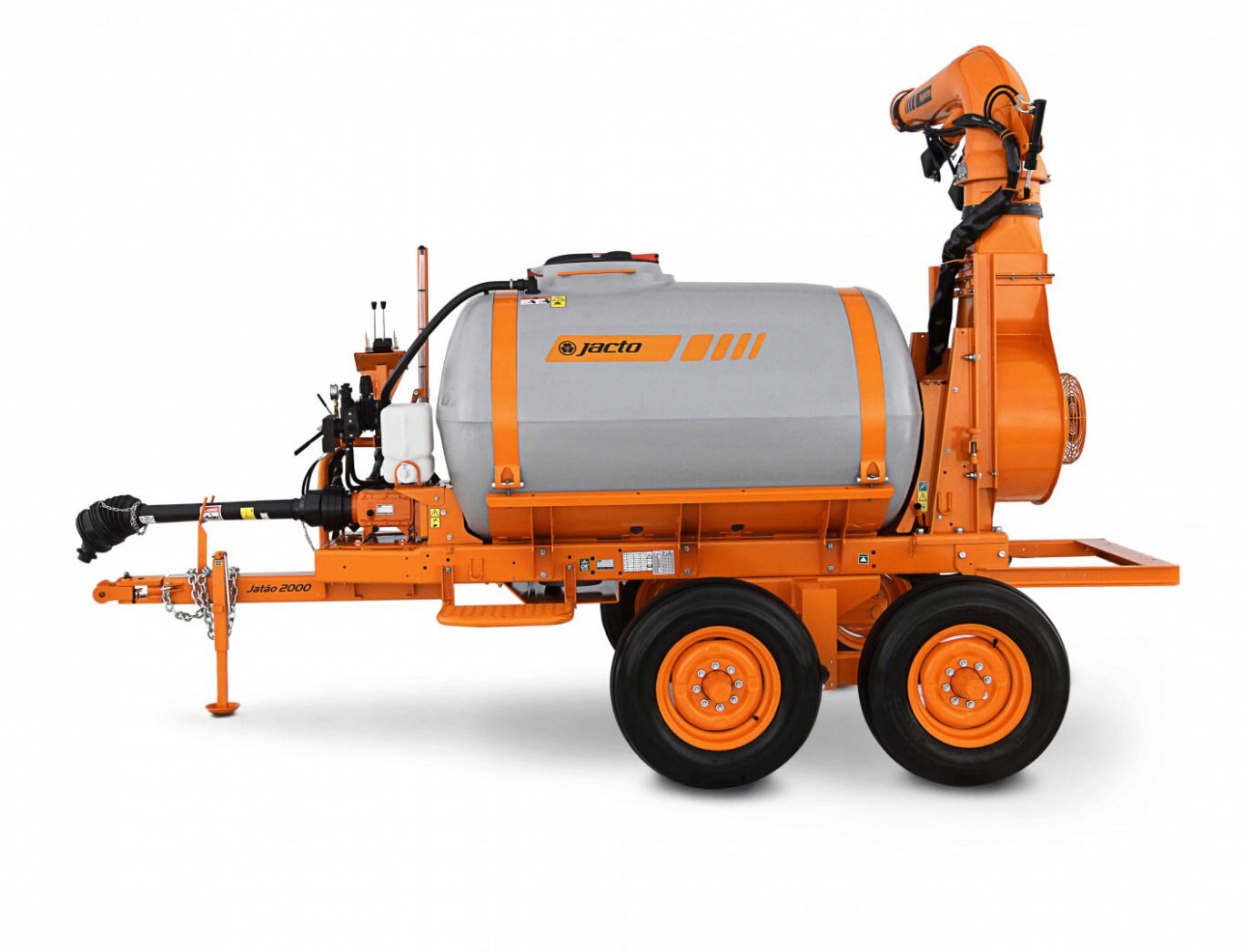

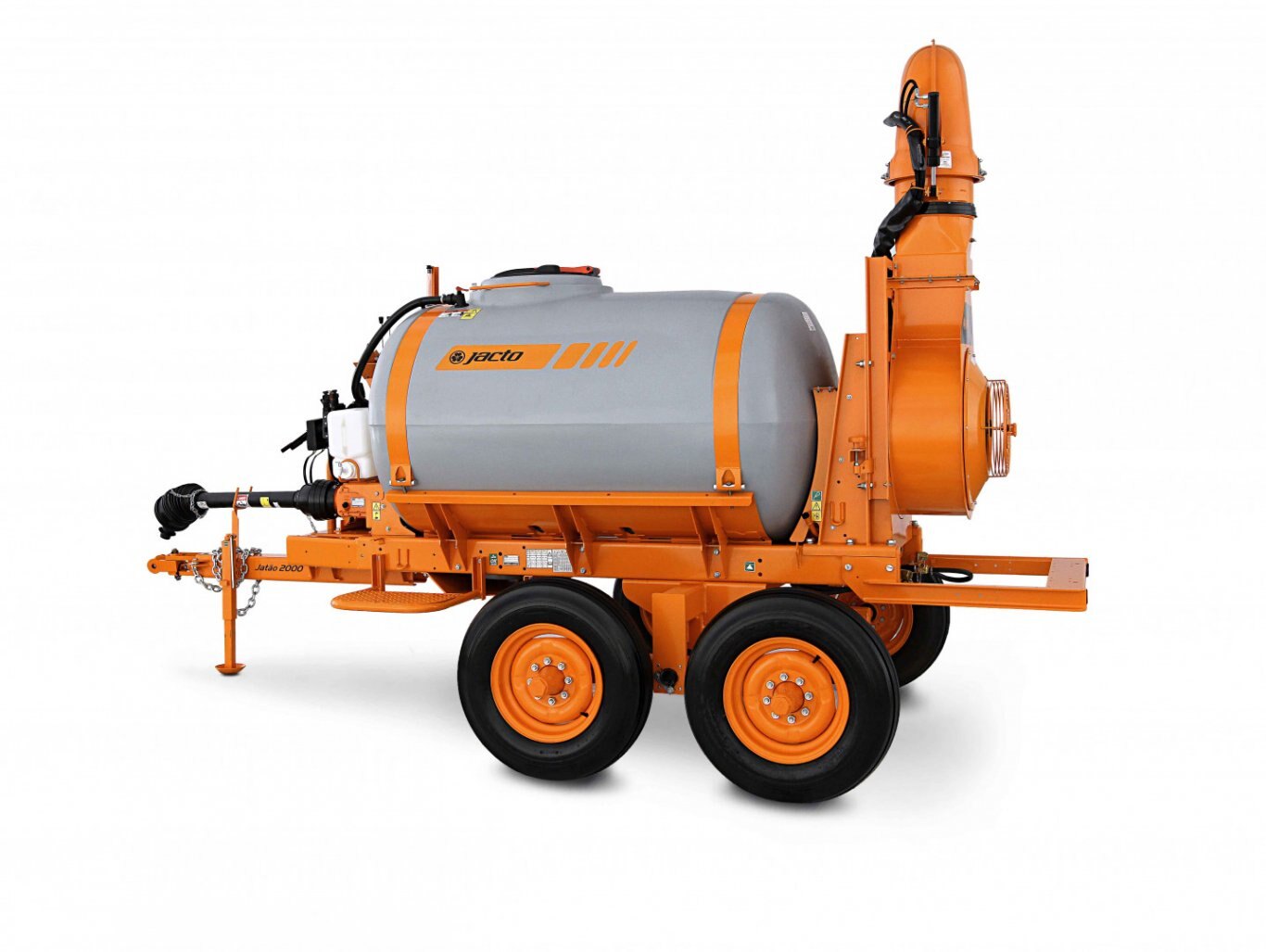

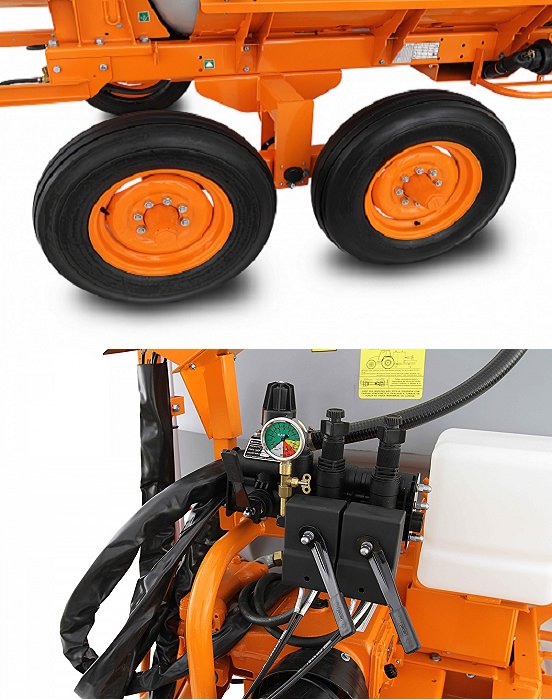

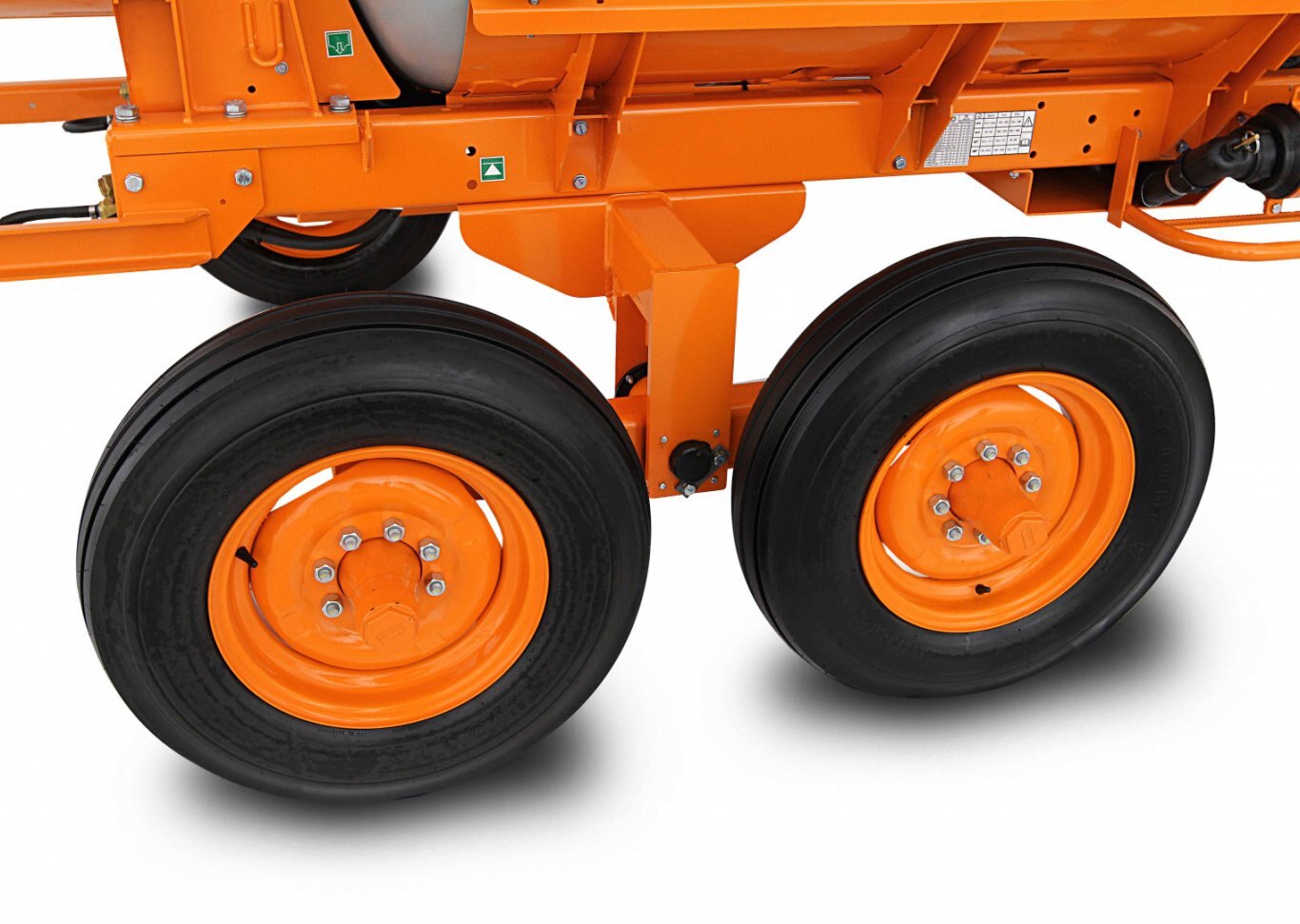

Tanden axis

It allows to move in difficult terrain pasture conditions, maintaining the stability of the equipment.

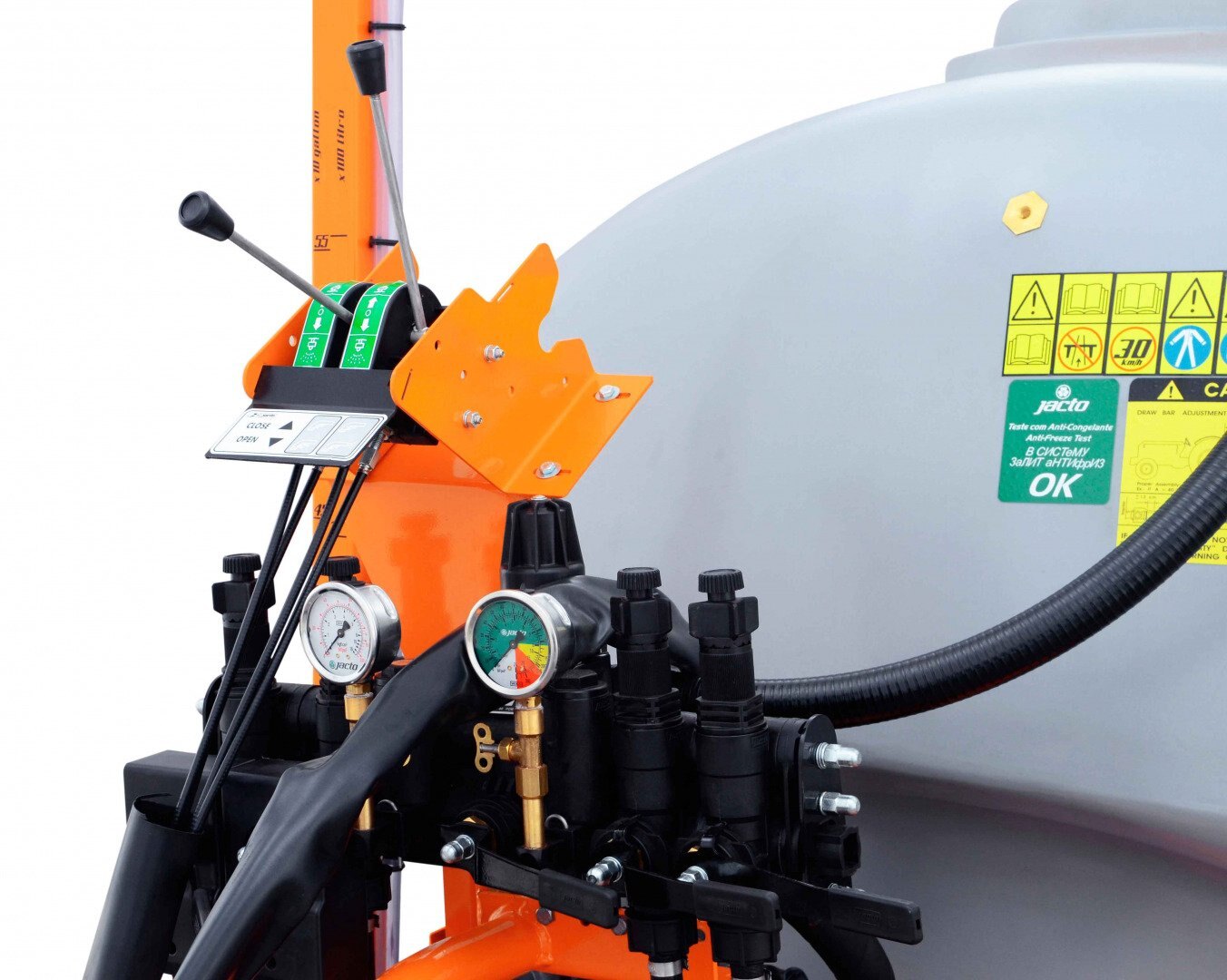

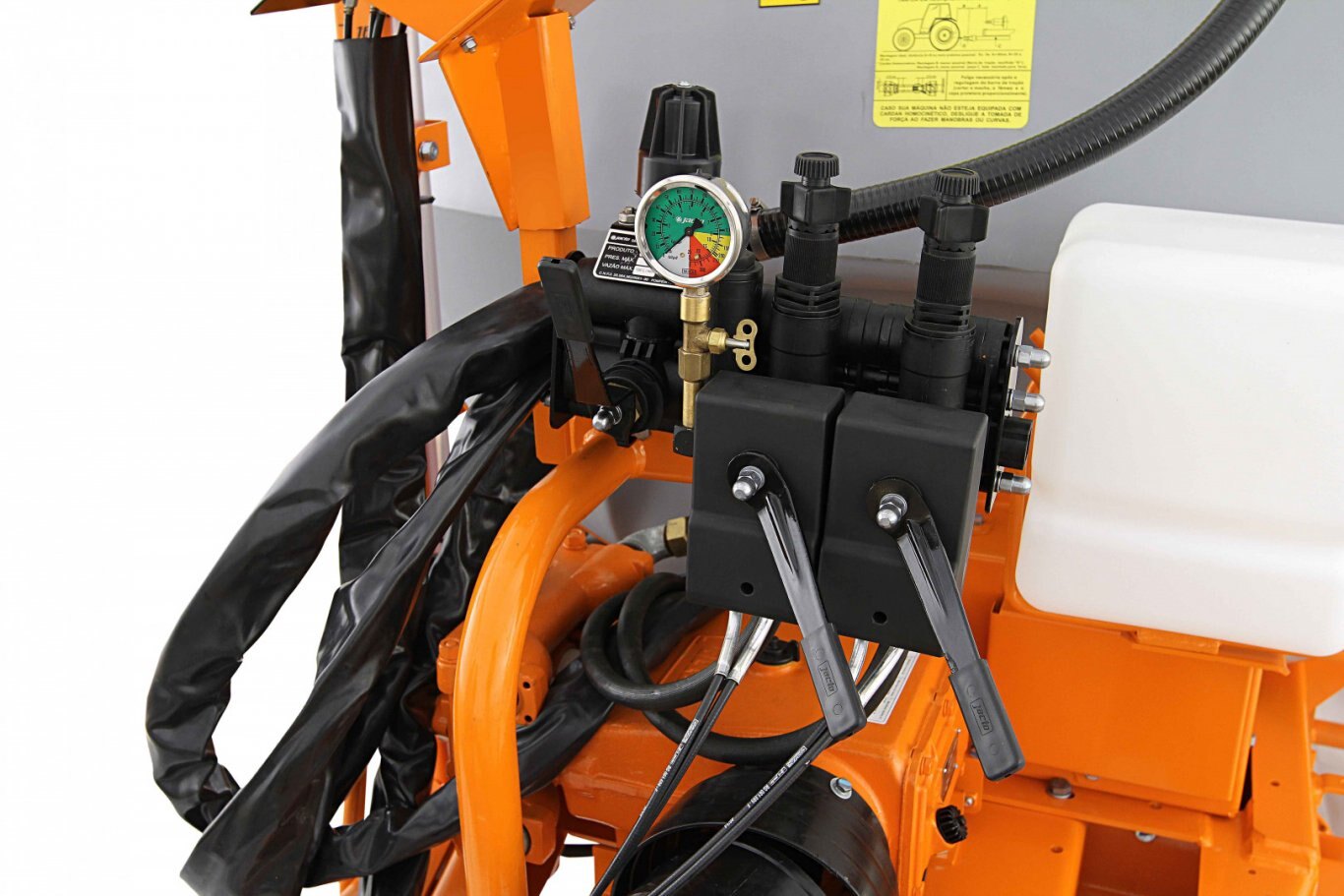

Spray control

Spray control activated by cables for Jatão 2000, allows activation within the operator's reach.

Jacto Jatão 2000 Resistance, Capacity and Technology

530 gallon tank, made of high-strength poliethylene.

Excellent finishing of the internal and external surfaces to facilitate cleaning. Resists impacts and corrosions.

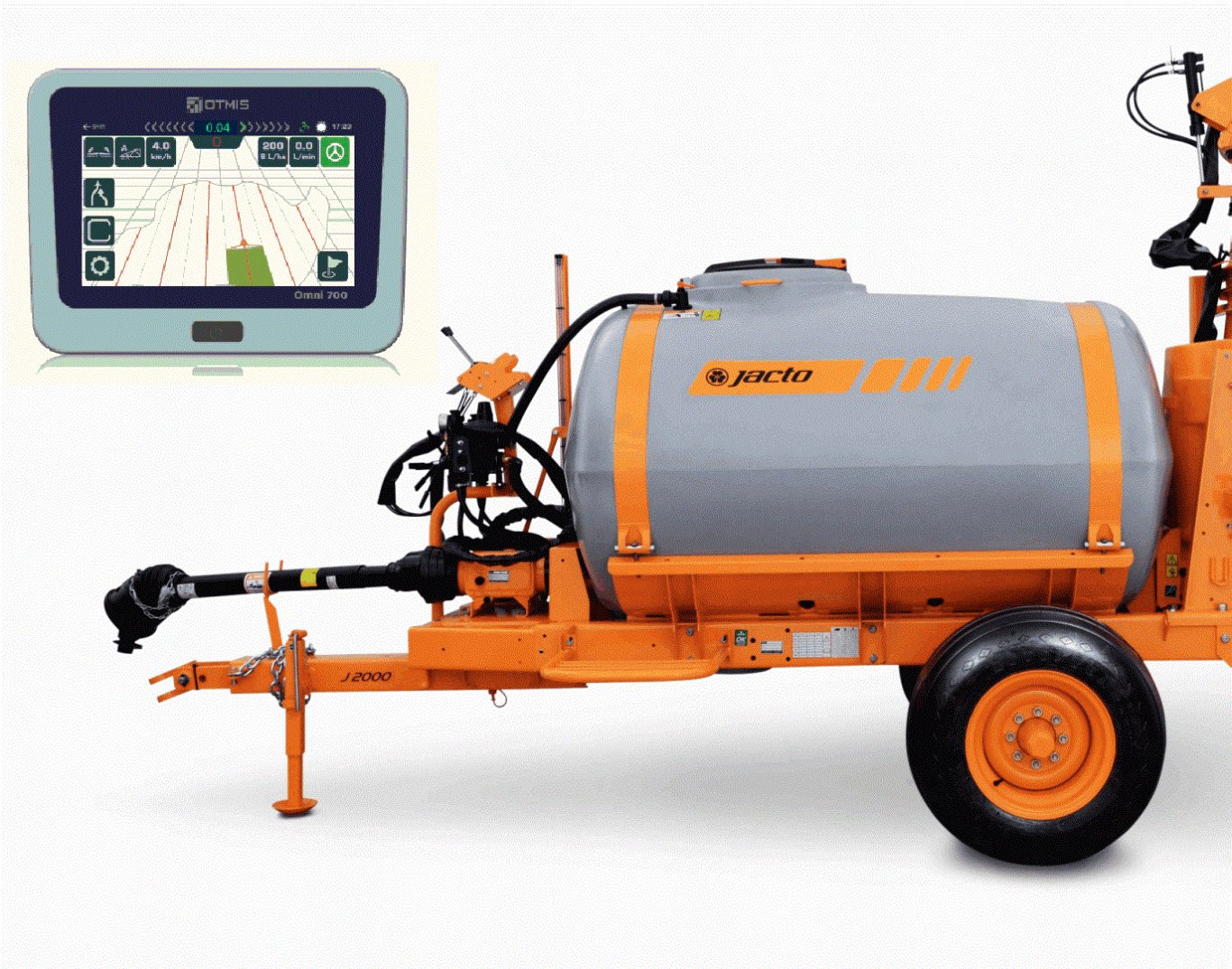

GPS - Lightbar

Product of the Otmis Precision Agriculture Line with touch screen, more efficient maneuvers with fewer finishes.

Specifications
Model
Jatão 2000
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Jacto
spraying
Crop

Cereals

Fruits

Vegetables

Flowers

Sugar Cane



Livestock



Area size Up to 500 ha Over 500 ha
Precision Agriculture GPS - Lightbar
Tank Capacity
2.000 L
Material
Poliethylene
Chemical Solution Agitation
Mechanical
Clean water tank Tank Capacity
12 L
Material
Poliethylene

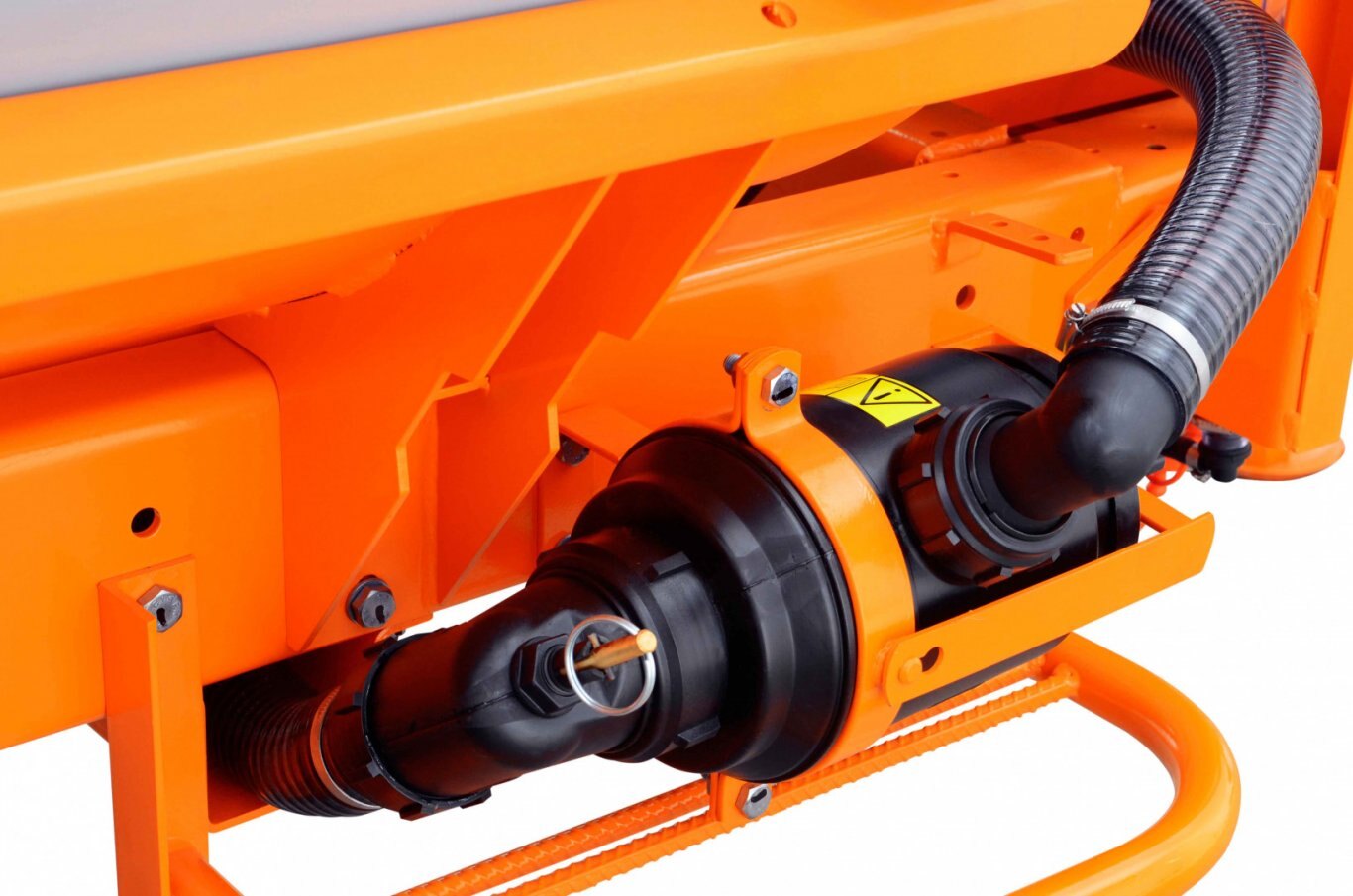

Main filter Model
FVS-200
Filtering capacity
200 L/min
Filter mesh
24 and 40
Spray pump Model
JP 50 / JP 100
Type
Piston
Maximum Flow Rate
50 L/min / 100 L/min
Power consumption
3,2 cv / 6 cv

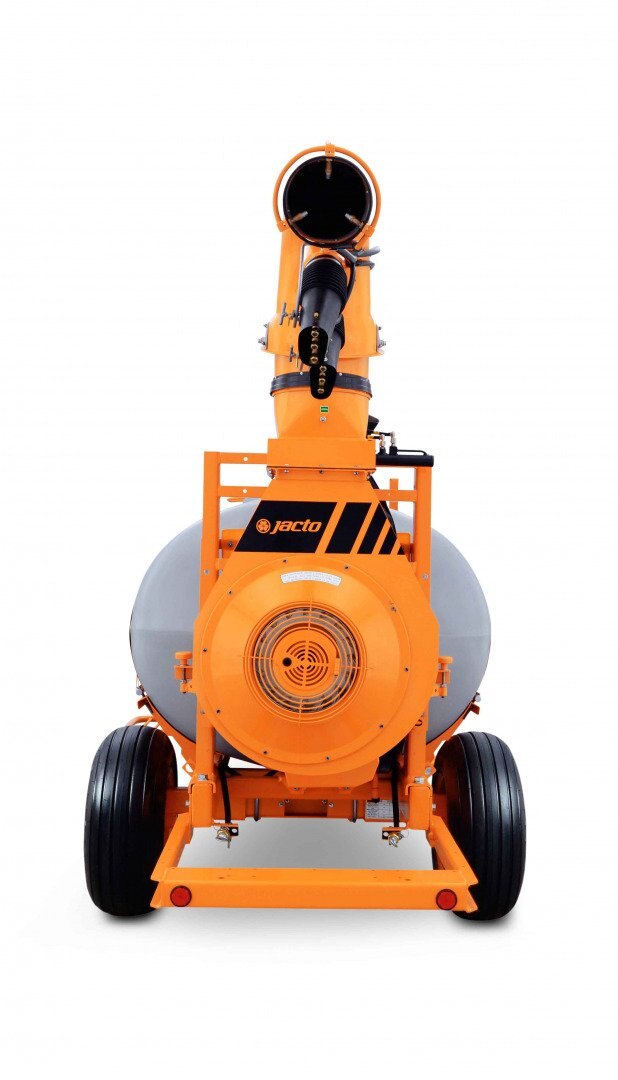

Fan Air speed
210 km/h
Air volume
2,8 m³/s
Power consumption
23 cv
Dimensions  Length
 Cross: 4,45 m / Tandem: 4,45 m
Maximum width
Cross: 1,75 m / Tandem: 2,15 m
Height
Cross: 2,75 m / Tandem: 3,10 m
Weight Empty machine
870 kg
Working speed Spraying
1 up to 3 mph.
Available options Duct Extension
Trailer Axles
Cross / Tandem
Track width
Cross: 4ft. to 5 ft. / Tandem: 6 ft.
Ground clearance
Cross: 21 cm ou 37 cm / Tandem: 55 cm
Tires
Cross: 11L15 / 7,50x16 / Tandem: 7,50x16
Spray application range No wind
49,2 ft.
With wind at 3 mph.
82 ft.
With wind at 6 mph.
114,8 ft.
