Overview

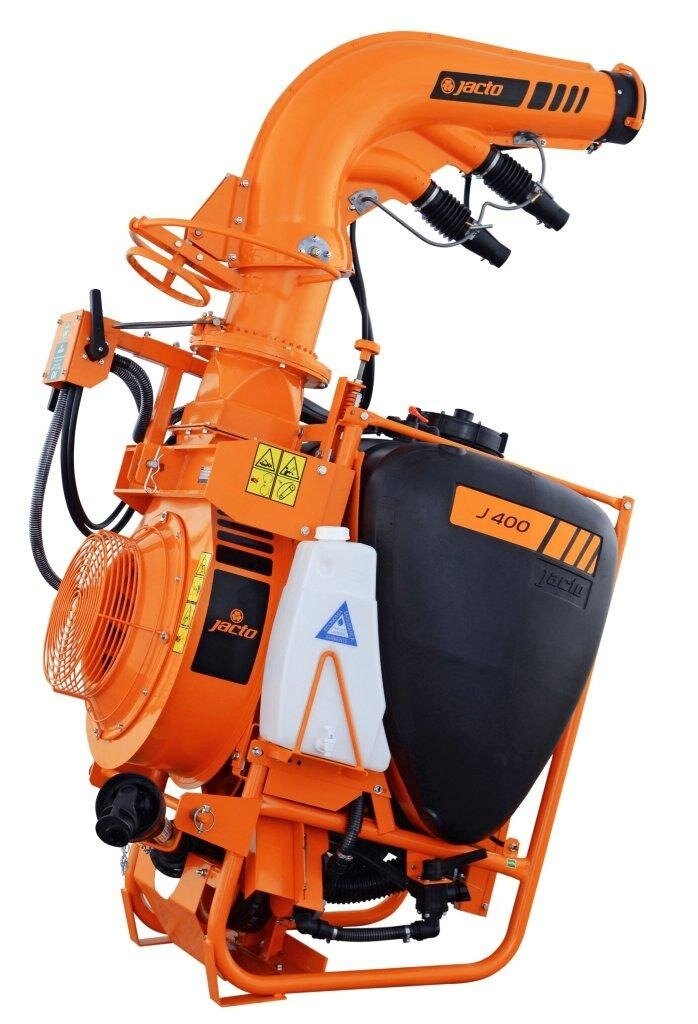

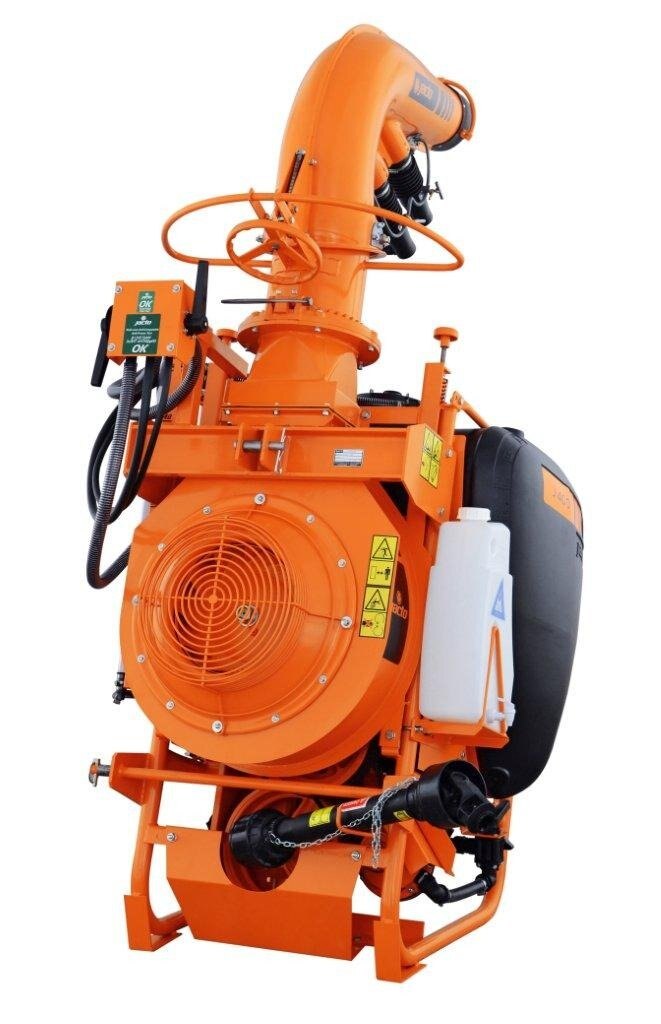

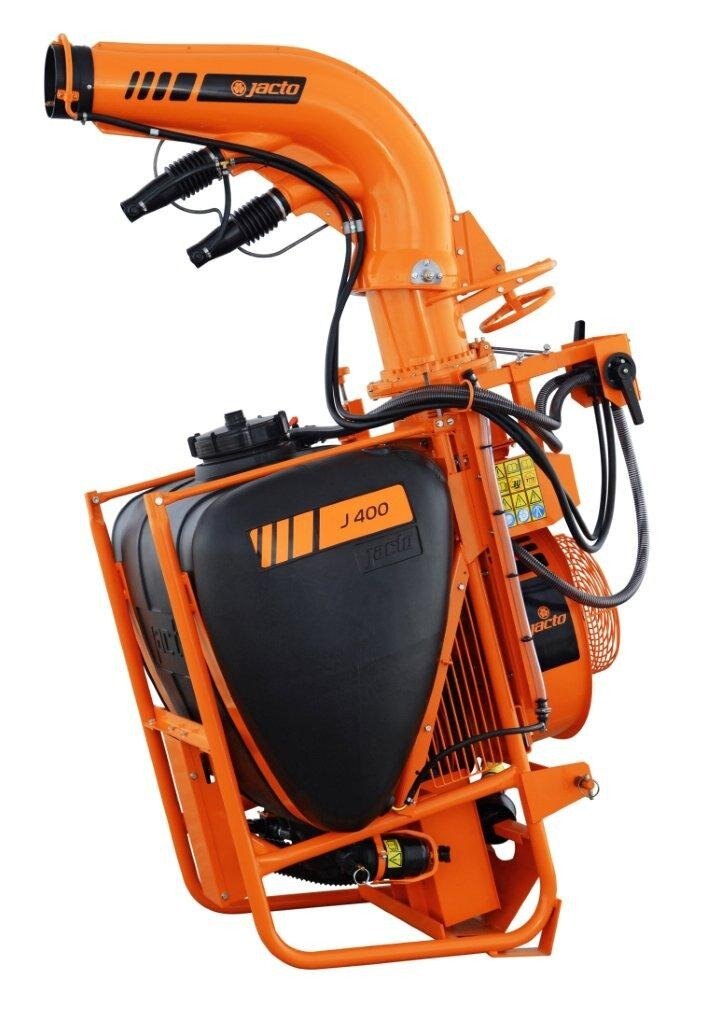

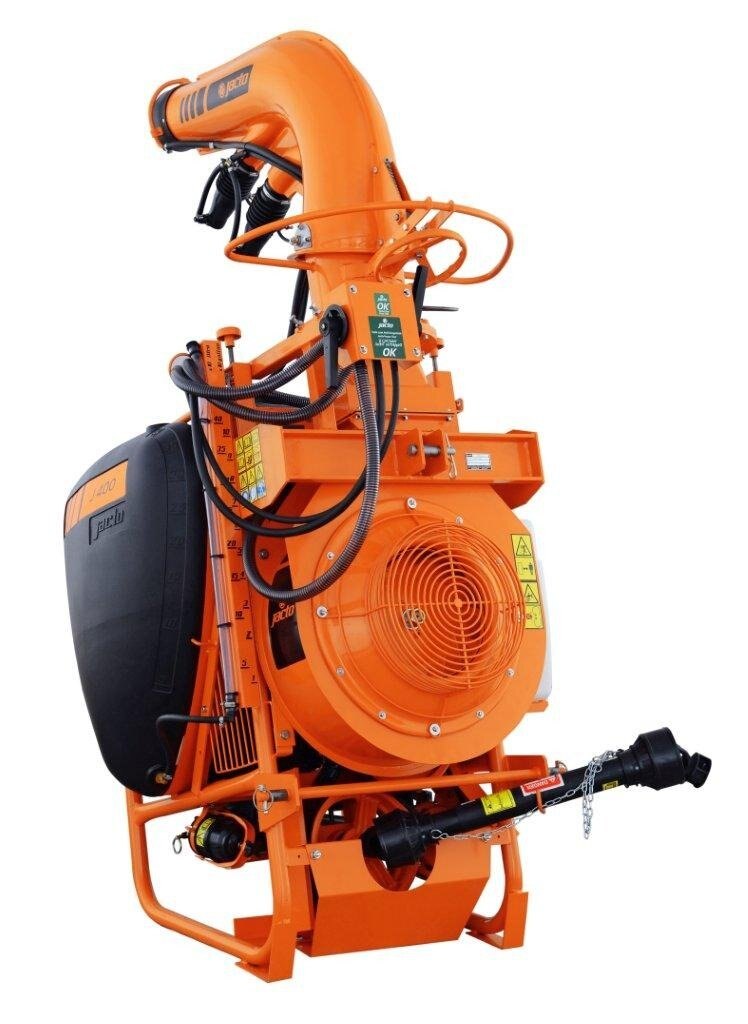

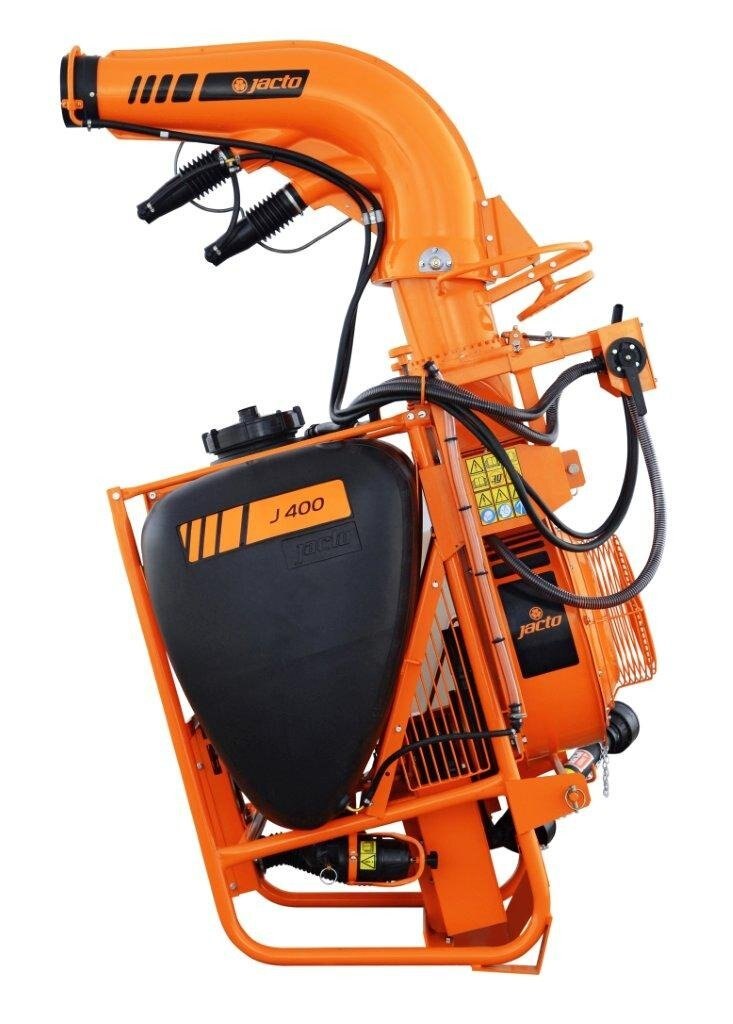

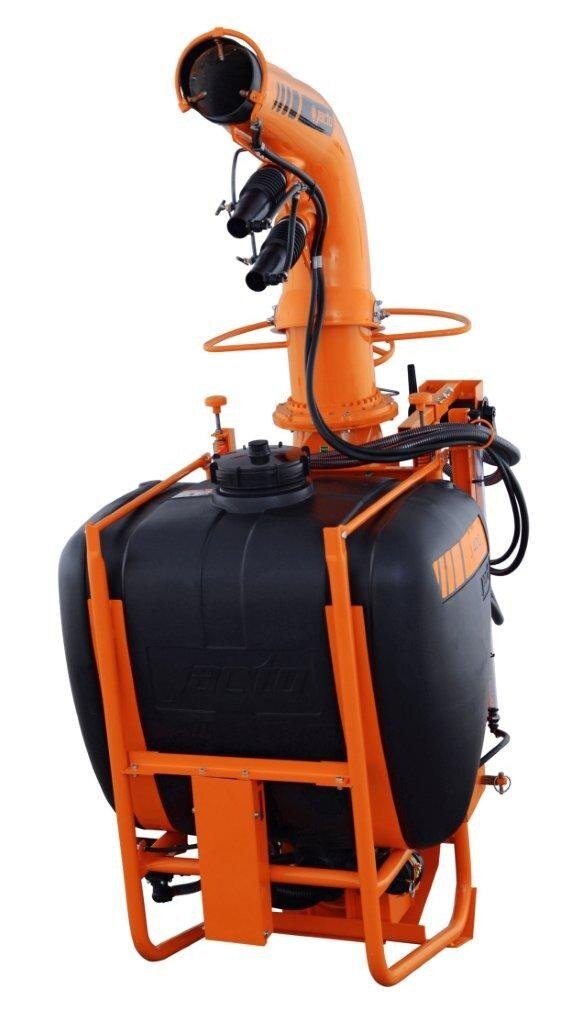

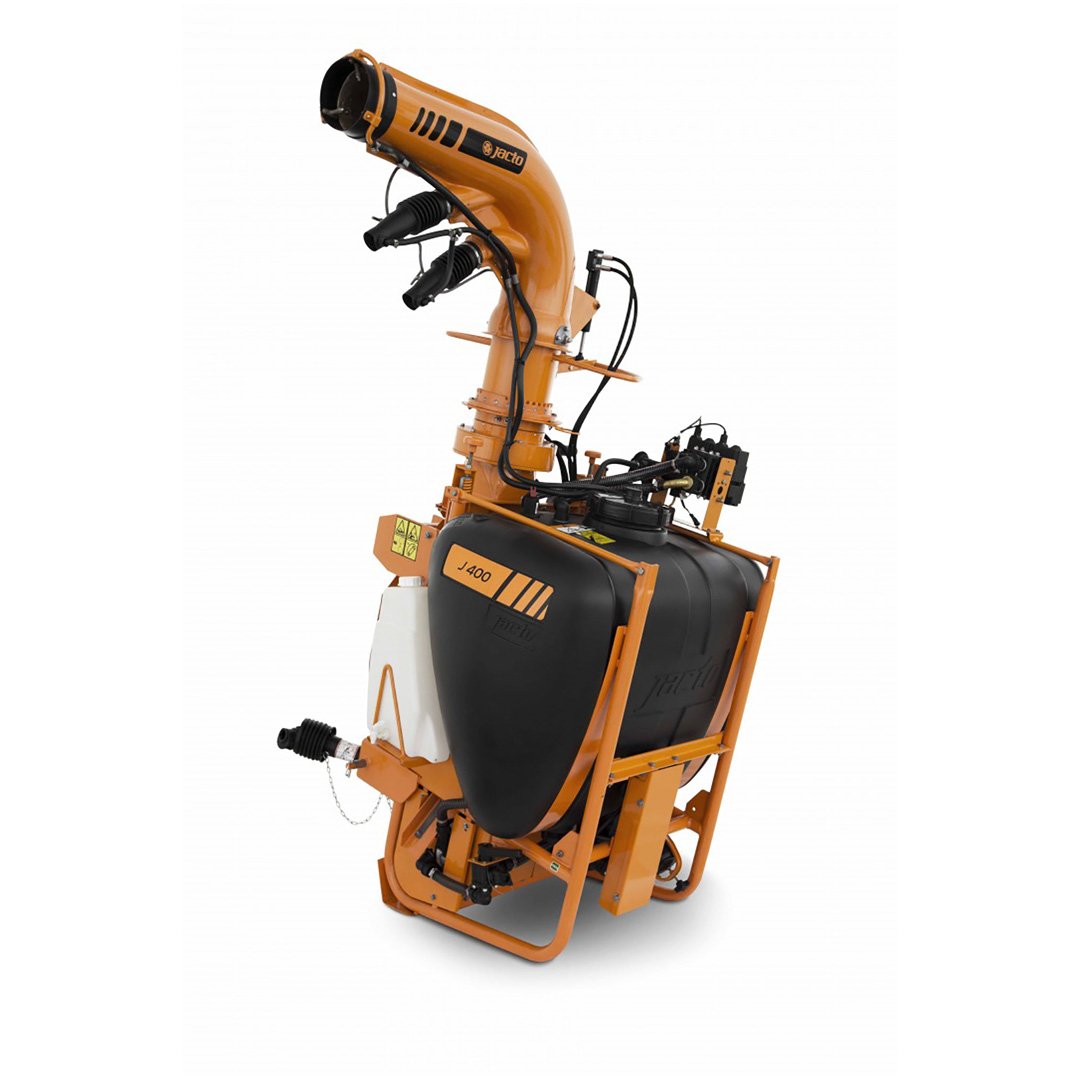

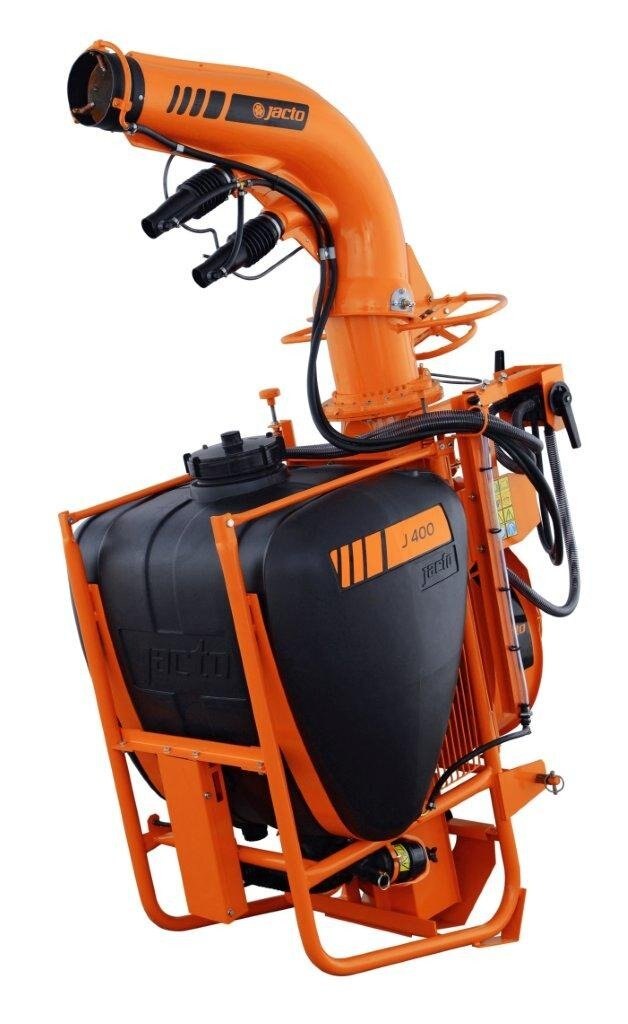

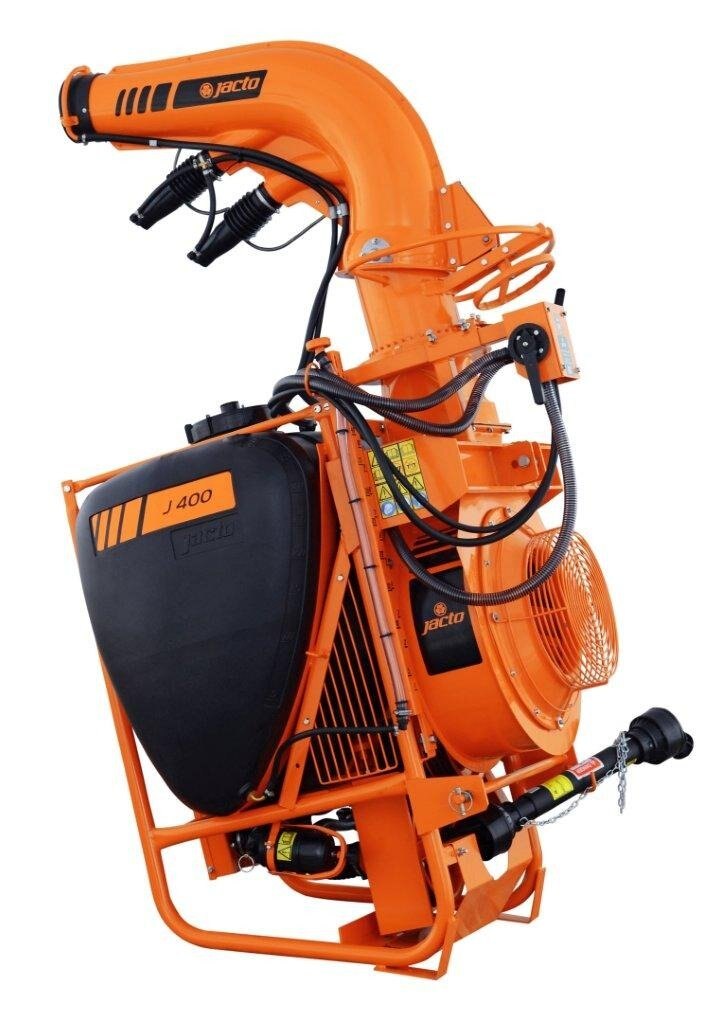

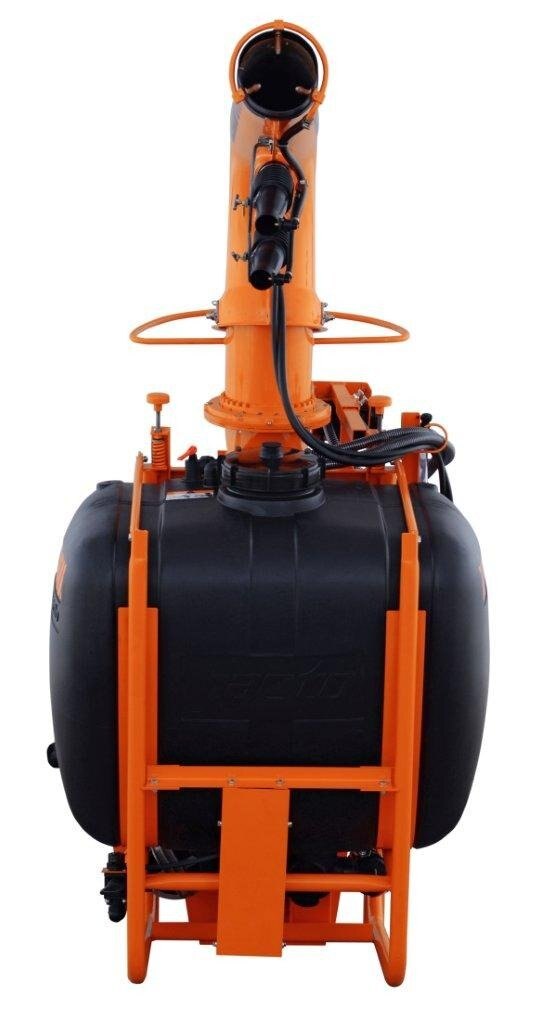

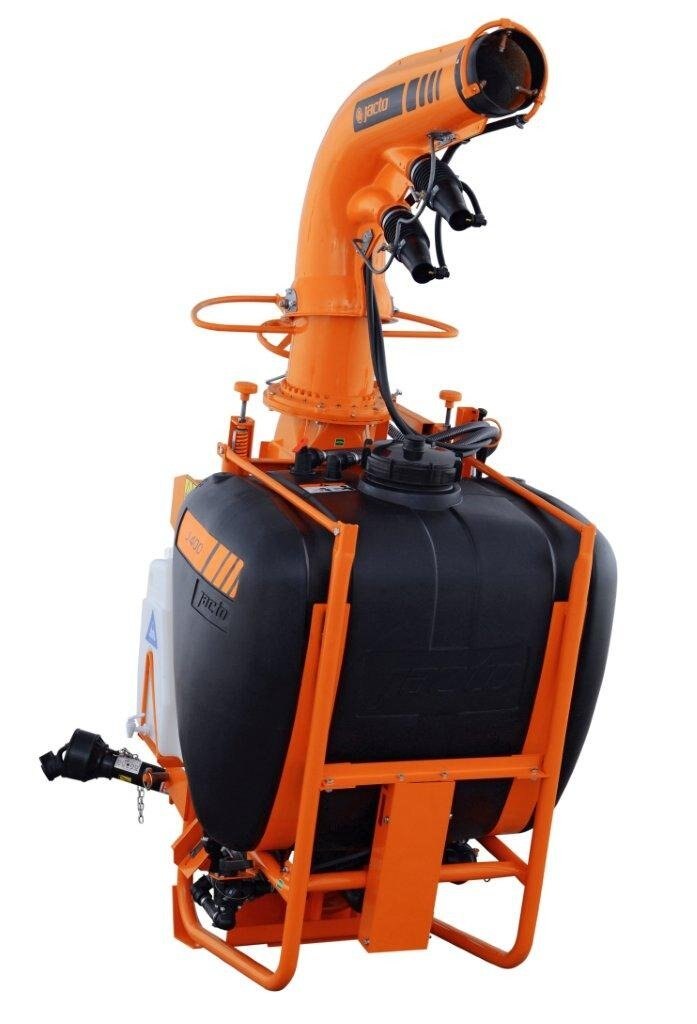

Jacto J400 USAThe J400 series cannon sprayer provides the speed and versatility you need to protect your crops with ease and accuracy.

The J400 series has the same 105 gallon capacity and Jacto centrifugal pump as the AJ401, but with a larger fan with higher CFM and discharge speeds.  A completely different outlet duct assembly with main outlet and two smaller directional intermediate ducts lets you achieve spray swaths up to 80 feet, depending on the crop and wind conditions.

The specially designed Cannon head is easy to operate and can be adjusted horizontally up to 290 degrees and vertically by 34 degrees. Three versions are available, the standard J400 with manually adjusted outlet duct, the J400CHT with hydraulic duct control and J400CHT/EL with electric control valve from the factory. If you choose the J400CHT or J400CHT/EL models you must have two open sets of remotes for the hydraulic hoses to be plugged into.

Popular applications are vegetables, especially pumpkins and sweet corn, blueberries, Christmas trees as well as container and tree nurseries.
Specifications
Model
J400 USA
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Jacto
resources
Brochure                                                                                   Download
Operators Manual                                                                        Download
Illustrated Parts List - J400                                                            Download
Illustrated Parts List - J400 CHT                                                      Download



features

• Up to 80 foot spray swath
• 105 gallon poly tank
• Chemical container rinse system
• Jacto centrifugal pump
• Suction filters with washable and reusable 40 mesh stainless element
• Bypass and mechanical agitation
• 3 gallon freshwater handwash/eyesplash safety tank
• J400 with manual duct controls
• J400CHT with hydraulic duct controls
• J400CHT with hydraulic duct controls

* J400CHT/EL with hydraulic and electric controls
• Empty weight: 650 lbs.
• Recommended tractor - 40 hp and above

• Optional electric valve kit with in cab controller #ELCKIT2 for the J400 or J400CHT
• Optional 24 inch duct extension kit #J400EXT24

Jacto J400 USA Electric control valve availability

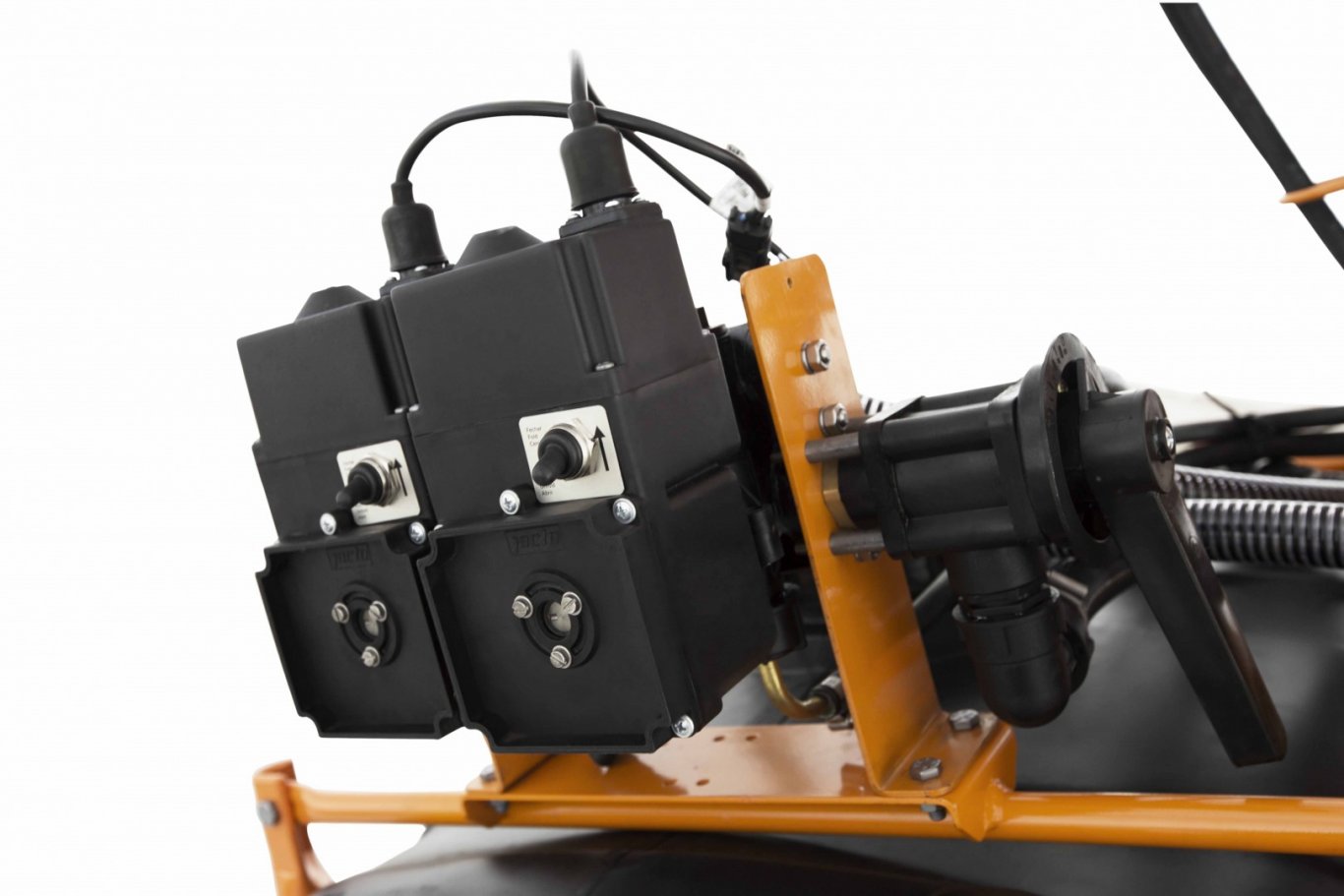

For growers with cab tractors, we offer an optional electric valve kit, for in cab control. This kit can be added to any new or older manual J400 or J400CHT and is a dealer or owner installed.

Jacto J400 USA Optional Accessory

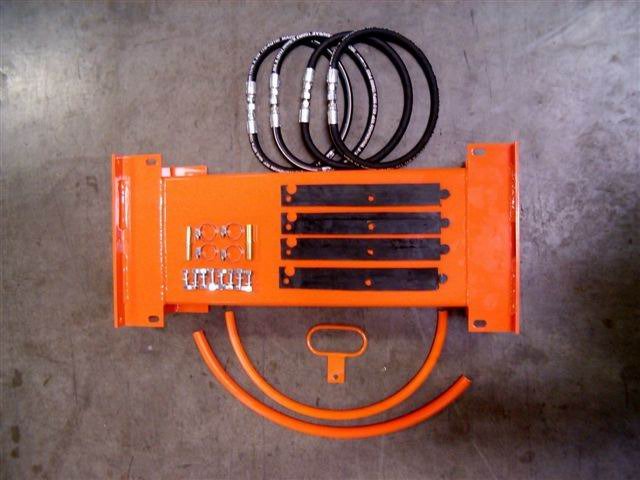

An optional duct extension kit is available. In crops such as highbush blueberries and certain varieties of sweet corn, it may be desirable to add the 24 inch duct extension. This extension mounts to the top of the fan housing before the outlet duct to raise the whole assembly. This higher mount allows you to achieve proper spray angles across, down and through the crop.
spraying
Crop
Cereals - Vegetables - Sugar Cane - Livestock
Mesh
40
Width
60 inches
Height
89 inches
Length
65 inches
Air Speed
180 mph
Area Size
Up to 500 ha
Air Volume
4,237 cfm
PUMP Model
Jacto Centrifugal
Fan Rotation
3,810 rpm
FILTER Model
Suction FVS-102
Pump Rotation
3,770 rpm
TANK Capacity
105 gallon
TANK Material
Polyethylene
Net Weight (Empty)
650 lbs
Minimum Tractor Size
40 HP and above
Fresh WATER TANK Material
Polyethylene
Fresh Water Tank Capacity
3 gallon
