ID # 24562416

Jacto - A 2000 Valencia 190 EL

  • Jacto A 2000 Valencia 190 EL
  • Jacto A 2000 Valencia 190 EL
  • Jacto A 2000 Valencia 190 EL
  • Jacto A 2000 Valencia 190 EL
  • Jacto A 2000 Valencia 190 EL
  • Jacto A 2000 Valencia 190 EL
  • Jacto A 2000 Valencia 190 EL
  • Jacto A 2000 Valencia 190 EL
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

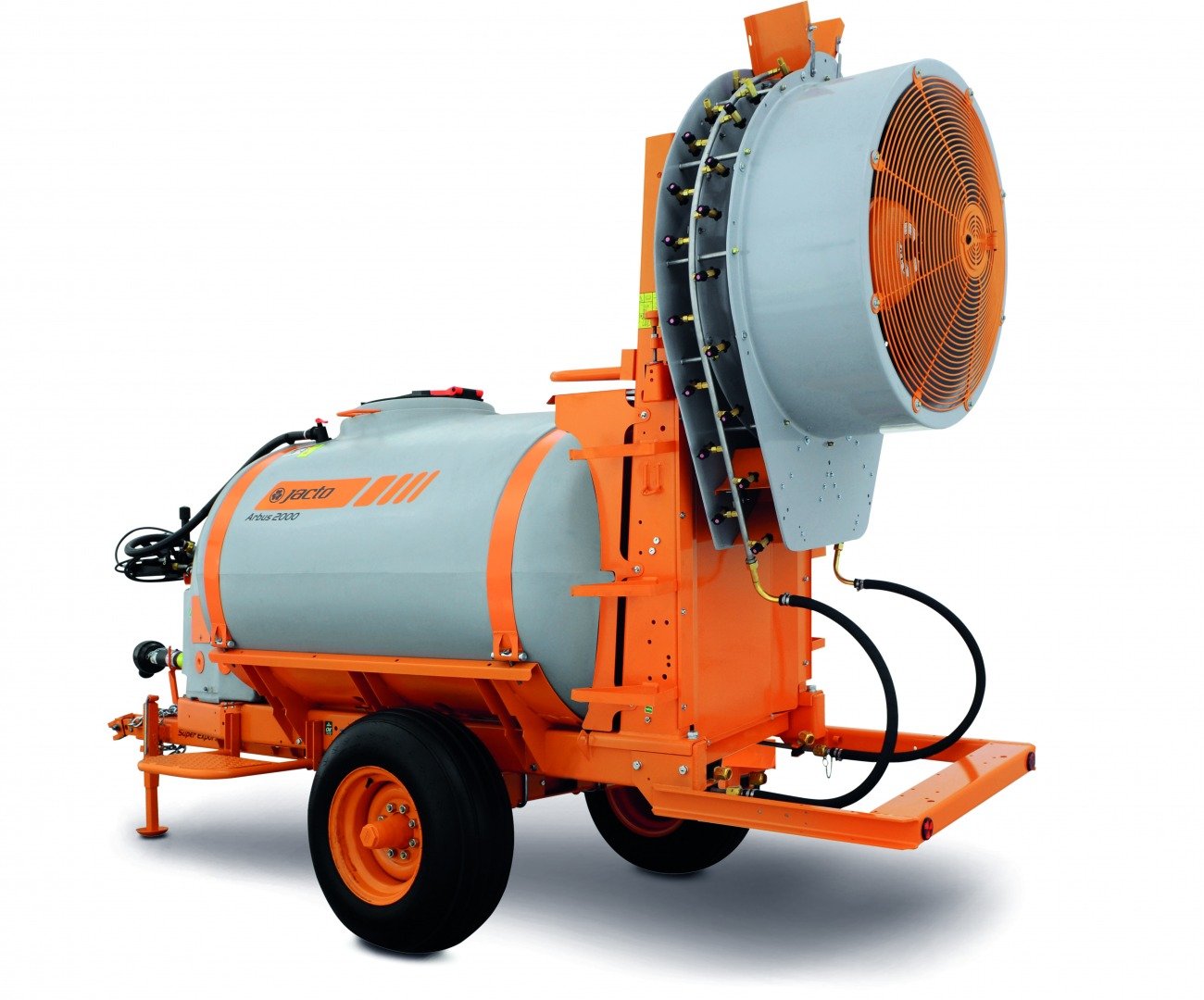

Jacto A 2000 Valencia 190 ELJacto's Arbus 2000 Valencia 190EL airblast sprayer was specifically designed to meet the demands of large citrus groves, using our high-mount 33" two port fan in an efficient and economical manner to penetrate the densest canopies. The center of the fan is 81" from the ground and moves the air flow and nozzles closer to the overall plant canopy and improves spray deposition.

The A2000 Valencia uses the same high quality Jacto components as the rest of our Arbus models including, a high density poly tank, Jacto 50 GPM high pressure ceramic cylinder piston pump, 36 adjustable anti-drip nozzle holders with 72 ceramic nozzles, wide angle CV PTO shaft which eliminates the need for a heavy specialty hitch, high output 33" two port fan with disconnect , electric valves with in-cab spray controls and flotation tires.


Besides citrus, it has proven to be an excellent sprayer for use in nut groves and other tall growing crops up to 30 feet.
Specifications
Model
A 2000 Valencia 190 EL
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Jacto
resources
Brochure                                 Download
Operators Manual                     Download
Illustrated Parts List                  Download



features

• 550 gallon poly tank, trailer mounted

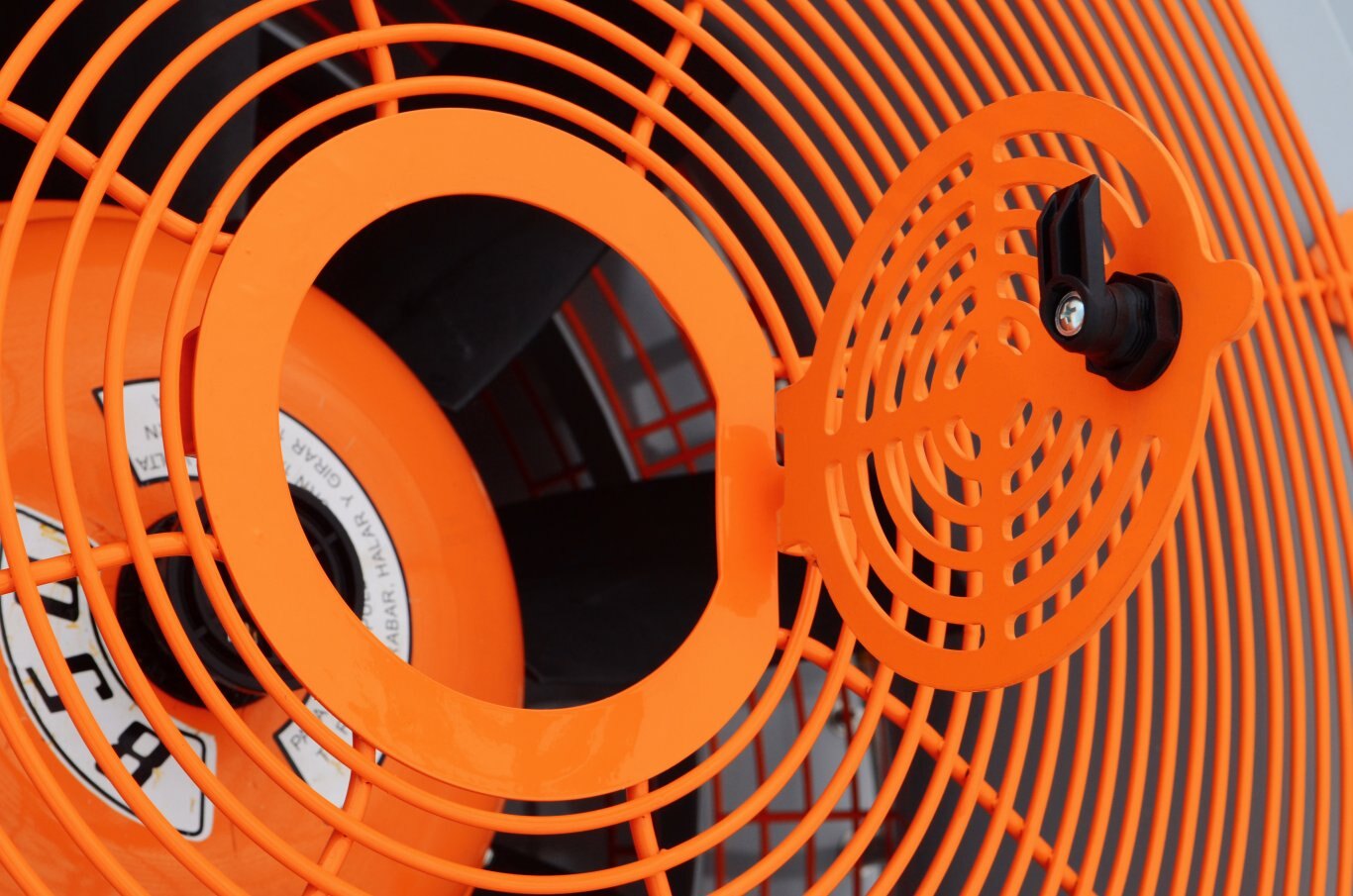

• 33 inch diameter – 2 port fan, high-mount

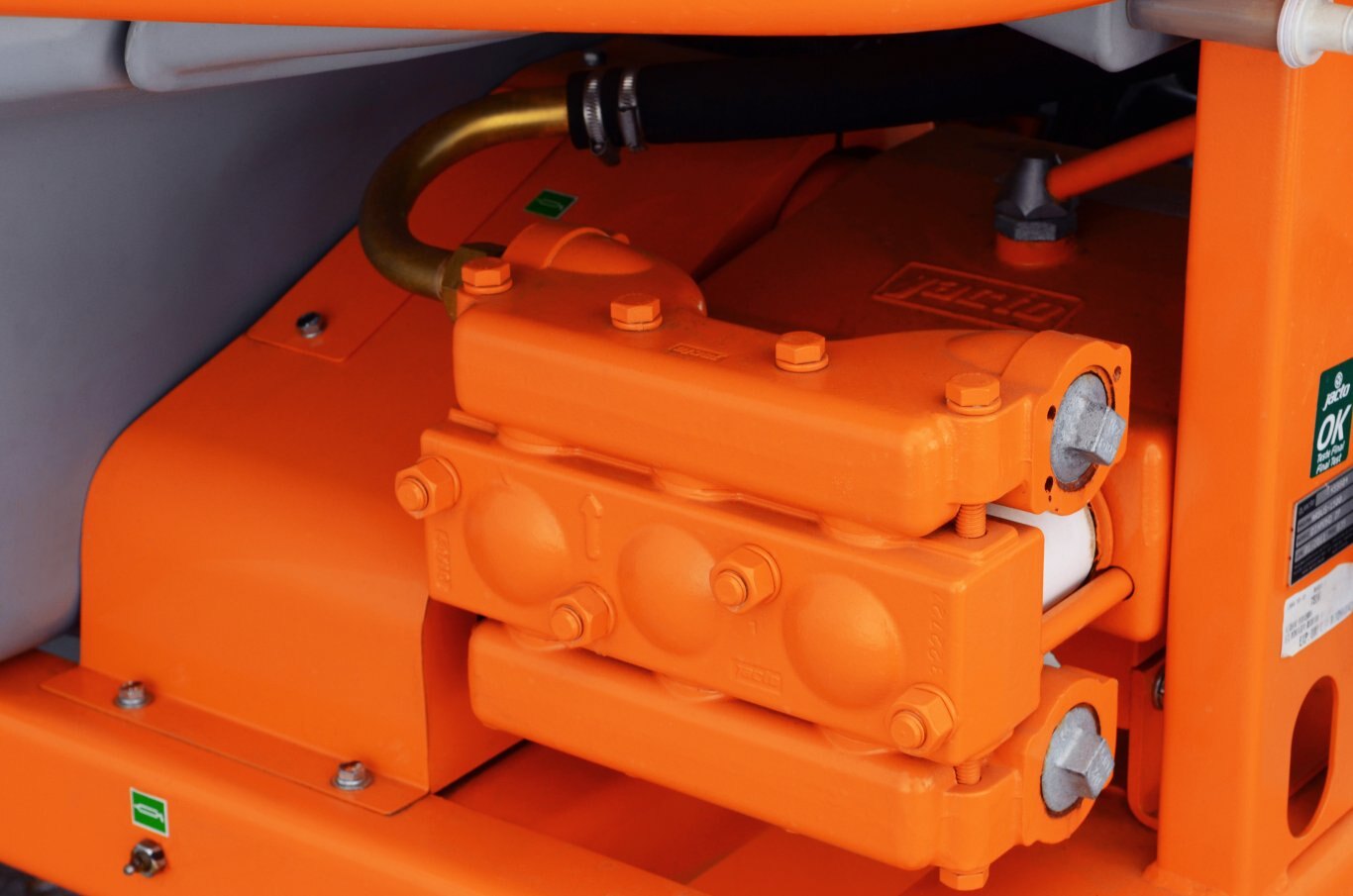

• Jacto JP190 ceramic cylinder high pressure piston pump – 50 gpm @ up to 300 psi

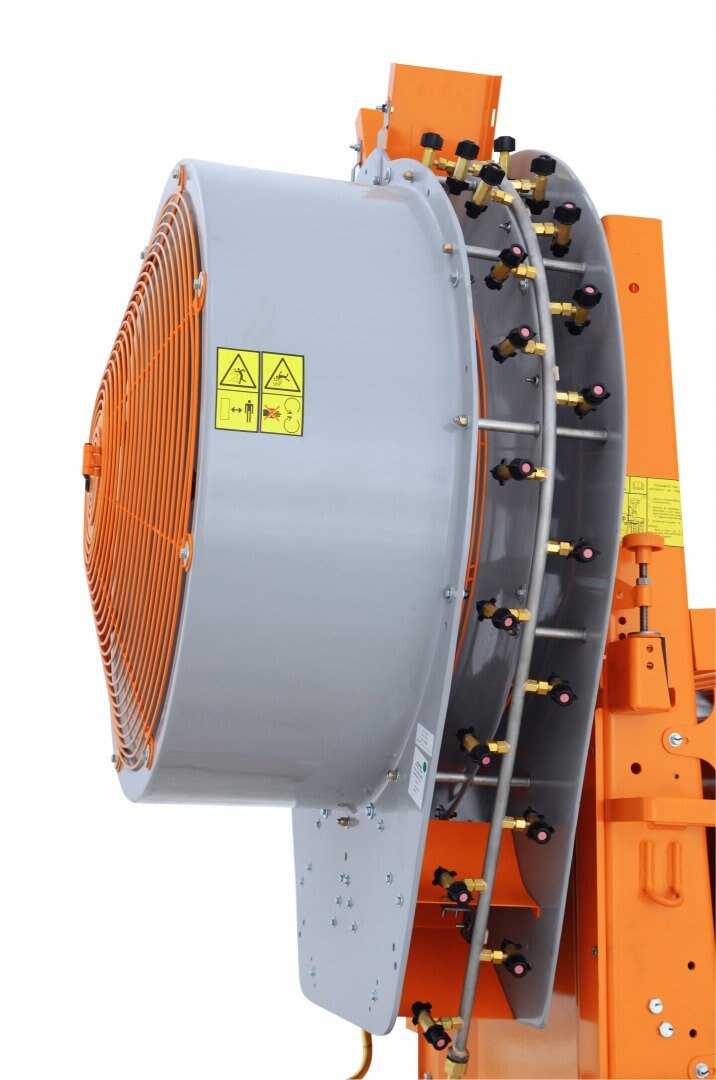

• 36 Anti-drip, adjustable, flip-over nozzle holders per side with 72 ceramic nozzles

• Multi blade mechanical and hydraulic agitation

• Chemical container, 23 gallon fresh-water and chemical circuit rinse systems

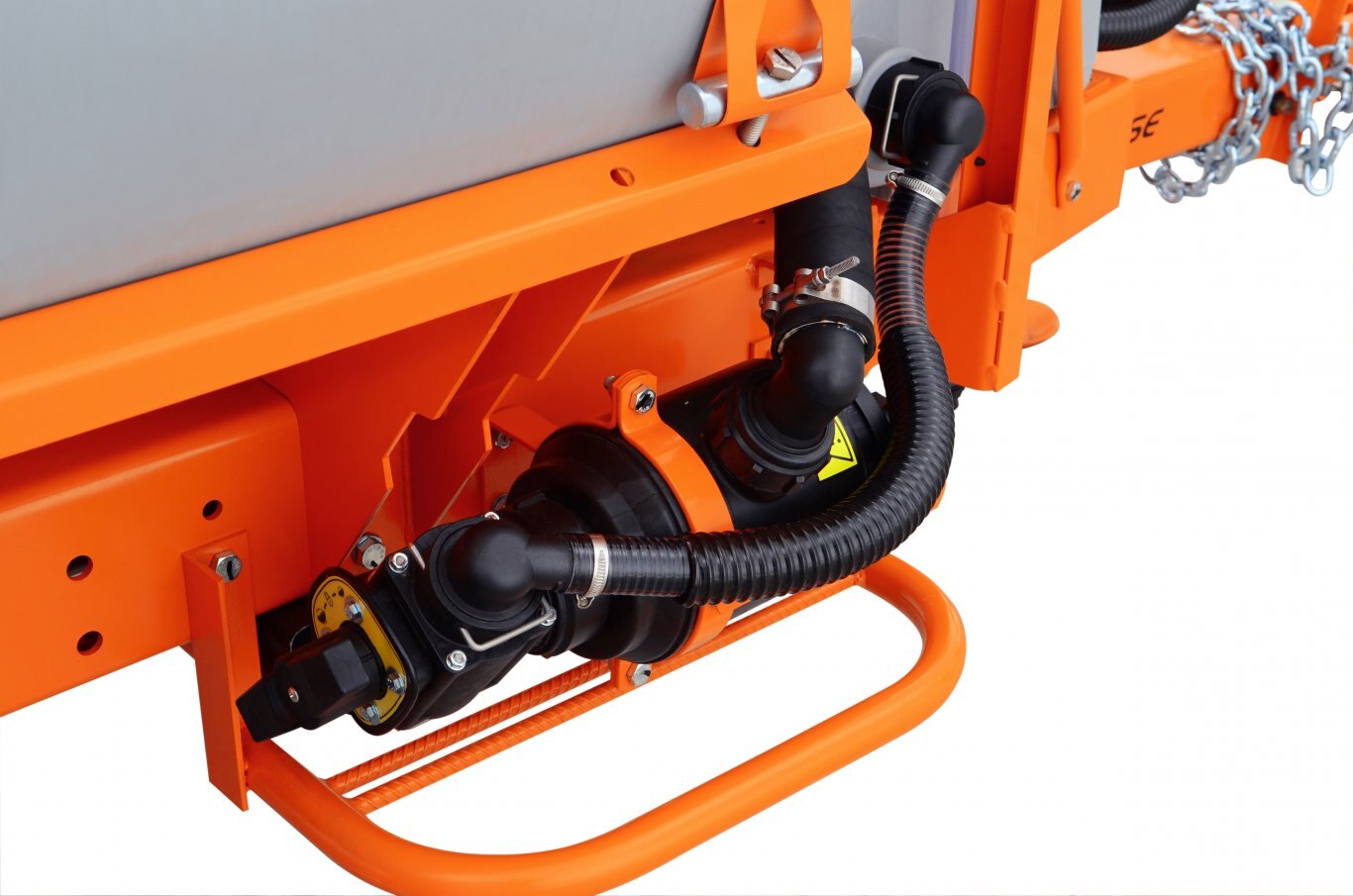

• Dual stage washable filter with shutoff

• Adjustable axle height

• 11L-15 flotation tires

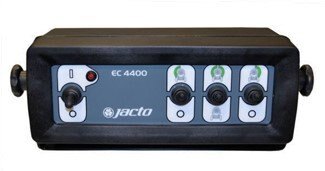

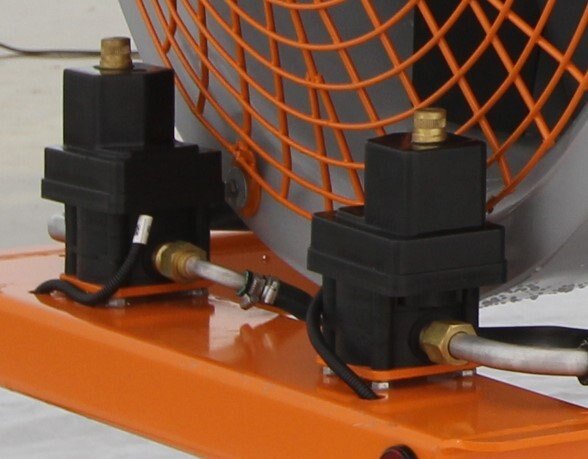

• Electric in-cab spray controls standard

• Plumbed for optional hand guns

• Recommended tractor – 80 HP and above

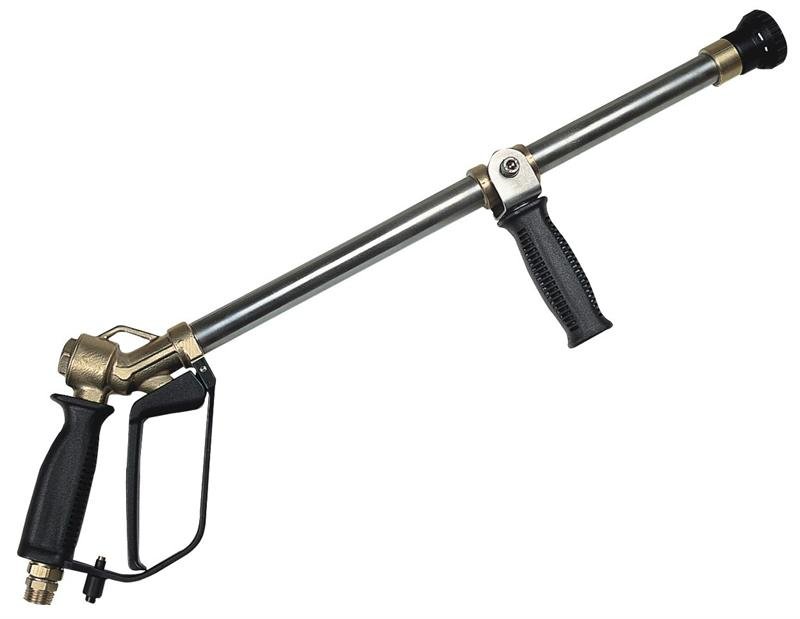

Jacto A 2000 Valencia 190 EL Optional Spray Handgun with Wand

You can add an optional handgun and spray hose for use with your A2000 Valencia EL in manual mode. You will need the following parts to complete a handgun installation. Handgun with wand #002203F, adapter from handgun to 1/2" hose #006330 and quick connect fitting with o-ring from hose to machine #636407 + 440982. 1/2" hose sold separately.
a 2000 valencia 190 el
Crop
Fruits
Mesh
24/40, dual element
Width
70 inches
Length
175 inches
Material
Polyethylene
Agitation
Multi blade mechanical and bypass agitation
Air Speed
78 mph
Area Size
Up to 500 ha / Over 500 ha
FAN Model
33 inches, high mount
Rotation
2,100 rpm
Air Volume
32,630 cfm
PUMP - Model
Jacto JP-190 Piston Pump
Pump Capacity
50 gpm
TANK Capacity
550 gallon
FILTER - Model
FVS 200
Maximum Pressure
300 psi
Maximum PTO Speed
540 rpm
Net Weight (Empty)
2,315 lbs
Recommended Tractor Size
80 hp and above
Maximum Power Consumption
51 hp
Recommended Working Speed
1 to 4 mph
Height Axle In High Position
141 inches, 126 inches in low position
