ID # 24562386

Jacto - A 2000 Super Export EL

  • Jacto A 2000 Super Export EL
  • Jacto A 2000 Super Export EL
  • Jacto A 2000 Super Export EL
  • Jacto A 2000 Super Export EL
  • Jacto A 2000 Super Export EL
  • Jacto A 2000 Super Export EL
  • Jacto A 2000 Super Export EL
  • Jacto A 2000 Super Export EL
  • Jacto A 2000 Super Export EL
  • Jacto A 2000 Super Export EL
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

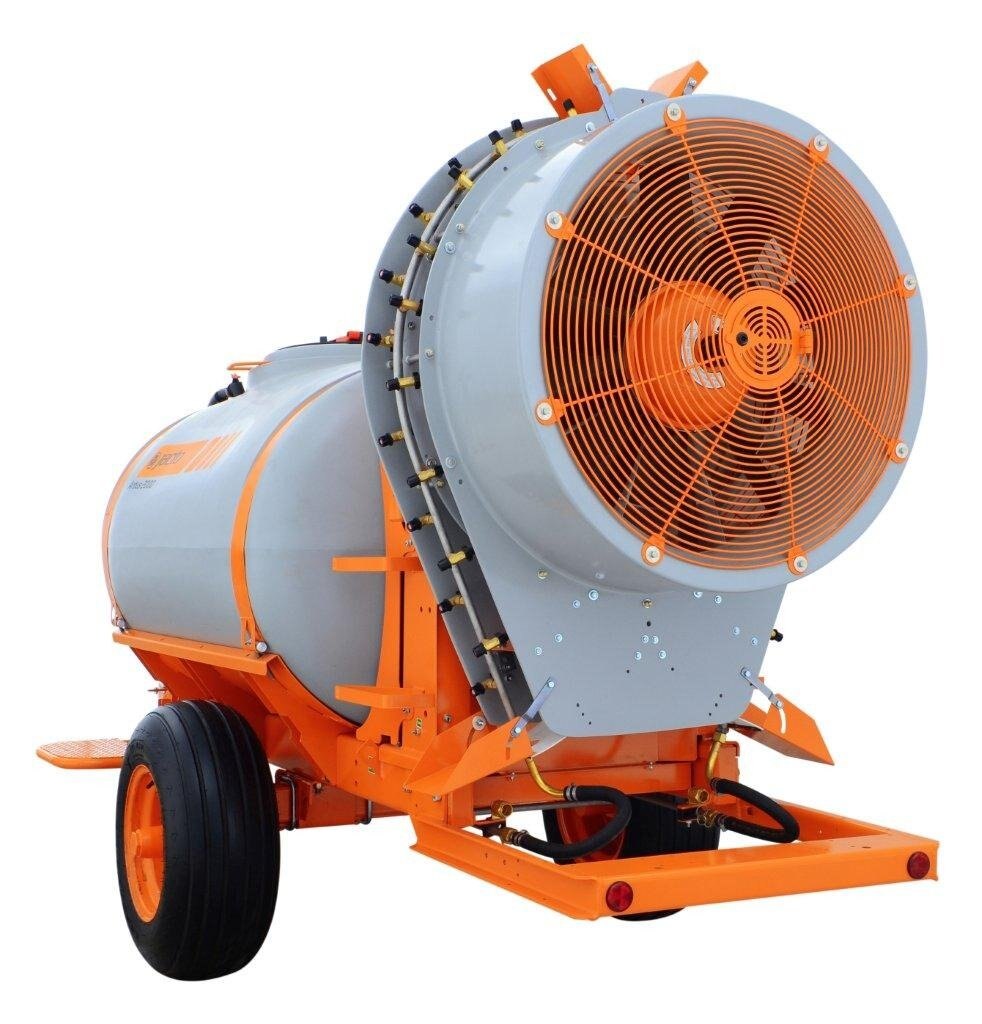

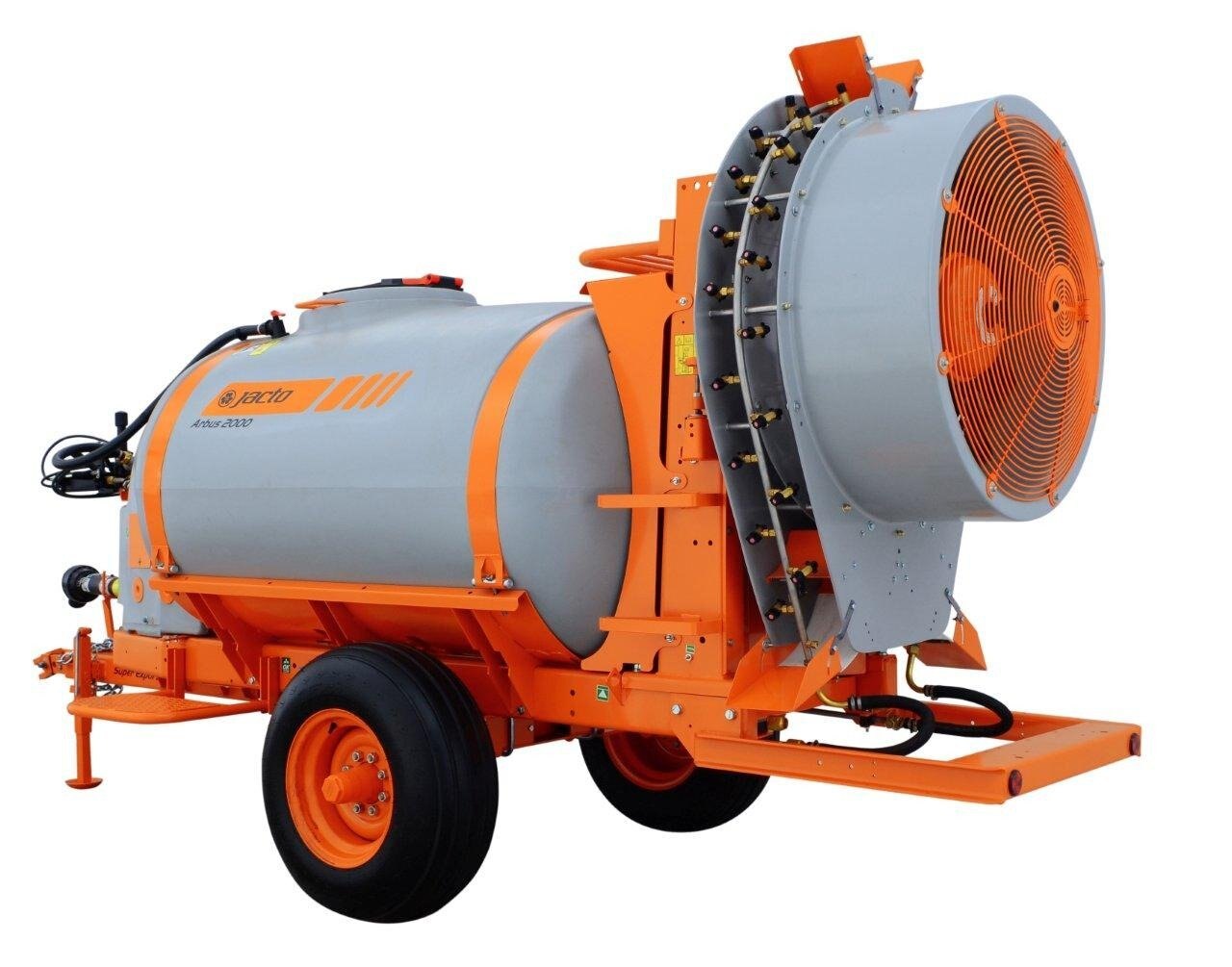

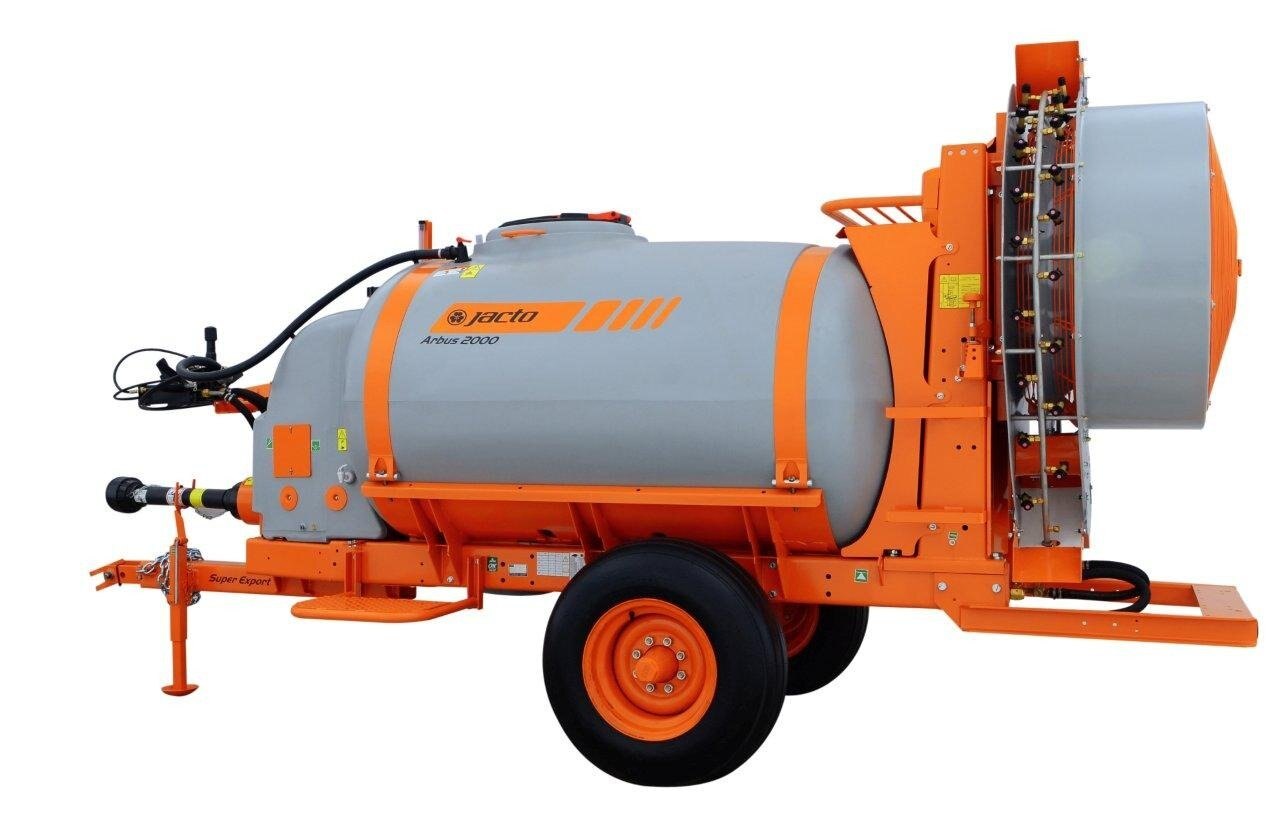

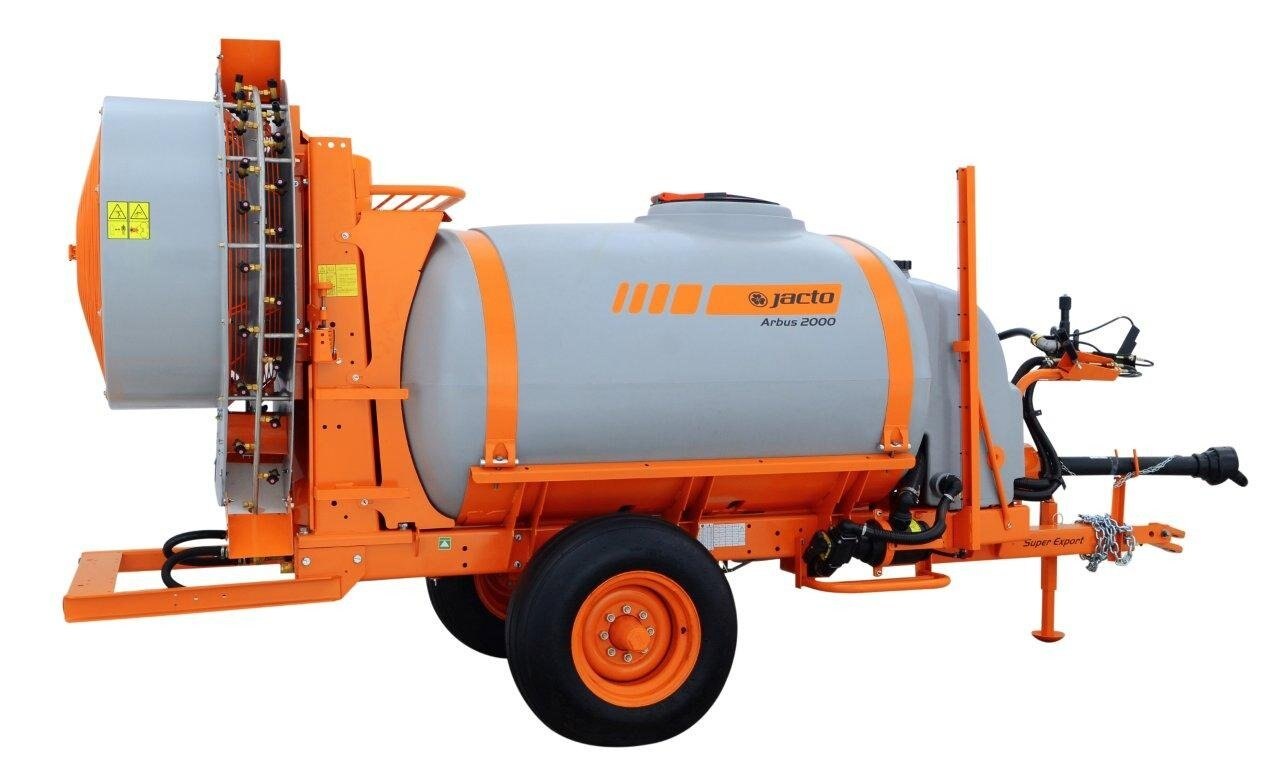

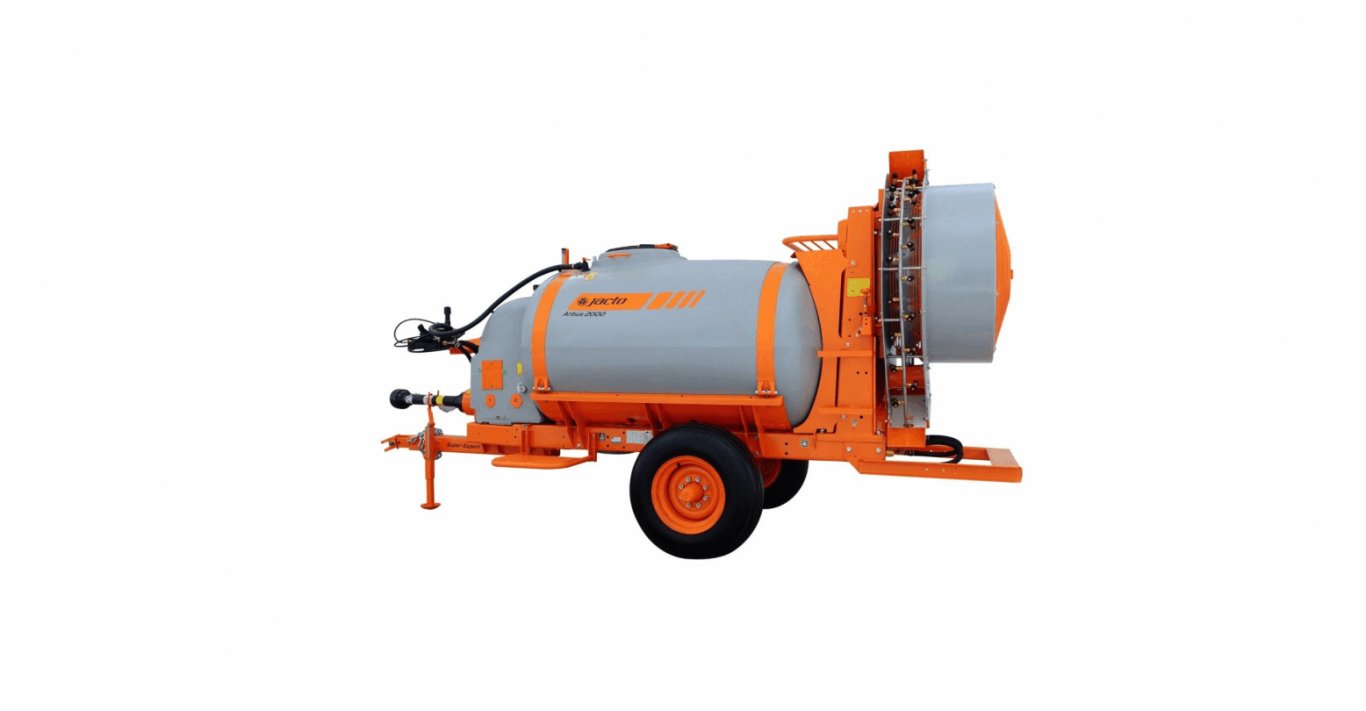

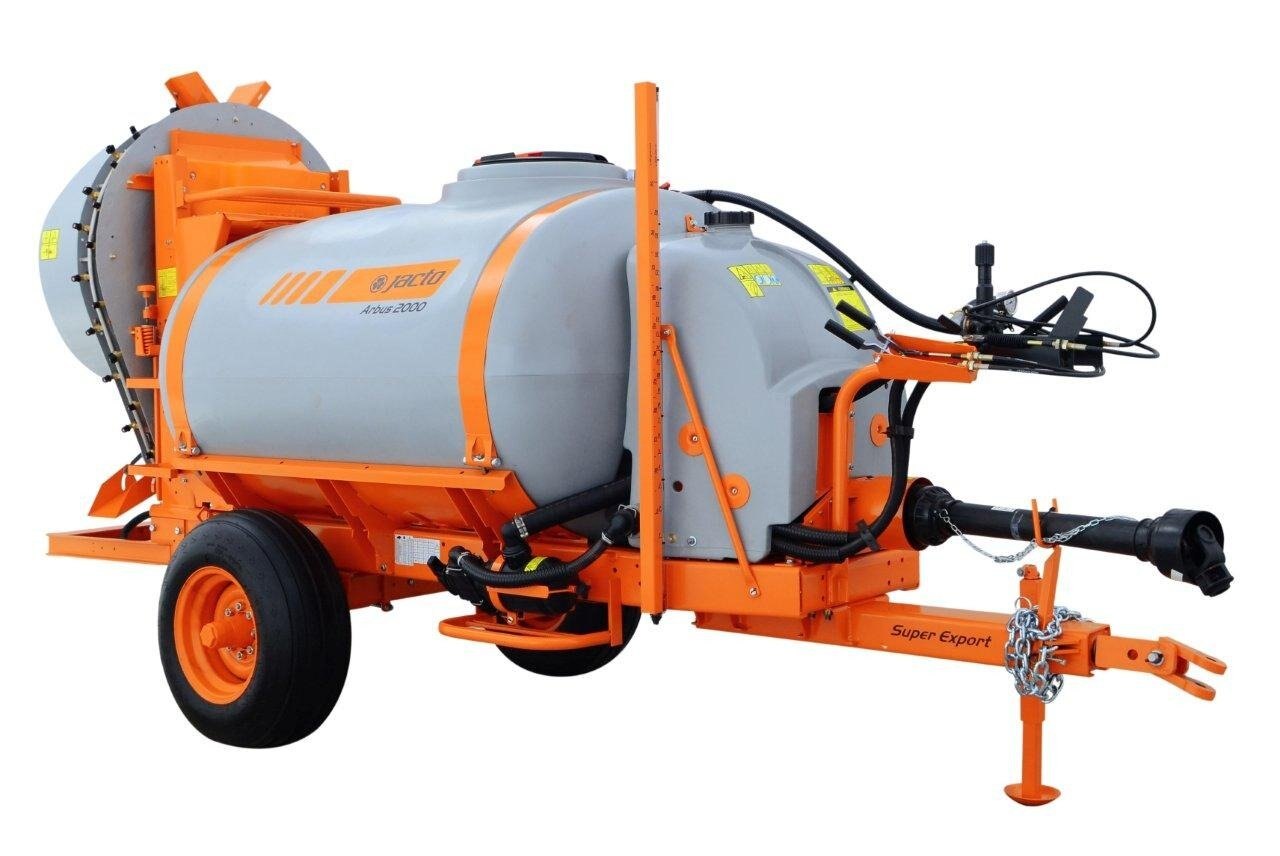

Jacto A 2000 Super Export ELJacto's Arbus 2000 Super Export EL is equipped with our mid-mount 33" two-port fan. The center of the fan is mounted approximately 66" from the ground, moving the air flow and adjustable nozzles closer to the crop canopy for increased spray deposition. Ideal when used in fruit and nut orchards, citrus groves and tall tree farms.

The Super Export EL features a 550 gallon high density poly tank, stainless chemical circuit tubing, 18 adjustable double flip over anti-drip nozzle holders with 36 ceramic nozzles, Jacto 50 GPM high pressure ceramic cylinder piston pump, CV-PTO shaft for tight turns without needed a heavy specialty hitch, adjustable height axle, chemical, circuit and freshwater rinse tanks and 11L-15 flotation tires.

The Super Export EL also comes standard with electric spray valves with an in-cab controller combined with only needing an 80 hp or larger tractor, the Super Export provides excellent value for growers with large groves and orchards.
Specifications
Model
A 2000 Super Export EL
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Jacto
resources
Brochure                                 Download
Operators Manual                     Download
Illustrated Parts List                  Download



features

• 550 gallon poly tank, trailer mounted

• 33 inch diameter – 2 port fan, mid-mount standard

• 11L-15 10-ply tires

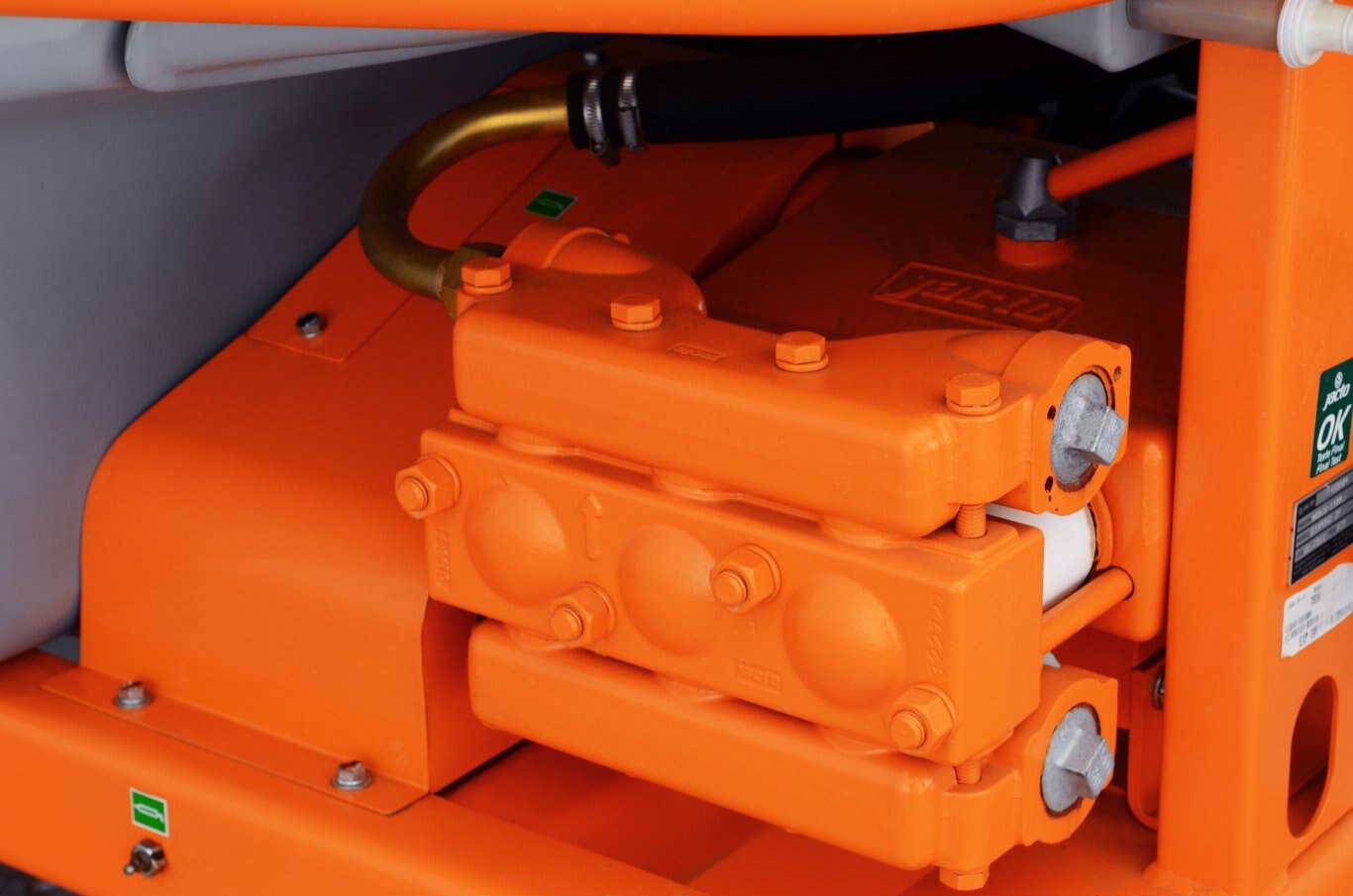

• Jacto JP190 ceramic cylinder piston pump – 50 gpm @ up to 300 psi

• CV PTO shaft for tight turns

• 18 Anti-Drip double flip-over nozzle holders and 36 ceramic nozzles

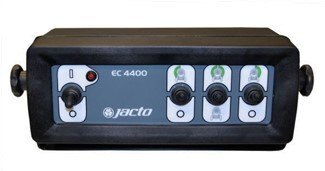

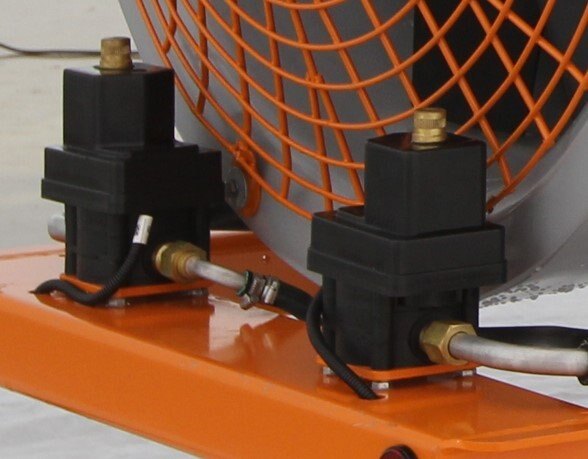

• Electric spray valves with in-cab controller

• Adjustable axle height

• Multi blade mechanical and hydraulic agitation

• In-line dual stage washable filter

• Chemical container, 23 gallon chemical circuit and fresh-water rinse systems

• Plumbed for optional hand guns

• Recommended tractor – 80 HP and above

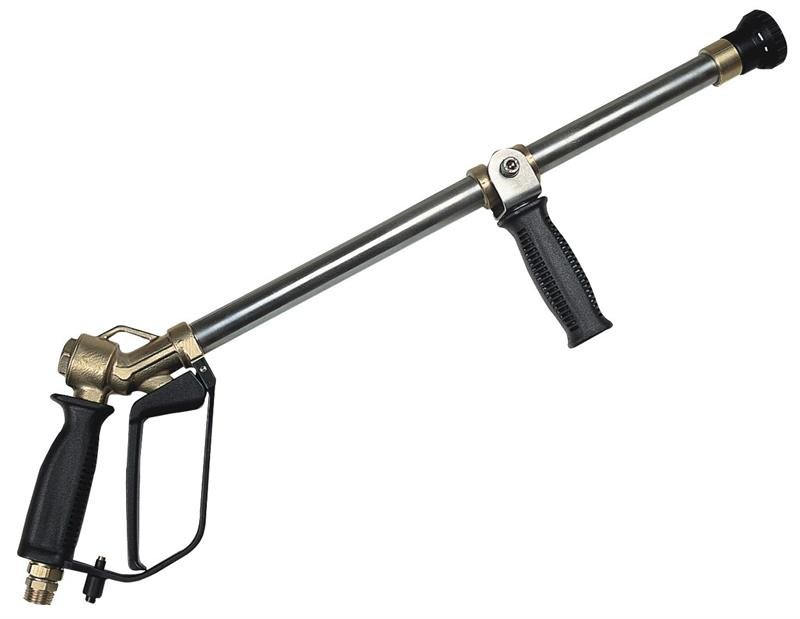

Jacto A 2000 Super Export EL Optional Spray Handgun with Wand

You can add an optional handgun and spray hose for use with your A2000 Super Export EL in manual mode. You will need the following parts to complete a handgun installation. Handgun with wand #002203F, adapter from handgun to 1/2" hose #006330 and quick connect fitting with o-ring from hose to machine #636407 + 440982. 1/2" hose sold separately.
a 2000 super export el
Crop
Fruits
Mesh
24/40, dual element
Width
70 inches
Height
89 inches
Length
175 inches
Material
Polyethylene
Agitation
Multi blade mechanical and bypass agitation
Air Speed
78 mph
Area Size
Up to 500 ha / Over 500 ha
FAN Model
33 inches, mid mount
Air Volume
32,640 cfm
Net Weight
2315 lbs
PUMP - Model
Jacto JP-190 Piston Pump
Pump Capacity
50 gpm
TANK Capacity
550 gallon
FILTER - Model
FVS 200
Axle Track Width
55 to 61 inches
Maximum PTO Speed
540 rpm
Maximum Pressure
300 psi
Recommended Tractor Size
80 hp and above
Maximum Power Consumption
43 hp
Recommended Working Speed
1 to 4 mph
