Overview

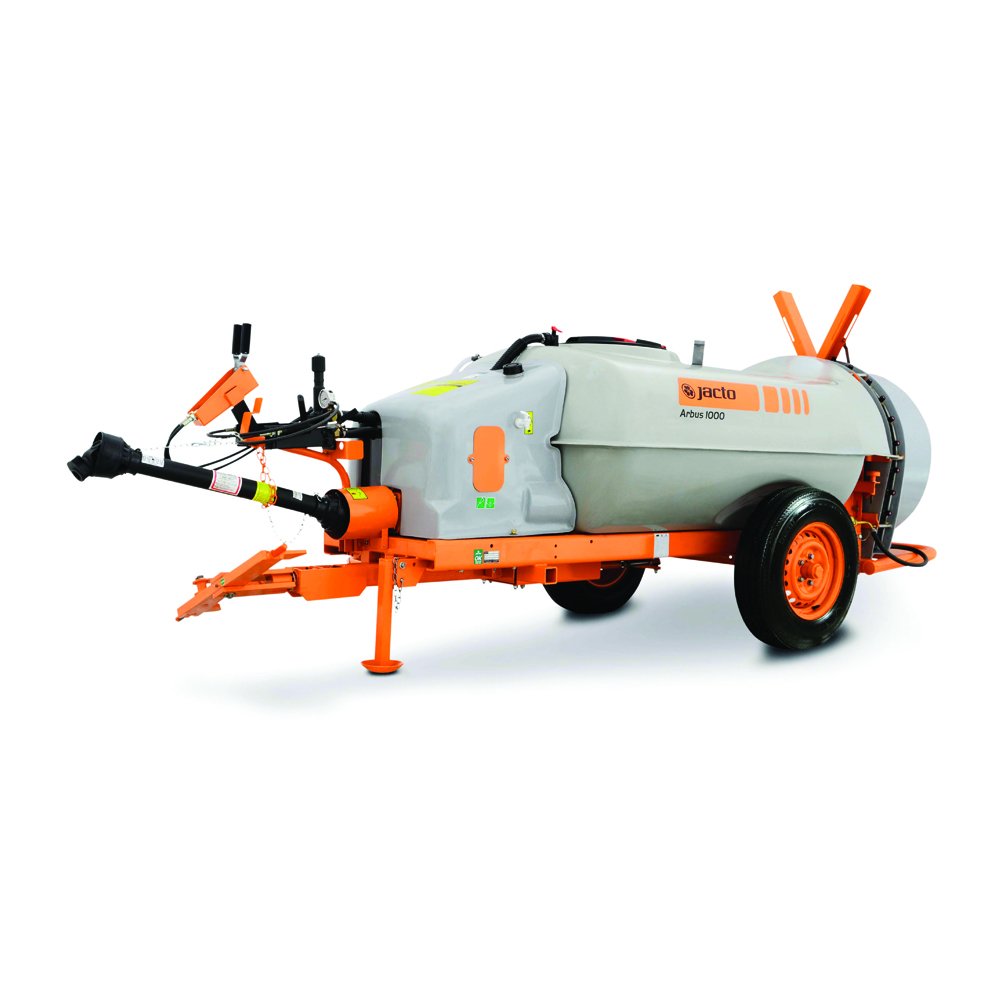

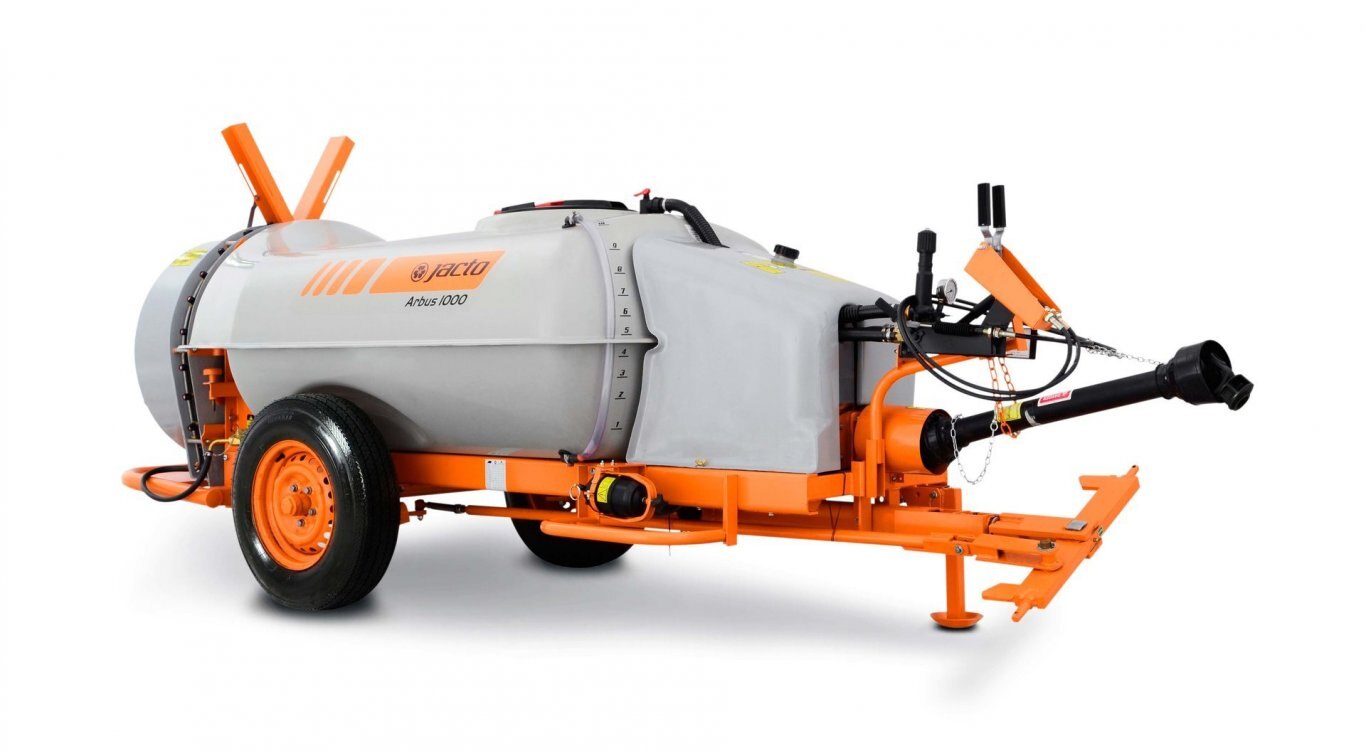

Jacto A 1000Jacto's low profile Arbus 1000 airblast sprayer has a steering axle that allows for tight turns as small as 9 foot, depending on tractor size. The "T" bar connects to the lift arms of the tractor and actuates a tie rod that turns the trailer wheels, allowing the sprayer to follow the track of the tractor. With both 28"(A1000-725) and 33"(A1000-850) fan sizes available, these versatile sprayers are perfect for orchards, vineyards, nurseries and highbush blueberries. The 33"fan A1000-850 is very popular with growers of dense and tall crops such as hops, citrus and older mature fruit orchards. Both models feature a fiberglass tank, stainless nozzle branch tubing, ceramic flip-over nozzles and Jacto ceramic cylinder piston pump. The A1000-725 has remote cable control standard and the A1000-850 has factory installed electric valves standard. Growers with cab tractors can add our optional electric valve kit with in-cab controls for the A1000-725. Our optional Minitower can be added to the A1000-725 for use in vertical growing crops such as highbush blueberries, spindle or trellised fruit trees, caneberries and nursery trees. The Minitower changes the spray pattern from a circle to a vertical spray curtain, more evenly matching the plant canopy for increased spray deposition and reduced drift. The Minitower will not fit the A1000-850.
Specifications
Model
A 1000
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Jacto
resources
Brochure                                 Download
Operators Manual                     Download
Illustrated Parts List                  Download



features

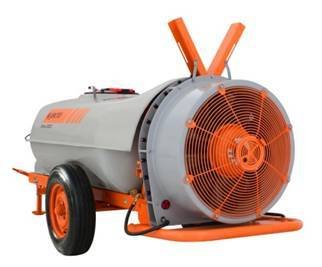

Jacto A 1000 ARBUS 1000 WITH 725 FAN

The 28 inch (725) fan has nylon blades reinforced with fiberglass that make them more resistant to corrosive agrochemicals than metal blades and is a great choice for crops with medium density and heights of up 18 feet tall. Ideal for grapes, blueberries, cane berries and spindle grown fruit orchards.

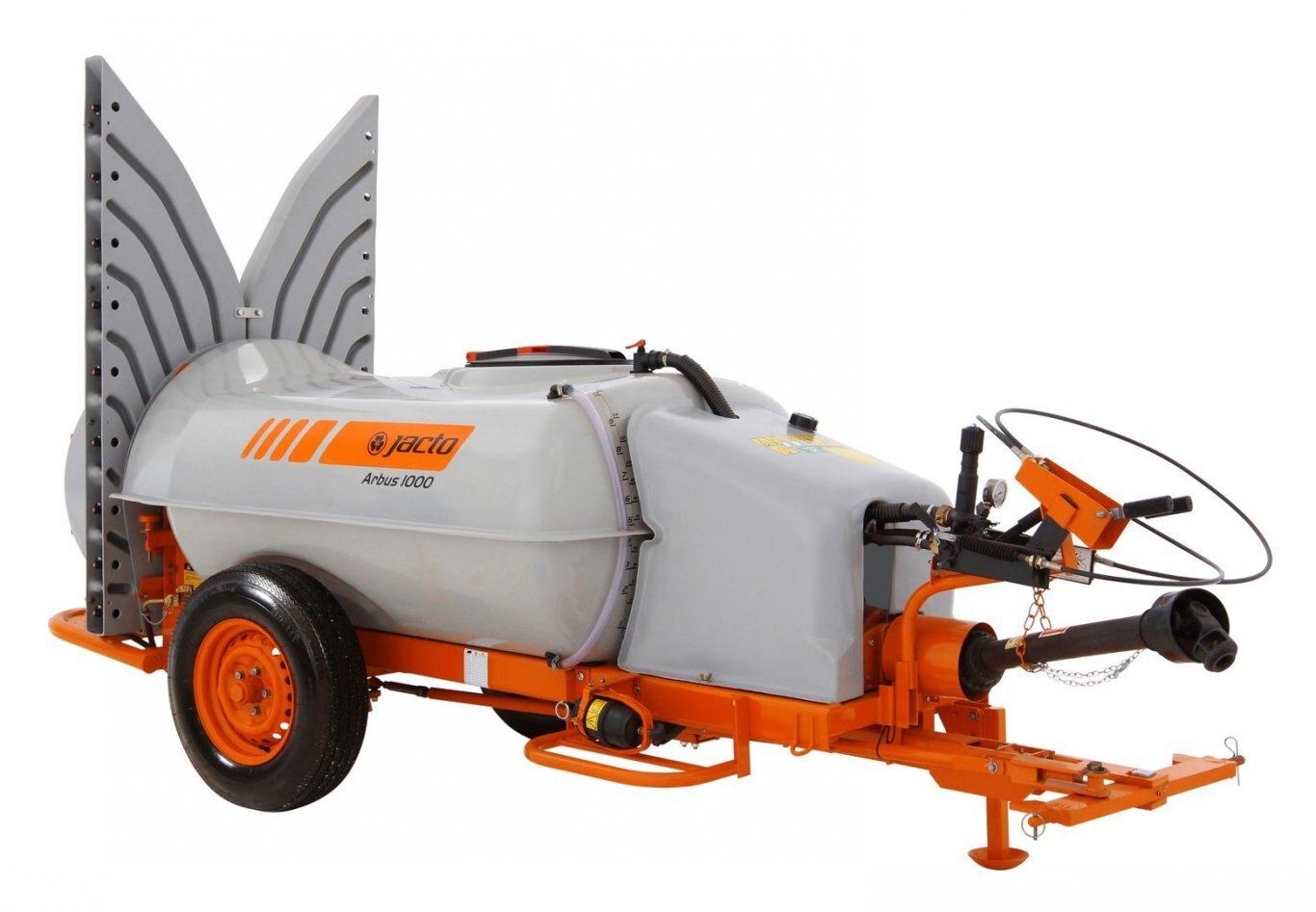

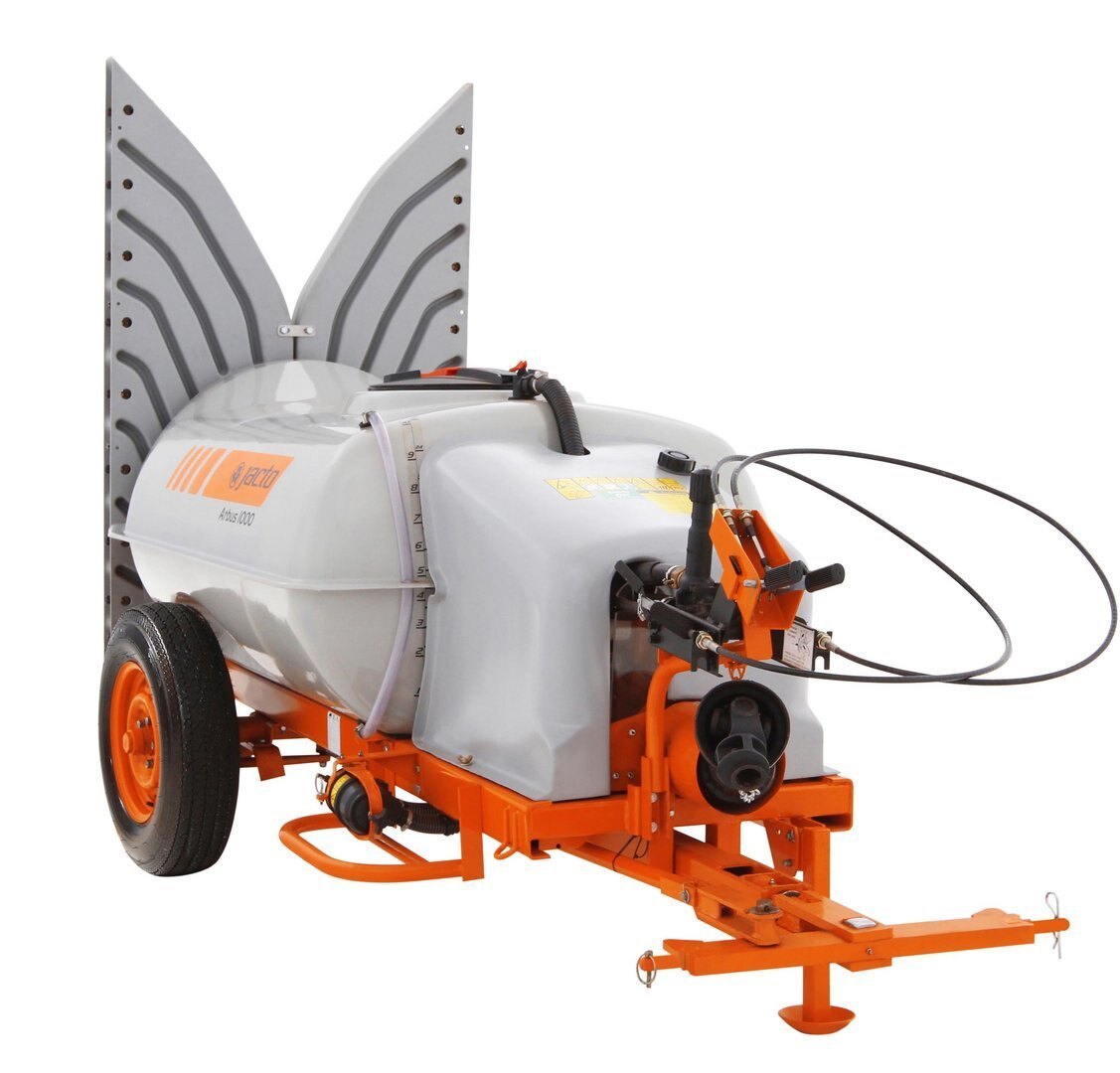

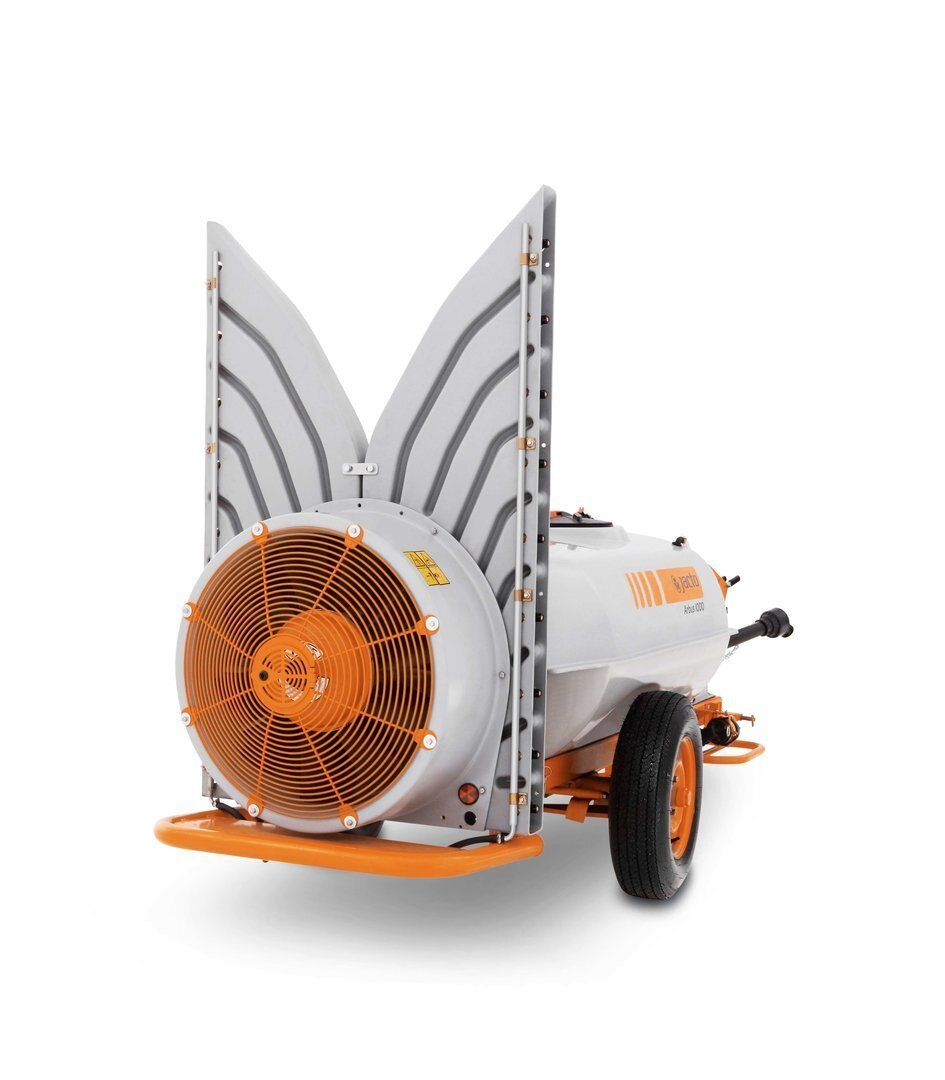

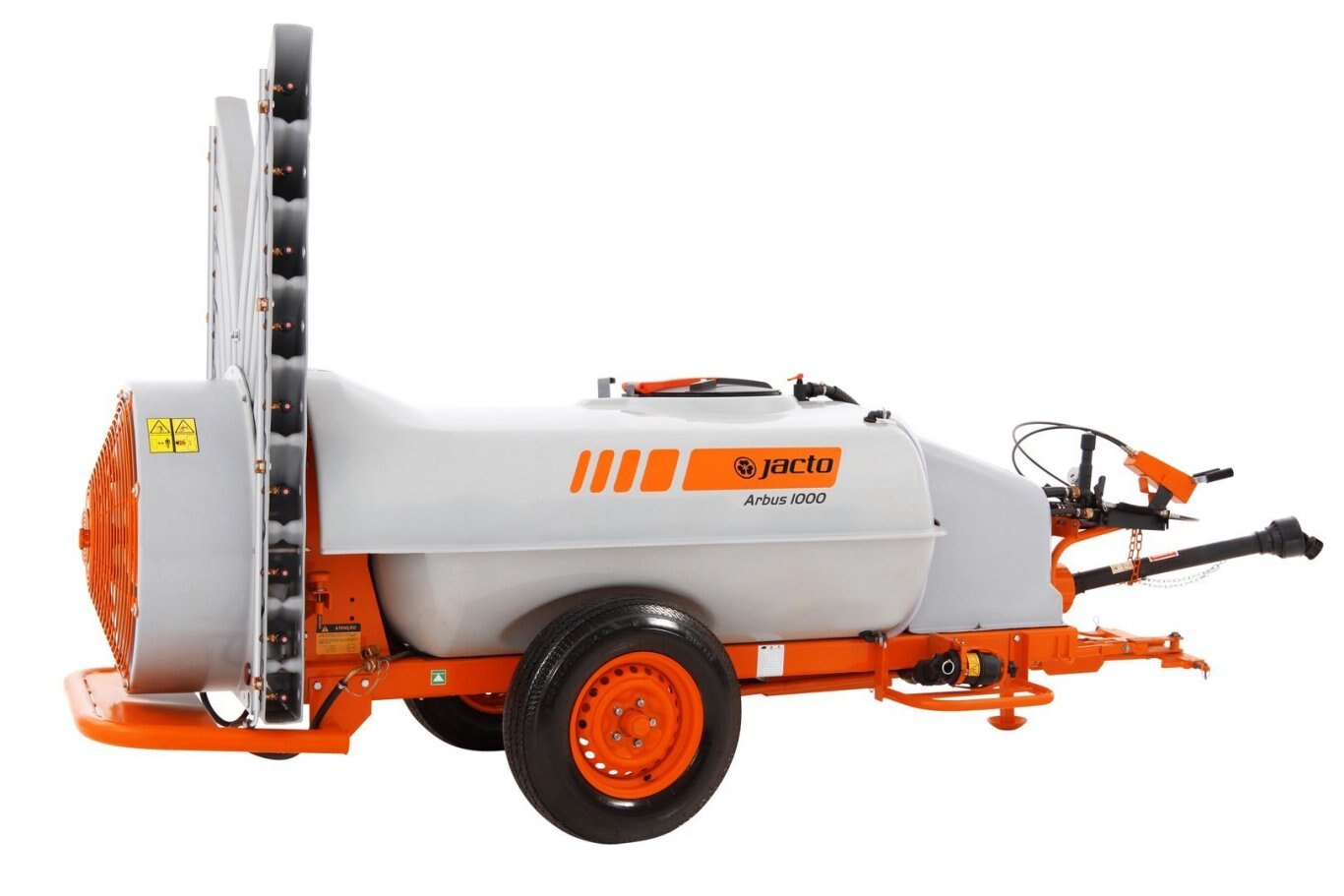

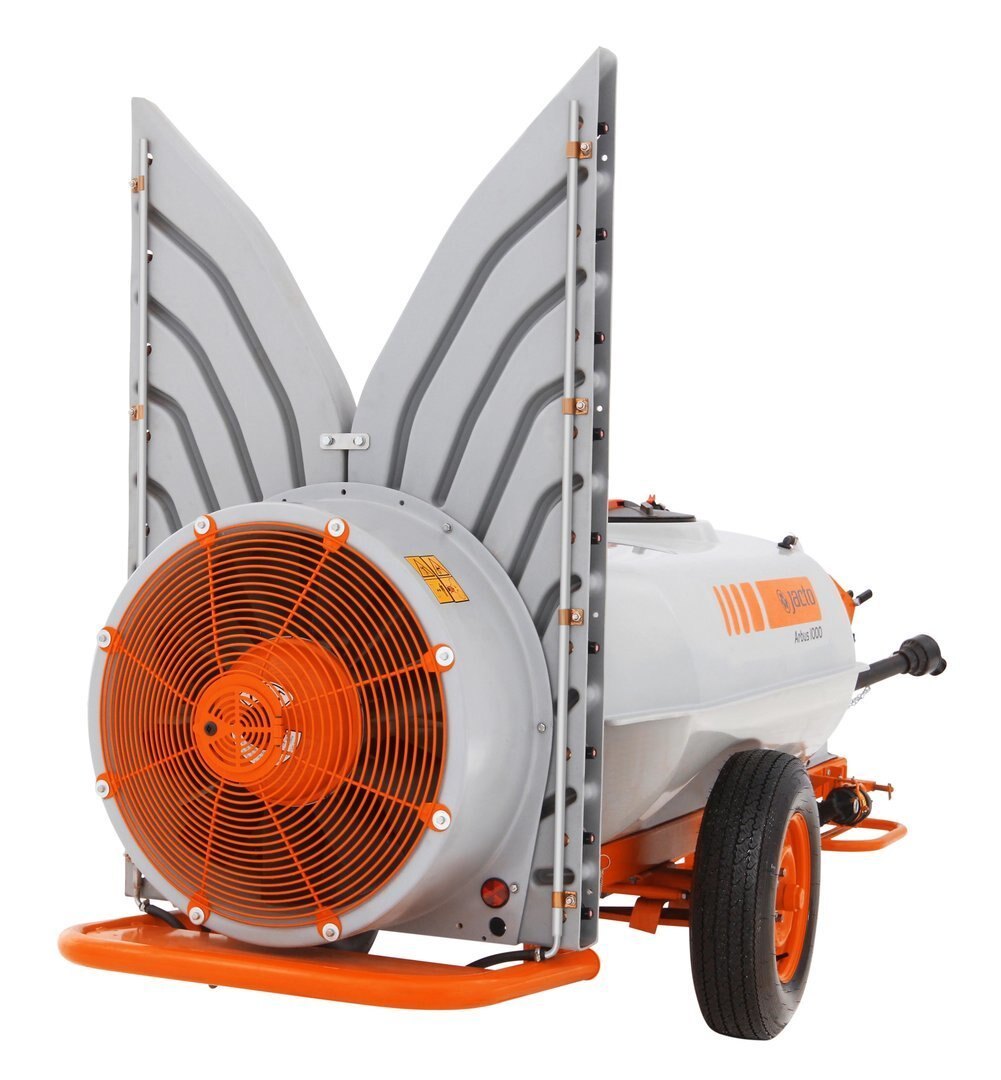

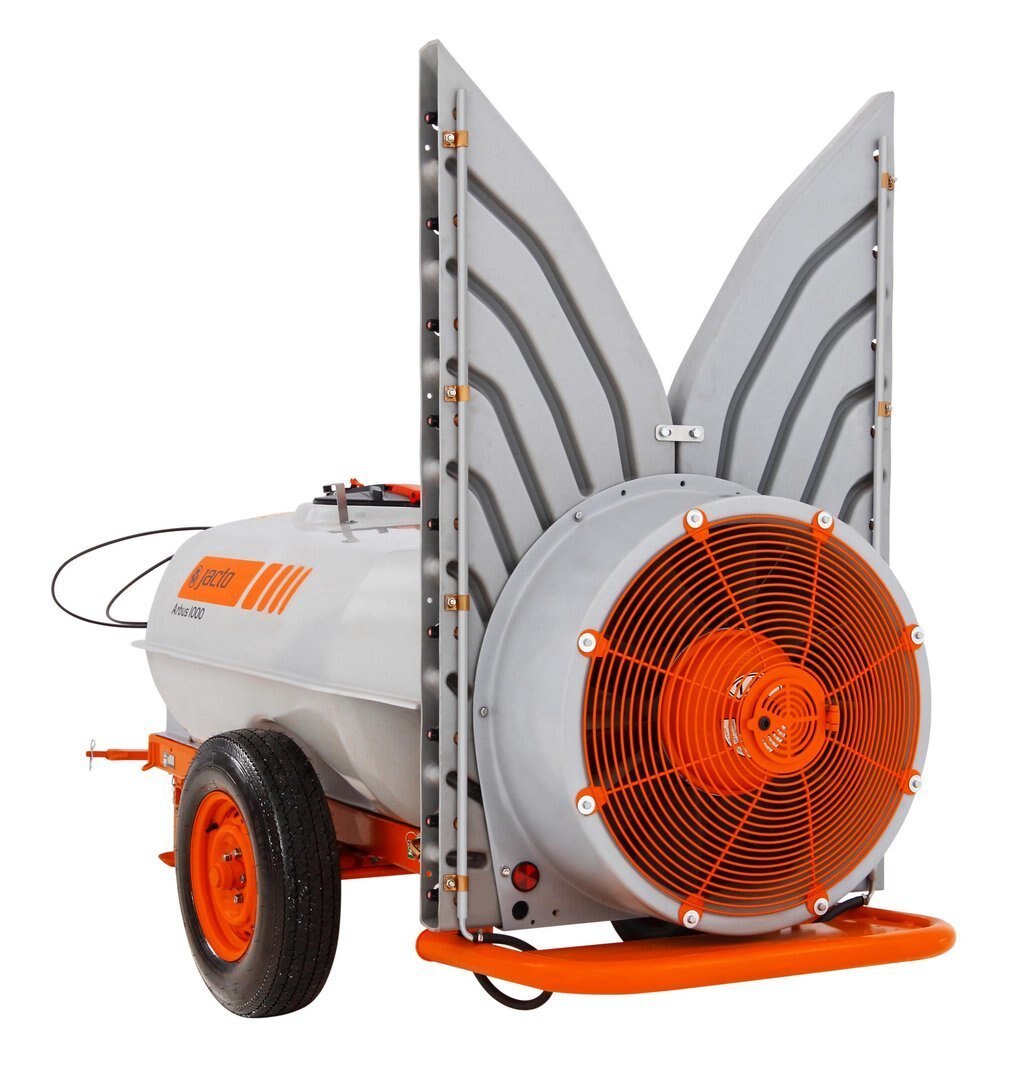

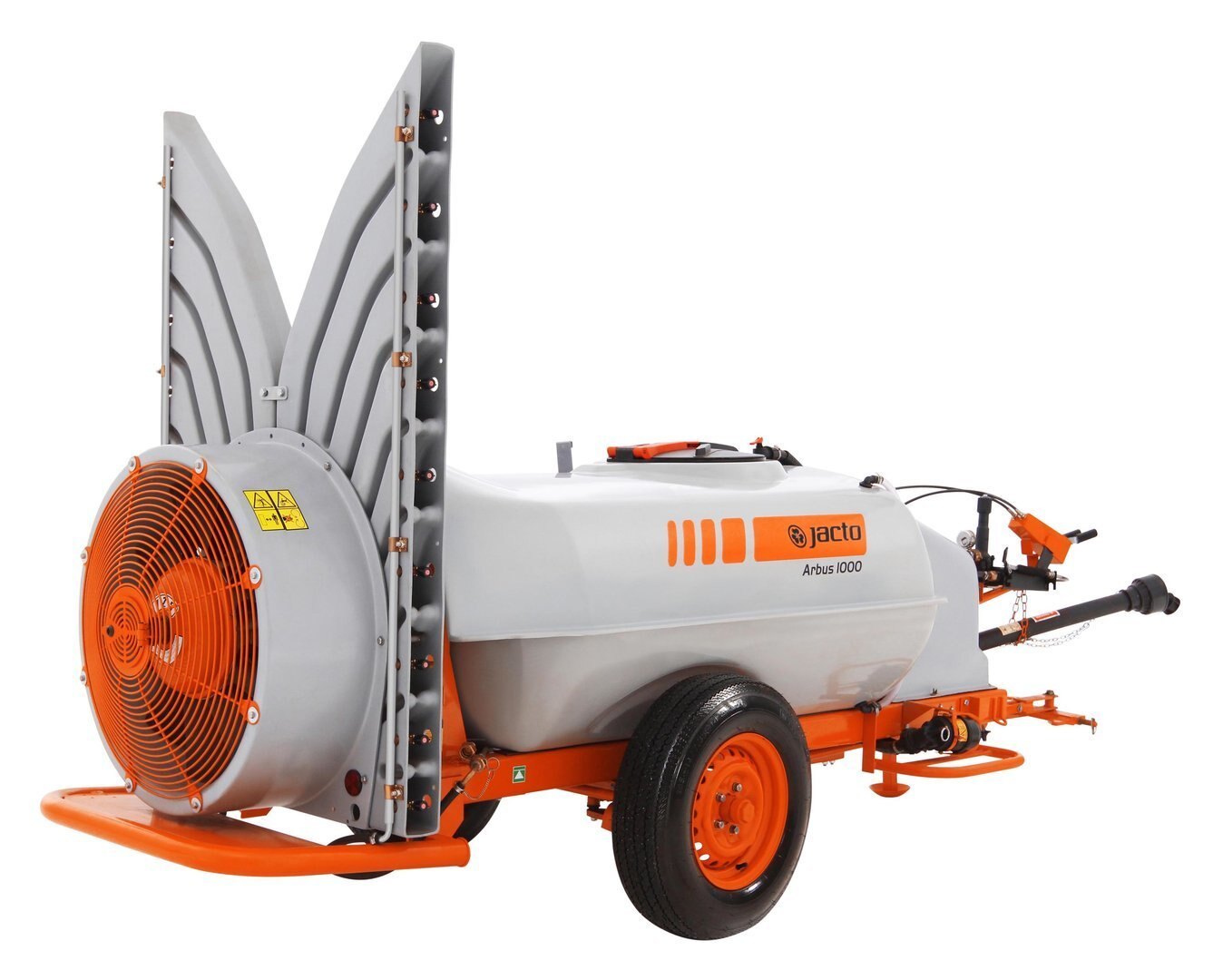

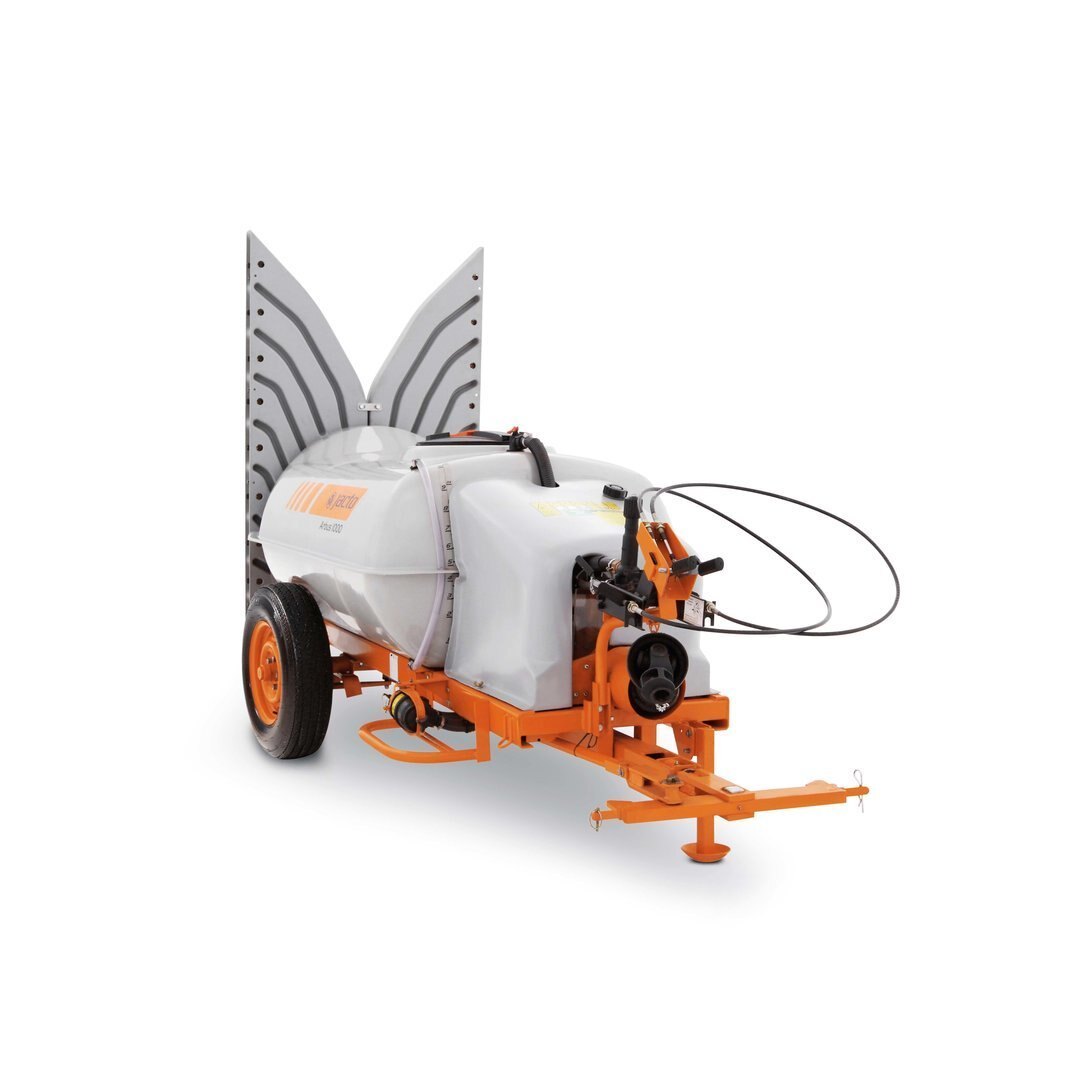

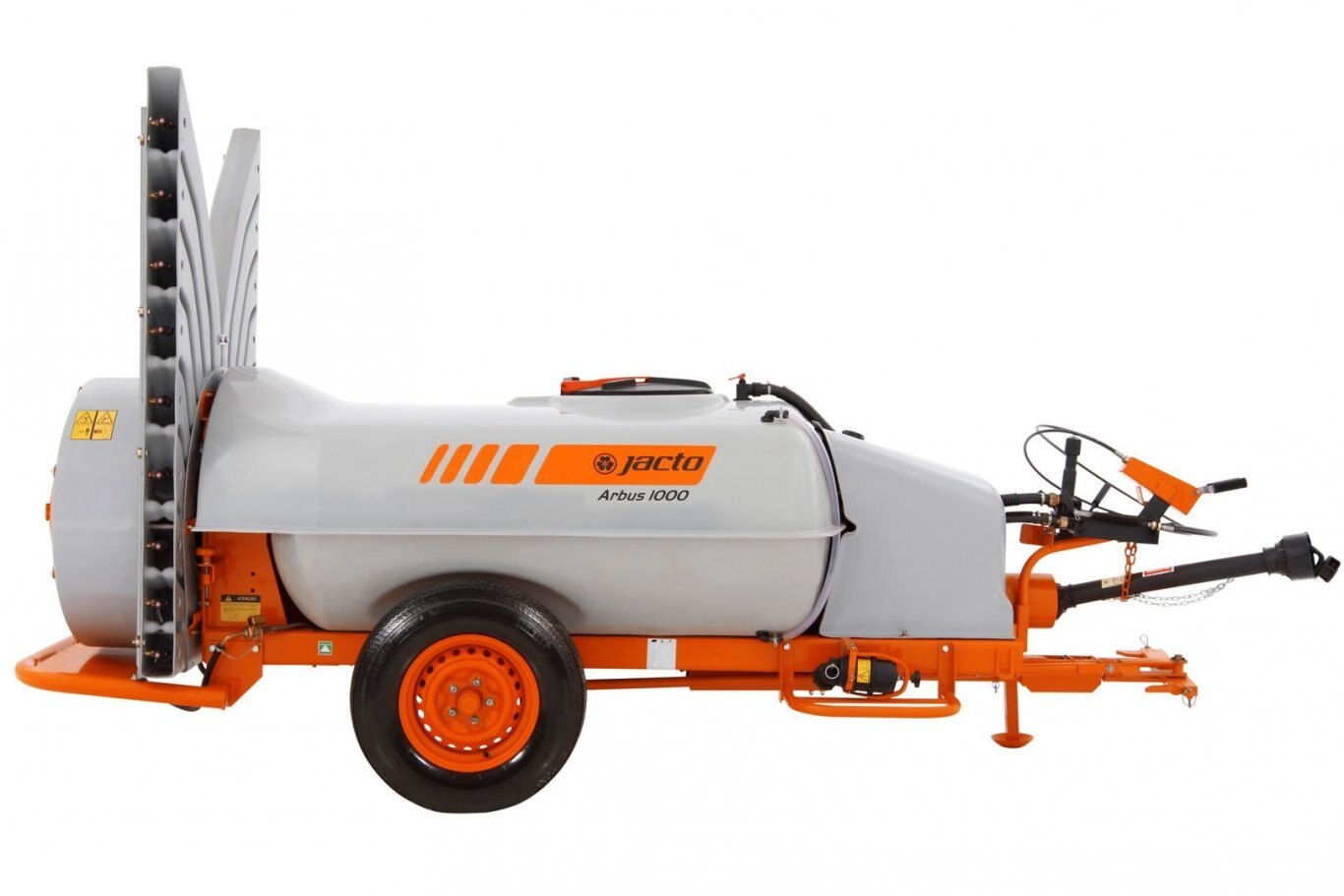

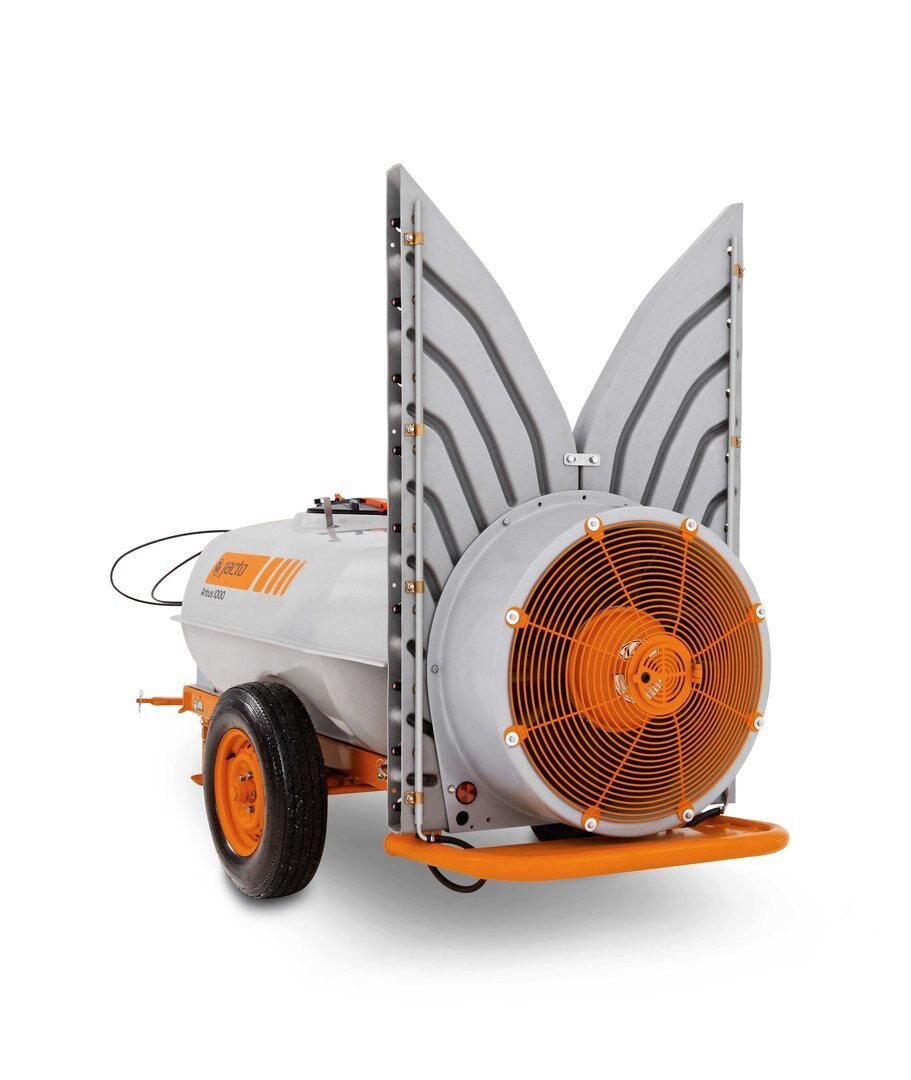

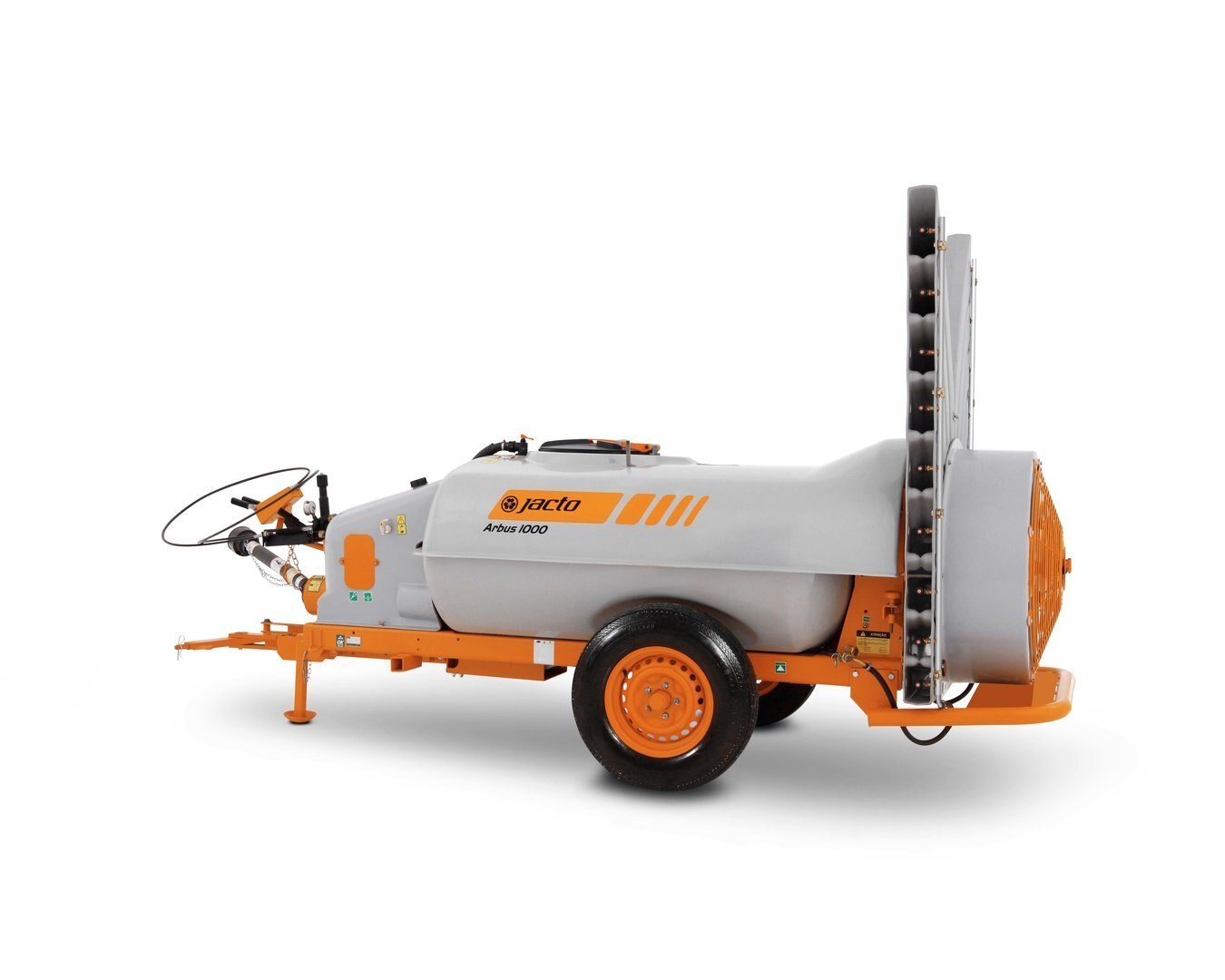

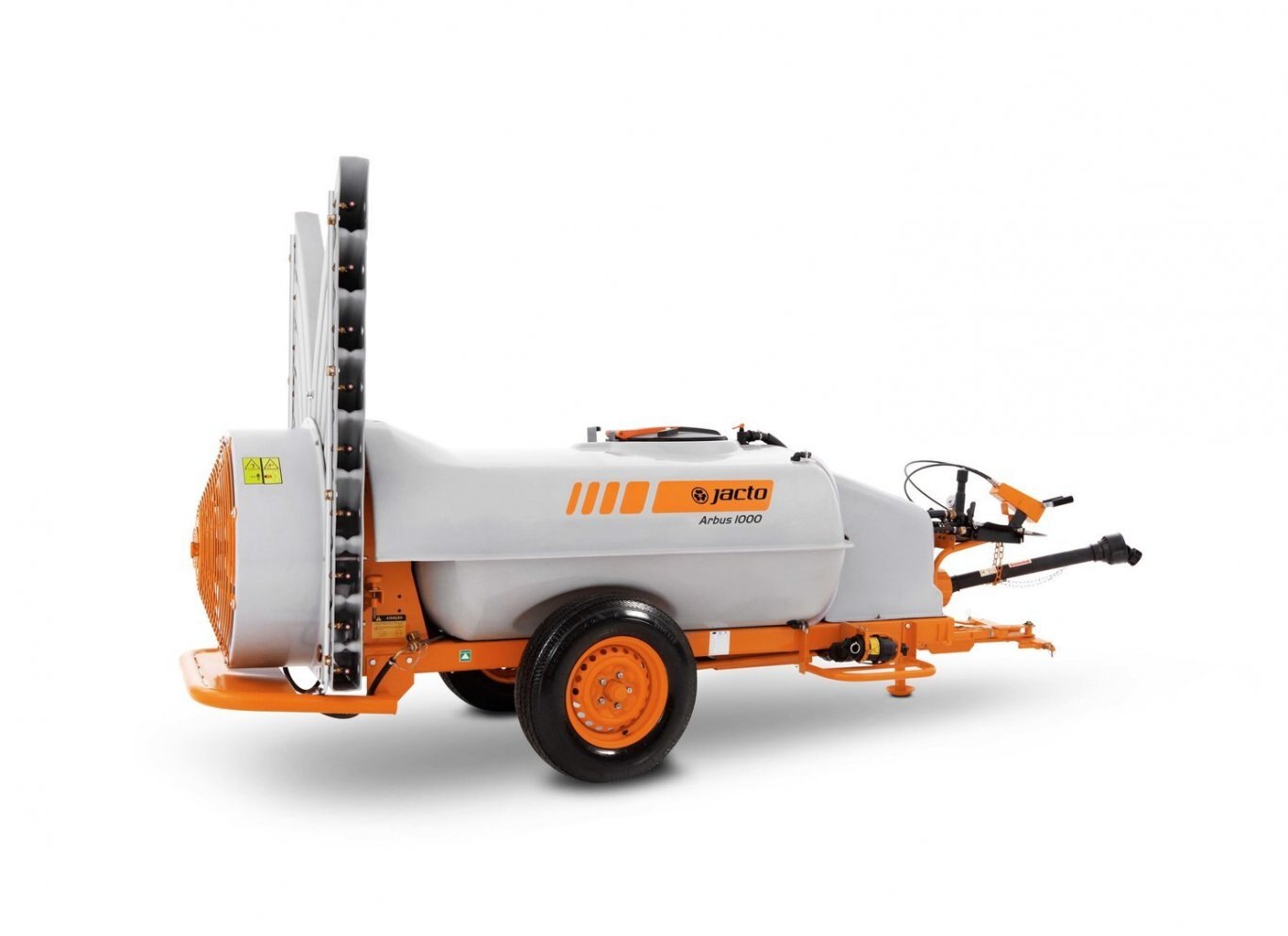

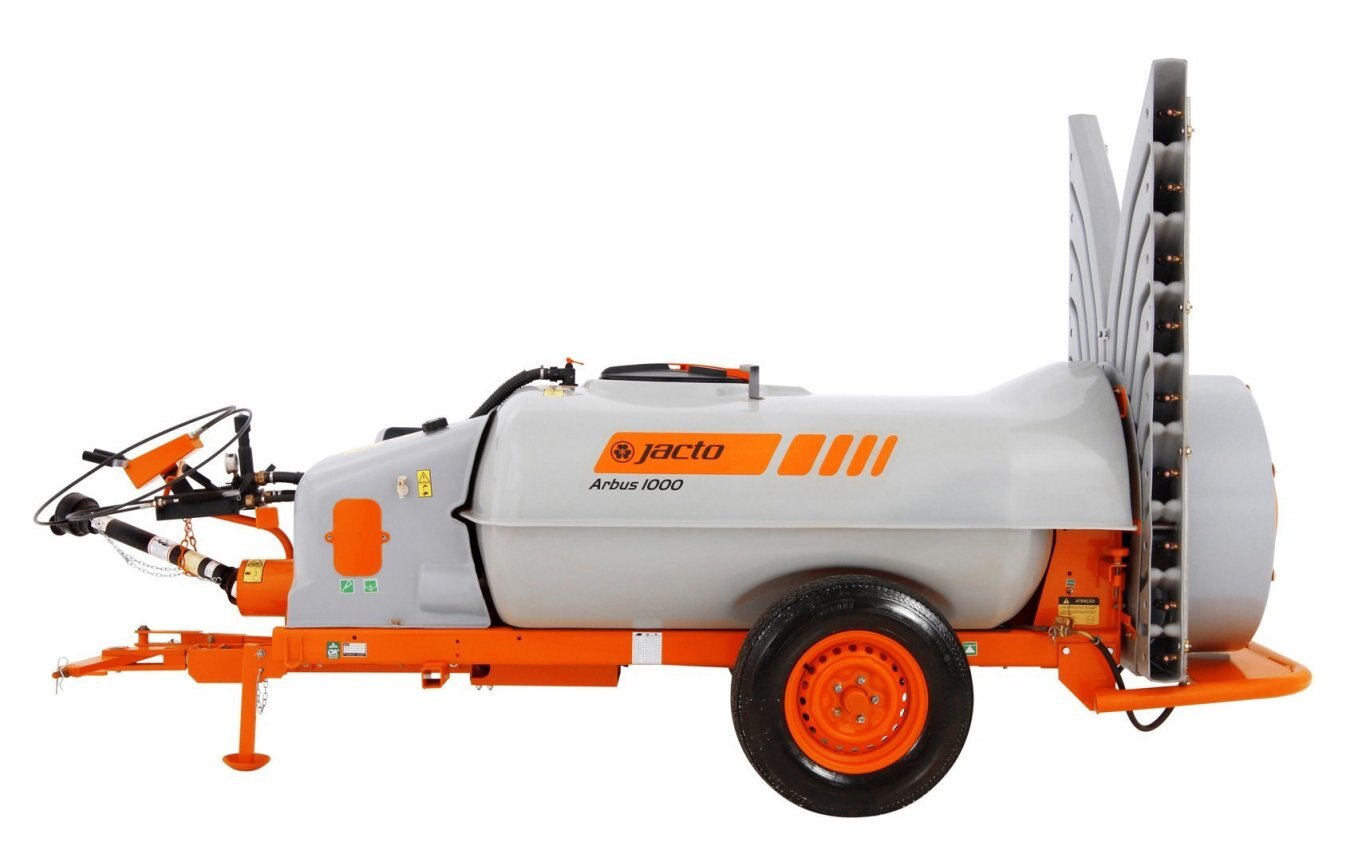

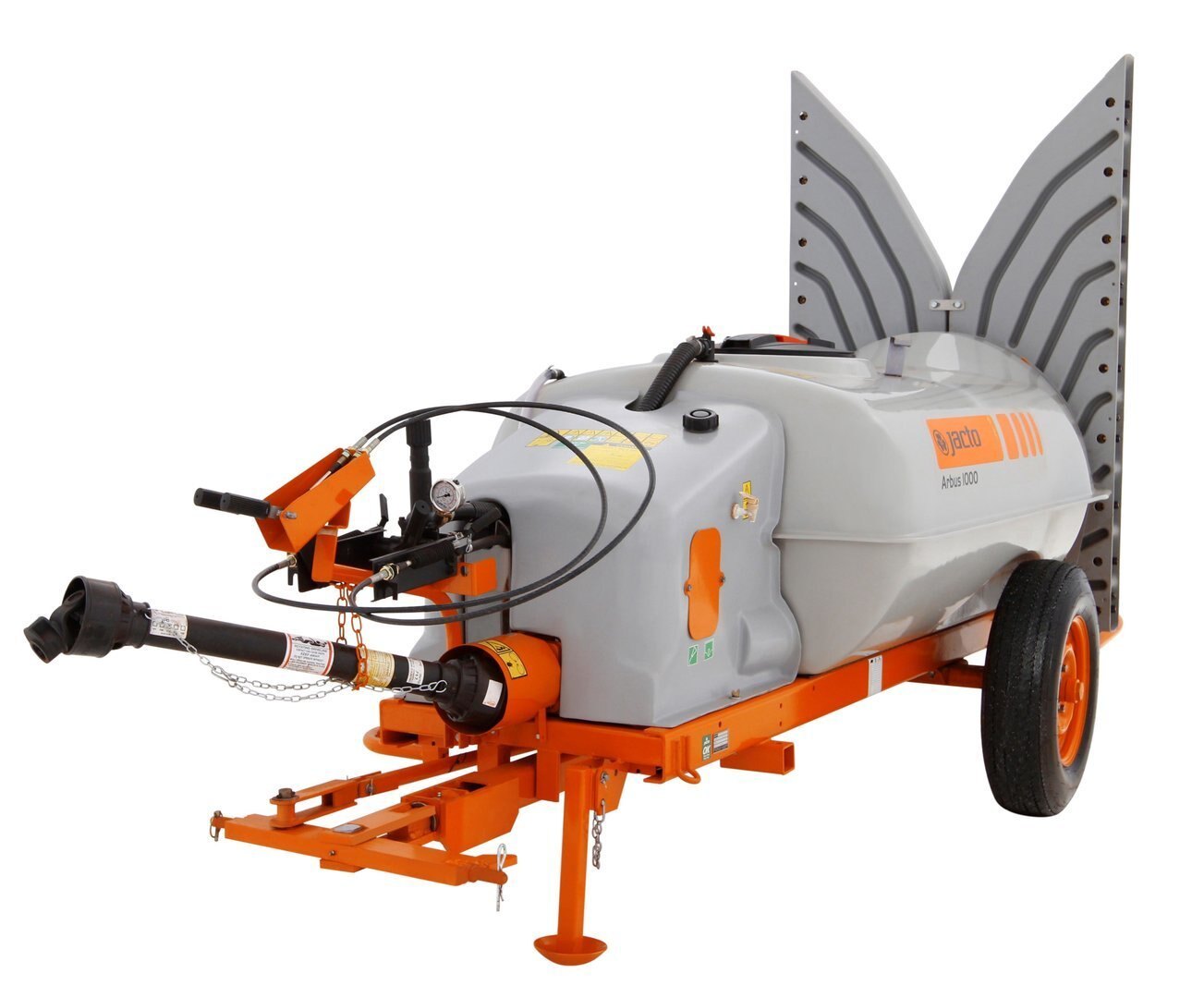

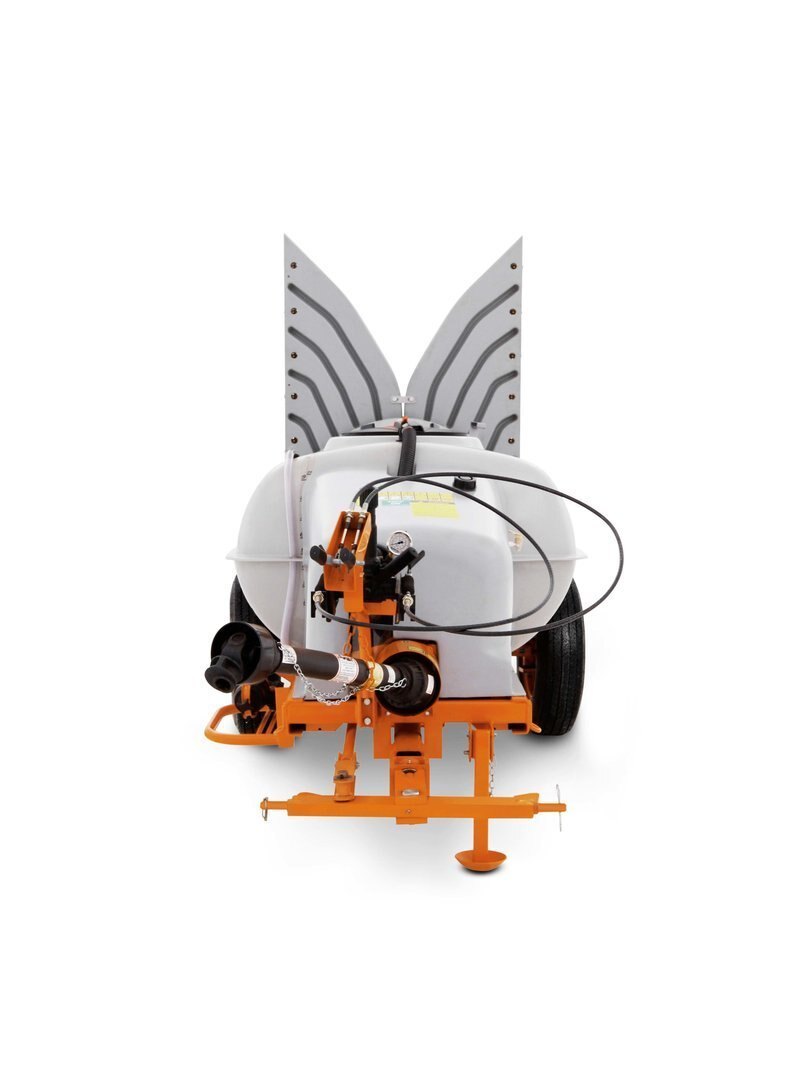

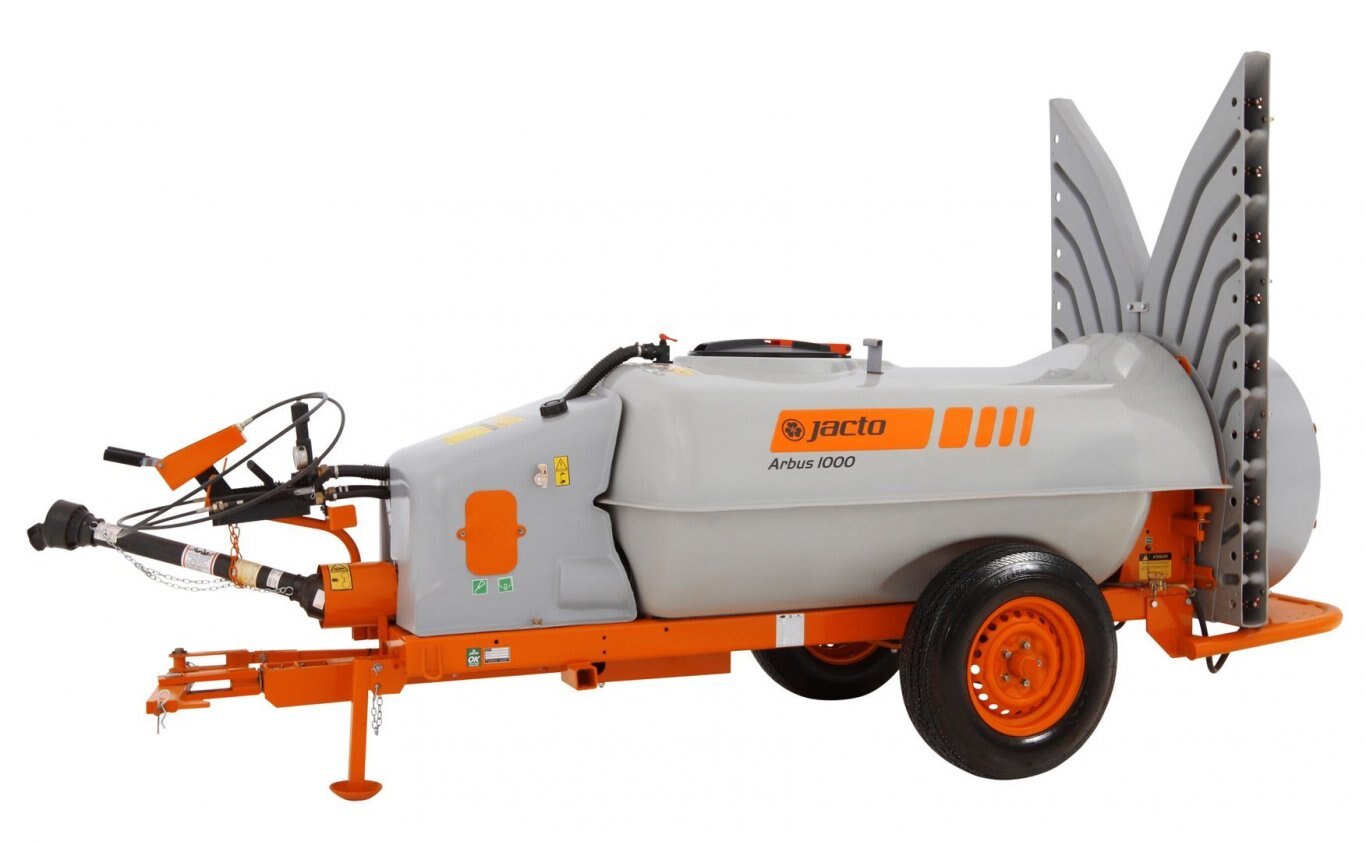

Jacto A 1000 ARBUS 1000-725 with Optional MINITOWER

Our optional Minitower can be added to any new or existing A1000-725 for use in vertical growing crops such as highbush blueberries, spindle or trellised fruit trees, caneberries and nursery trees. The Minitower changes the spray pattern from a circle to a vertical spray curtain, more evenly matching the plant canopy for increased spray deposition and reduced drift. The Minitower will not fit on the A1000-850 model.

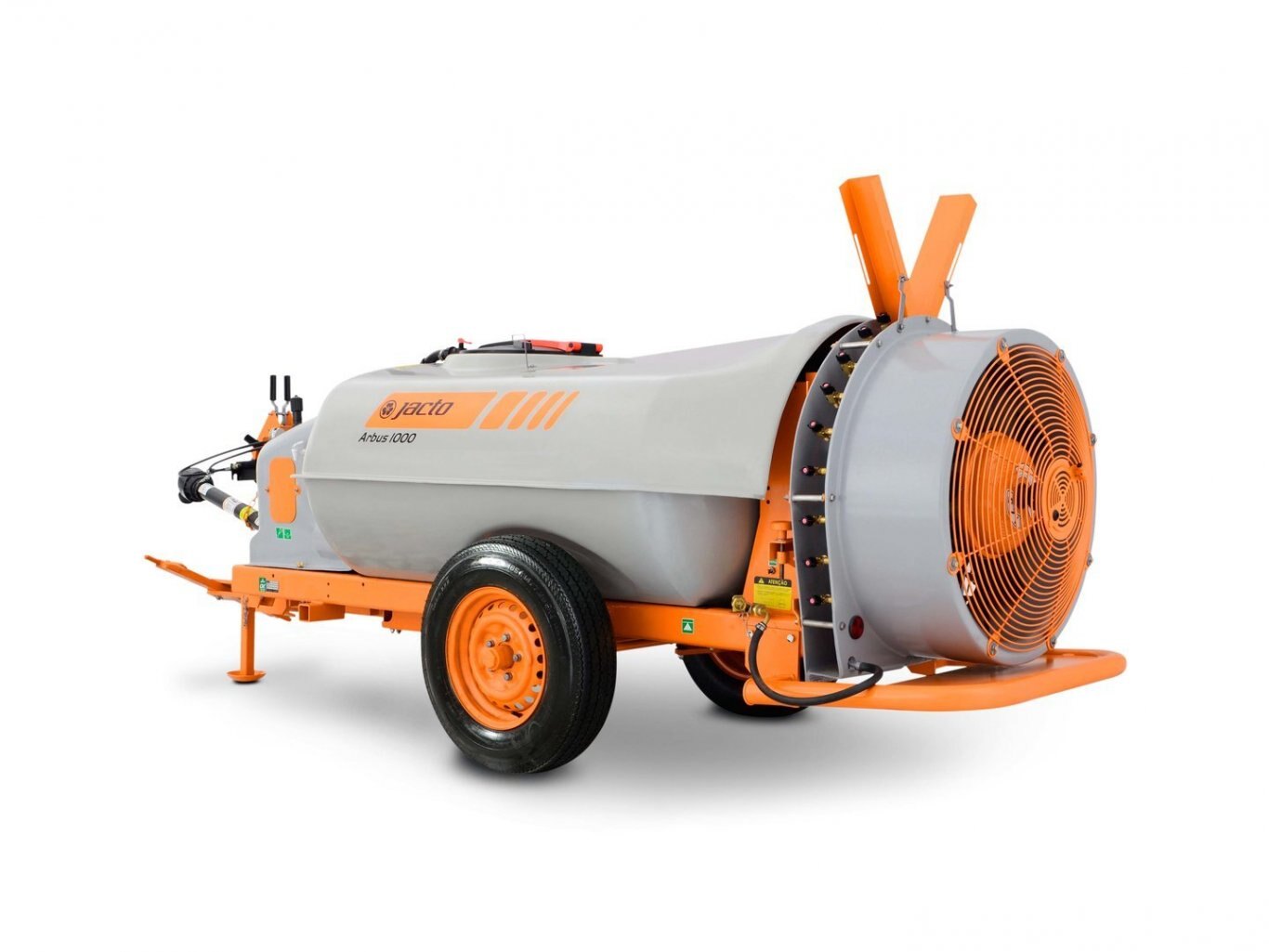

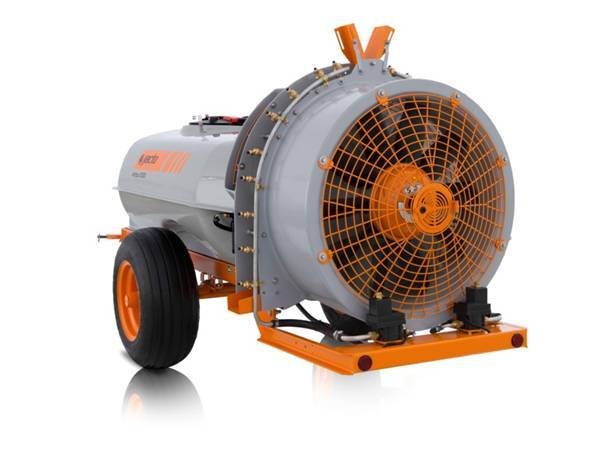

Jacto A 1000 ARBUS 1000 WITH 850 FAN

The 33 inch (850) fan also  has nylon blades reinforced with fiberglass that make them more resistant to corrosive agrochemicals than metal blades. This fan size is a great choice for crops that have dense canopies and heights up to 25+ feet tall, such as hops, highbush blueberries, citrus, nut trees, large specimen nursery trees and mature orchards.

Features of the A1000-725 and A1000-850

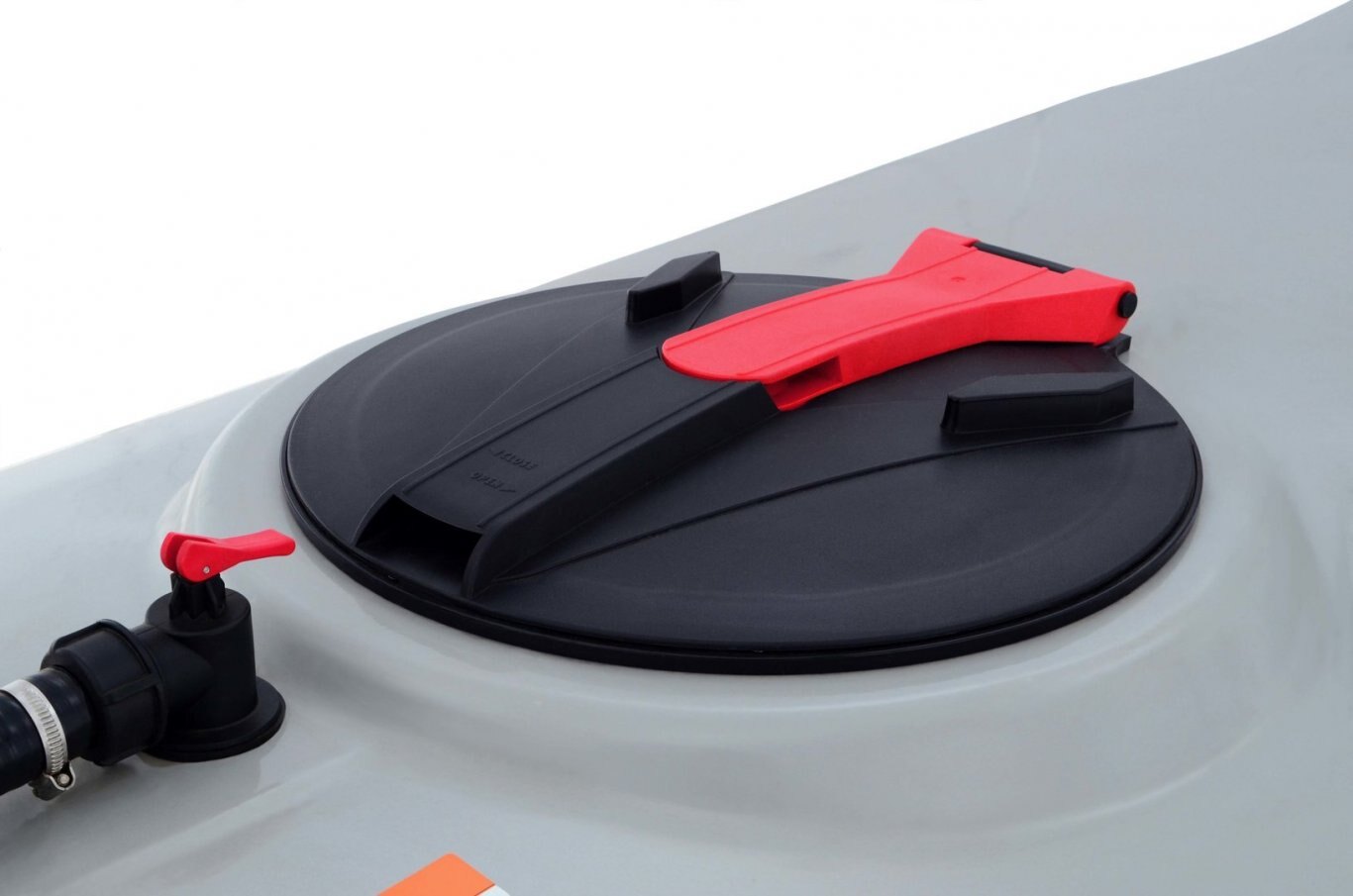

• 265 gallon fiberglass tank, trailer mounted, with steering axle

• 11L-15 10-ply flotation tires

• 28 inch diameter fan A1000-725 or 33 inch diameter fan A1000-850

• Fan disconnect, for when filling or using a spray gun

• Jacto JP75 ceramic cylinder piston pump – 20 gpm @ up to 300 psi

• 18 double flip-over brass nozzle holders with 36 ceramic nozzles

• Remote cable controls A1000-725, electric valves A1000-850

• Mechanical and bypass agitation

• Suction filter with shutoff and washable mesh element

• Adjustable top deflectors

• Chemical container and fresh-water rinse systems

• Plumbed for optional hand guns

• Recommended tractor – 55 HP and above

• Optional electric valves available for A1000-725, standard on the A1000-850

• Optional Minitower available for A1000-725, will not fit A1000-850
a 1000/725
Crop
Fruits
Mesh
60 mesh
Height
55 inches / 89 inches with minitower
Length
142 inches
Power
12.5 hp
Agitator
Multi blade mechanical and bypass
Material
Fiberglass
Air Speed
94 mph
Area Size
Up to 500 ha / Over 500 ha
Rotation
1,970 rpm
Air Volume
20,553 cfm
Track Width
45 inches
FAN - Model
28 inch
PUMP - Model
Jacto JP-75 Piston pump
Pump Capacity
20 gpm
FILTER - Model
FVS 100
TANK - Capacity
265 gallons
Ground Clearance
14 inches
Maximum Pressure
300 psi
OPTIONAL ITEMS
Electric control
WEIGHT- Empty Machine
A1000-725 1,234 lbs / 1,270 lbs Tower
a 1000/825
Mesh
60 mesh
Power
22 hp
Width
56 inches
Height
65 inches
Length
155 inches
Rotation
1,700 rpm
Agitator
Multi blade mechanical with bypass
Air Speed
59 mph
Material
Fiberglass
Air Volume
23,280 cfm
Track Width
45 inches
FAN - Model
33 inch
Pump Capacity
20 gpm
Ground Clearance
14 inches
Maximum Pressure
300 psi
FILTER - Model
FVS 100
TANK - Capacity
265 gallons
CHEMICAL PUMP - Model
Jacto JP 75 Piston Pump
WEIGHT - Empty Machine
1560 lbs
