ID # 24554399

Jacto - A 500

  • Jacto A 500
  • Jacto A 500
  • Jacto A 500
  • Jacto A 500
  • Jacto A 500
  • Jacto A 500
  • Jacto A 500
  • Jacto A 500
  • Jacto A 500
  • Jacto A 500
  • Jacto A 500
  • Jacto A 500
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

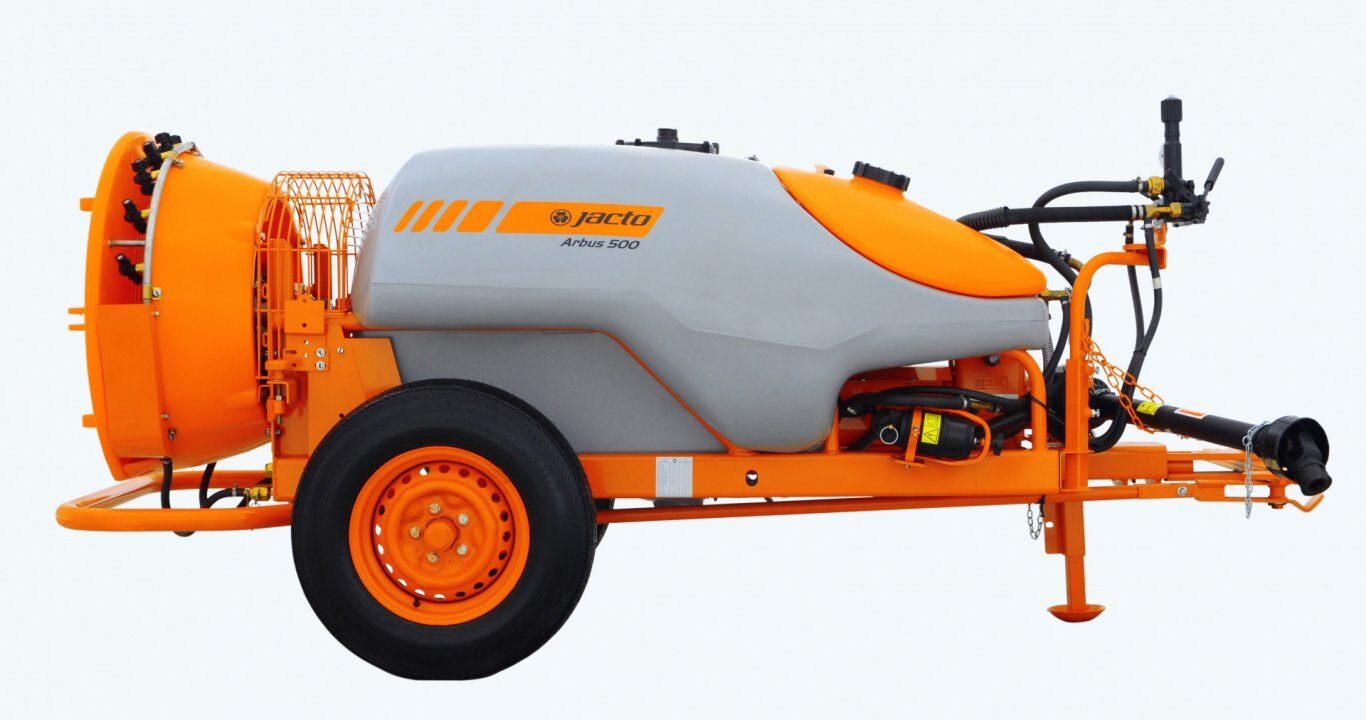

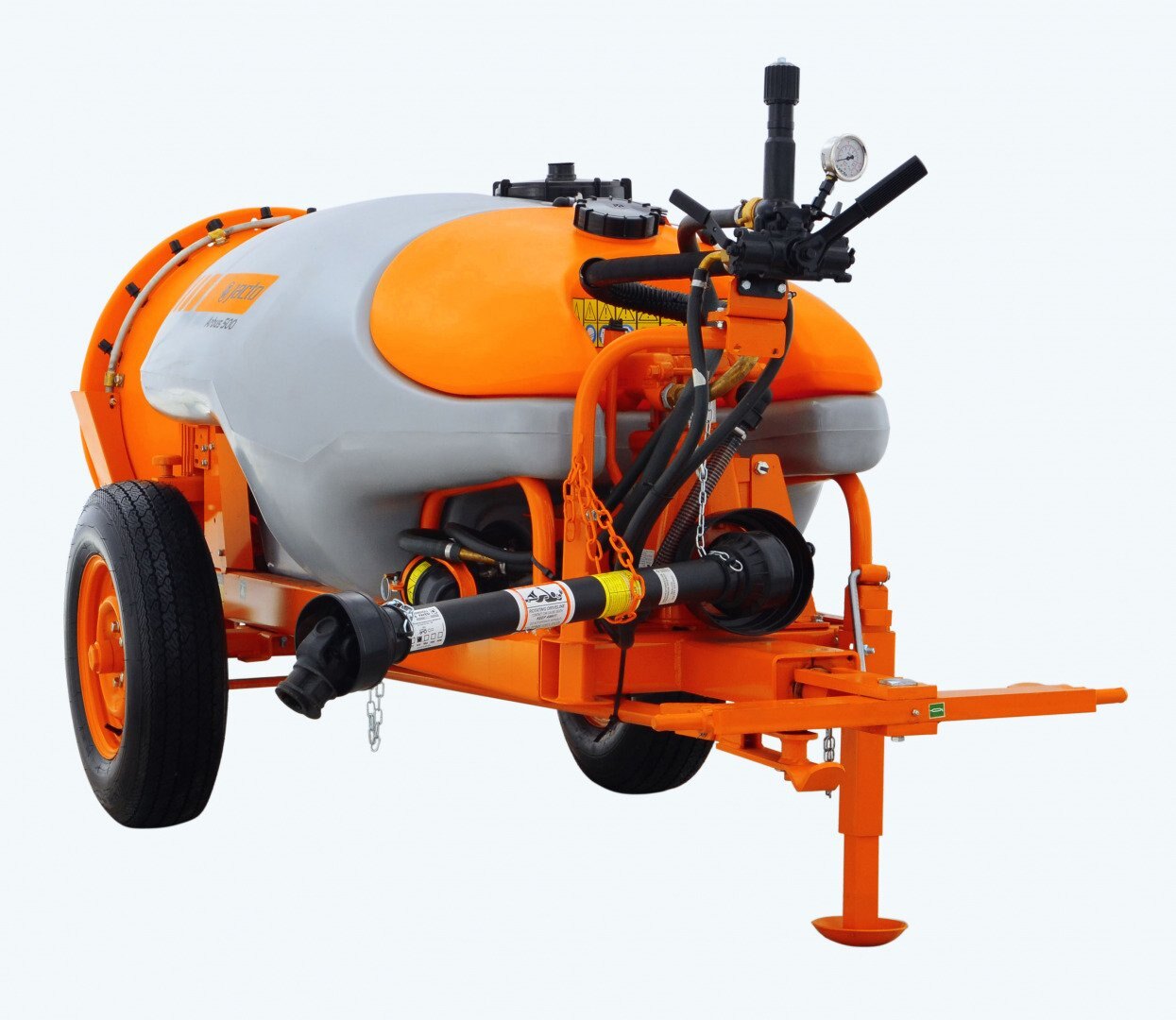

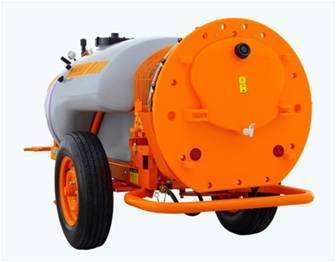

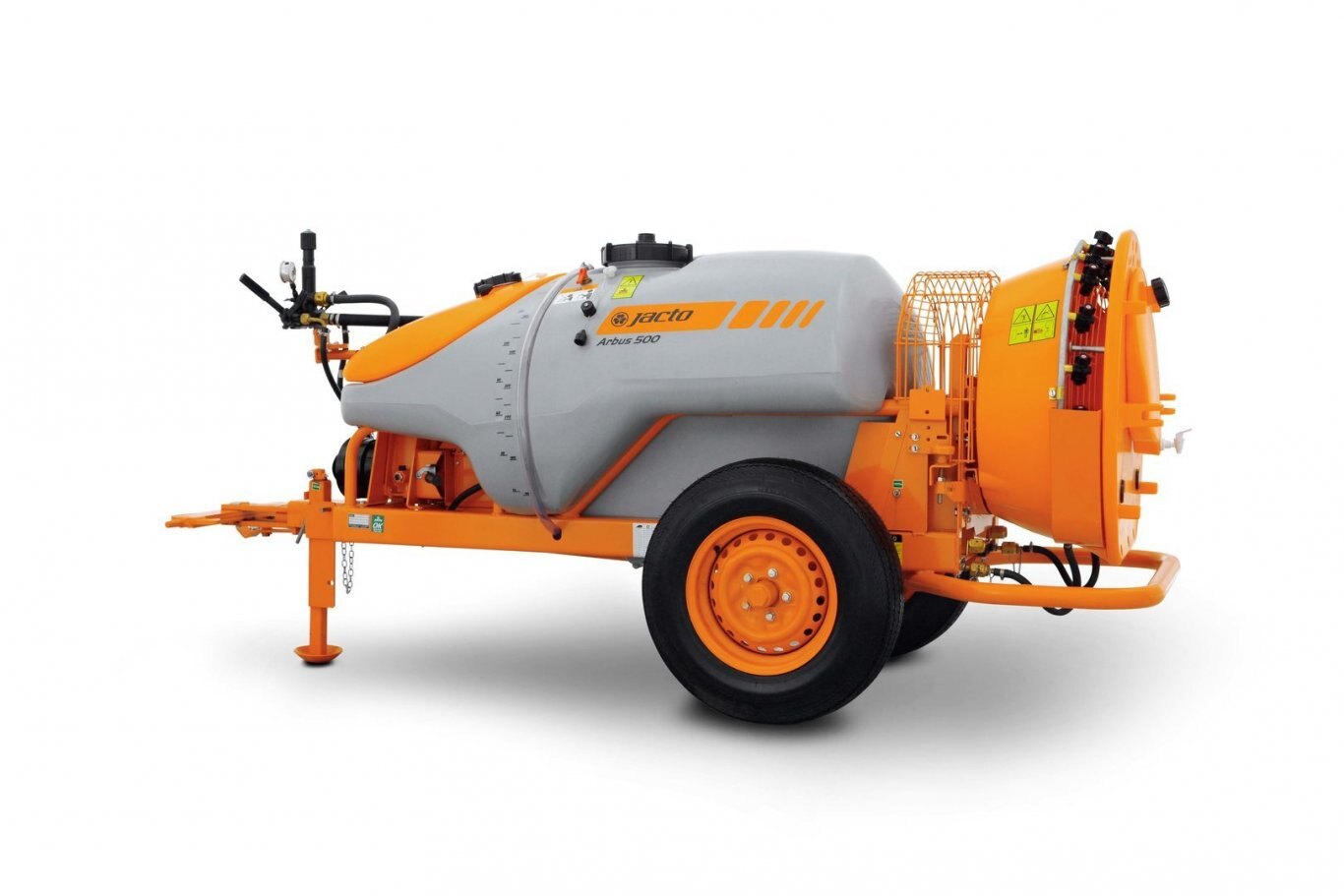

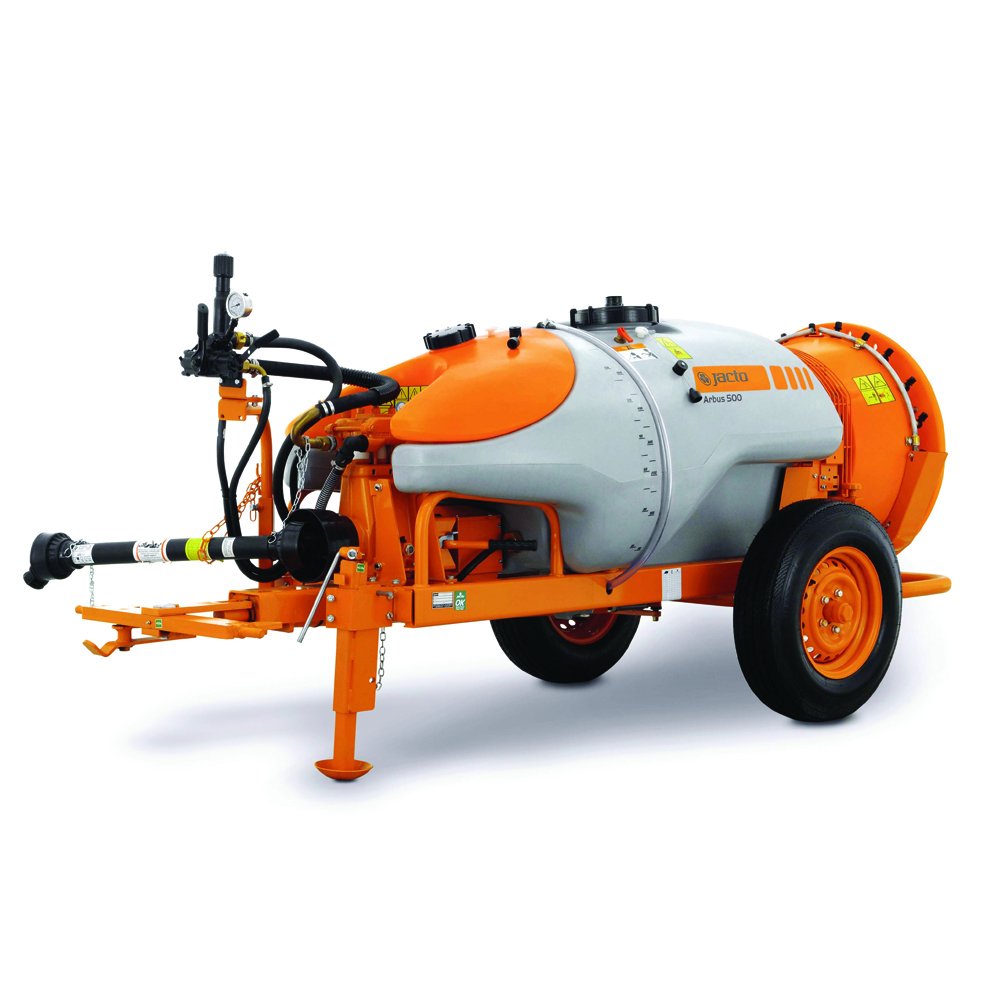

Jacto A 500Jacto's Arbus 500 airblast sprayer is designed to economically meet the demands of specialty crop applications such as grapes, caneberries, blueberries, fruit orchards, nut growers, nursery and Christmas trees. Specialty crop farmers and commercial growers alike, will appreciate the unique features built into the Arbus 500 that ensure long life, excellent durability, and maximum crop protection. Designed for compact tractors as small as 20 HP that are working in tight crop areas and available in two configurations... the A500N or the A500T. Both models feature a high density poly tank, stainless nozzle branches, ceramic nozzles, Jacto high pressure piston pump, fresh water chemical circuit rinse tank, hand wash tank, cable controls and plumbed for optional hand spray guns. Hand gun fitting sold separately. The A500N is only 43" wide and perfect for narrow row crops and features a standard clevis hitch and fixed axle. The A500T is 49" wide and has a tracking axle with a "T" bar connection to the tractor lift arms that actuates a tie rod, that moves the axle and wheels of the sprayer whenever the tractor turns. This action allows the sprayer to follow the track of the tractor for very tight turns without damage to the PTO shaft. Both models can be fitted with our optional Minitower for vertical growing crops such as grapes, blueberries and trellised fruit trees. The Minitower moves the spray closer to the target area and is engineered to give even airflow and improved deposition all along the vertical surface. For growers with cab tractors our optional electric valve kit with in cab controls eliminates the cable controls or the need to open the rear window to operate the sprayer.
Specifications
Model
A 500
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Jacto
resources
Brochure                                 Download
Operators Manual                     Download
Illustrated Parts List - A500N     Download
Illustrated Parts List - A500T      Download



features

Jacto A 500 Features for A500N and A500T

• 150 gallon poly tank, trailer mounted •Chemical container rinse system

• 13 gallon chemical circuit rinse system

• 4 gallon fresh water hand wash/eye wash tank •External dump valve for quick empting of main tank

• 22 inch diameter axial fan

• Hydraulic agitation with venturi •Jacto JP50 ceramic cylinder piston pump – 13 gpm, @ up to 300 psi •VAR pressure control valve •Suction filter with shutoff and washable 60 mesh element

• Remote cable controls standard

• Plumbed for optional hand spray guns

•Fan disconnect, important for agitation when travelling to spray site or hand gun use

• 16 double flip-over nozzle holders with ceramic insert nozzles and filters

• Empty weight – A500N - 728 lbs, A500T - 760 lbs •Recommended tractor – 20 HP and above •Optional electric valve kit #ELKIT2A •Optional Minitower #1197701

• optional handgun fitting #086447 + #706792 o-ring

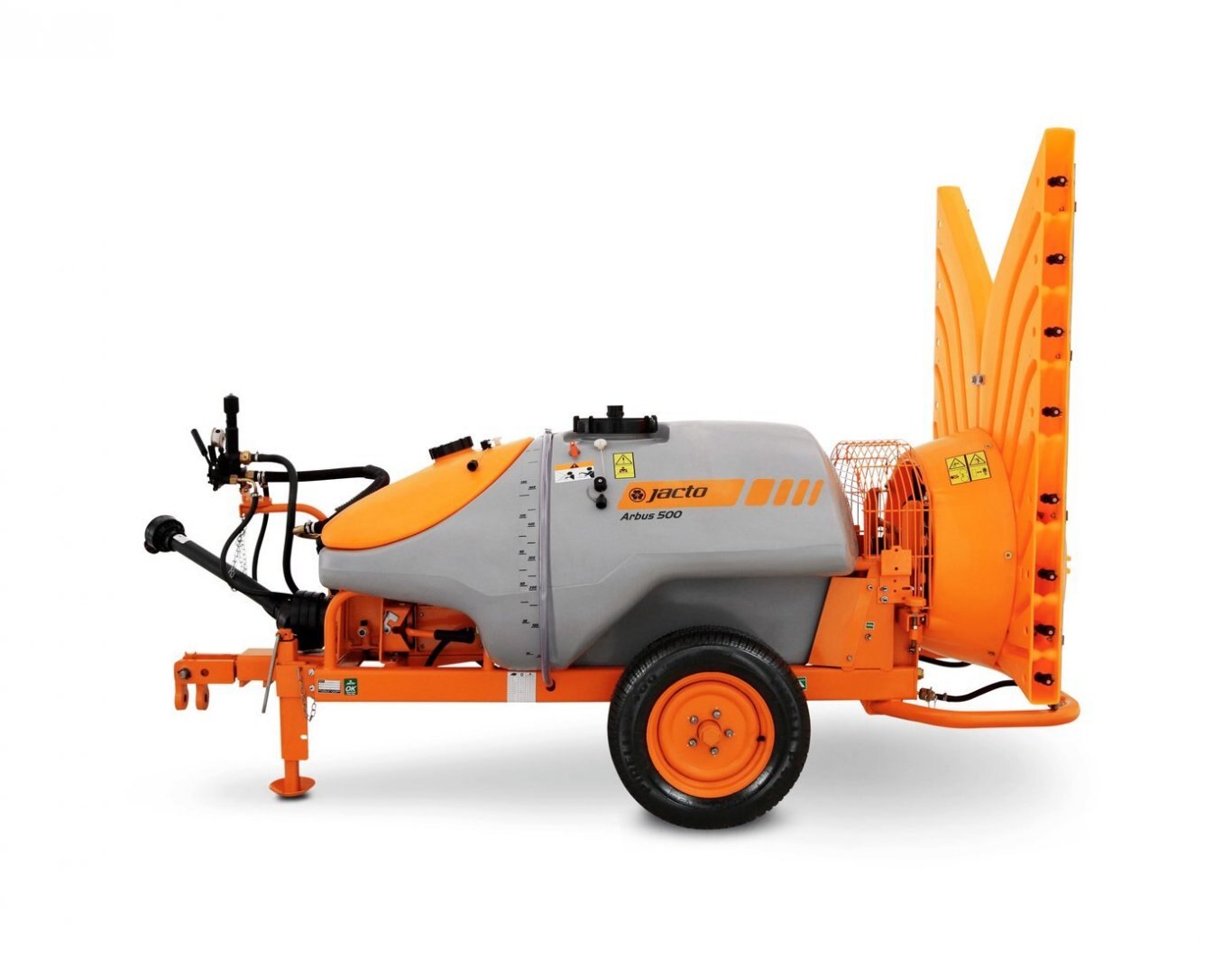

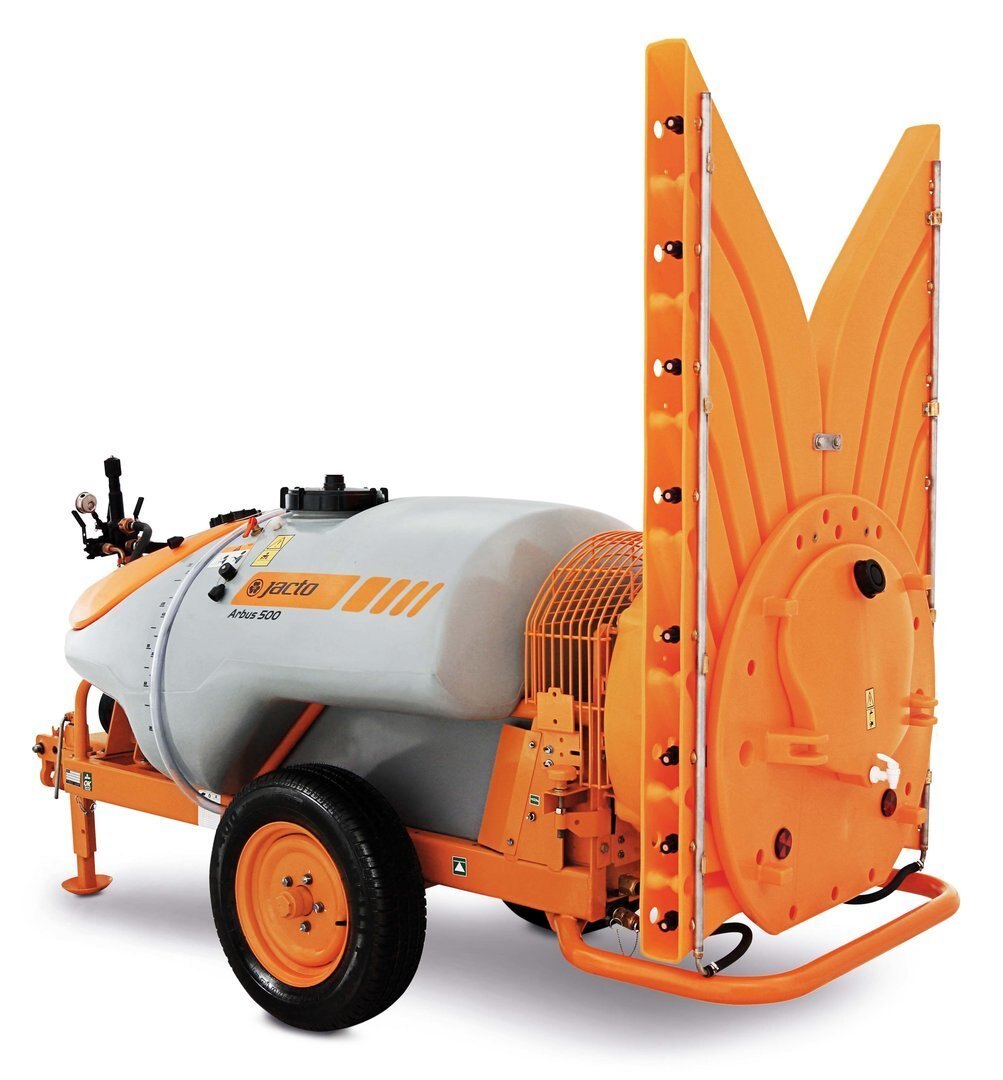

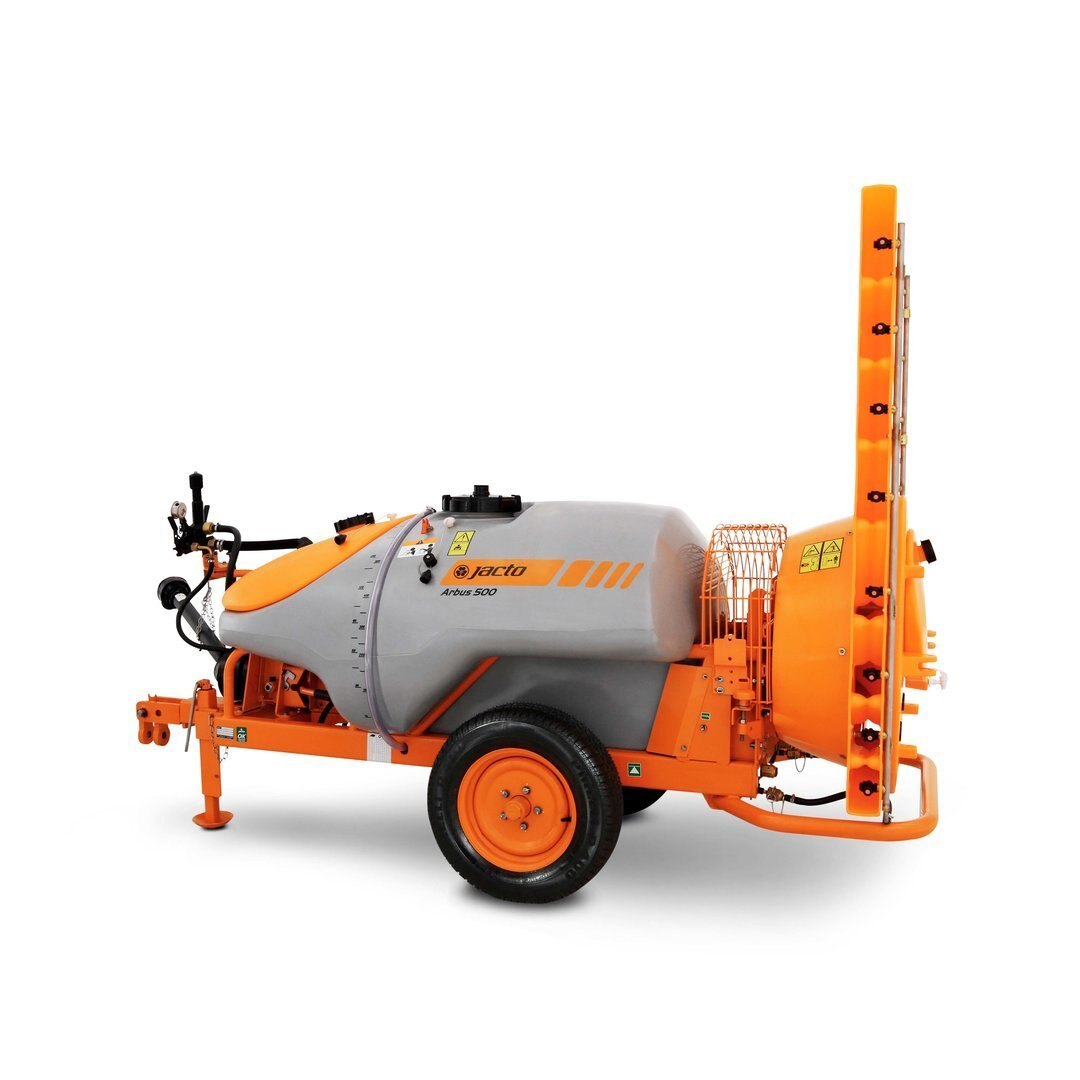

Jacto A 500 ARBUS 500 "N" or "T" with optional TOWER

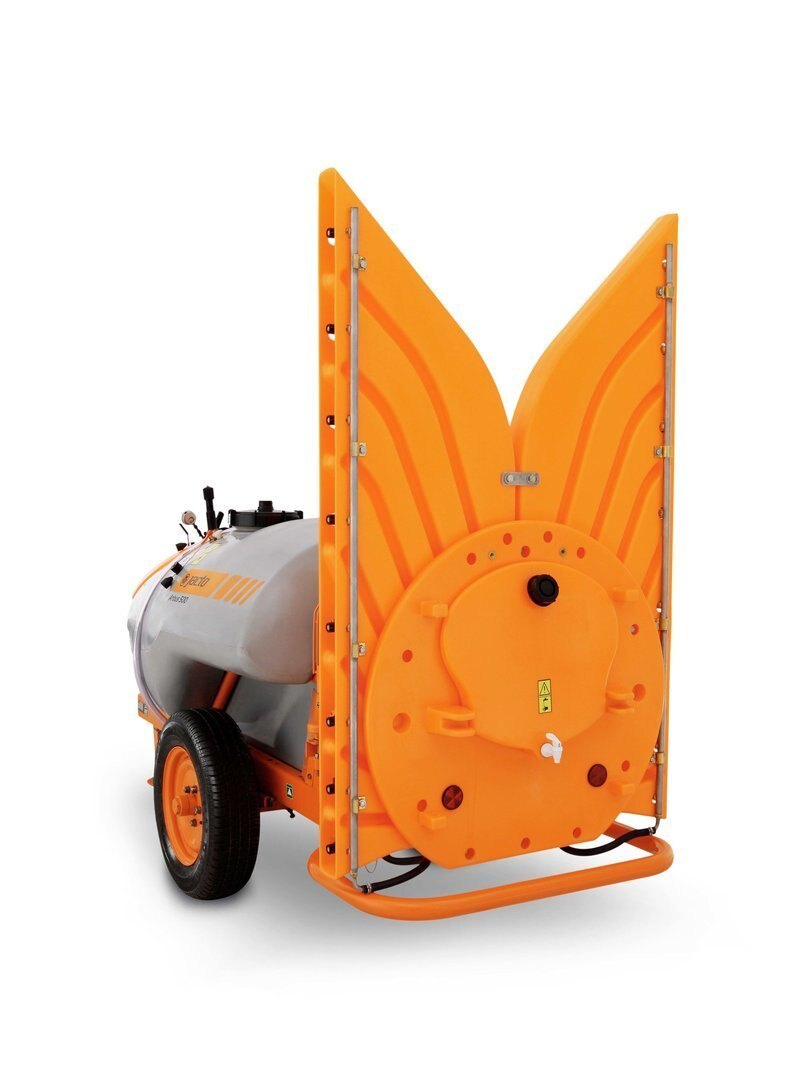

The optional Minitower can be added when the sprayer is new or to any existing A500 already in operation. The tower is designed to easily fit over each half of the fan housing and changes the output of the fan from a circular pattern to an even vertical fan pattern. The spray output is now closer to the plant canopy and provides better penetration, crop protection and reduced drift.
arbus 500
RPM
2
Mesh
60
Height
46 Inches
Length
111 Inches
Agitator
Hydraulic With Venturi
Area Size
Up to 500 ha / Over 500 ha
Crop
Fruits
Material
Polyethylene
Air Speed
48 mph
Air Volume
11,536 cfm
Track Width
49 Inches
Maximum Width
A500N 43 Inches, A500T 49 inches
Consumed Power
4.6HP
FAN - Model
22 Inches
Ground Clearance
9.6 Inches
Maximum Pressure
300 psi
Pumping Capacity
13 gpm
TANK - Capacity
150 Gallons
FILTER - Model
FVS 100
SPRAY PUMP - Model
Jacto JP-50 piston pump
WEIGHT- Empty Machine
A500N 728 lbs, A500T 760 lbs
arbus 500 with minitower
Power
4.6 HP
Height
80 Inches
Width
A500N 43 Inches, A500T 49 inches
Length
111 Inches
Rotation
2,000 rpm
Air Speed
48 mph
Air Volume
11,536 cfm
Track Width
A500N 41 inches, A500T 47 inches
FAN - Model
22 inches
Ground Clearance
9.5 Inches
WEIGHT - Empty Machine
A500N 765 lbs, A500T 793 Lbs
