Jacto

ID # 24554392

Jacto - A 400/850 VDC

Call for Price
Overview
Versatile and Economical.

Efficient Coverage

Arbus 400 meets the best application efficiency in various crops and planting management.

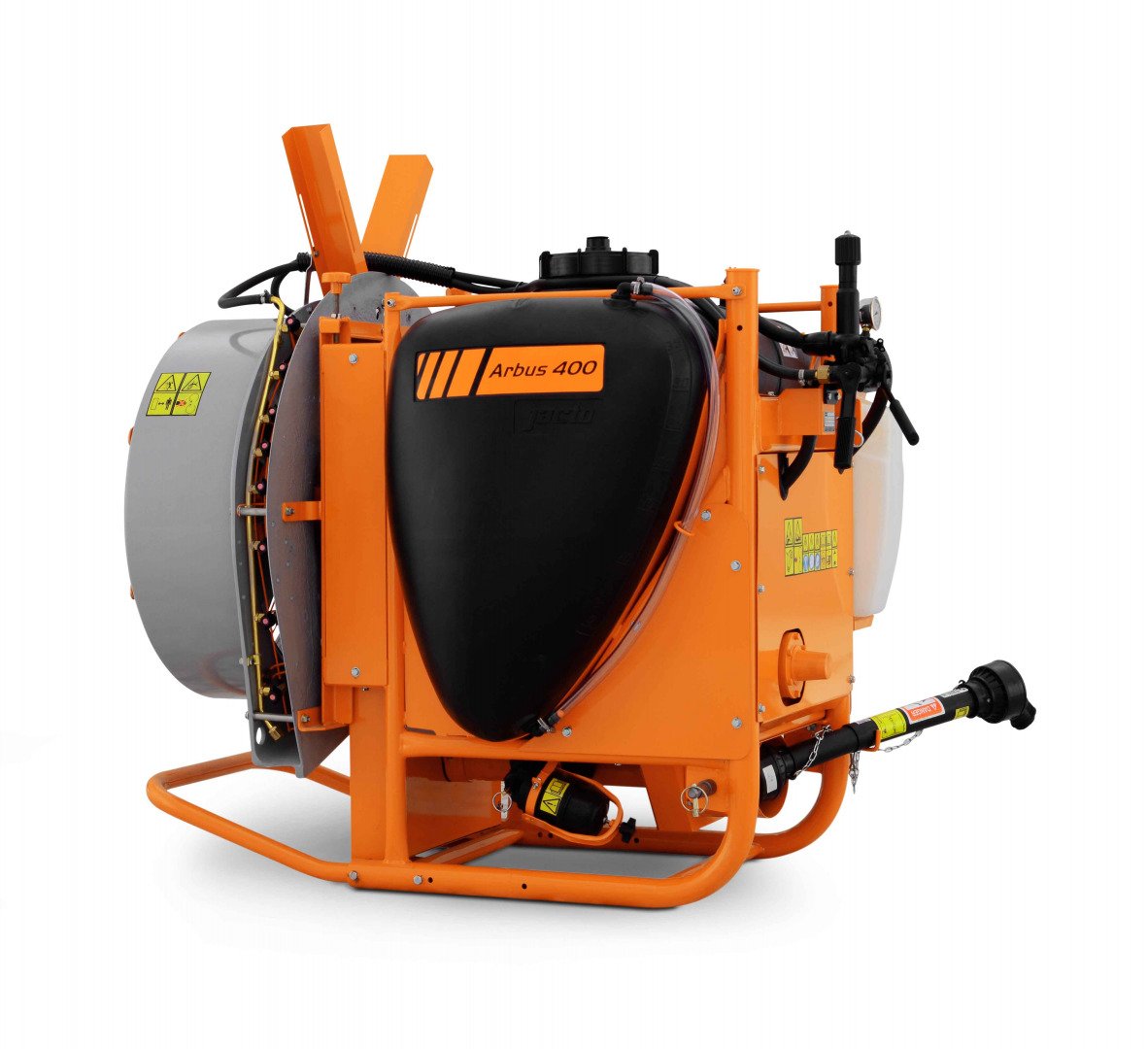

Jacto A 400/850 VDC Model That Meets Your Need

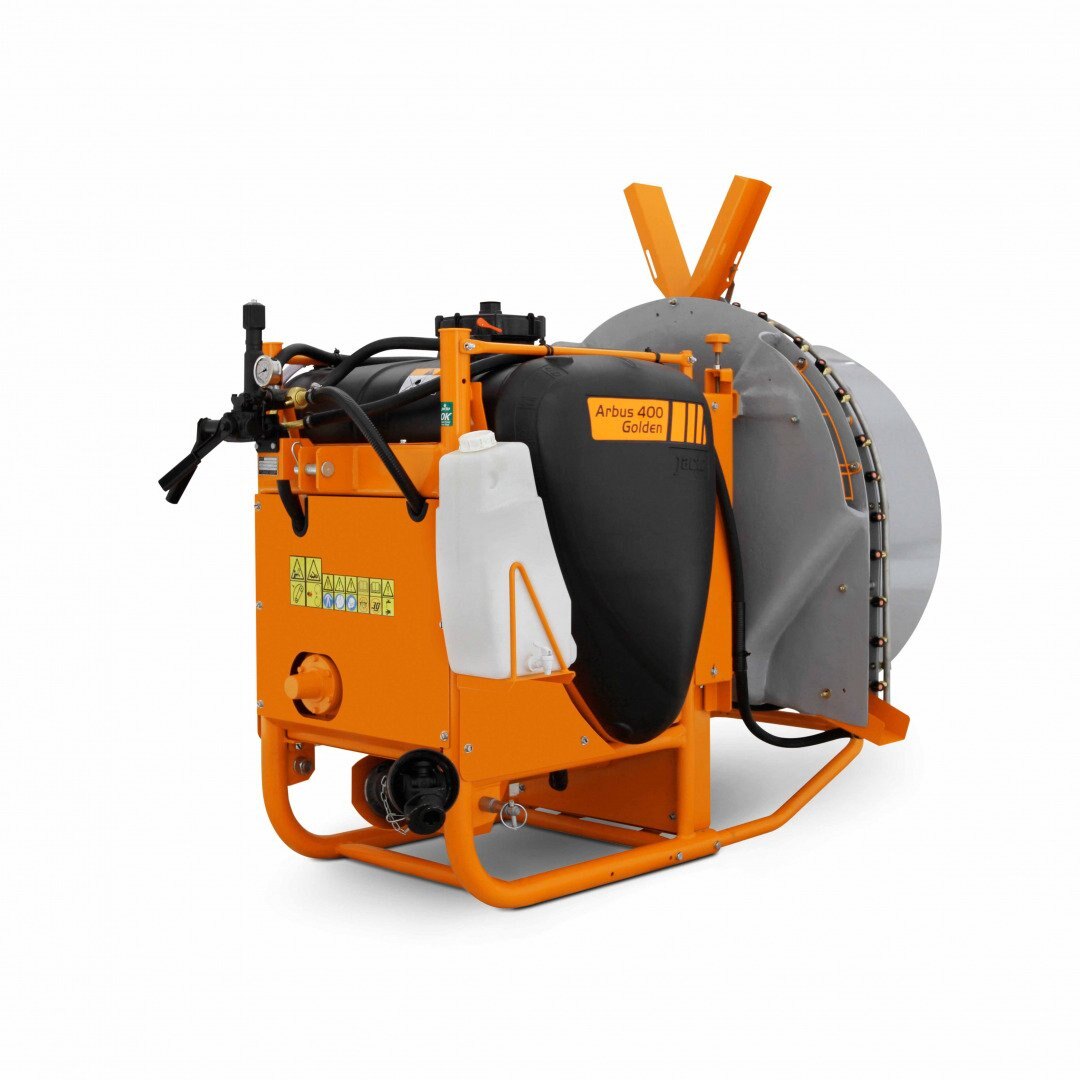

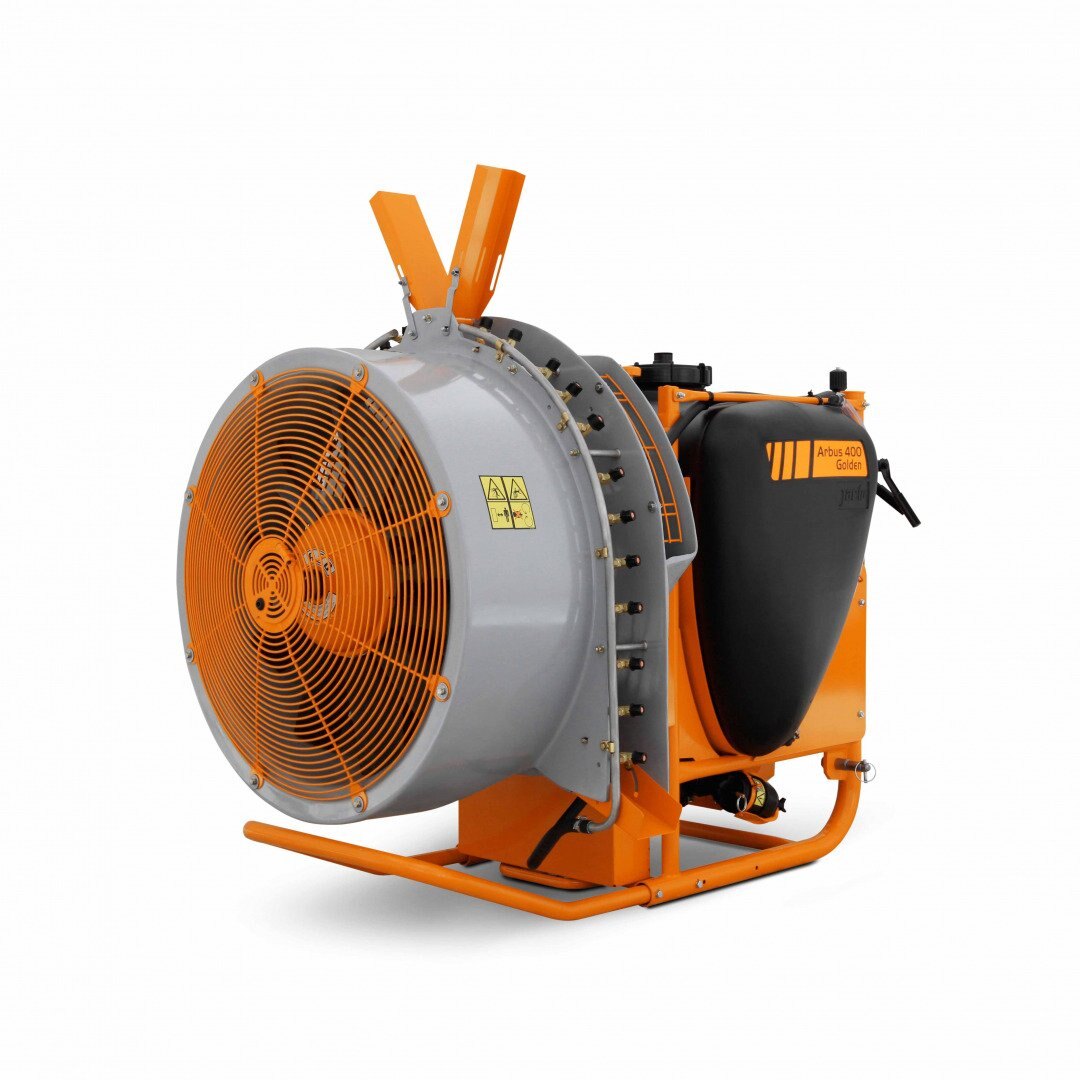

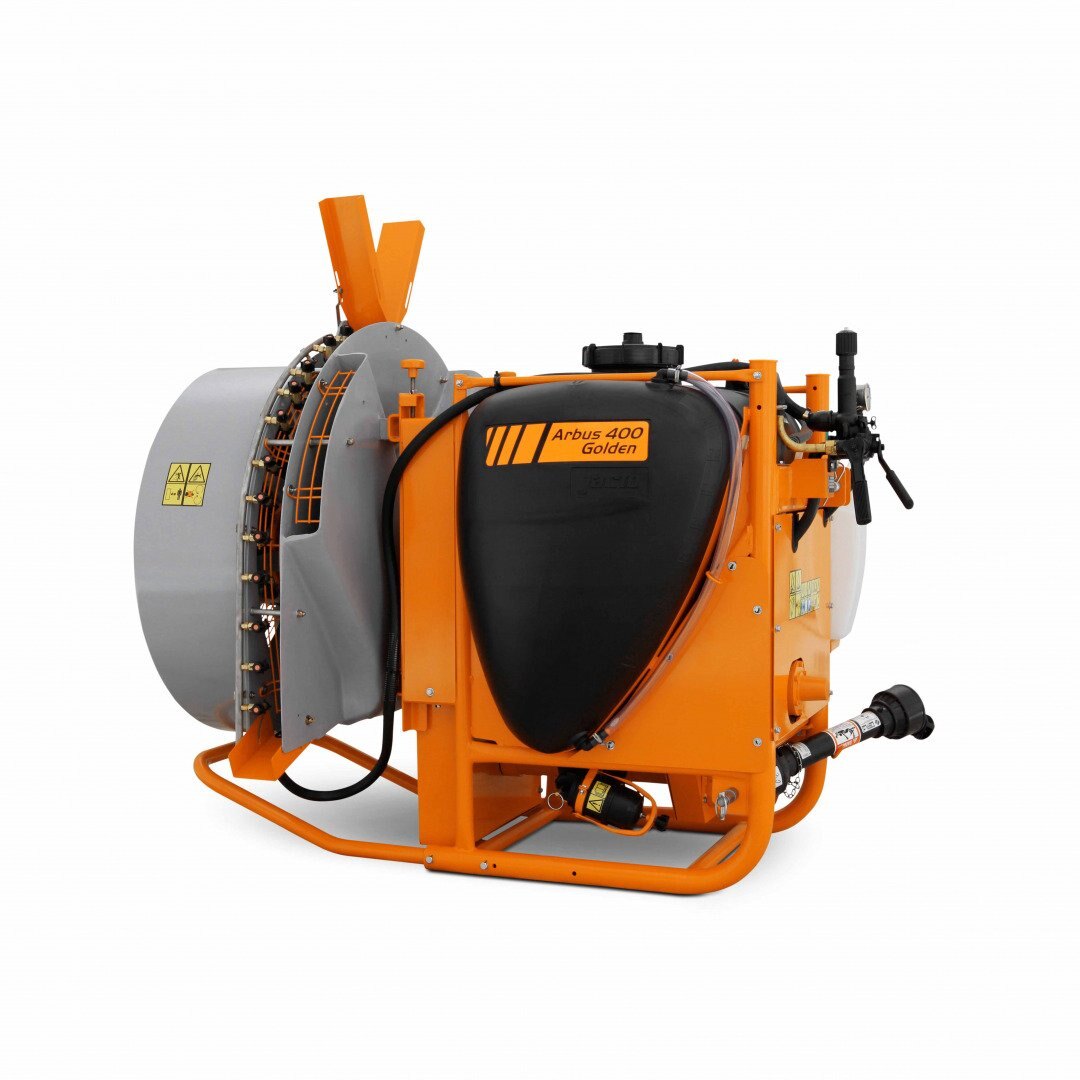

The A400-850 Golden utilizes our 33 inch two-port fan and is the perfect solution for hops, mature orchards, citrus or tall trees up to 25 feet in height and crops with very dense canopies.

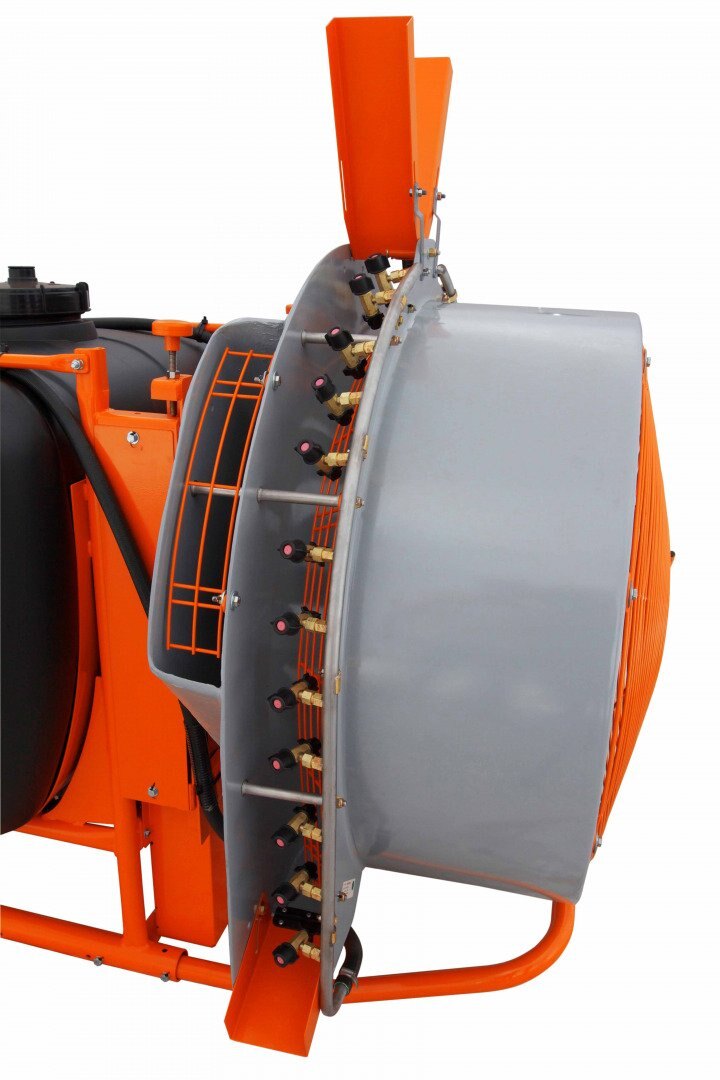

Jacto A 400/850 VDC Spraying Agility

The divergent distribution of air, together with the possibility of opening individual nozzle holders, makes the Arbus 400 a versatile equipment, capable of serving different types of crops with greater coverage efficiency.


Very versatile to perform more punctual applications.

Jacto A 400/850 VDC Resistant

The A400/850 VDC feature a chemical resistant poly tank, stainless steel nozzle branches, ceramic nozzles, a three-way control valve, pressure regulator, by-pass agitation with venturi and cable control. The A400 is the cost-effective choice for small to medium size farms.

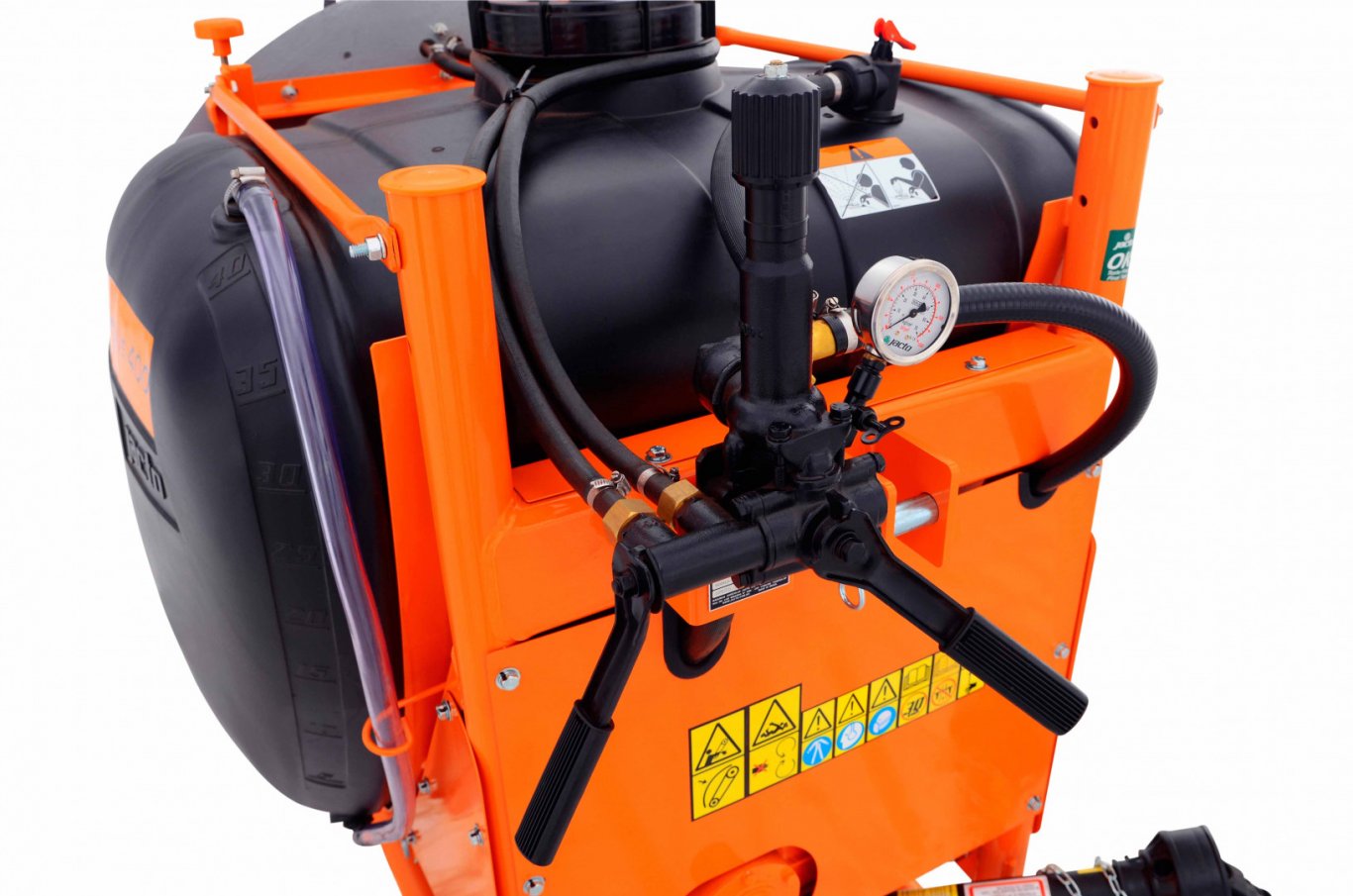

Jacto A 400/850 VDC Pressure in the Right Measure

Simple and durable, maintain the correct circuit pressure, ensuring the quality of the application.

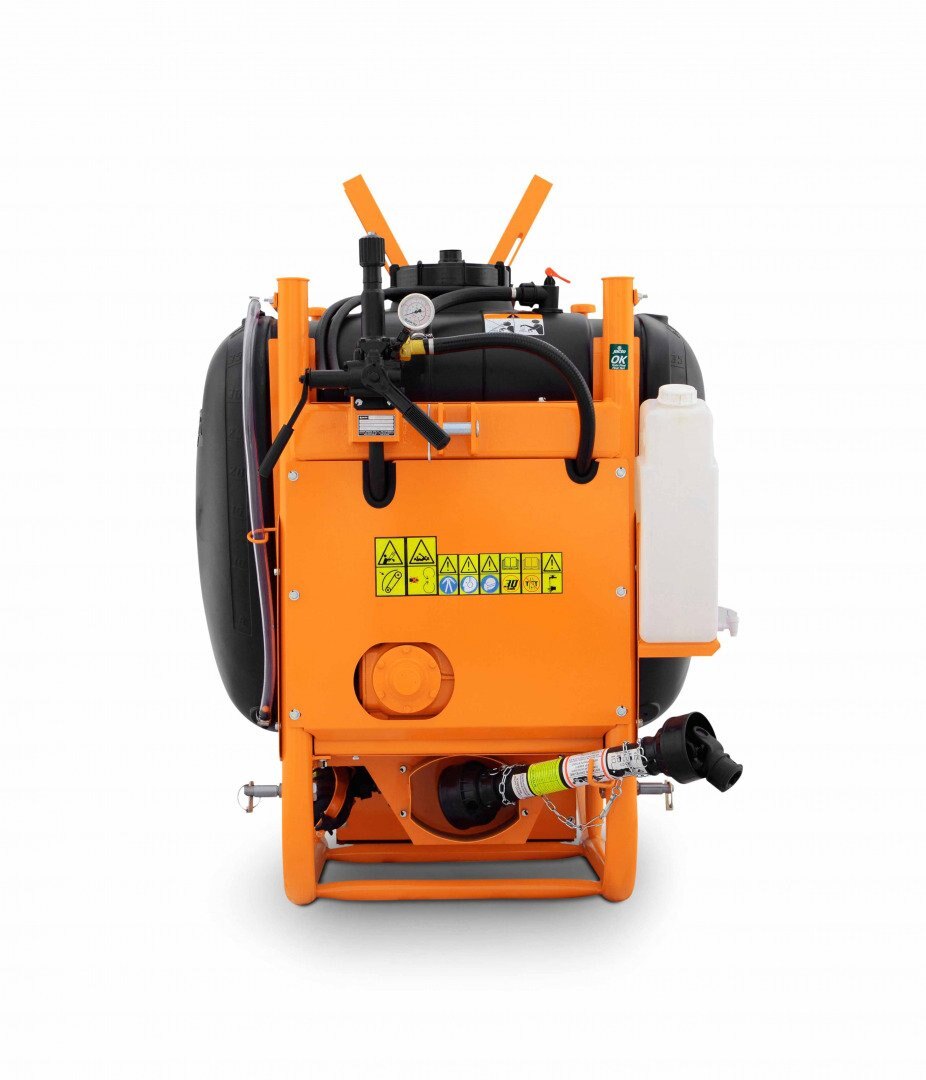

Manometer with extended color scale, facilitating pressure control.



Specifications
Model
A 400/850 VDC
Category Name
Agriculture
Year
2023
Sale Type
New
Manufacturer
Jacto
resources
Brochure                                 Download
Operators Manual                    Download



spraying
Crop Fruits Coffee
Area size Up to 1235 ac
Pump model JP-75 piston pump 20 GPM
Controls VAR manual cable controls standard

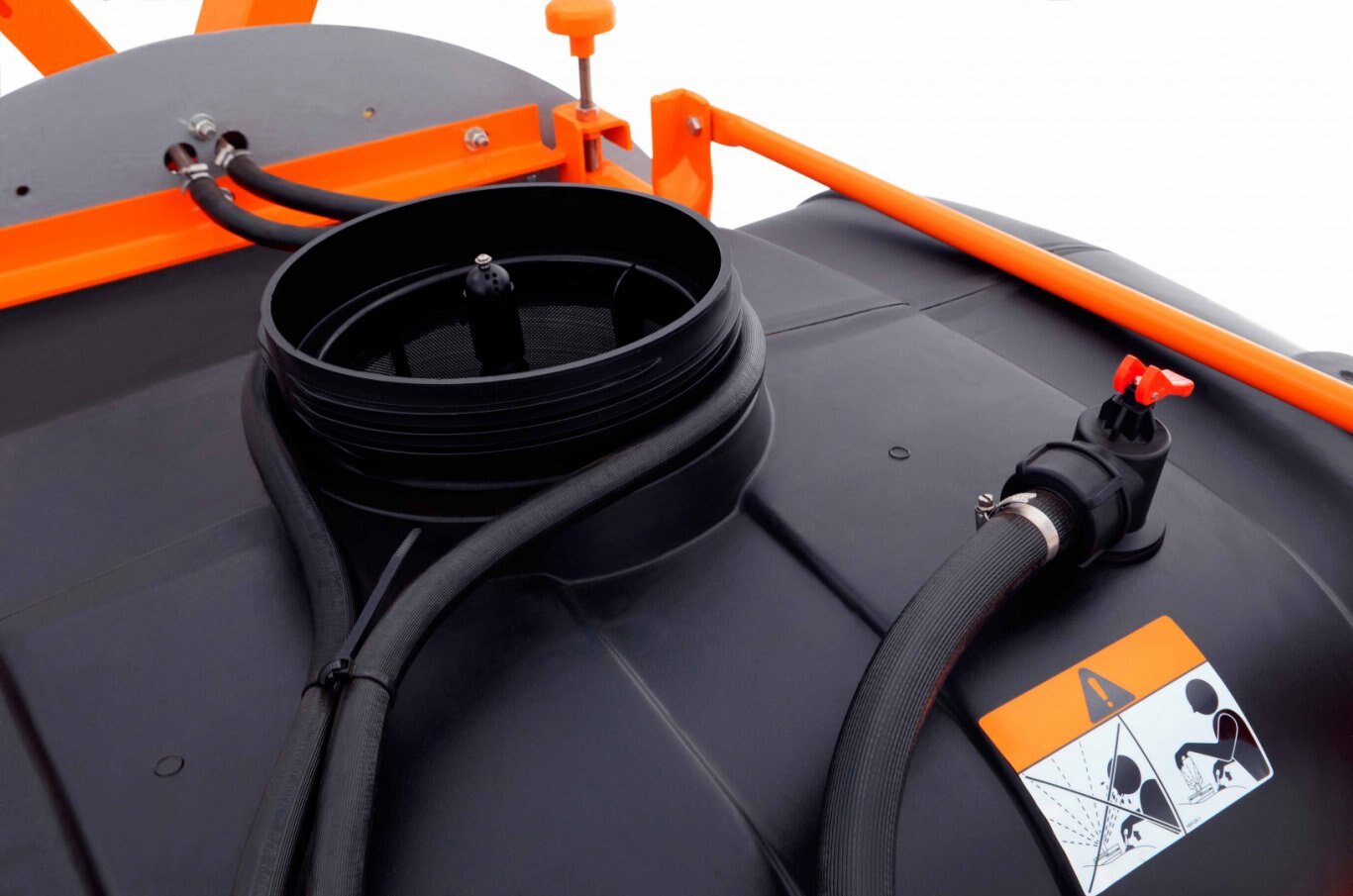

Tank capacity 105 Gallons high density poly

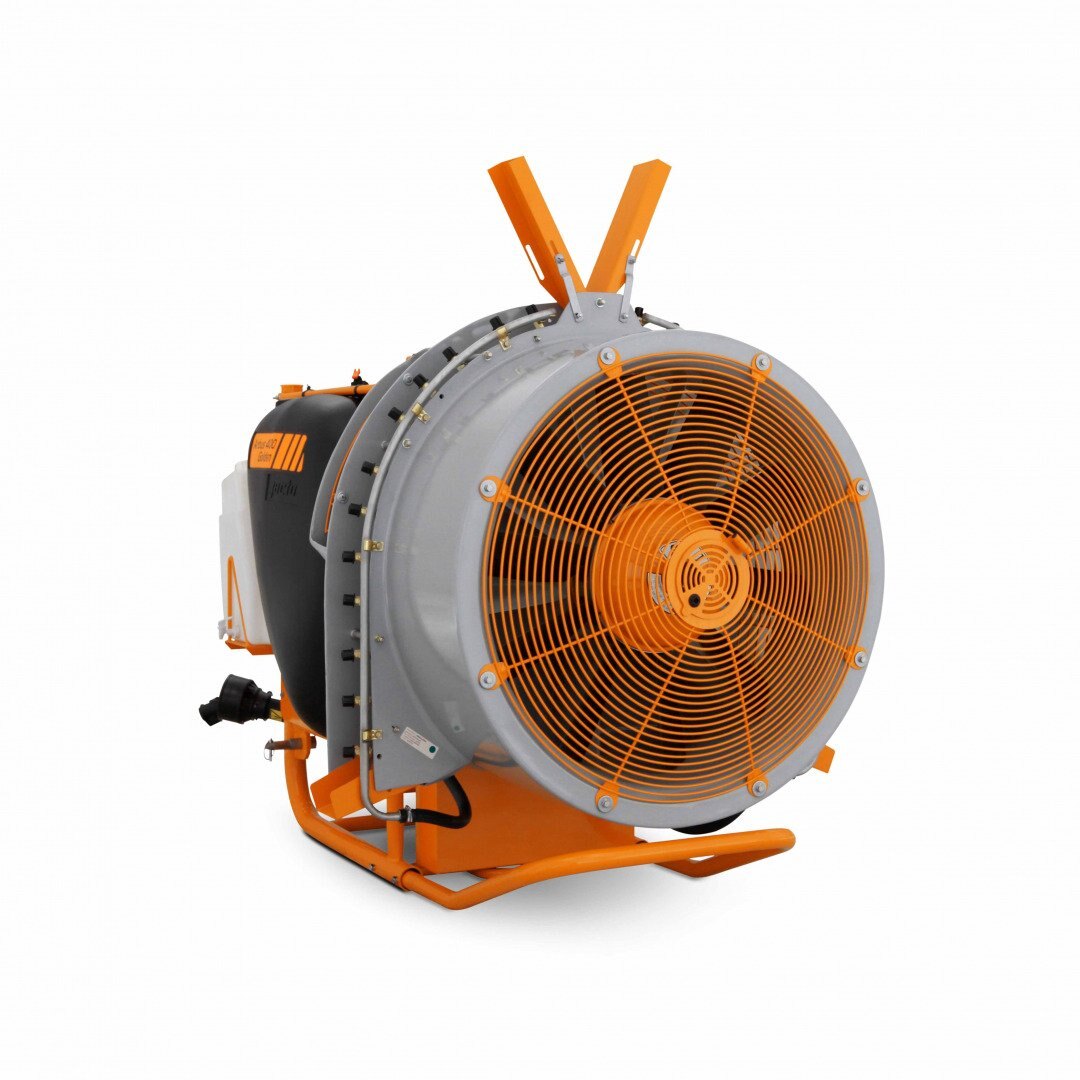

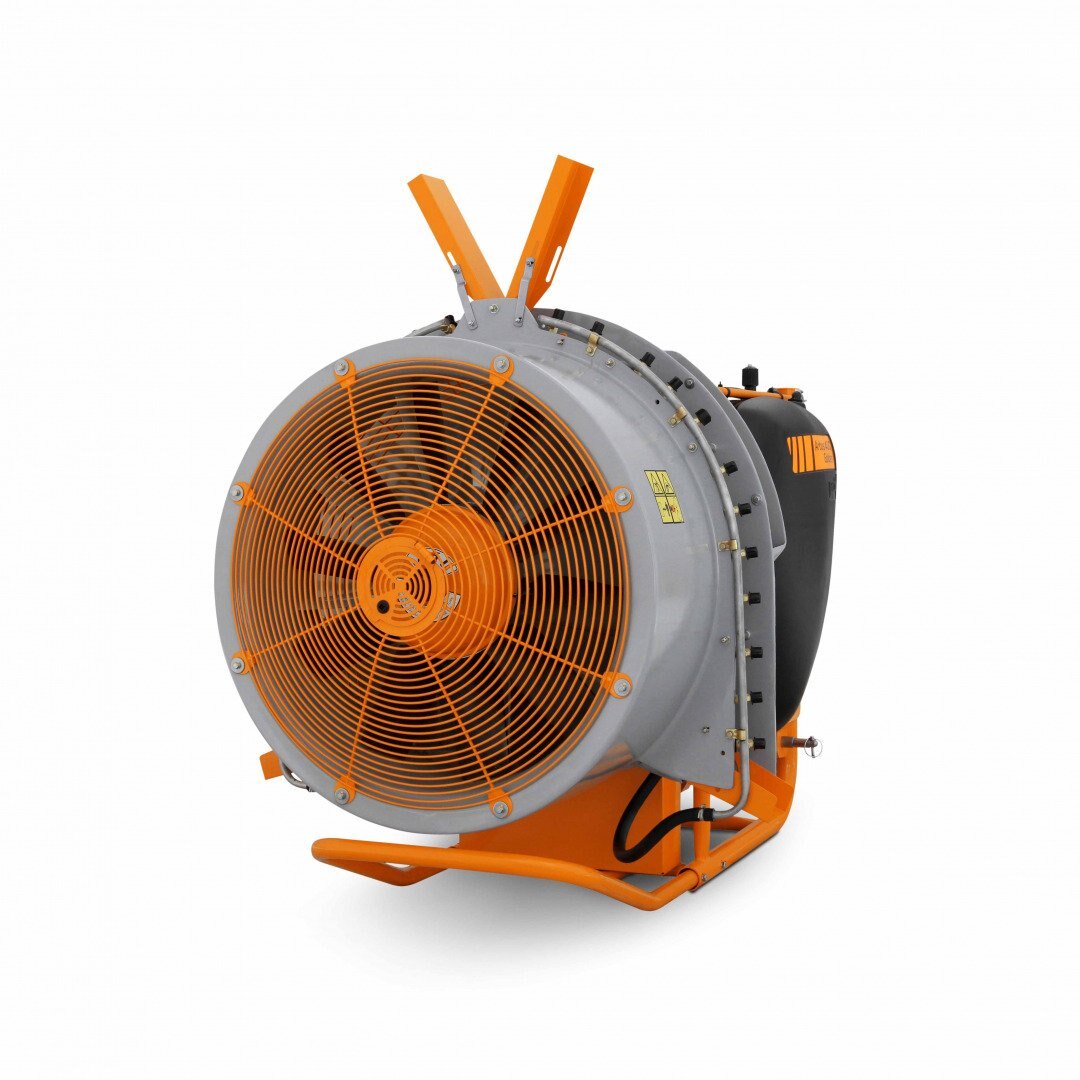

Fan diameter 33 Inches Fan performance
30,299 CFM @ 78 MPH
Agitation Bypass with venturi

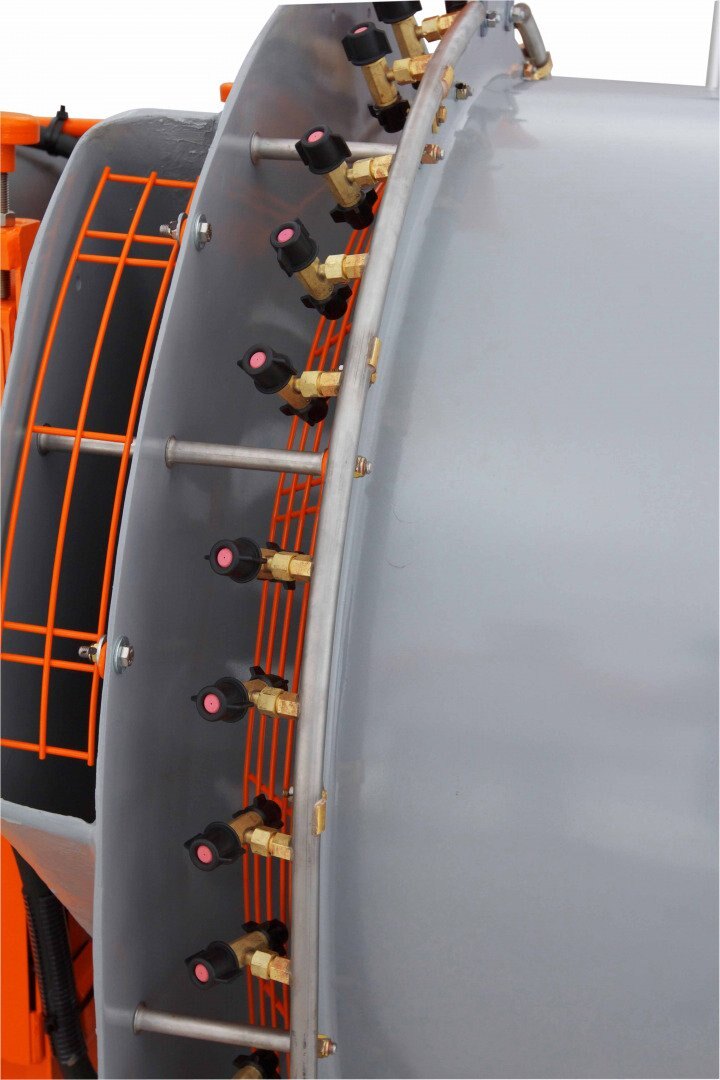

24 flip over nozzle holders 24 total nozzels
Nozzles installed 24 AD5/AC25
Suction filter FVS-100 with shut off valve (M-30)
Maximum row width 25 feet
Minimum row width 4 feet
Maximum crop height 25 feet
Minimum tractor engine HP 55 Clean water tank Spot spray compatible  Chemical container rinse
Options available Eletric in-cab controls  Deluxe spot spray gun Will not fit “850” models with 33-inch fans
